Launch X431 V+ HD3 Heavy Duty Truck Diagnostic Tool Supporting Wifi/Bluetooth

What is LAUNCH X431 V+ with HD III ?

Launch X-431 V+ HD3 is a modified version of the multi-brand scanner Launch X-431 Pro which, in its new edition, received a more powerful tablet and a diagnostic function for heavy duty vehicles. The device includes all the advantages of the Pro series and is presented with advanced diagnostic algorithms that allow you to quickly and deeply test the trucks. The complete set HD - is intended for trucks diagnostic.

X-431 V+ is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.

X-431 V+ and HD3 achieves full diesel truck model and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal.

What do you need LAUNCH X431 V+ with HD III ?

1. Multi-Language: English, German, French, Spanish, Italian, Chinese
2. Support One-Click Upgrade of Operating System, Client, Model Software and Firmware
3. Wide diagnostic software coverage. Accurate test data. Software based on Android, matching with more diagnostic hosts
4. Wireless Bluetooth Diagnosis: Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.
5. Support various vehicle models: 34 vehicle brands software, support more than 60 vehicle models. Moreover, the software is being continuously developed.
6. Industrial shockproof design: Industrial shockproof design is perfect for the working environment in repair shops.
7. Advanced Hardware: You are able to use the diagnostic tool about 4-6 hours continually, which are supported by the 700mAh battery; you can get the ability to see different data in wave like form displayed on the screen at the same time because of the equipped 10.1-in supper touch screen; you can also find the malfunctioned parts directly and solve problems quickly by using this diagnostic tool with a advanced Android5.1 system.
8. Full comprehensive diagnostic software functions.
9. A set of Launch x431 V+ plus the diagnostic module of trucks Launch HD Box 3.0, it turns out cheaper than buying everything separately.

Note:
1). The HD module must work on any of the x431 v plus or pro3 or pad ii account which old customer have purchased before and have been activated by LAUNCH already.
If you donot have the x431 v plus or pro3 or pad ii account, this HD module alone cannot be activated and the diagnostic software cannot be downloaded from LAUNCH official website.

2).This is only for 12V to 24V diesel truck only. If you need to diagnose both gasoline and diesel vehicles, please check  LAUNCH X431 V+ with HD III for Cars & Trucks here.

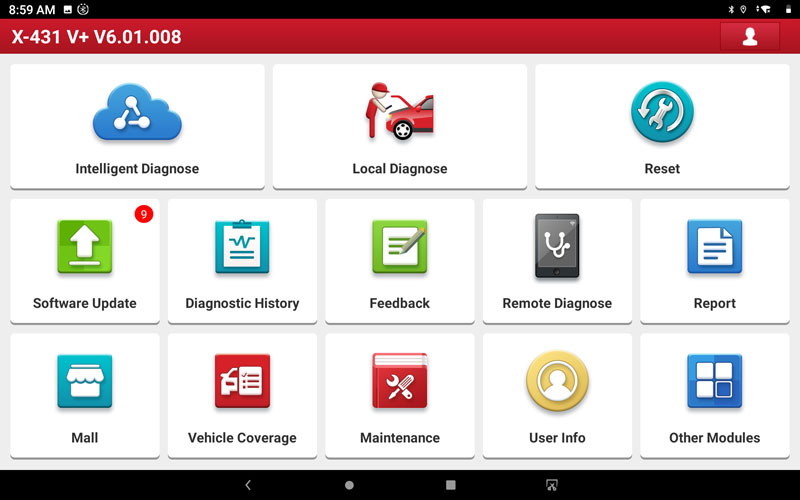

X431 V+ Features:

Intelligent diagnosis: In the state of networking, it can automatically identify vehicle information and complete rapid diagnosis. It can also check the history record of vehicle maintenance online, which is the first in the industry;

Remote diagnosis: The self-developed and patented IM remote diagnosis technology can be quickly accessed remotely through terminals such as mobile phones, tablets, computers, etc., and the network broadband and system resources occupation rate is low;

Diagnostic feedback: In the process of using the vehicle and function abnormalities under special circumstances, you can feedback the problem to Yuanzheng Company, and there will be special technicians to track and handle it;

Maintenance information: More than 1600 models, more than 10,000 GB of maintenance database, including online video, circuit diagram, maintenance manual, maintenance cases, operation skills, etc., online inquiry at any time, can also provide detailed fault code help, improve diagnostic efficiency;

Traditional diagnosis: When in a network-free environment, intelligent diagnosis cannot be used. At this time, traditional diagnosis can be selected, and the vehicle and vehicle models can be manually selected for vehicle fault detection.

Diagnostic record: record the local vehicle maintenance record, you can check the vehicle record that the machine has diagnosed, and you can quickly enter the system of the vehicle for detection when it is diagnosed again;

Personal Center: Personal data center, including my report, my connector, diagnostic connector connection management, connector activation, firmware repair, personal information, modify user password, settings, etc.

X-431 V+ Commercial Vehicle Diagnostic Equipment

Diagnostic system

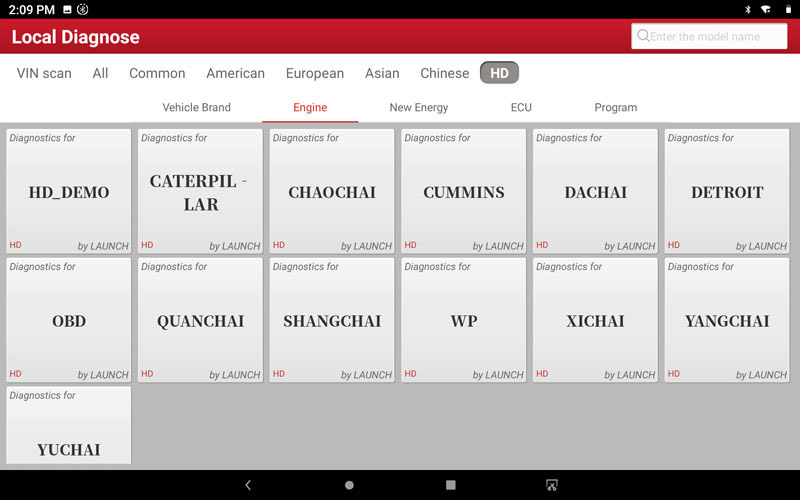

Engine diagnosis: support Chaochai, Dachai, Laiyang Power, Quanchai, Shangchai, Weichai, Xichai, Yangchai, Yuchai, Yunnei Power, Cummins, Xinchen Power, Chaochai Xinfeng, Great Wall Xinfeng, Doosan, Huayuan Lai, Platinum, Isuzu and other engine systems;

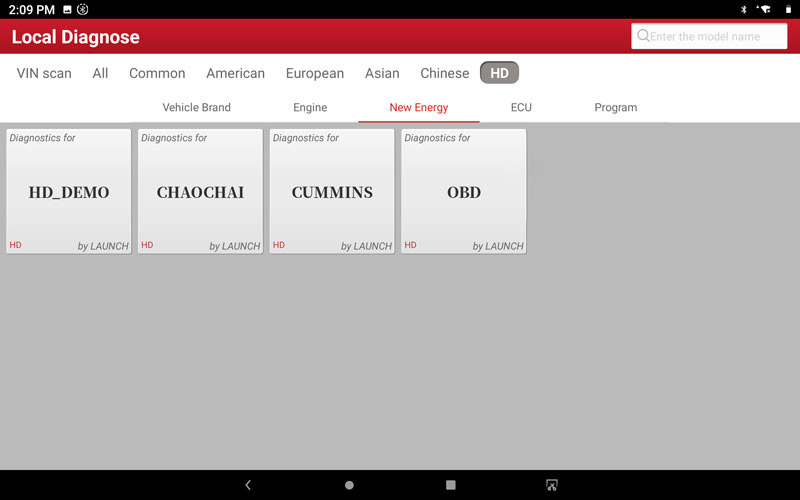

Natural gas diagnosis: support Cummins natural gas, Nanchong natural gas, Shangchai natural gas, Weichai natural gas, Xichai natural gas, Iveco natural gas, Yuchai natural gas, heavy gas natural gas, Chaochai natural gas, Yunzhong natural gas system, etc.;

Post-processing diagnosis: support Guangxi Sanli tail gas post-treatment, Tenneco post-treatment, Kailong post-treatment, Tianlan DCU, Bosch post-processing system diagnosis, etc.

Calibration function: support Chaochai calibration, Dongfeng Renault calibration, Cummins calibration, Shangchai calibration, Weichai calibration, Xichai calibration, Yuchai calibration, heavy truck calibration, Yangchai calibration, etc.;

ECU brush writing: support Bosch ECU brush writing, Nanyue single pump ECU brush writing, Bosch bottom layer brush writing, natural gas ECU brush writing, electric ECU brush writing, Delphi ECU brush writing, China National Heavy Duty Truck ECU brush writing, Tenneco DCU Wait;

ABS system: WABCO ABS, Delphi ABS, Knorr ABS, Bosch ABS, Komi ABS, Localized ABS (liberation), Wanan ABS, SABS, Asia Pacific ABS, Hongding ABS, Wanan ABS (liberation), Yuan Feng Qingqi ABS, Wanan Qingqi ABS, Ford ABS, Wandu ABS, Jingxi Heavy Industry ABS, etc.

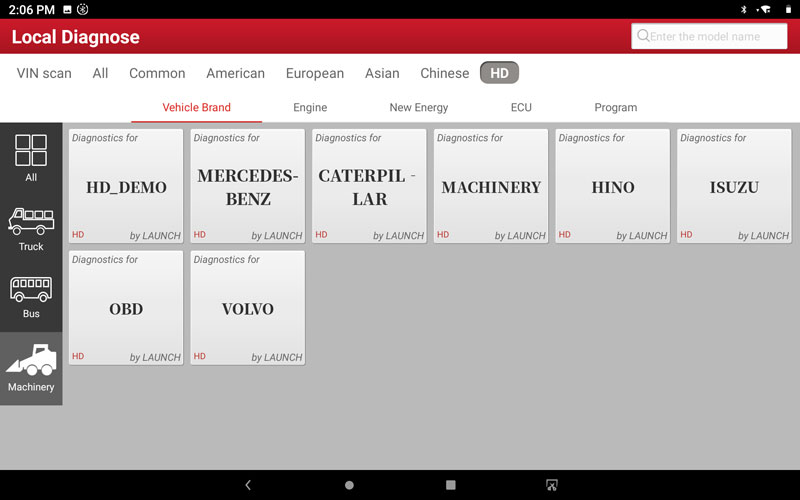

Construction Machinery: Supports dozens of engineering machinery vehicle system diagnostics.

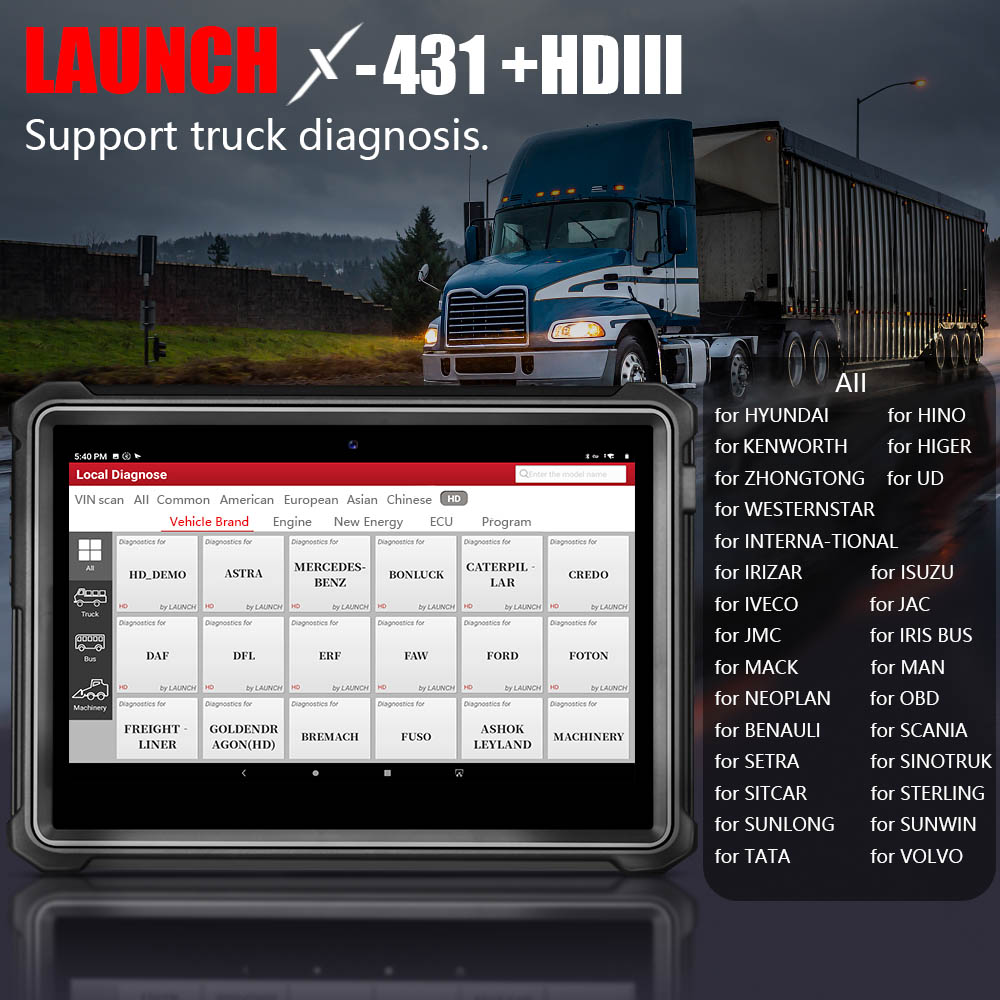

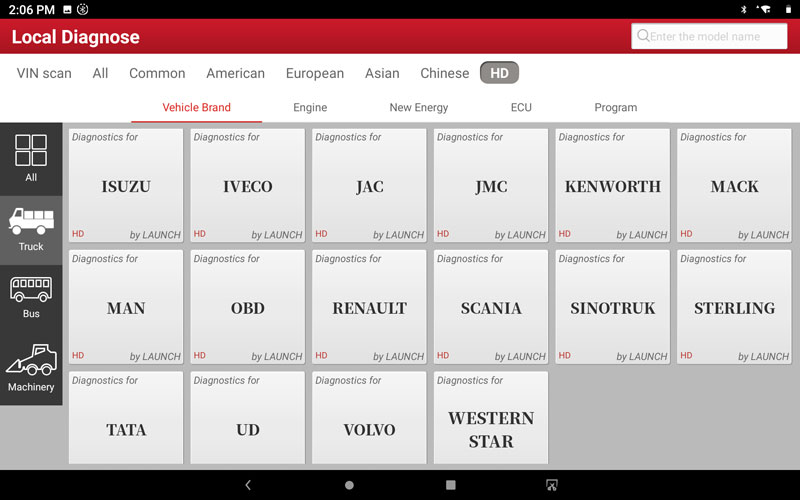

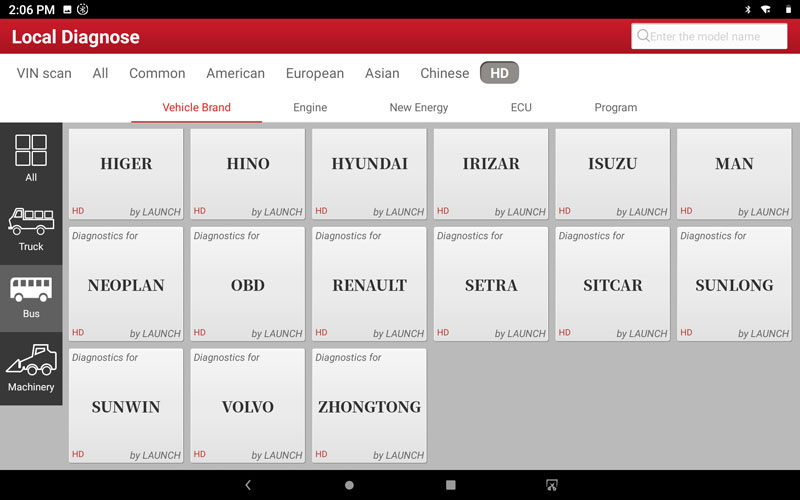

Wide Truck Vehicles Supported:

China: Dongfeng Commercial Vehicle, FAW Jiefang, China National Heavy Duty Truck, Futian Commercial Vehicle, Shaanxi Heavy Duty Truck, Jianghuai Commercial Vehicle, Hongyan Heavy Duty Truck, Beiben Heavy Duty Truck, Jinlong Bus, Xiamen Golden Passenger Car, Haige Bus, Wuzhou Dragon Bus , Yutong Bus, etc.;

Asia: Hino, Fuso, Isuzu, UD Truck, Hyundai Truck, Ashok Leyland, etc.;

Americas: Freightliner, IWC, Kenworth, Peterbilt, Sterling, etc.;

Europe: Mercedes-Benz commercial vehicles, Mann, Iveco, Volvo, Renault, Duff, Scania, Kamas and so on.

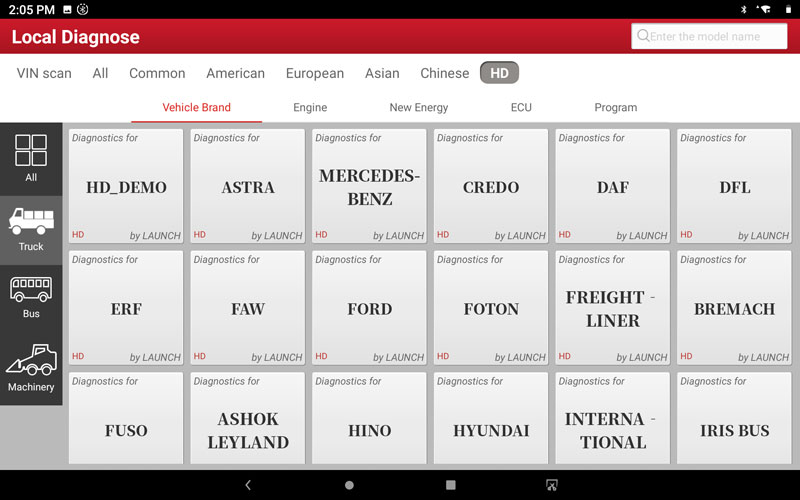

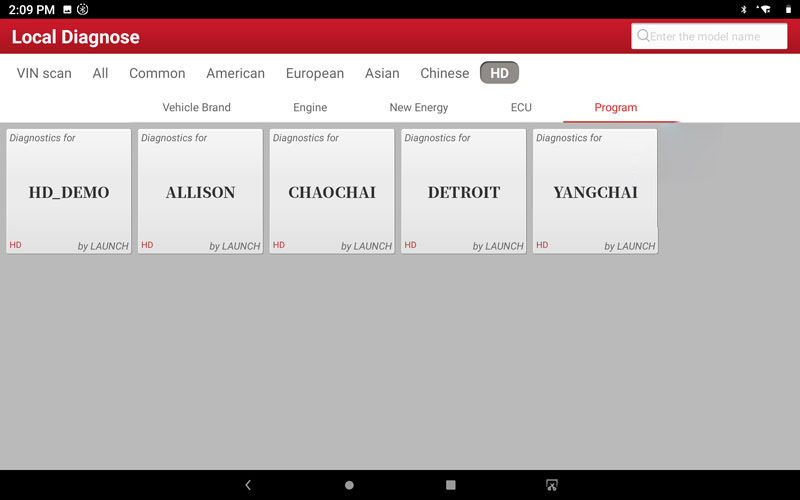

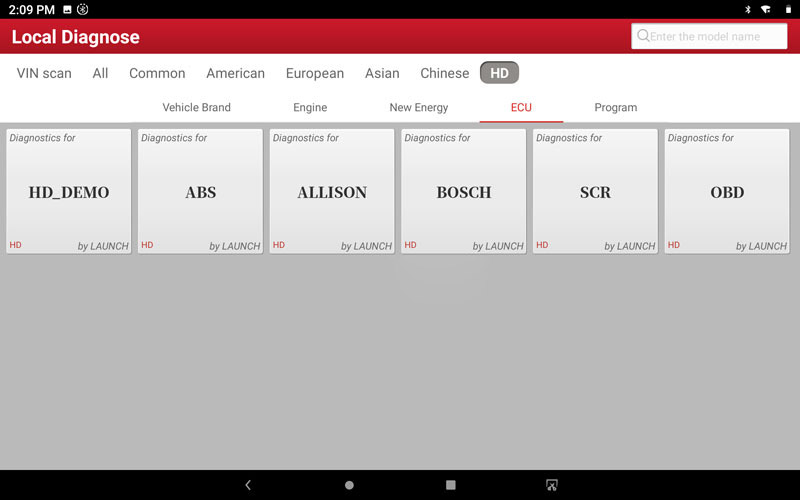

LAUNCH X431 V+ Truck Software List

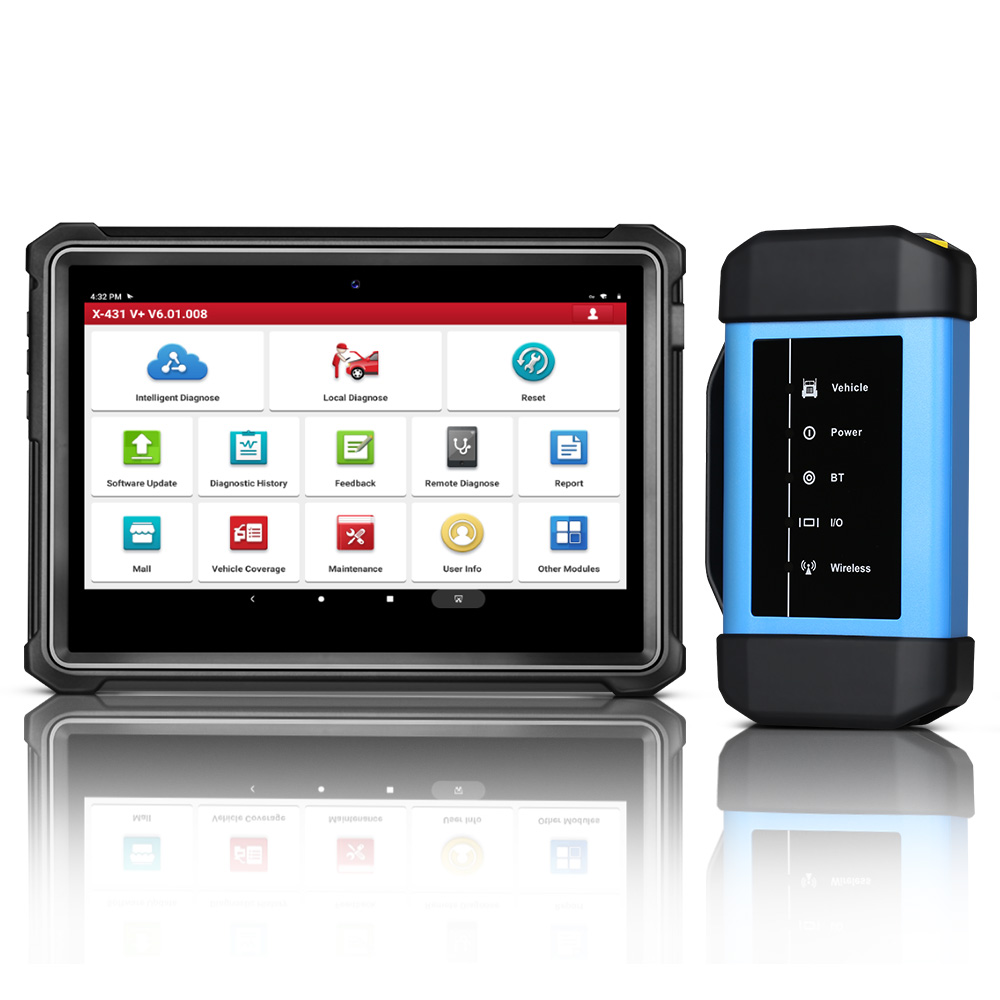

Launch X431 V+ Parameter:

CPU: 1.4GHz quad core
Operating system: Android 7.1
Memory: 2G
Storage: 16GB, support 128G expansion
Display: 10.1-inch capacitive screen
Screen resolution: 1280×800
Camera: 5 million pixels behind
Weight: about 0.50 kg
Size: 264x210x30 (mm)
Working temperature: -10 ° C ~ 50 ° C

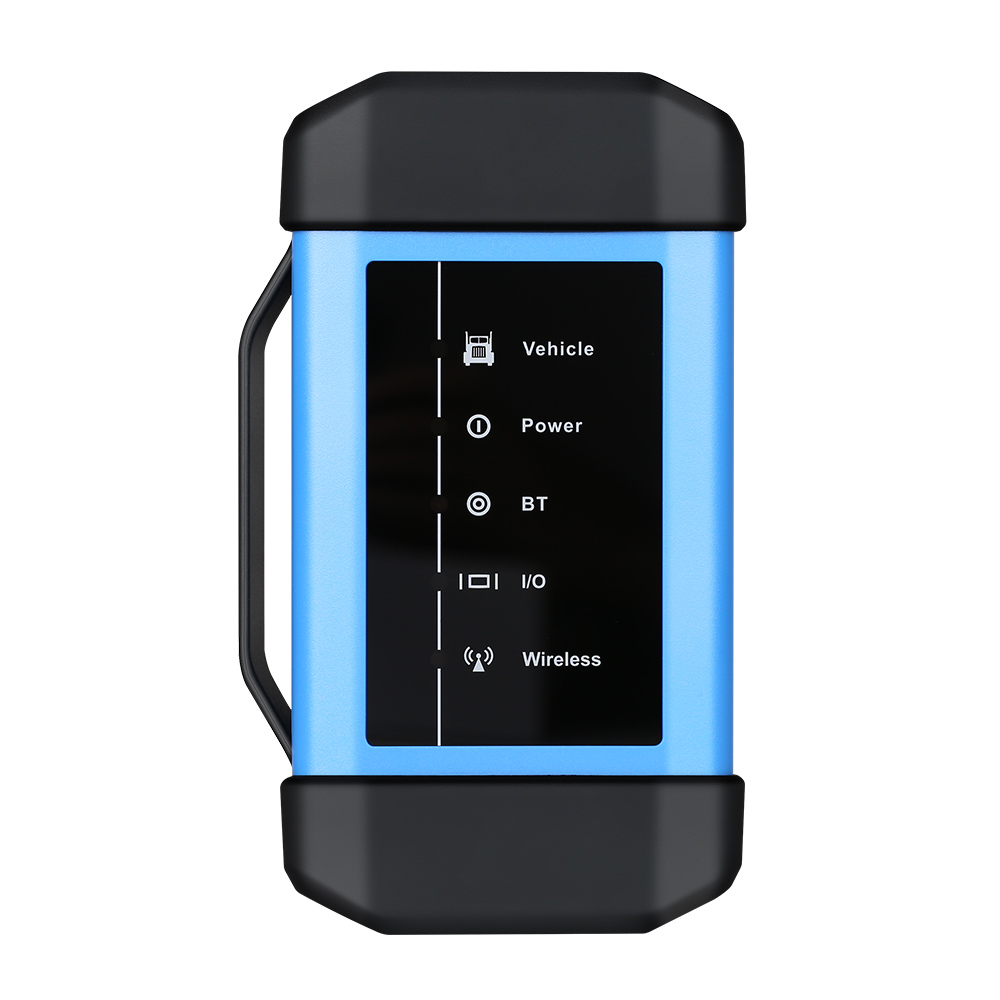

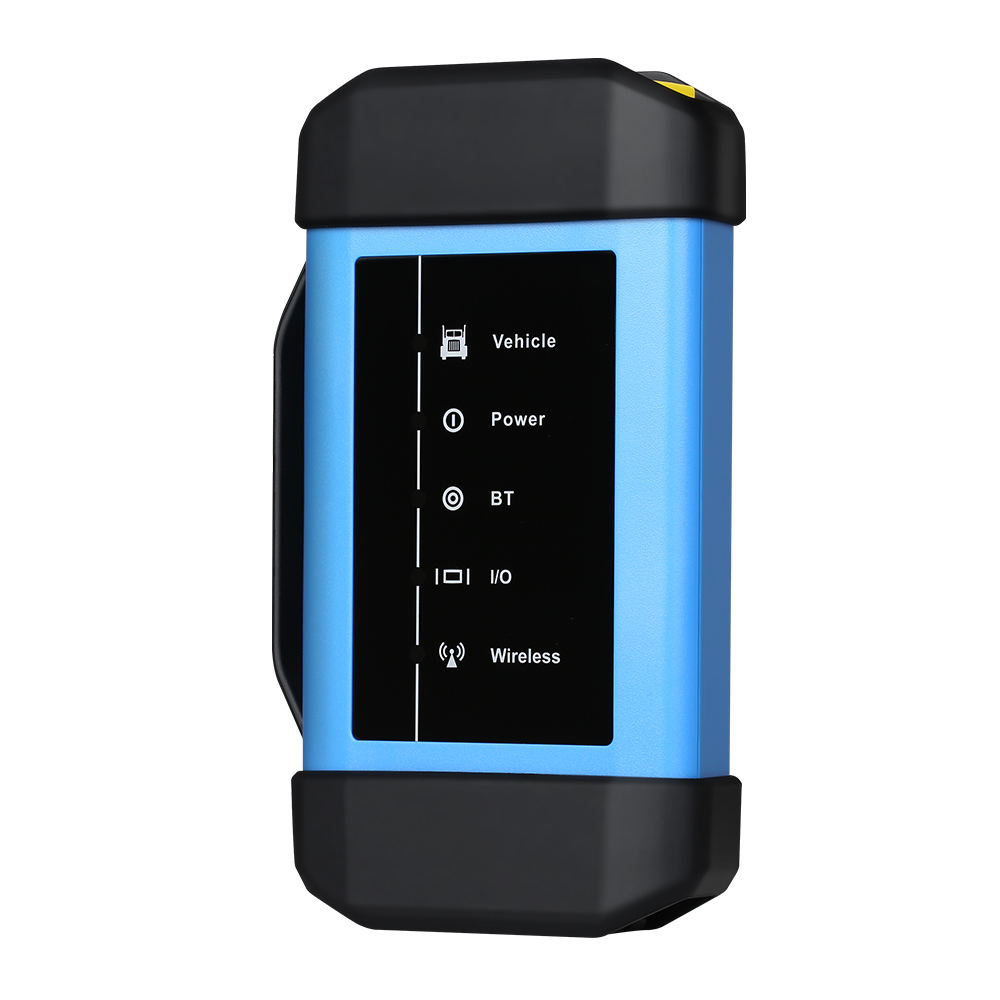

Diagnostic box parameters

CPU: 120MHz
Power consumption: ≤3W
Working voltage: DC 9-36V
Working temperature: -10 ° C ~ 50 ° C
Communication method: USB+ Wi-Fi+ Bluetooth
Size: 204x110x45 (mm)

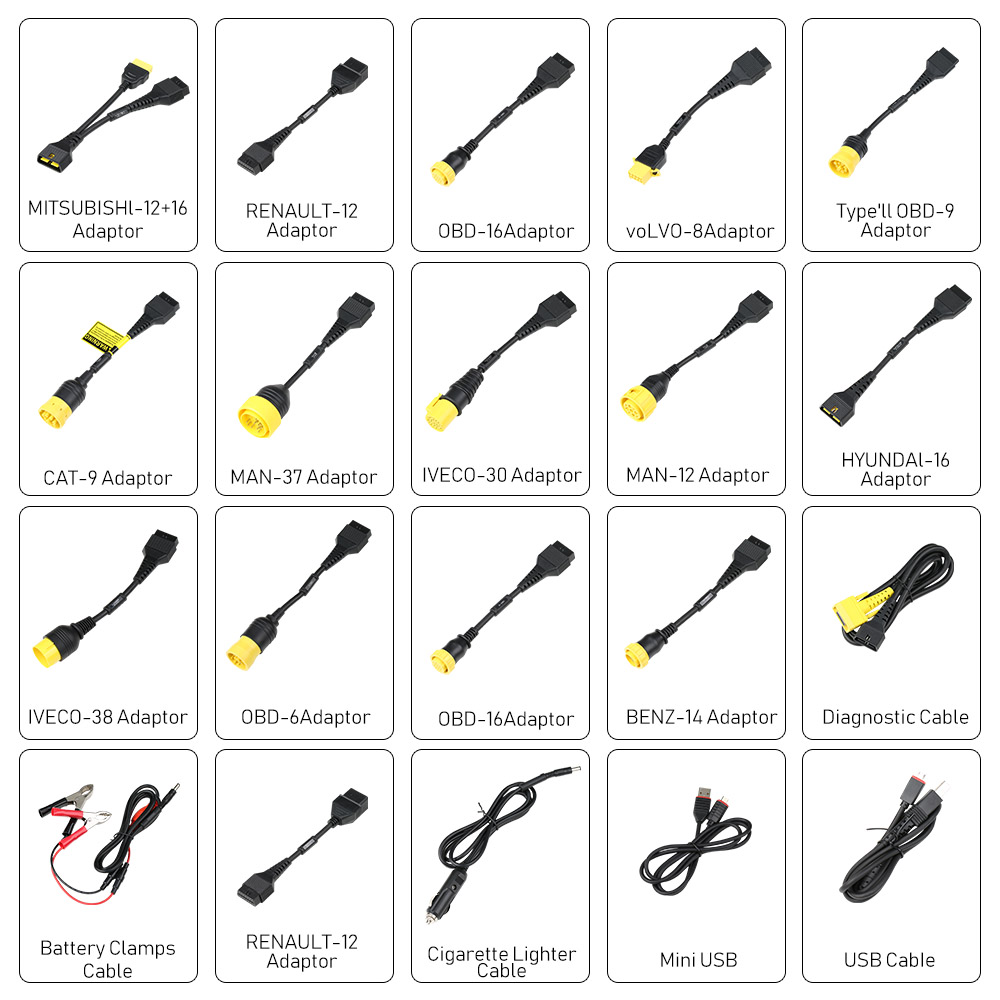

Packing List:

1pc x 201025842  X-431 V+(V3.0) host
1pc x 105045595  PAD4HD- Type II OBD-9 X431 diagnostic connector
1pc x 201026060  X-431 HD_III_VCI diagnostic kit Business Edition (RM08)
1pc x 105045568  X431 PAD IV HD-BENZ-14 / Mercedes 14PIN diagnostic connector
1pc x 105045572  X431 PAD IV HD-CAT-9 / Carter 9PIN diagnostic connector
1pc x 105045590  X431 PAD IV HD-HYUNDAI-16 / Modern truck 16PIN diagnostic connector
1pc x 105045584  X431 PAD IV HD-IVECO-30 / In Victoria Ho 30PIN diagnostic connector
1pc x 105045585  X431 PAD IV HD-IVECO-38 / In Victoria Ho 38PIN diagnostic connector
1pc x 105045586  X431 PAD IV HD-MAN-12 / Man 12PIN diagnostic connector
1pc x 105045587  X431 PAD IV HD-MAN-37 / Man 37PIN diagnostic connector
1pc x 105045569  X431 PAD IV HD-MITSUBISHI-12 + 16 / Fuso 12 + 16PIN diagnostic connector
1pc x 105045566  X431 PAD IV HD-OBD-16 diagnostic connector
1pc x 105045582  X431 PAD IV HD-OBD-6 diagnostic connector
1pc x 105045589  X431 PAD IV HD-RENAULT-12 / Renault 12PIN diagnostic connector
1pc x 105045588  X431 PAD IV HD-VOLVO-8 / Volvo 8PIN diagnostic connector
1pc x 105022244  Heavy truck diagnostic X431 PAD4HD mainline
1pc x Y203010242  LIGHTER
1pc x Y203010270  CLIPPER
1pc x102210138  Adapter, 5V/2A, American Standard (Lenovo plate supporting)
1pc x 107022213  X431 PIN envelope
1pc x 107012819  X-431 V+ HD3 English quick start
1pc x 105022289  X431, PRO3S+, B, USB, Micro, USB
1pc x 102150010  Clipper fuse 5*20mm
1pc x 102150012  Lighter fuse 6*30mm
1pc x 102210031  X-431 Power supply

Launch X431 V+ HD3 FAQs:

1. Communication error with vehicle ECU?
Please confirm:
1) Whether the VCI is properly connected.
2) Whether the vehicle ignition switch is ON.
3) If all checks are normal, send vehicle year, make, model and VIN number to us using Dia. Feedback feature.

2. Failed to enter into vehicle ECU system?
Please confirm:
1) Whether the vehicle is equipped with the system.
2) Whether the VCI is correctly connected.
3) Whether the vehicle ignition switch is ON.
4) If all checks are normal, send vehicle year, make, model and VIN number to us using Diagnostic Feedback feature.

3. How to save power?
1) Please turn off the screen while X-431 V+ keeps idle.
2) Set a shorter standby time.
3) Decrease the brightness of the screen.
4) If WLAN connection is not required, please turn it off.
5) Disable GPS function if GPS service is not in use.

4. How to handle when you encounter "Insufficient storage space"?
If this happens while downloading the diagnostic software, please proceed as follows:
1. Get your X-431 V+ username and password ready. If you forgot the password, please dial our after-sales support center hotline to retrieve it with the product Serial Number.
2. Reset the X-431 V+ to the default factory settings (For details, please refer to Item 5 in this Chapter).
3. Tap "Settings" -> "WLAN", slide the switch to ON and then choose the desired WLAN network to connect.
4. Open the browser and visit www.dbscar.com to download and install the latest App.
5. After the installation is complete, launch the application and login with your username and password.
6. Tap "Update" to download the diagnostic software.
Note: For new App, the software structure and storage space occupied by the vehicle software have been optimized so as to avoid the occurrence of insufficient storage.

5. How to reset X-431 V+?
Resetting may cause data loss. Before doing so, please make sure important data and information has been backed up.
Do the following to reset X-431 V+:
1. Tap "Settings" -> "Back & Reset".
2. Tap "Factory data reset".
3. Tap "Reset tablet".
4. Tap "Clear all data" to start resetting until the tool automatically reboots.

6. The diagnostic application is failing.
1. Press the Home key on the tool.
2. Select "Settings"-> "Apps".
3. Select the application name from the Apps list.
4. Select "Force Stop", and then press "OK" to confirm.
5. Select "Clear Data", and then press "OK" to confirm
