    VAG OBD Helper for VAG 4th IMMO Read BCM Data via OBD Send 1 Free Token works with Xhorse VVDI2/Lonsdor K518/SMOK

    • Item No.  B132
    • History: 44  sold
    • Quantity
      Total
      Shipping:
      Free Shipping
    • Quantity:  Out of stock
    • Weight:  500.0gram
    • Rank:  comment rank 5 () Write a Review
    • This goods is Free shipping!
    • Member Benefits  Shipping  Return Policy

    Description

    Attribute

    Review

    Technical Support

    Video


    VAG OBD Helper for VAG 4th IMMO Read BCM Data via OBD Send 1 Free Token works with Xhorse VVDI2/Lonsdor K518


    Online calculation requires token, the device comes with 1 free token. You can buy token.



    Hook VAG OBD helper up to the VAG vehicle (VW, Audi, Skoda with 4th IMMO) , you can quickly get immo data within 3-5 minutes by connecting the internet ( The time depends on the network status or the number of users), which is easy to operate, help save time and avoid the risk of disassembling the dashboard.

    As known, before VAG OBD helper is released, when the VW, Audi, Skoda with 4th IMMO needs to add new keys or program new keys when all keys lost, none of VVDI2 AVDI, AP PRO, Lonsdor K518 can read out the immo data. Or the operator needs to disassemble the dashboard to gain the immo data.


    1: Support A4L Q5 (all the card 754C/J type)


    2: can for the key all lost or add key of VW, Audi, Skoda, and the 4th generation dashboard.

    Example, 35XX key all lost 873B 24C64 type key all lost or new model 95320.

    3:can add key for MQB JOHNSON dashboard (not support key all lost )

    4.New PASSATT MQB key all lost.

    5.Support to Get BCM2 anti-theft data on line for A6 A7 A8 Touareg Hui ang 5th generation .

    Note: the 4th generation of data and MQB data are expressly formatting to support the use of most equipment in the market.


    The 5th generation of data supports VVDI AP and plaintext display CS.


    Free Download VAG OBD Helper software

    https://mega.nz/#!yrBBCKYZ!pzTdbitekecy4BnR6KbOvgqtaCSH4AMpbInYCDHt6ks


    How to install VAG OBD Helper software?

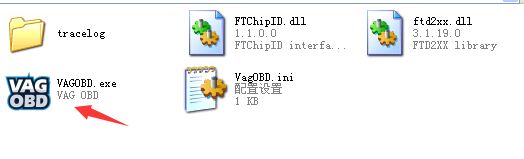

    Extract zip file to desktop


    Install Driver.exe
    Connect VAG OBD cable with computer via USB port


    Open VAGOBD software

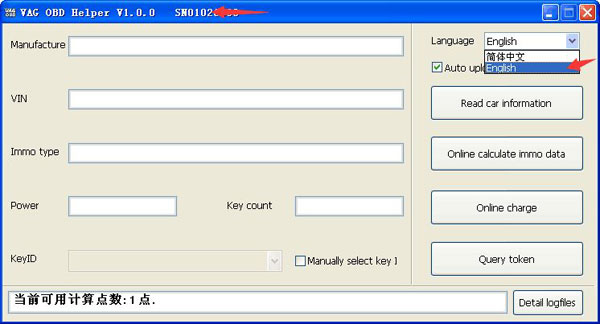

    It will automatically detect device serial number

    Select software language: Chinese or English


    Then you can read BCM data with software


    Token is required to calculated data online.


    When use VAG OBD helper?

    1. For the VAG vehicle with MQB immo, if the immo data can't be read out, you can try to use VAG OBD helper, but can work for adding new keys (Take Johnson Controls key adding for example)



    2. If A4L Q5 can't be directly read out BCM2 data, and display the data length error, VAG OBD helper can be used to calculate BCM2 data.


    3.If you get all keys lost for any of 2014 A6 A7 A8 Touareg, PHIDEON with 5th immo system, you can use VAG OBD helper to online calculate BCM2 data, then working together with VVDI2, APPRO to program key.


    Note: Before using VAG OBD helper, please make sure the vehicle info is not tampered and vehicle status is legal, otherwise the immo data can't be calculated.

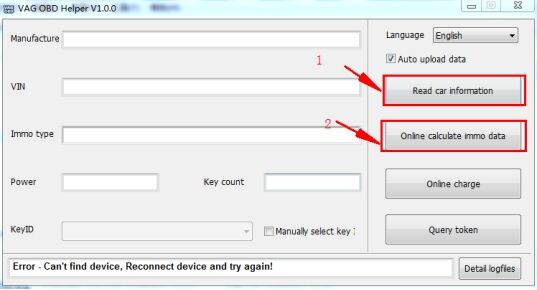

    How to use VAG OBD helper?

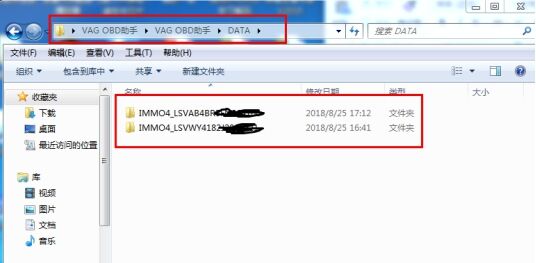

    After "Online calculate immo data" complete, the system will save the file in the VAG OBD folder according the vehicle VIN.

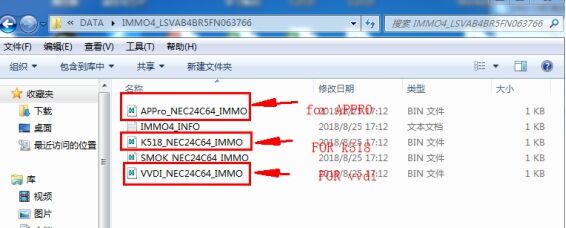

    The generated file can work together with the current popular VAG key programmers, you can directly generate dealer key and learn.



    Package includes:

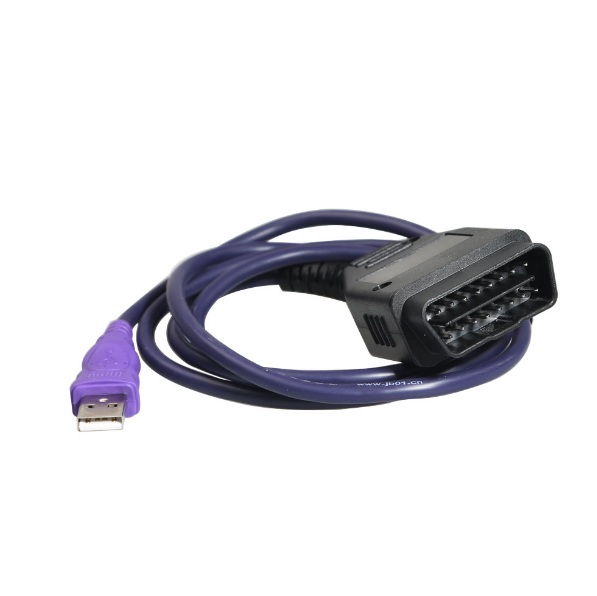

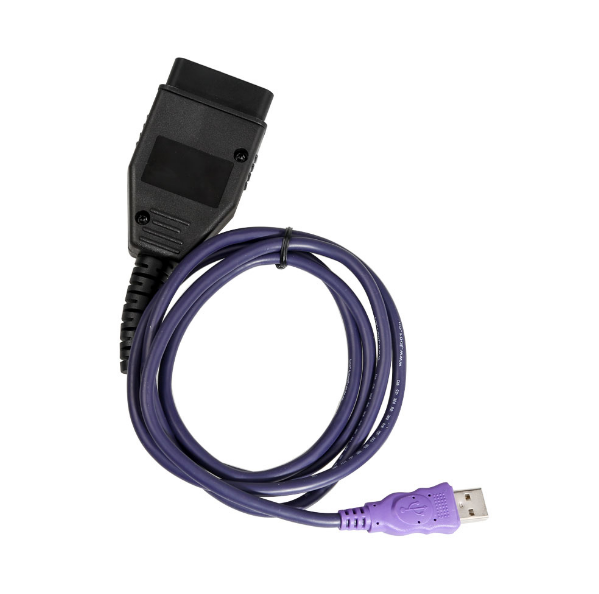

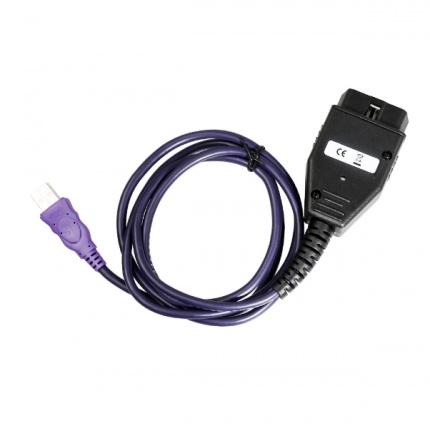

    1pc x VAG OBD Helper Cable
