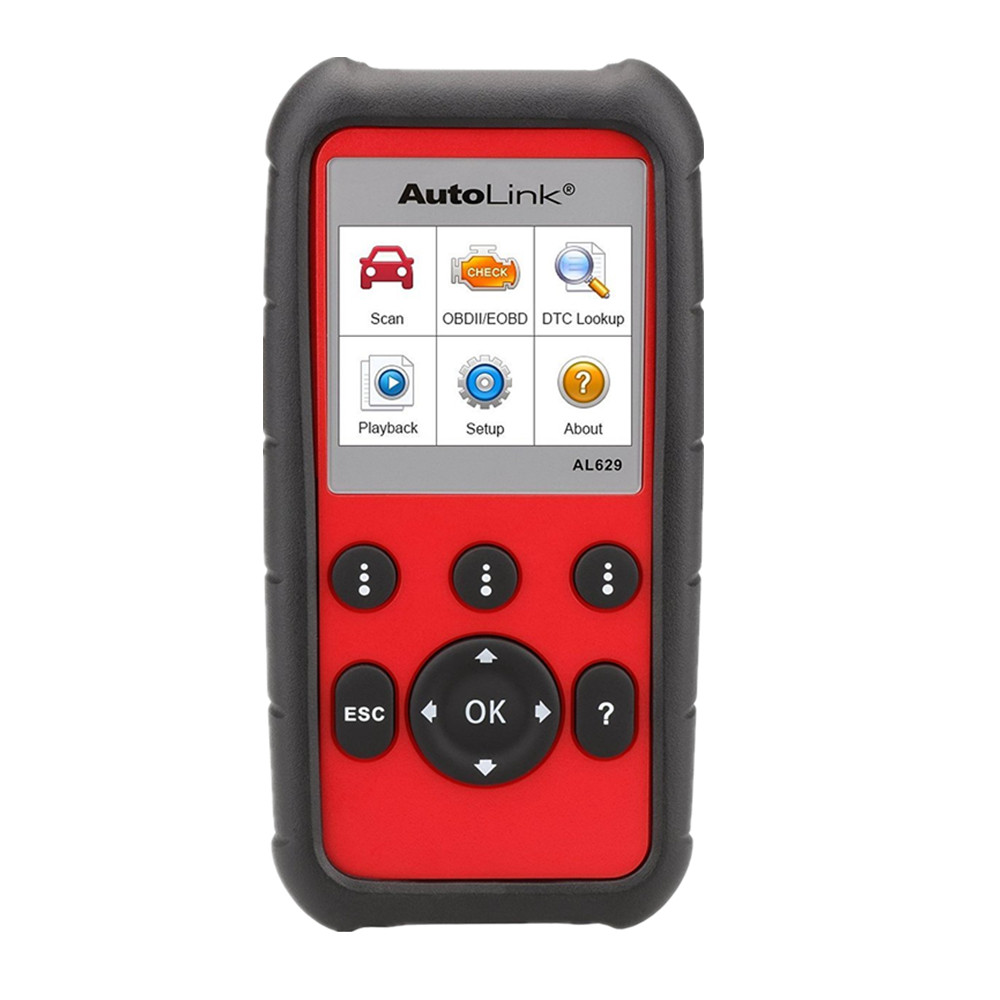

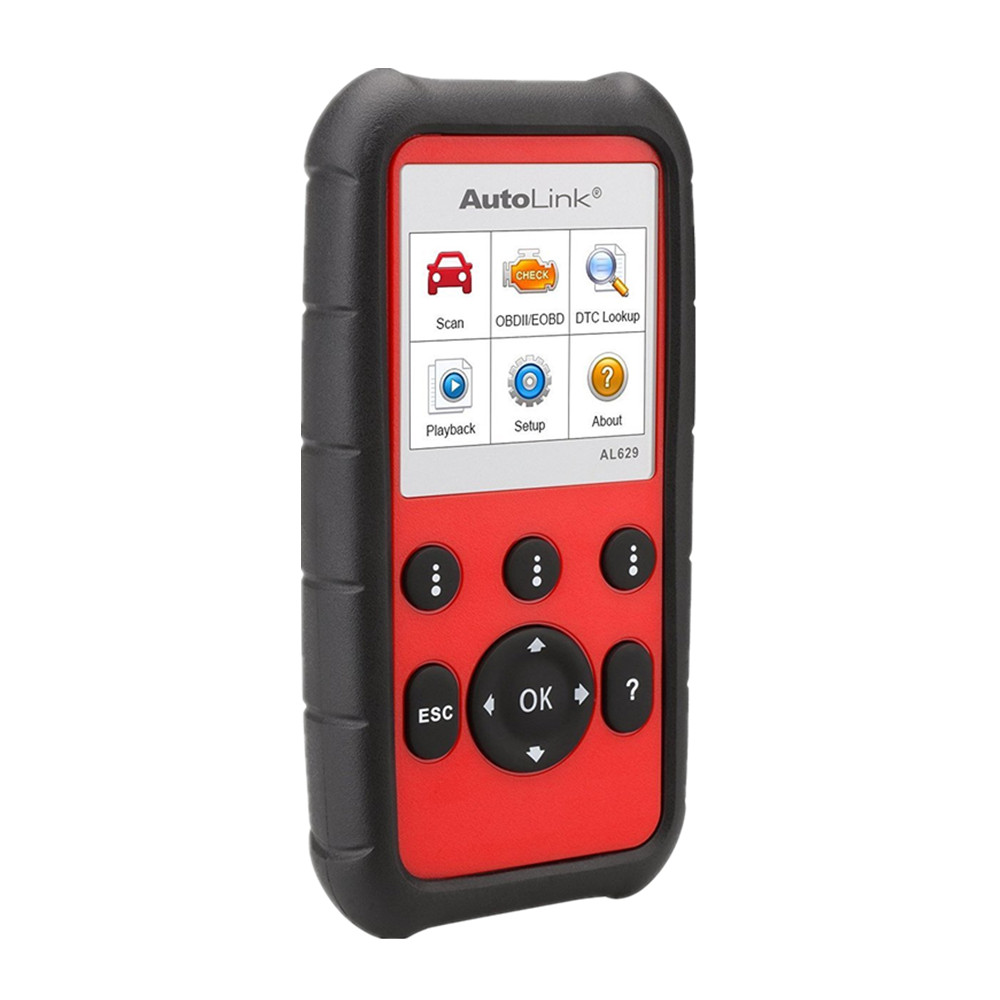

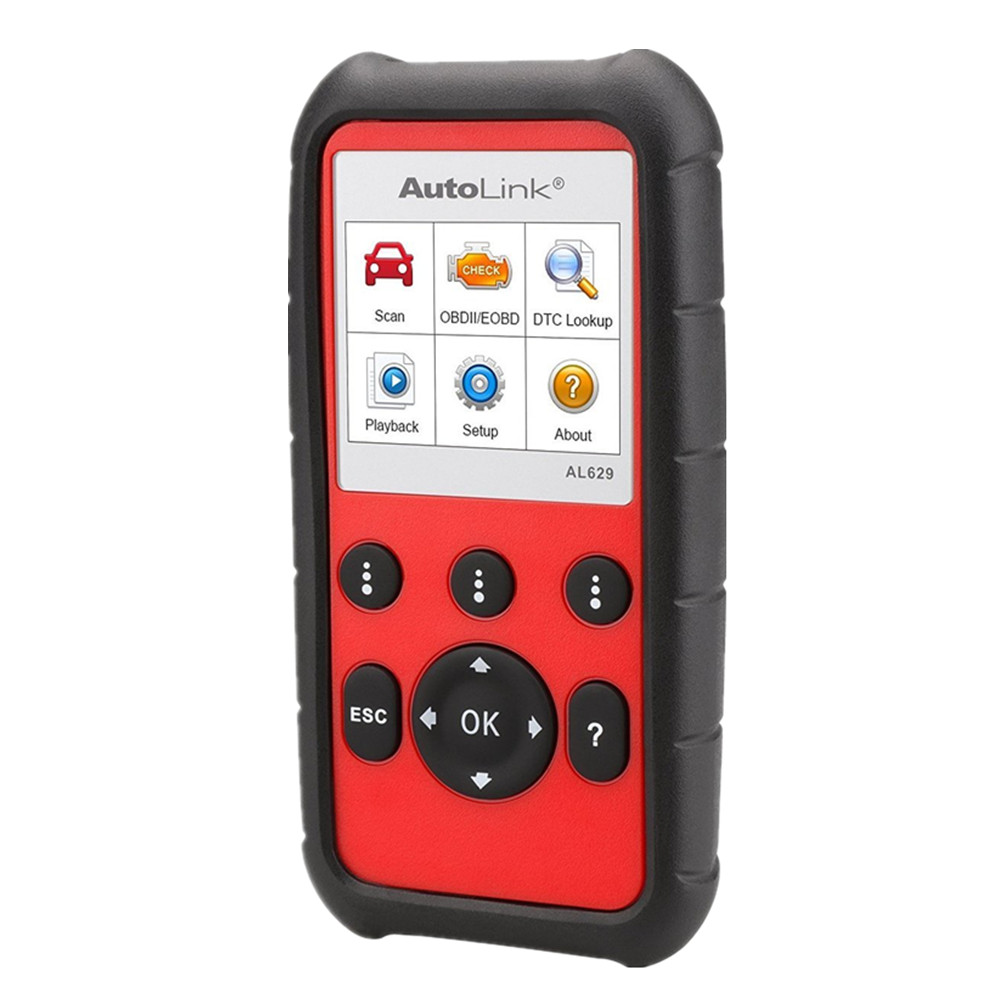

Autel AutoLink AL629 Autel code reader for ABS/SRS/Engine/Transmission + CAN OBDII Pro Service Tool

Language Support:English, Chinese, French, German, Spanish, Portuguese, Japanese, Dutch, Polish, Korean, Swedish, Italian, Russian

You are looking for a professional OBD2 scan tool with the best quality? Well, Autel Autolink AL629 Pro Service Tool is an effective diagnostic scanner that can perform both basic and a number of advanced functions.

The ABS/SRS/Engine/Transmission + CAN OBDII AutoLink AL629 is built to help you to determine why the Malfunction Indicator Light or the ABS/SRS warning light is on. Supporting all 10 test modes of OBDII test, AL629 provides you a complete diagnosis. A wide range of European, US and Asian vehicles are covered by AL629, including GM, Ford, Mazda, Toyota, Lexus, Scion, Suzuki, Peugeot, Citroen, Fiat, Abarth, Lancia, Alfa, Honda, Acura, Subaru, Nissan, Infiniti, Chrysler, Renault, Dacia, Land Rover, Jaguar, VW, Audi, Bugatti, Skoda, Seat, Bentley, Volvo and Porsche, etc. For a detailed vehicle coverage list, please contact our sales support engineer.

Bullet Point:

ADVANCED VERSION OF AL619: As an upgraded version of AL619, this Car scan tool Autel AL629 not only provides you with basic diagnosis on ABS and SRS, but also offers additional solutions to the problems on Engine and Transmission at a price of only higher $20 than AL619.

FOUR SYSTEMS DIAGNOSES: With this innovative OBD2 scanner, you are able to read and clear diagnostic trouble codes of Engine, Transmission, ABS and SRS when the warning light pops on, and figure out car running status information by retrieving four systems’ live data stream.

WIDE VEHICLE COVERAGE: This diagnostic tool Autel AL629 is compatible with all OBDII protocols including ISO9141, KWP2000, J1850 PWM, J1850 VPW and CAN, also supports complete OBD2 functions on vehicles such as Toyota, Honda, VW, Mazda, Kia, Nissan, etc.

ADDITIONAL FEATURES: Instead of spending long time searching definition of diagnostic trouble codes online, this DIY Scanner is equipped with practical DTC Lookup for allowing searching DTC definitions stored in built-in DTC library within seconds.

LIFETIME FREE UPDATE: This OBD2 Scanner comes with free online update for life time, which gives you the ability to add the newest vehicle models and timely fix potential bugs. You are able to access technical supports from Chinese official website when you get any quality problems.

AutoLink AL629 Features：

1.Reads and erases DTCs for ABS, SRS, Engine and Transmission on most 1996 and newer major vehicle models

2.Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import

3.Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes

4.Turns off Check Engine Light (MIL), clears codes and resets monitors

5.Reads, stores and plays back live PCM data stream and live sensor data

6.Retrieves vehicle information (VIN, CALID and CVN)

7.Views freeze frame data

8.Graphs data

9.TF memory card for data backup and software update

10.Multilingual support – English, Spanish, French, etc.

11.2.8’’ LCD with 320X240 resolution

12.Internet updatable via USB

13.Prints data via PC

AutoLink AL629 Specifications:

Display: 2.8-inch LCD (320 x 240 dpi)

Connectivity: USB mini 2.0 OBD II DB15

Operating Temp.: -10°C to 60°C (14°F to 140°F)

Storage Temp.: -20°C to 70°C (-4°F to 158°F)

External Power: 8.0 to 18.0 V power provided via vehicle battery

Dimensions (LxWxH): 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”)

Net Weight: 247 g (0.544 lb.)

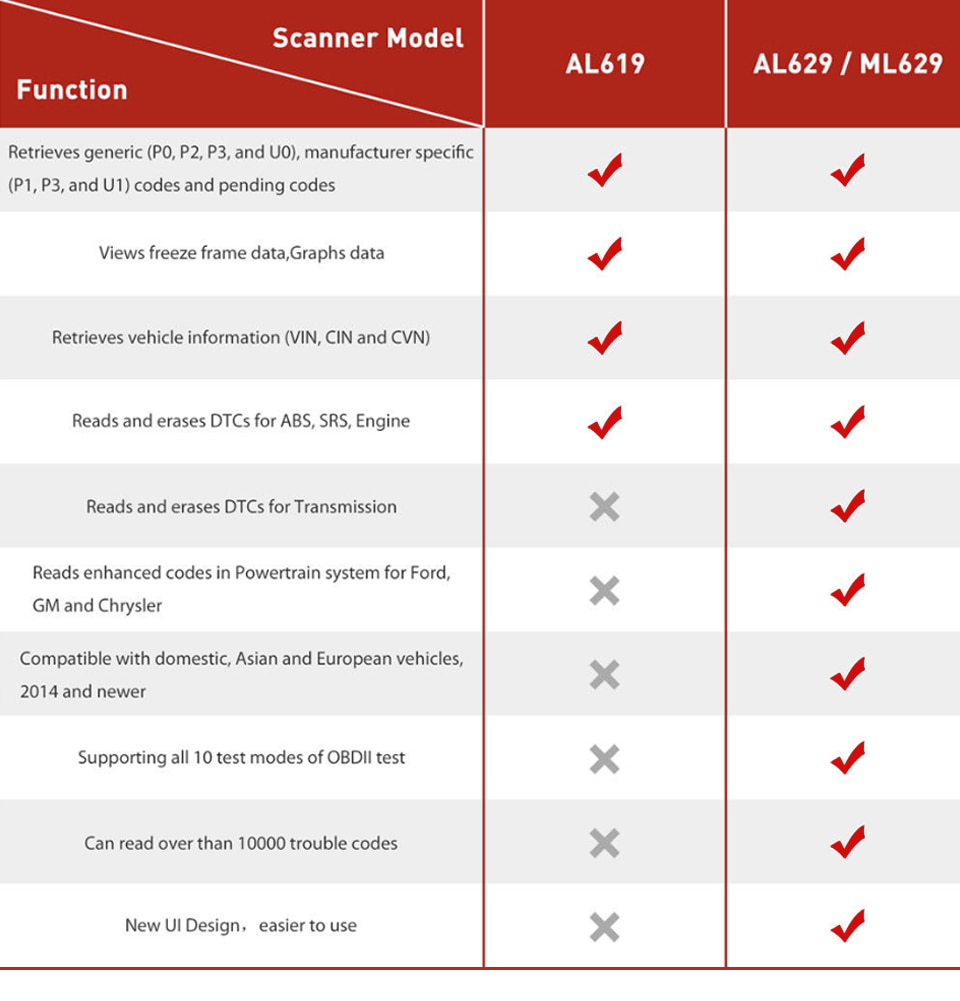

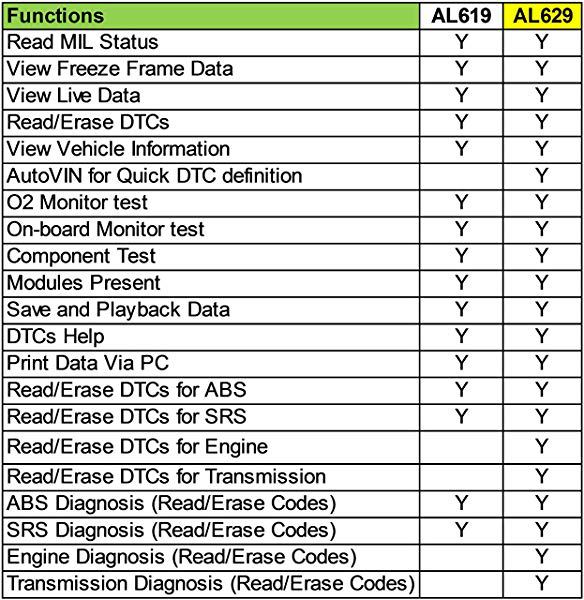

AUTEL AL629 vs ML629 vs AL619 Comparison Chart:

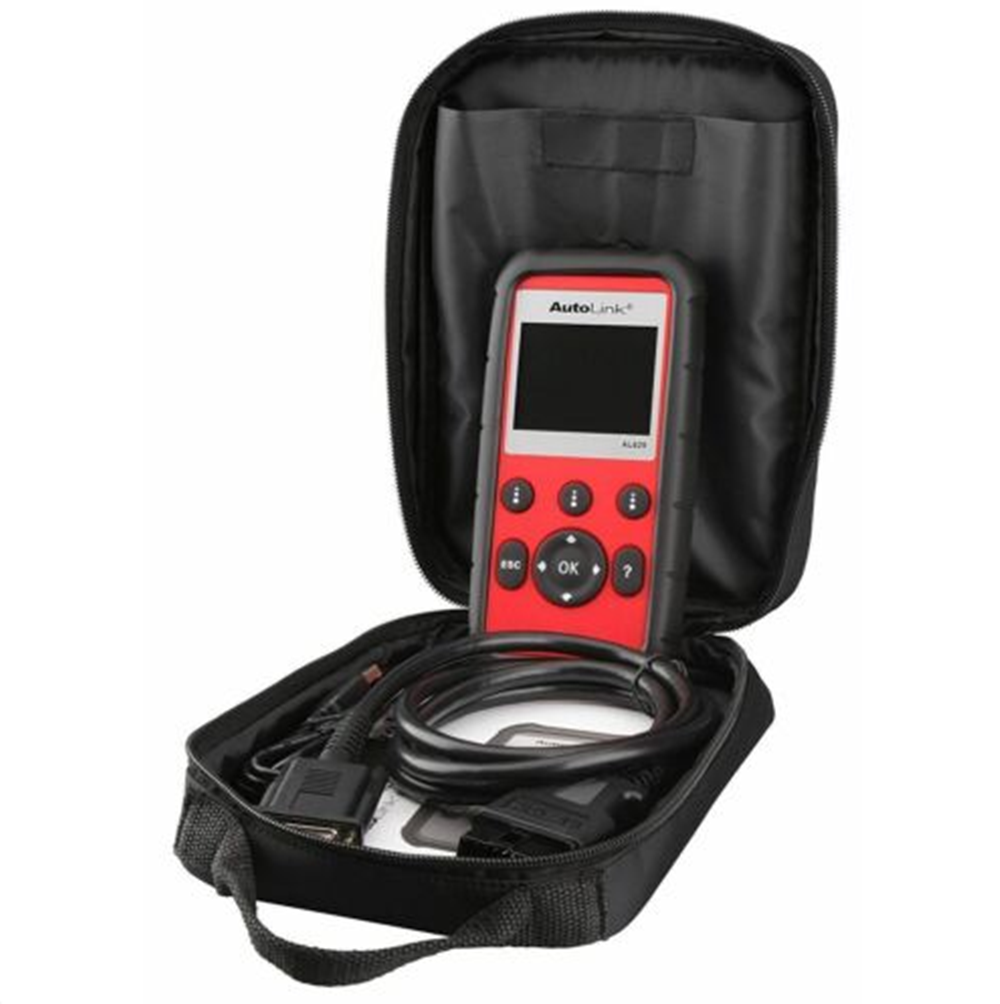

AutoLink AL629 Accessories:

1.OBD Code Reader

2.User Manual

3.Carrying Case

4.Quick Reference Guide

5.Main cable

6.TF card

7.Mini USB Cable
