V1.1.8 Xhorse Condor DOLPHIN XP005 Automatic Key Cutting Machine English Supports IOS & Android

Original Xhorse Condor Dolphin Key Cutting Machine Supports IOS & Android

Condor Dolphin Version:V1.1.8  Update Online

V1.1.3             (2019-5-03)

This version need to update firmware

Fix HU101 tall cutting error problem

Fix HU83 tail cutting error problem

Fix Channel Track type key cutting error problem

Add use standard key width cutting option

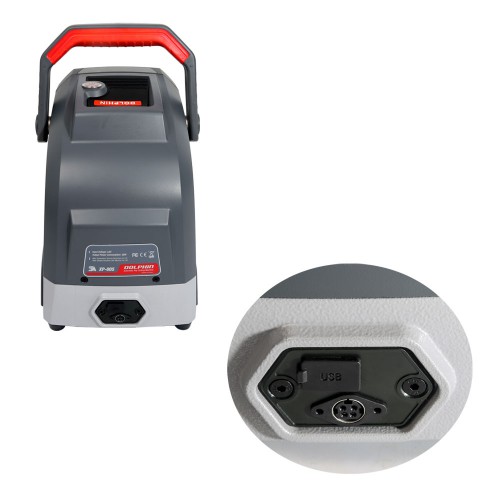

Support jumping to the BIOS function when insert USB cable after Dolphin starting up

V1.1.2              (2019-4-24)

* This version need to update firmware

* Fix some key with M2-A or M2-D cannot cutting problem

v1.0.7              (2018-12-27)
* This version need to update firmware
* Fix for universal type key cutting reboot issue

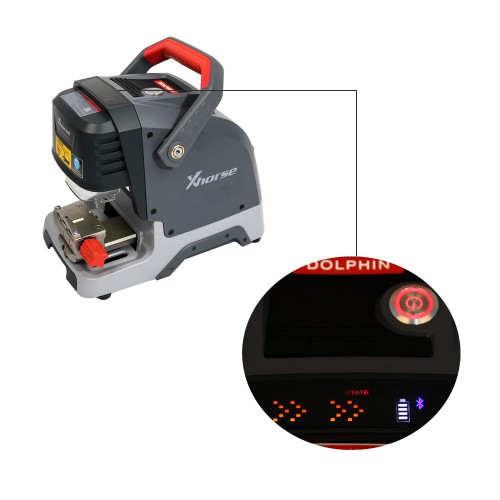

* Fix battery indicator incorrect display issue
* Optimize prompts
+ Add M3 clamp key cutting
+ Add cutting key according to decode actual data from original key function.

Xhorse Condor DOLPHIN XP005 Highlight:

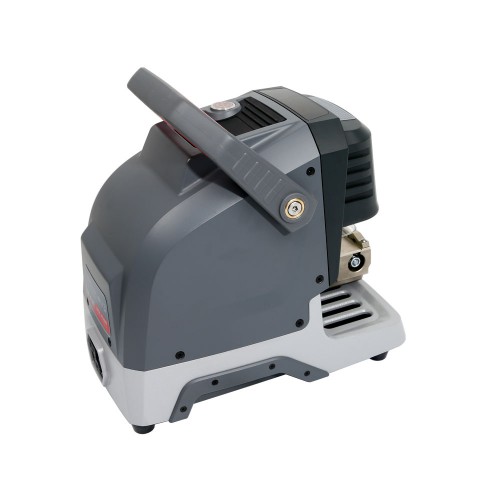

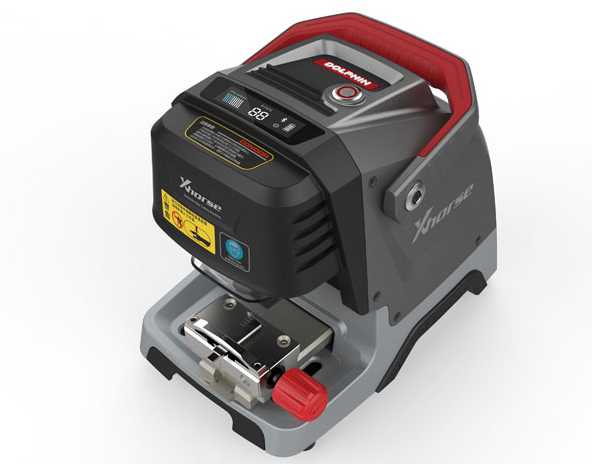

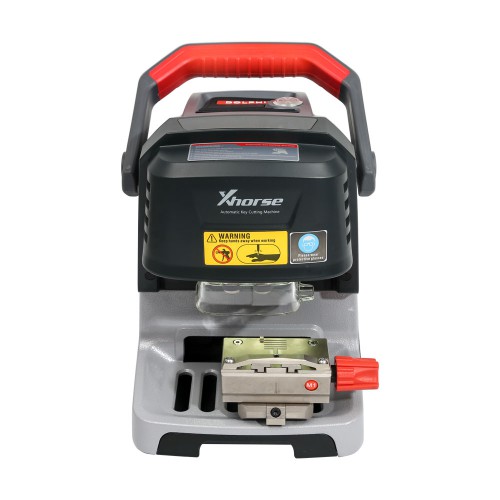

DOLPHIN-XP005 is the latest portable automatic key cutting machine with in-built battery inside.
It has all the capabilities of Condor XC Mini.
Dolphin works on mobile phone application via bluetooth connection.

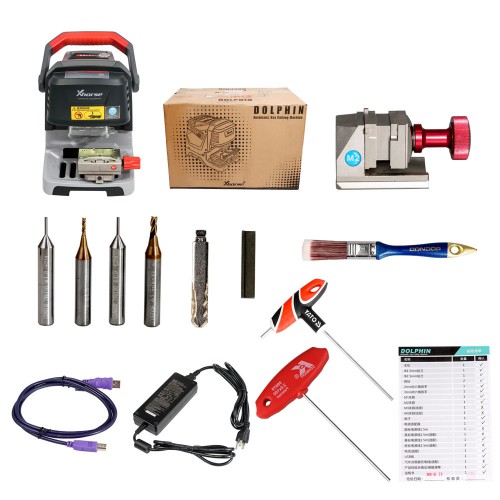

M1/M2 Jaw comes as standard.
M3/M4 Jaw comes as optional purchase.

Dolphin Key Cutting Machine Features:
APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations

Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

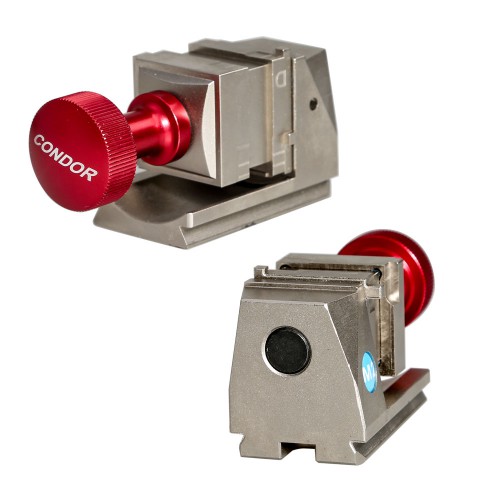

Standard equipped 2 clamps M1 and M2 with powerful function
Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 clamp is applicable to single sided house-key.

Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;
American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update.

Technical service
One-year warranty, free technical support, online service to provide remote control support

Condor Dolphin Key Cutting Machine Parameters:
Working temperature: -10~50℃

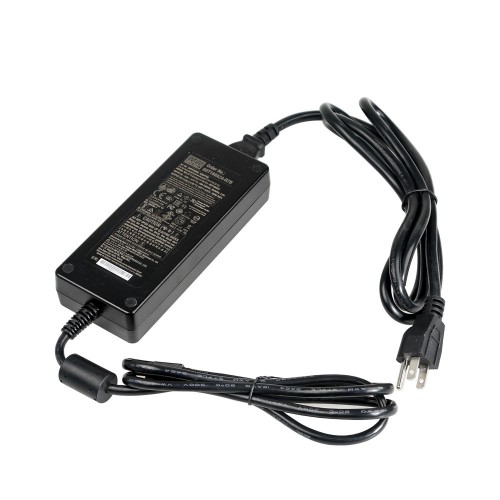

Input voltage:12-24V
Battery capacity: 64.75wh
Cutting power: 100W
Standby power: 15W
Motor Rotation Speed: 10000-13000RPM
Rated torque: 0.15 Nm

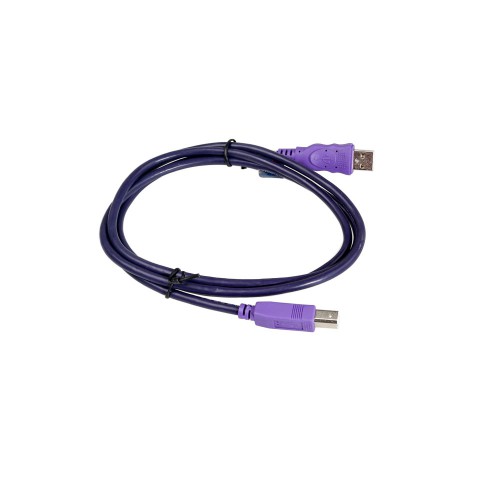

USB Port: USB2.0
Machine Dimension: 315*218*270mm
Package Dimension: 510*315*345mm
Net Weight: 15kg
Gross Weight: 18kg

Compare Condor XC-Dolphin with Condor XC-Mini

Condor XC-Dolphin key machine is an entry-level product of the CONDOR CNC machine family. The body design is simple, it is very suitable for mobile use in the mobile scene, without operating screen, you need to connect a mobile phone or tablet to install APP and get software Data.

index	Condor DOLPHIN	Condor XC Mini
Spindle	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing	Electric spindle brushless 300, built-in angular contact bearing
Transmission mechanism	“T-shaped screw + anti-backlash nut	Ball screw
guide	Roller guide	Cross-track
shell	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.	Plastic outer casing body is formed by body alloying die casting
Fixture	Standard fixture	Two sets of standard fixtures
Manipulation	No touch screen, no built-in database	Quick start, with touch screen, built-in database
Offline operation	not support	stand by
Dedicated app	Support dedicated mobile phone APP	Support dedicated mobile APP
Built-in battery	Yes	Yes
protecting mask	Simple protective cover	Comprehensive protection
VVD binding	Yes	Yes
Cutting speed	1X SPEED	2X SPEED
weight	<10kg	18kg
Warranty	1 year	3 years
