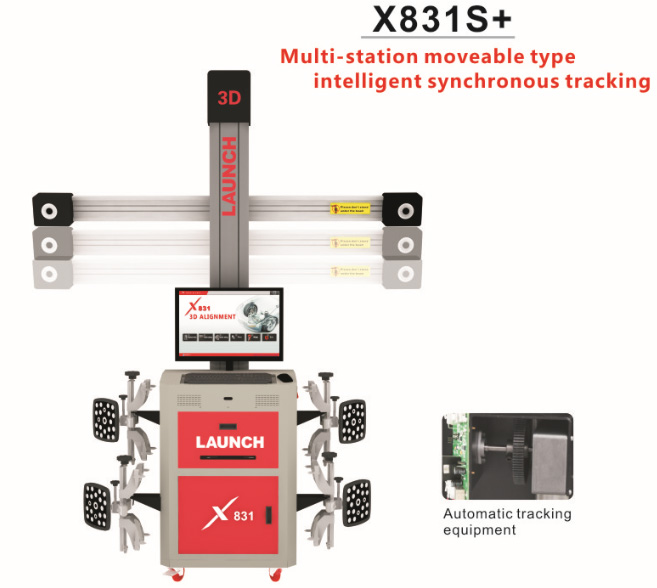

LAUNCH X831S+ X831 Plus 3D Wheel Aligner 4-Post Car Alignment Lifts Platform Supports Multi-language UNICODE

Multi-station moveable type intelligent synchronous tracking

LAUNCH X831SPlus 3D Four wheel aligner Features
Support multi-language UNICODE.
Measurement platform supports: Trench, 4-post lift, big scissor lift.
Full automated synchronous tracking lift function, without human intervention.
Omni-directional, multi-station freely moveable measurement,without dedicated station.
The measurement platform is not required to be horizontal Measurement is possible as long as the target is visible.
Dynamic machinery visual algorithm technology real-time dynamic measurement of the vehicle data
Industry's shorted, small-distance push and roll compensation, without stop halfway.
Detection of tread track, tread track difference wheel base wheel base difference.
Real-time display of kingpin, conventent for the adjustment of suspension bracket data.
Real-time target monitoring.

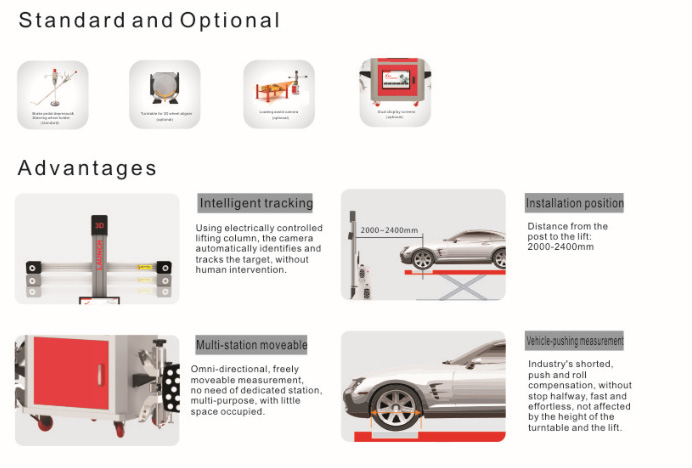

LAUNCH X831 S+ Advantages

Intelligent tracking
Using electrically controlled lifting column, the camera automatically identifies and tracks the target, without human intervention.

Multi-station moveable
Omni-directional,freely moveable measurement, no need of dedicated station,multi-purpose, with little space occupied.

Installation posision
Distance from the post to the lift: 2000-2400mm

Vehicle-pushing measurement
Industry 's shorted, push and roll compensation, without stop halfway, fast andeffortless. not affected by the height of the turntable and the lift.

Machine in the factory with valid calibration and it is not necessary to perform calibration at the customer site.
Roll the vehicle to complete the compensation, quickly to get the measurement data in two minutes.
Auto compensation with special clamps and no need to roll the vehicle Functions of the Track Width, wheelbase, Tire Diameter, Caster Trail, etc
Free from the influence of ambient light and temperature, stable and reliable.
The camera bar tracks four targets automatically, more convenient and widespread measurement in shorter time.

What do you buy LAUNCH X831Plus for ?

When do you need to do alignment?

Package List
1set X LAUNCH X831S+ X831Plus 3D 4-Post Car Alignment Lifts Platform
