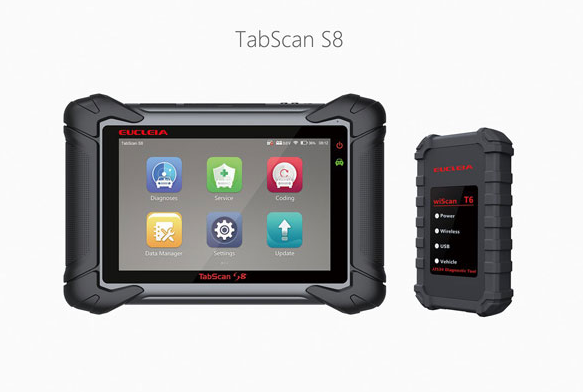

EUCLEIA TabScan S8 EUCLEIA S8 Automotive Intelligent Dual-mode Diagnostic and Coding System Update Online Auto Diangostic Tool

Multi-language: English, Chinese, Russian, Spanish, Italian, French, Dutch, Polish, Portuguese, Japanese, Korean, Swedish
Free Update: 18 month Update Free Online
Warranty: 1 Year

TabScan S8 is an innovative high-end diagnostic scanner which invest one million RMB in mold, strict IP65 industrial design to enhance the stability. Combined the third-party diagnostic device,J2534 and PDU programming tools which achieved the multi-purpose, multi-connected, powerful dual-mode vehicle diagnosis. With the TabScan S8 coming into market, it identifies new diagnostic experience and cost performance, it is the best choice for working shops, garages, auto service & stations ,etc.

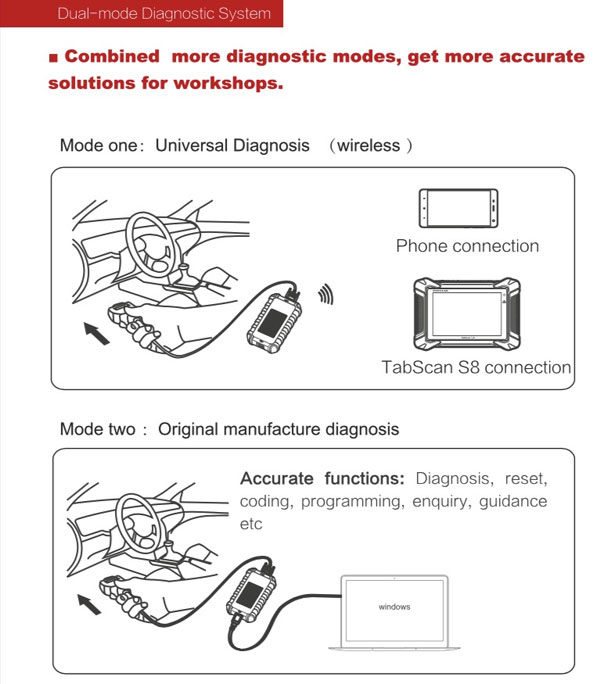

Dual-Mode Diagnostic with Multi-purpose
Intelligent Dual-mode diagnosis ,combined advantages between comprehensive diagnostic scanners and original manufacturer diagnosis. with wiScan APP supporting, could be used by phone in EOBD+ maintenance.

Mode One: Universal Diagnosis
Diagnosis function: Read and clear DTC, live data, active test, ECU information, freeze frame etc.
Service functions: ABS Bleeding, EPB Reset, Service Reset, CKP Learning, Throttle Reset,  SAS   Reset, Battery Reset, CVT Reset, TPMS, etc.
Coding function: Brush hiding functions (VW, Audi, Skoda,Seat and constantly adding)
System functions: The system also includes the most recent auto-VIN technology that identifies vehicles with one touch and exclusive auto-scan function. One-click clear DTCs, one-click update, data record and replay, workshop manager, database query, repair video research, vehicle data manager, etc.

Mode Two: Original Manufacturer Diagnosis
Numerous brands, accurate diagnosis, coding ,on-line programming, date searching etc.

TabScan S8 Models Support:

POWERFUL PERFORMANCE

Top one hardware equipped :8GHz quad-core, 4GB RAM , 32GB onboard memory , 8 “ IPS touch screen , 1280x800 pixels, 7600mAh Lithium-polymer,.
Rk3288 tablet solution: Faster Booting in 10 Seconds, Loading Apps Without Delaying.

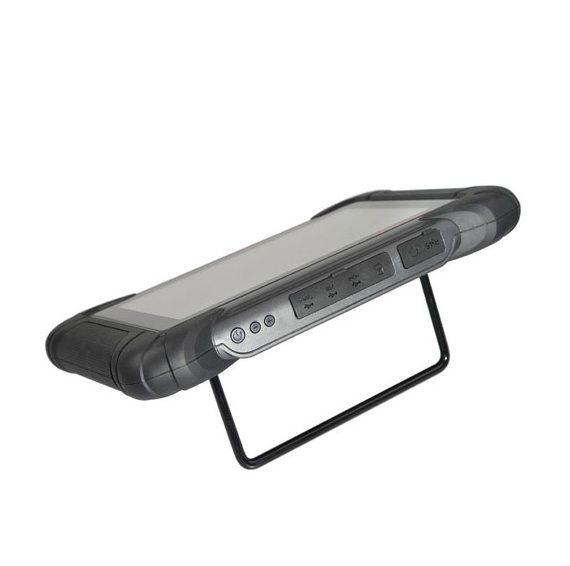

More Reliable Hardware : 1 million RMB invest, million times deeper test, strict IP65 design for drop proofing, water proofing and dust proofing.

NTERNATIONAL IP65 TRI-PROOF INDUSTRIAL DESIGN

More than 30 screws to achieve the resistance .

Adopted Large number of reinforcement design in the machine and 15% lead material to meet best structure performance.

4 different process in a simple scaffold to enhance performance

adopted stainless steel and plating design in screws to reach salt and fog proofing in case of rust.

INNOVATIVE DIAGNOSTIC FUNCTIONS
Full models and systematic functions:
ECU information,read/clear DTC, data stream, action test, freeze frame

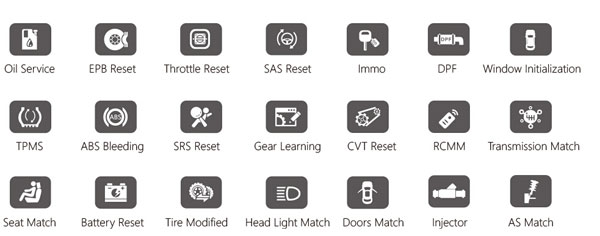

Service functions (21) :
ABS Bleeding, Battery Matching, CVT Reset, CKP Learning, Immobilizer, Oil Service, EPB Reset, TPMS, Throttle Reset, SAS Reset, SRS Reset, RCMM,DPF Reset，head light matching ,injector programing, windows initialization study, Air suspension matching, seat matching, language change, tire modified.

Coding :
Brush hidden functions: supported Audi,VW,Skoda,Seat.

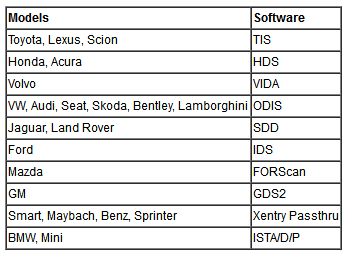

J2534 and PDU :
Numerous brands, accurate diagnosis, coding ,on-line programming, data searching,guidance etc.

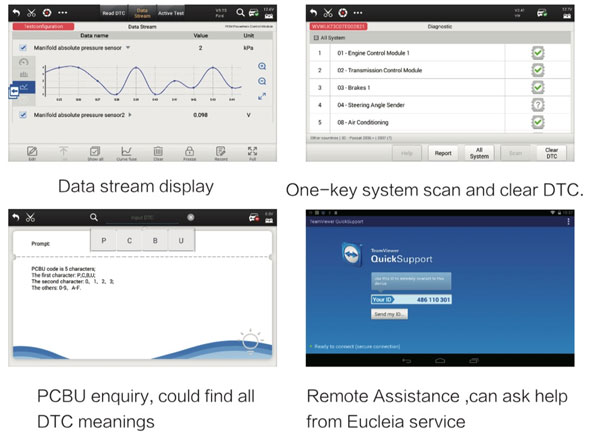

INTELLIGENT SYSTEMATIC FUNCTIONS
Boot Guidance
Auto Vin tech
One-key upgrade/system scan/DTC clear/screenshoot
DTC online search
Data stream display
PCBU code searching
Intelligent Record and feedback data
Remote assistance

Tabscan S8 Specification:
  CPU                              1.8GHz quad-core
  RAM                               4GB
  ROM                              32GB
  External Storage         Support 32GB,up to 64GB
  Battery                           7600mAh lithium battery
  Screen                           8-inch capacitive HD 1280x800pixels
  Operation System       Android
  Interface                        micro USB 2.0,HDMI,RJ45
  WIFI                                WIFI2.4/5G,FPC
  Bluetooth                       Bluetooth V4.0(Bluetooth low energy)
  Connectivity                   Bluetooth
  Charging Method         Desktop charger and car charger
  Diagnostic Connector   7 connectors
  Product Size                  265mm*175mm*27.5mm
  Processor                      ARM 32bit Cortex M3
  Flash                               512KB
  RAM                                 128KB
  Support OS                     Windows Xp,win7,win8,win10
  Communication Connector   DB15
  Wired Connection          USB Type-B,USB 2.0
  Wireless Connection    Bluetooth3.0/4.0
  Connectivity                     Bluetooth / Connect computer using USB cable
  Standards                       *Compatible SAE-J2534-1&SAE-J2534-2
                                            *Online ECU diagnosis，can be used as original manufacturer diagnostic tool
                                            *Support the third party and original manufacturer diagnostic program
Protocols                            Compatible SAE-J2534-1&SAE-J2534-2
                                              ISO-9141 K-Line
                                              ISO-14230 K-Line
                                              ISO-15765 K-Line
                                              ISO-11898 DWCAN
                                              SAE-J1850-VPW（GM Class2）
                                              SAE-J1850-PWM（FORD SCP）
                                              SAE-J2411 Single Wire CAN（GMLAN）
                                              SAE-J2610 SCI（Chrysler）
                                              SAE-J2740 GM ALDL
                                              SAE-J2809 (HONDA DIAG-H)
                                              VAG TP16 CAN
                                              VAG TP20 CAN（SAE J2819）
                                              VAG KW81（SAE J2818）
                                              BMW DS2
                                              FORD UBP

Tabscan S8 Diagnostic System Vehicle List:
Region    Models
EOBD      Eobd
                 for Daewoo
                   for Daihatsu
                   for Hyundai
                   for Hyundai CV
                   for Infiniti
                   for Isuzu
                   for Kia
                   for Lexus
Asia           for Mazda
                   for Mitsubishi
                   for Nissan
                   for NissanGTR
                   for Scion
                   for Ssangyong
                   for Subaru
                   for Suzuki
                   for Toyota
                   for FordAustralia
              for Bmw
                   for Citroen
                   for Dacia
                   for Fiat
                   for Honda
                   for Jaguar
                   for Lancia
                   for LandRover
                   for Mini
                   for Opel
                   for Perodua
                   for Peugeot
                   for Porsche
                   for Proton
Europe      for Renault
                   for Seat
                   for Skoda
                   for Smart
                   for Sprinter
                   for Vauxhall
                   for Volvo
                   for VW
                   for VW CV
                   for Abarth
                   for Acura
                   for Alfa
                   for Audi
                   for Benz
              for Chrysler
                   for Dodge

America    for Ford
                   for Gm
                   for Jeep
                   for DFXK
                   for BAICMotor
                   for Foton
                   for BaicHs
                   for BAICSenova
                   for Borgward
                   for BYD
                   for ChangAn
                   for Chery
                   for Chery_NE
                   for DFFG
                   for Emgrand
                   for EngLon
                   for Geely
                   for Gleagle
China        for Greatwall
                   for Hafei
                   for Brilliance
                   for JAC
                   for Karry
                   for LIFAN
                   for MAPLE
                   for Saicmg
                   for Rely
                   for Riich
                   for Saicmaxus
                   for SGMW
                   for SMA
                   for ChangheSuzuki
                   for ZOTYE
                   for TJFAW
              for Tata
India          for Mahindra
                   for Maruti

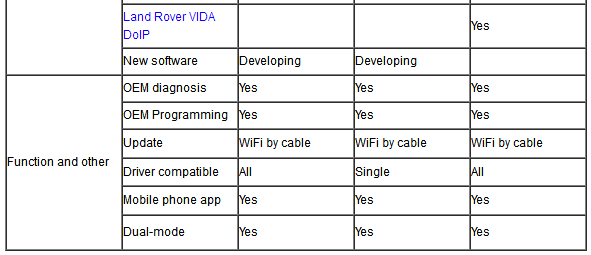

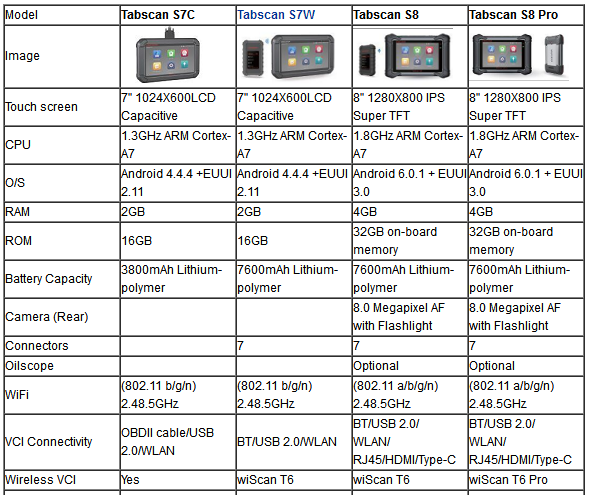

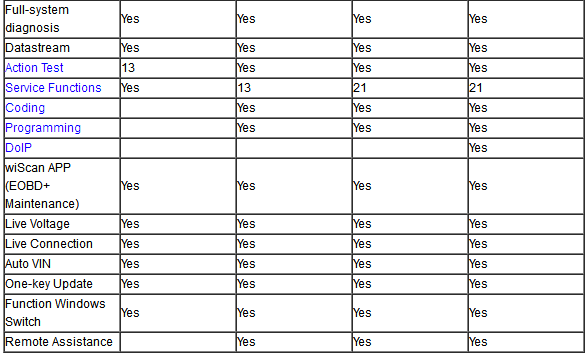

EUCLEIA Tabscan S7C vs. Tabscan S7W vs. Tabscan S8 vs. Tabscan S8 Pro

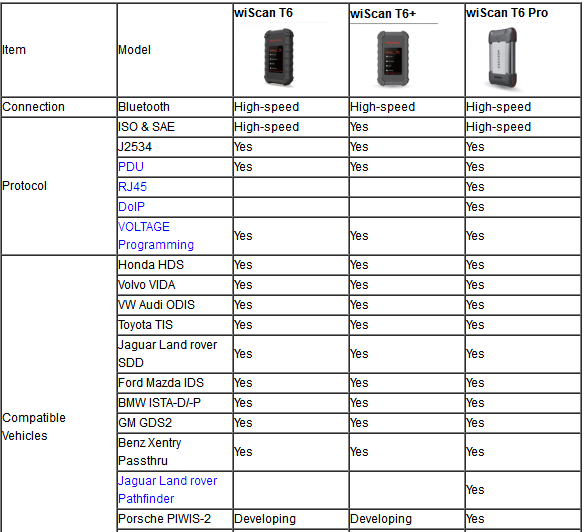

Tabscan VCI wiScan T6 vs. T6+ vs. T6 Pro

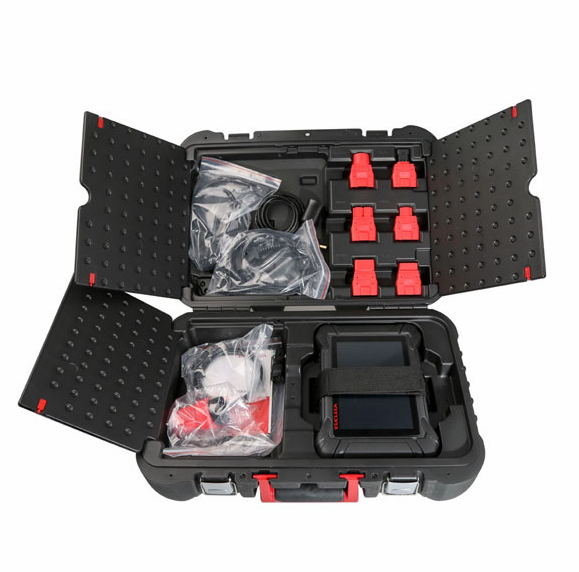

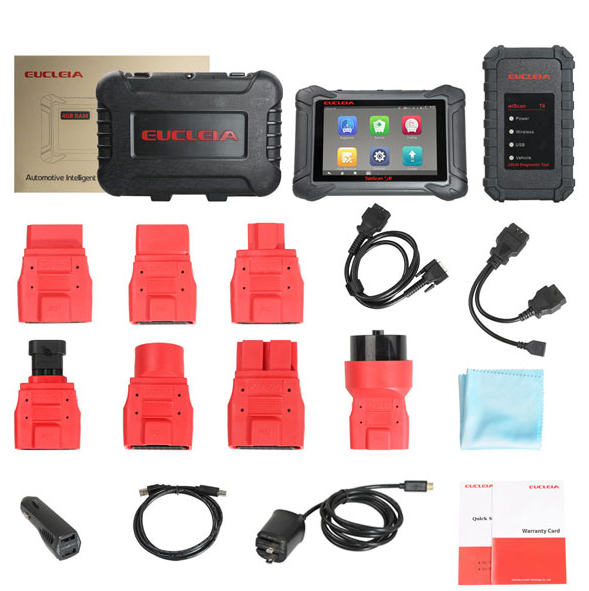

Package includes:

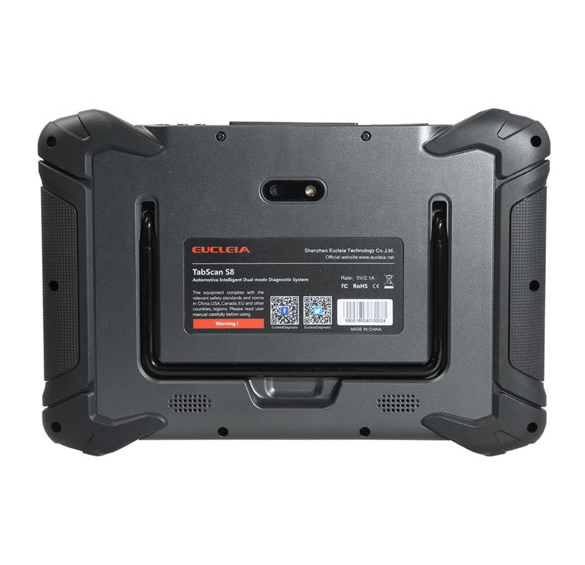

1pc x TabScan s8

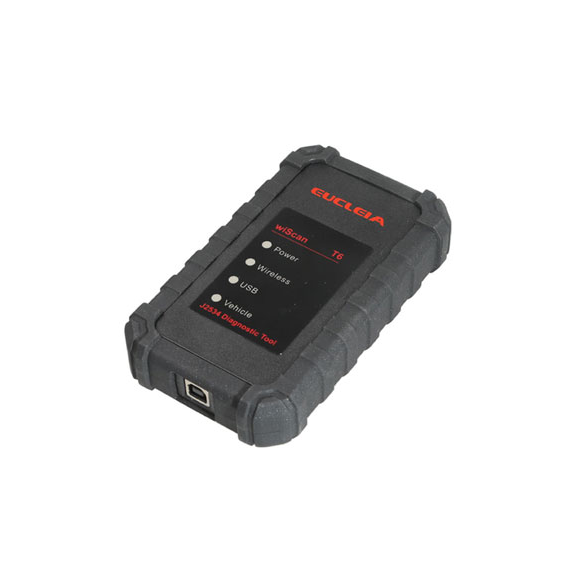

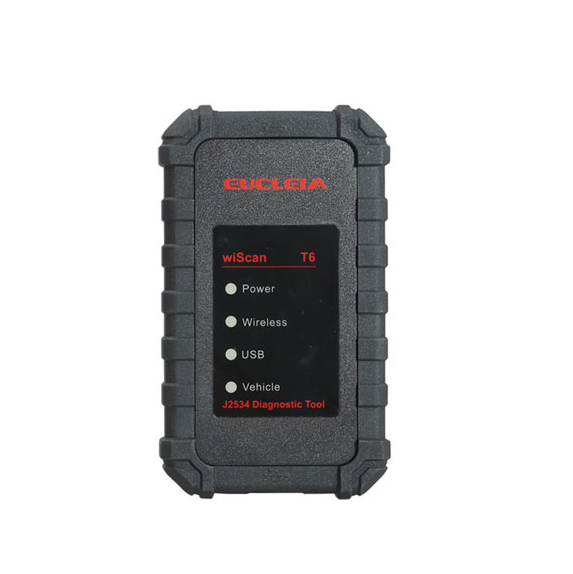

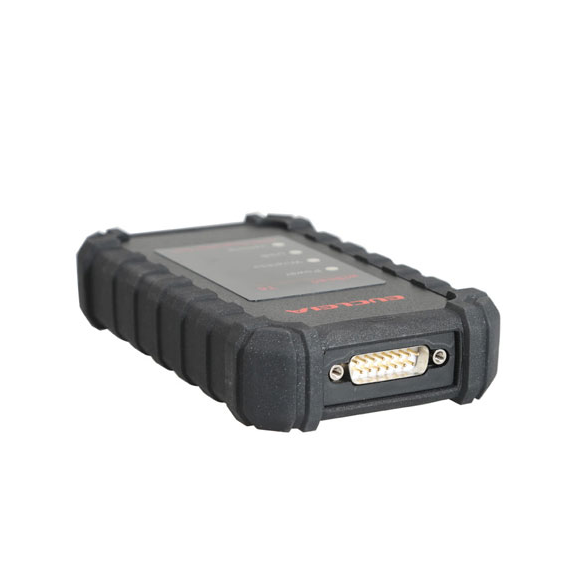

1pc x wiScan T6
1pc x Main Cable
1pc x God Cup Chery changan Fiat3
1pc x Nissan14
1pc x KIA20
1pc x Honda3
1pc x Toyota17
1pc x BMW20
1pc x Mazda17
1pc x BMW Eengineer Test Main Cable
1pc x USB connector cable
1pc x Dual USB charger
1pc x AC/DC adapter
1pc x Warranty card
1pc x User manual

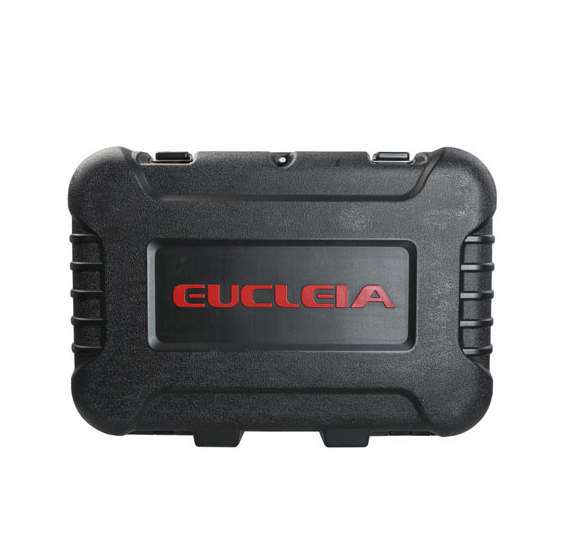

1pc x fitting box

User Comment(Total 2 User Comment Num)

• by lecanu ludovic,Mar 01,2019


  Does it come with TIS,HDS,VIDA,ODIS,SDD etc softwares?

  Reply #1 by Vivian Mar 01,2019
  Yes,it does.You can check models support in the product description.

  Vivian

  ---

• by lecanu ludovic,Jan 24,2019


  Does it come with TIS,HDS,VIDA,ODIS,SDD etc softwares?

  Reply #1 by Vivian Jan 24,2019
  Yes,it does.You can check models support in the product description.

  Vivian

  ---
