Question: What the different between Xtool X100 PAD, X100 PAD 2 and X100 PAD 3?
1. What is the difference between Xtool x100 pad and X100 PAD 2?

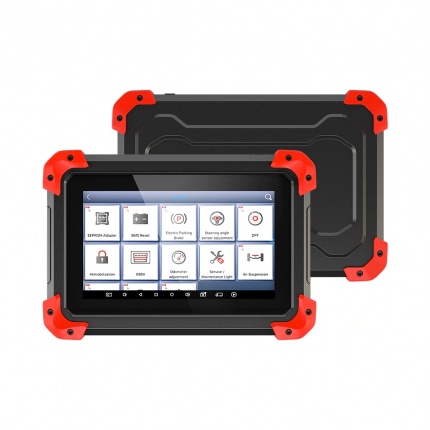

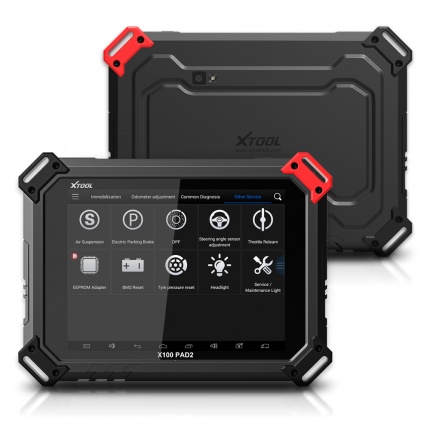

| Function Comparison | Xtool X100 PAD | Xtool X100 PAD2 Standard Configuration | Xtool X100 PAD2 Full Configuration |
| Image |  |
 |
 |
| OBDII Diagnosis | No | Diagnosis and immo function cover on the same cars. Four System Diagnosis:Engine control module, Brakes, central electrics, airbag. | Diagnosis and immo function cover on the same cars. Four System Diagnosis:Engine control module, Brakes, central electrics, airbag. |
| Immobilizer programming | Yes | It is optional to pay VW 4th /5th generation immobilizer programming. | Support VW 4th/5th generation immobilizer programming. |
| Oil Reset/Engine oil light reset | Yes | Yes | Yes |
| TPS Throttle Body Adaptation | Yes | Yes | Yes |
| Odometer Adjustment | Yes | Yes | Yes |
| EPB Electrical Parking Brake Adaptation | Yes | Yes | Yes |
| Steering Angle Calibration | Yes | Yes | Yes |
| ABS Exhaust | Yes | Yes | Yes |
| Battery reset | Yes | Yes | Yes |
| Headlight adjustment | No | Yes | Yes |
| Gear learning | Yes | Yes | Yes |
| tire pressure warning light reset | Yes | Yes | Yes |
| ECU reset | Yes | Yes | Yes |
| EEPROM adapter | Yes | Yes | Yes |
| Exhaust Gas Treatment (DPF) | Yes | Yes | Yes |
| Car Suspension | No | Yes | Yes |
| Specification Comparison | X100 PAD | X100 PAD2 Standard / Full Configuration | |
| CPU | 1.3GHZ | 1.6GHZ | |
| Operation system | Android 4.4 | Android 4.4 | |
| Memory | 16G RAM:1G Flash | 1GB RAM, 16GB Flash | |
| Battery capacity | 2400mAh7.4V | 4000mAh7.4V | |
| Resolution | 1024*600 | 1024*768 | |
| Display | 7 inch IPS 5-point multi-touch screen | 8.0 Inch IPS 5-Point Multi-touch Screen | |
| HD input/output Port | MINI HDMI | MINI HDMI | |
| Communication | via Bluetooth | Via cable | |
| Standby Time | 5h | 8h | |
| WIFI | 2.4GHZ | 2.4GHZ | |
| Connection method | By Wireless (Bluetooth) | Via cable | |
| Dimension | 208*140*15.5mm | 240*177*30mm |
2. Xtool X100 PAD3 VS X100 PAD2 Pro
Xtool X100 PAD3 is professtional tablet key programmer with multifunction from Xtool manufacturer, support not only key programming but also special function, OBD2 diagnostic functions and mileage adjustment functions. X100 Pad3 is the update version of Xtool X100 Pad/PAD2.

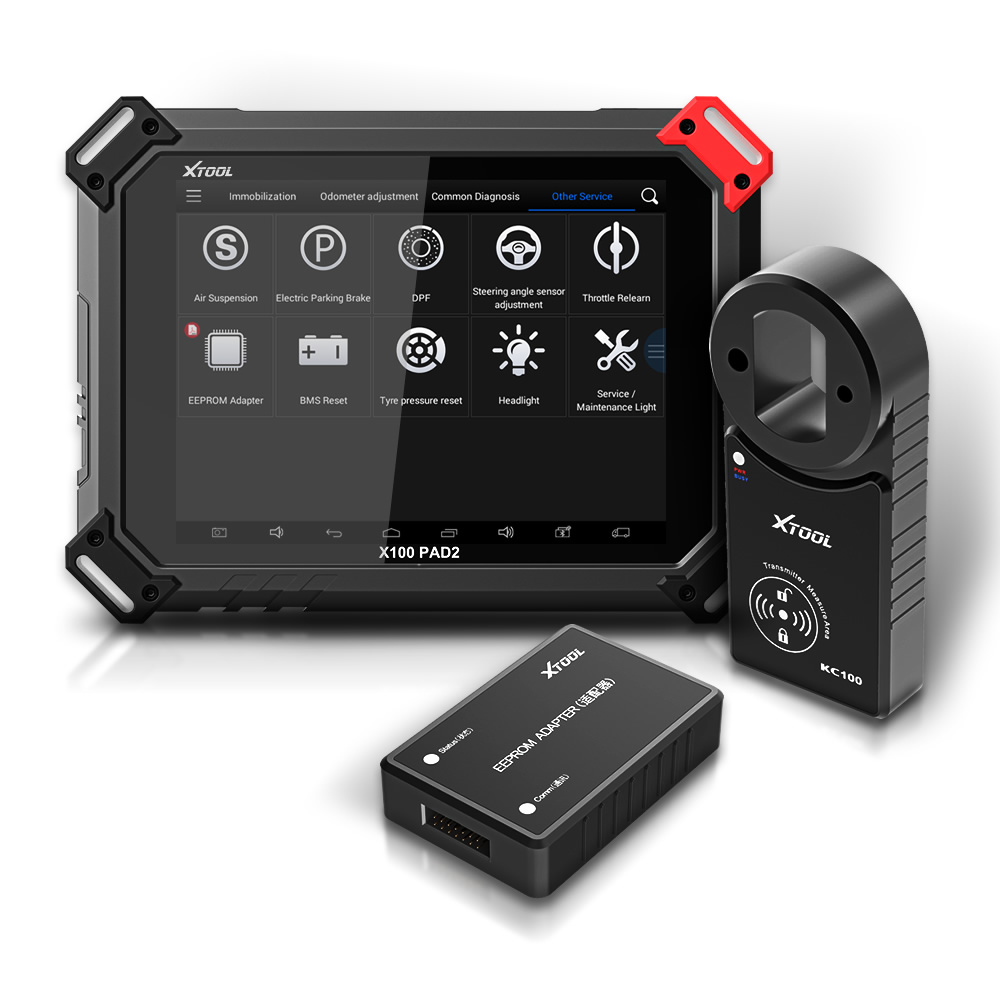

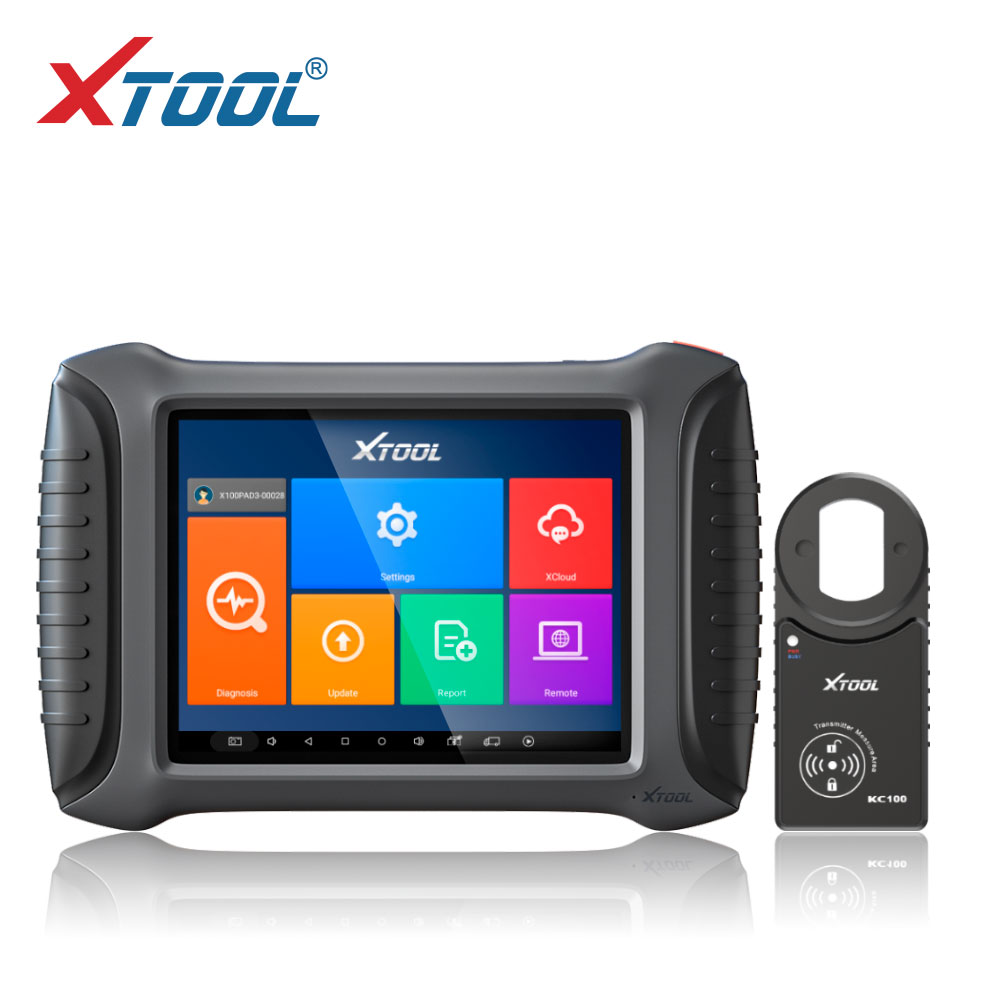

| Xtool X100 PAD3 | Xtool X100 PAD2 Pro | |
| Image |  |
|
| Hardware | Operating system: Android Processor: quad core processor 1.8GHz Memory: 2G RAM, 64G ROM Display / touch screen: 1024 • 768 resolution, 8 inch LED Compatible touch screen Camera: rear camera, 8 million pixels, with flash autofocus. Sensor: gravity sensor Audio input / output: microphone, 4 band 3.5 millimeter stereo. Interface: USB3.0, DC charging port, MINI HDMI, DB15 interface. Battery: 10000mAh 3.7V lithium polymer battery Input voltage: +9 ~ + 36VDC, compatible with 12V and 24V voltage system |
Wi-Fi : WIFI 2.4Ghz Memory : 2GB RAM, 32GB Flash Sensors : Gravity Sensor, Light Sensor Power Consumption : 29.6W CPU : Quad Core, 1.6 GHz Operating System : Android 4.4.4 Bluetooth : 100 Meters Display : 8.0 Inch IPS 5-Point Multi-touch Screen with 1024 × 600P Resolution Battery : 4000mAh, 7.4V Dimension : (L * W * H): 240 * 177 * 30mm Power Voltage : 12V |
| Communication | USB 3.0, WIFI 2.4Ghz | USB 3.0, WIFI 2.4Ghz |
| Immobilization | Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Land Rover, Lincoln, Renault, etc America: GM, Cadillac, Buick, Chrysler, Ford etc China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc. |
America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford Asia:Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota China : BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW |
| VAG 4th 5th IMMO | yes, when working together with KC100 adapter | yes, when working together with KC100 adapter |
| Toyota Smart Key All Keys Lost | Yes, requires KS-1 emulator (need to buy additionally) | Yes, requires KS-1 emulator (need to buy additionally) |
| Odometer adjustment | VW Audi Seat Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More… | VW Audi Seat Skoda, Buick, Cadillac, Chevrolet, Chrysler, Ford, Mazda, Nissan, Suzuki, Kia, Hyundai, Jaguar, Land Rover, Porsche And More… |
| Common diagnosis | Yes, cover models from Europe, Asia, America | Yes, cover models from Europe, Asia, America |
| Special Service | ABS Bleeding Service/Maintenance Light Steering angle sensor adjustment Window initialization Throttle relearn BMS reset Seat match Airbag fix up Gear learn Air suspension Eeprom adapter Headlight DPF EPB Cylinder |
EEPROM adapter BMS reset Electric parking brake Steering angle sensor adjustment Service / Maintenance light Tyre pressure reset Throttle relearn DPF |
| Update | X100PAD3 updates directly via the Internet using WiFi or wired connection. To access the update application open the X100PAD3 application and click UPDATE | One-click update via WIFI |
| Language | Persian, Arabic, Indonesian, Greek | English, Spanish, French, Turkish, Indonesian, Thai, Portuguese |
In conclusion:
X100Pad is basic immo. Without great brand, it cannot do BMW,only Basic land rover, cannot do luxury brand and VAG immo IV/V or later
-X100Pad2 and 3 can do everything with the latest car and system,they can do BMW EWS to CAS4+ And FEM/BDC, also VAG immo IV/V and MQB system. The difference between Pad2 and 3 is that X100Pad2 cannot do MB IR key while x100Pad3 can.But you must buy the adapter kc501 not kc100.
pad3 has more special functions than pad2.
