Important:
Before performing any disassembly or maintenance work on the spring-loaded brake, it is essential to first disconnect the electrical connection cable. This guide, provided by obd2tool.com, outlines the correct steps.
Related Contents:
Jungheinrich JETI ForkLift Judit-4 v4.37 4.34 2023 Free Download
Forklift Diagnostic tools JUDIT-4 Jungheinrich Diagnostic Scanner Kit Judit Box Incado
Removal Procedure
Requirements:
- Ensure the truck is securely parked – refer to the operating instructions.
- Spring-loaded brake installed – see service manual module 001 002 062 00003.
Steps:

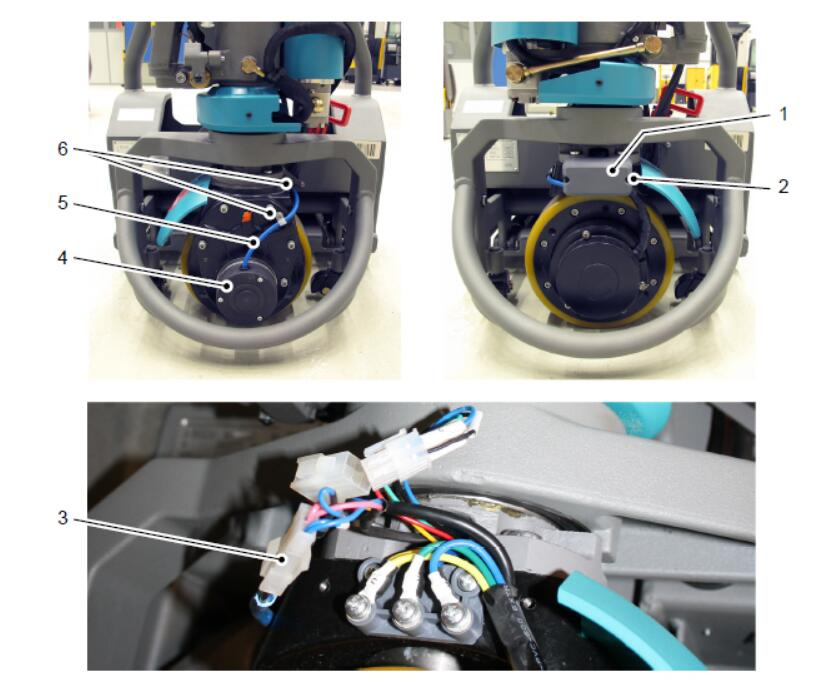

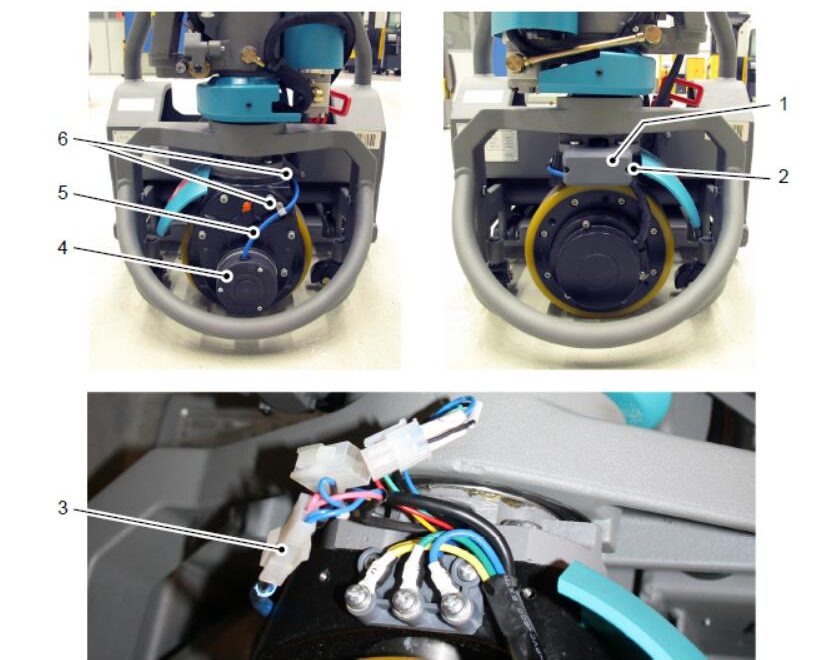

- Disconnect the battery connector (refer to the truck’s operating instructions).

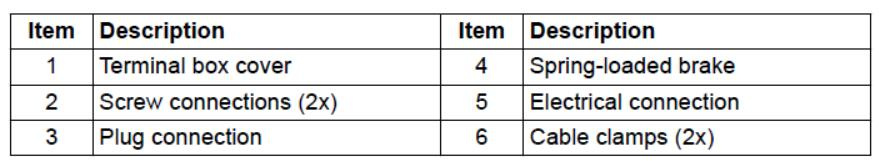

- Remove the cable clamps (Item 6) securing the electrical connection.
- Unscrew the terminal box cover (Item 1) by loosening the fasteners (Item 2).
- Disconnect the electrical plug (Item 3) from the main electrical connection cable (Item 5).
Reinstallation Procedure
Requirements:
- Truck must be securely parked – see operating instructions.
- Spring-loaded brake must be correctly installed – refer to service manual.
Steps:
- Reconnect the electrical plug (Item 3) to the electrical connection cable (Item 5).

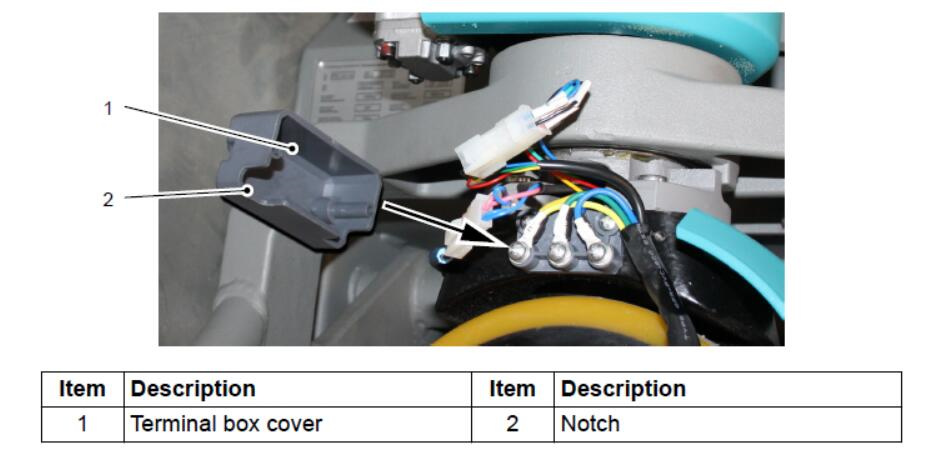

- Reattach the terminal box cover (Item 1), ensuring that the notches (Item 2) face downward. Take care not to trap any cables.
- Secure the terminal box cover with its screw fasteners (Item 2).
- Re-fix the cable clamps (Item 6) to hold the electrical connection securely.
- Insert and connect the battery connector.
- Test the function of the spring-loaded brake to ensure proper operation.
