Introduction:

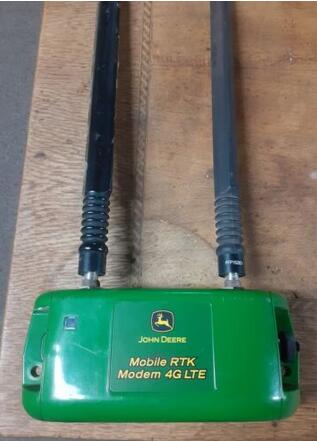

Electromagnetic interference (EMI) can wreak havoc on the communication circuits of John Deere Mobile RTK Modem 4G LTE, leading to erratic display activity and even complete system shutdown. In this blog post, we will explore the common causes of EMI and provide you with effective solutions to overcome these issues. By taking corrective measures, you can prevent the need for costly monitor replacements and ensure uninterrupted operations.
Related Contents:
John Deere Service Advisor 5.3.235 AG+CF 2023 2020 2018 Free Download
John Deere Service Advisor EDL
Common Causes of EMI:
1. Operating close to high tension wires and broadcast towers: The proximity to these high-power sources can introduce interference into the system.
2. Noisy power supply: Poorly regulated or defective power supplies can generate electromagnetic noise, affecting the communication circuits.
3. Monitor too close to the radio antenna: Placing the monitor in close proximity to the radio antenna can cause interference due to electromagnetic radiation.
4. Old radio cables used: Worn-out or outdated radio cables may not provide sufficient shielding, thereby allowing EMI to disrupt the system.
5. Poor system ground: Inadequate grounding can lead to the accumulation of electrical noise, interfering with the communication circuits.
6. Monitor power not directly connected to the battery: Indirect power connections can introduce EMI into the system, leading to disruptions.
7. Radio power not directly connected to the battery: Similar to monitor power, radio power connections not directly linked to the battery can contribute to EMI issues.
8. Monitor wiring harness too close to radio wiring: Improperly routed wiring harnesses, especially when close to radio wiring, can induce interference.
9. Monitor not connected to on-board computer with standard system cables: The absence of standard system cables can compromise the electromagnetic compatibility between the monitor and the on-board computer.
Effective Solutions to Overcome EMI Disruption:
1. Relocate the equipment: If operating near high tension wires or broadcast towers, move the equipment away from these sources to minimize EMI.
2. Ensure a clean power supply: Use high-quality power supplies that meet the required standards, reducing electrical noise and interference.
3. Optimal placement of monitor and radio antenna: Place the monitor and radio antenna at a sufficient distance from each other to minimize EMI interference.
4. Replace old radio cables: Replace worn-out or outdated radio cables with properly shielded ones to enhance the system’s resistance to EMI.
5. Improve system grounding: Ensure proper grounding of all components to minimize the accumulation of electrical noise and interference.
6. Directly connect monitor power to the battery: Establish a direct connection between the monitor power and the battery to eliminate potential EMI sources.
7. Directly connect radio power to the battery: Similarly, directly connecting the radio power to the battery can mitigate EMI disruptions.
8. Optimize wiring harness routing: Properly route the monitor wiring harness, ensuring it is not in close proximity to radio wiring to minimize EMI interference.
9. Use standard system cables: Connect the monitor to the on-board computer using standard system cables recommended by John Deere to ensure optimal electromagnetic compatibility.
Conclusion:
Electromagnetic interference (EMI) can disrupt the communication circuits of John Deere Mobile RTK Modem 4G LTE, causing erratic display activity and system shutdown. By understanding the common causes of EMI and implementing the suggested solutions, you can effectively overcome these disruptions and ensure smooth operations. By taking proactive measures to address EMI, you can save on costly monitor replacements and maintain uninterrupted productivity in your John Deere equipment.
