This guide provides steps to resolve a QSK60 G CM2358 engine oil filter differential pressure issue. The data is valid but indicates a condition outside the normal operating range, reaching moderately severe levels.
Related Resources:
Trouble Code Information:
- Trouble Code: 1362
- PID: P99
- SPN: 99
- FMI: 0/16
- Warning Light: Amber
Reason: High oil filter restriction detected.
Impact: No impact on engine performance.
Circuit Description:
The Engine Control Module (ECM) monitors the oil filter inlet pressure sensor and the engine oil pressure sensor to detect any clogging in the oil filter.
Component Locations:

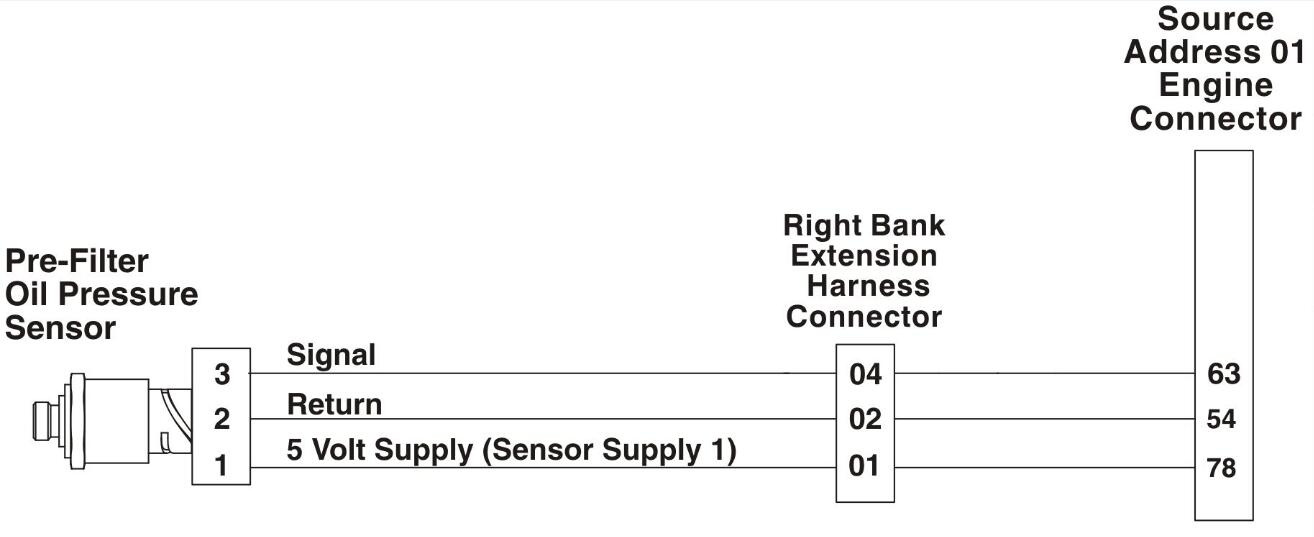

- Oil Filter Inlet Pressure Sensor: Located in the oil filter housing.

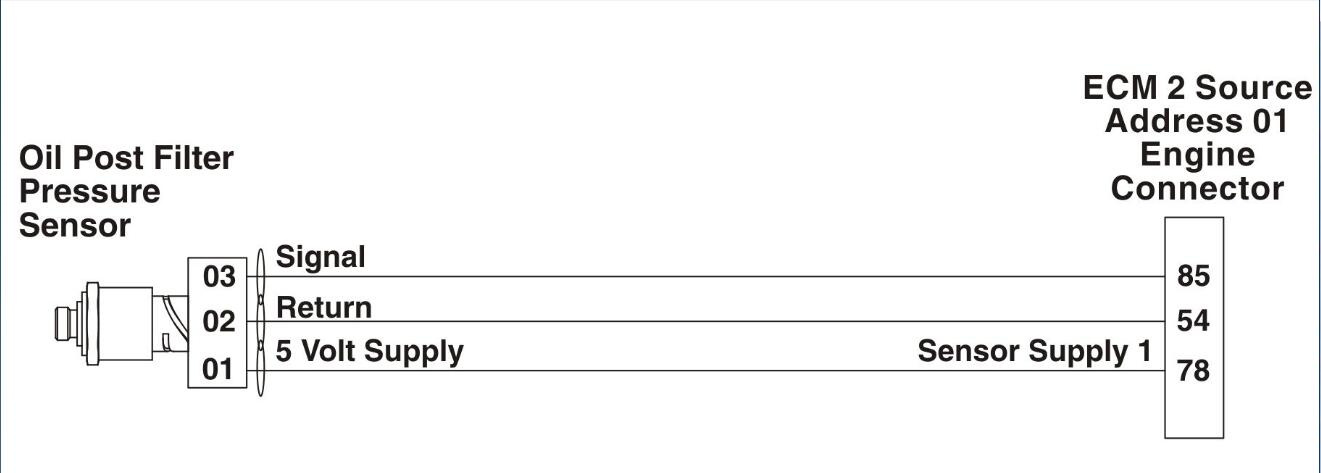

- Engine Oil Pressure Sensor: Located at the outlet of the oil filter head.
Diagnostic Conditions:
This diagnostic test runs continuously while the engine is running.
Conditions for Setting a DTC:
A DTC is set when the ECM detects a high level of blockage in the oil filter.
Actions if Trouble Code is Active:
If the diagnostic test fails, the ECM will immediately turn on the amber CHECK ENGINE light.
Clearing the Error Code:
To clear the error code, perform a key cycle, start the engine, and let it idle for one minute. If the diagnostic test passes, the ECM will turn off the amber CHECK ENGINE light, and the DTC status will change to INACTIVE as displayed by the electronic service tool or equivalent.
For further troubleshooting, refer to the QSK60 CM2358 Trouble Repair.
