Component Protection is an important security feature implemented by Volkswagen and Audi on certain vehicles. It aims to prevent the unauthorized exchange of components between different vehicles. This article will delve into the concept of component protection, why it is necessary, and how ODIS software can enable/disable it.
What is Volkswagen Component Protection?
Component Protection is a database specific to the VW Audi Group. It keeps track of individual electronic components and their allocation to specific vehicles. Essentially, component protection acts as an electronic padlock, ensuring that components are tethered to their respective vehicles. The goal is to prevent unauthorized component swaps and deter theft.
Why is Component Protection Necessary?
Cars are often stolen for their high-value parts, such as engines, gearboxes, and interiors. By swapping these components into another vehicle with a major mechanical fault, thieves can make the stolen parts work seamlessly. Component protection ensures that control modules are matched to the vehicle’s unique identification in the VAG online database, making it difficult for thieves to exploit stolen parts.
What Do You Need for Component Protection?
To enable/disable component protection using ODIS, you will require the following:
1. ODIS software: This is a diagnostic tool used during workshop diagnosis for vehicle control module identification, reading DTC memory entries, and guided fault finding.

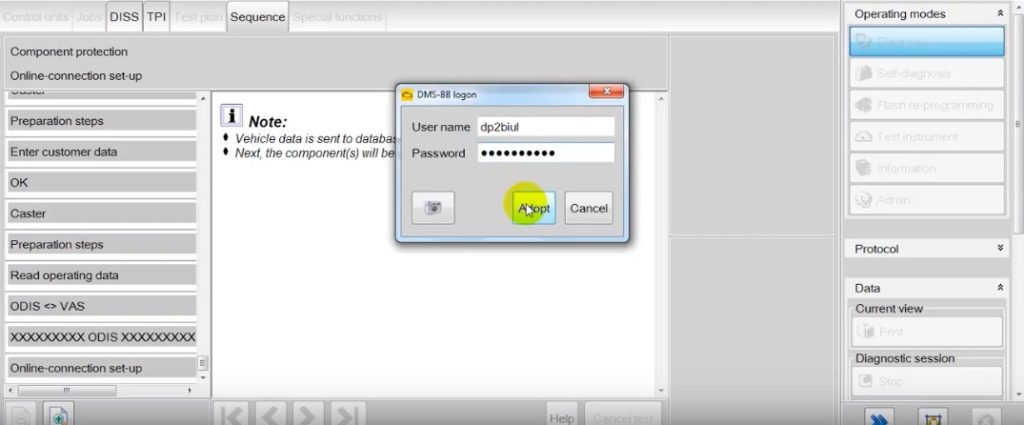

2. Unique username and password: These credentials are specific to each ODIS subscriber and provide access to the VW Audi Group database.
3. VAG diagnostic tool: A compatible diagnostic tool, such as VAS5054A, VAS 6154, or Vxdiag VCX Nano, is needed to connect to the vehicle’s electronic system.
4. Laptop/PC with Windows 7 operating system: A reliable computer system running Windows 7 is recommended for smooth operation of ODIS software.
How to Enable/Disable VW/Audi Component Protection with ODIS:
1. Connect a compatible VAG diagnostic tool to the vehicle.
2. Run the ODIS software on your computer.

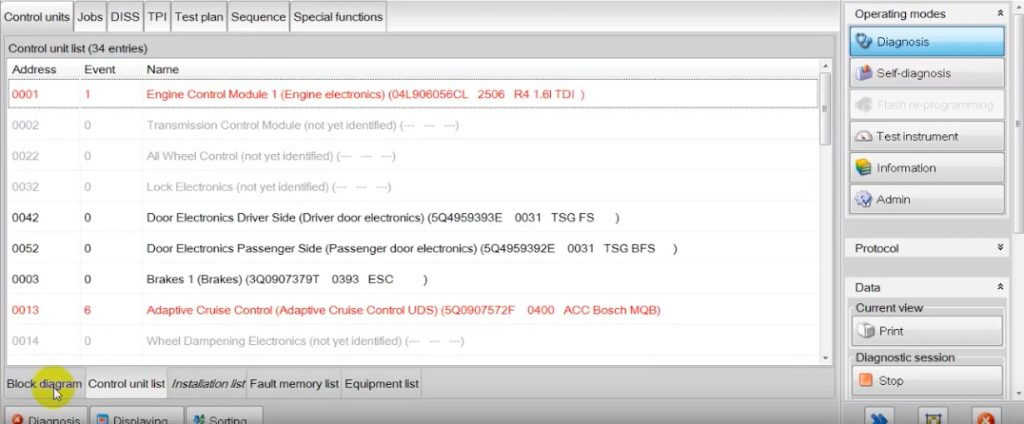

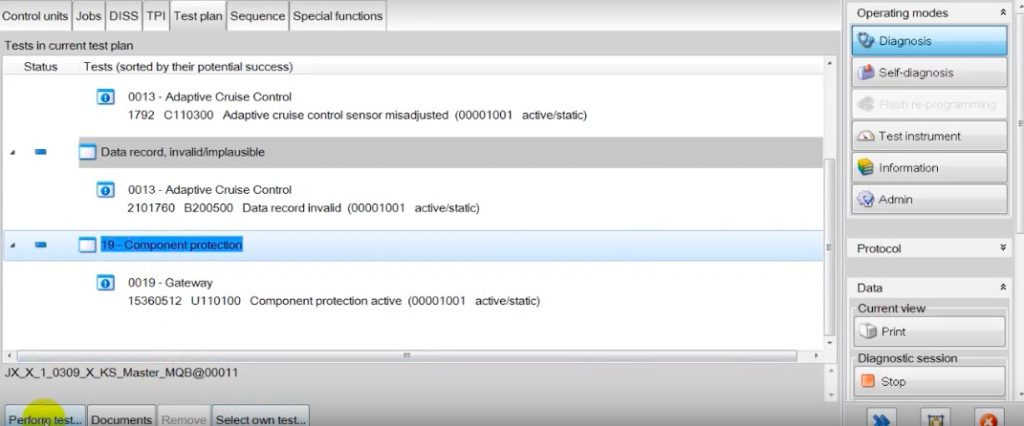

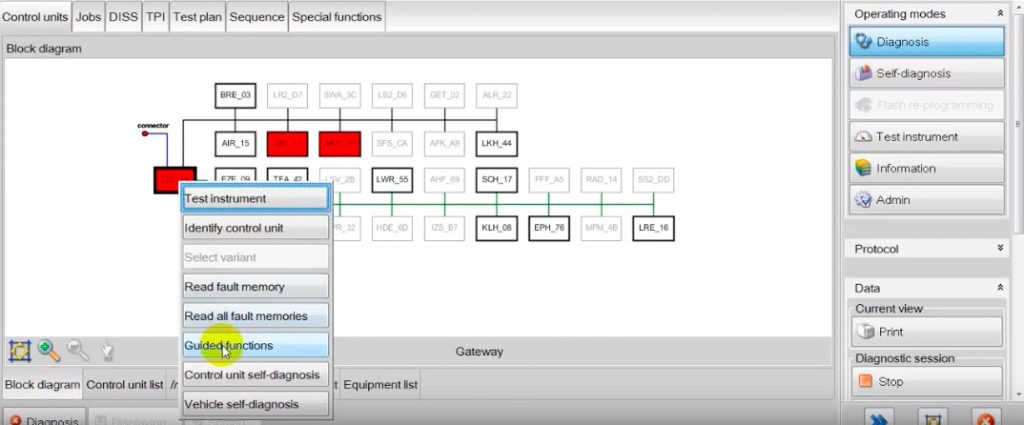

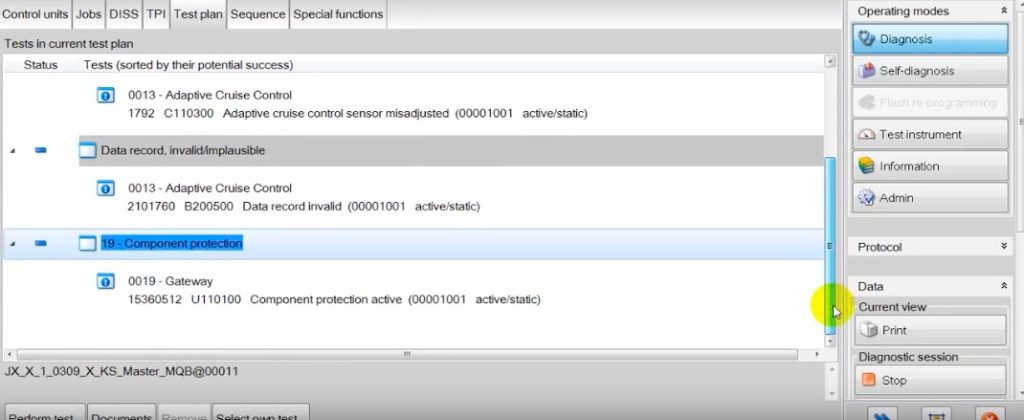

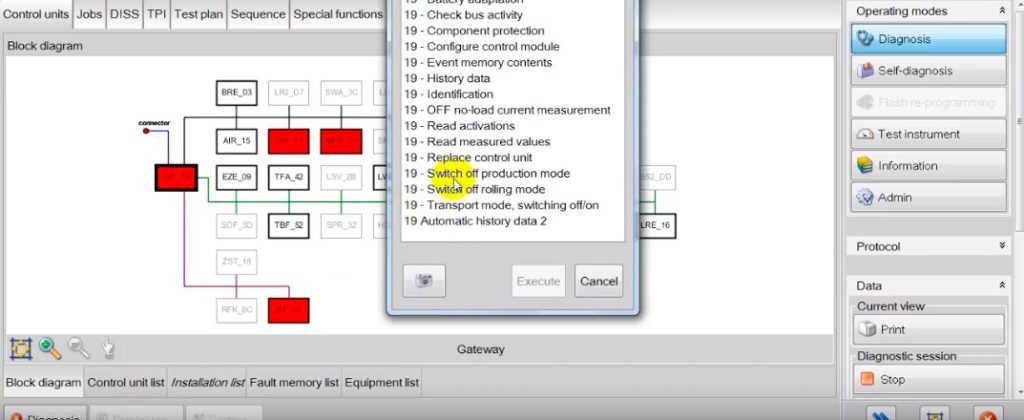

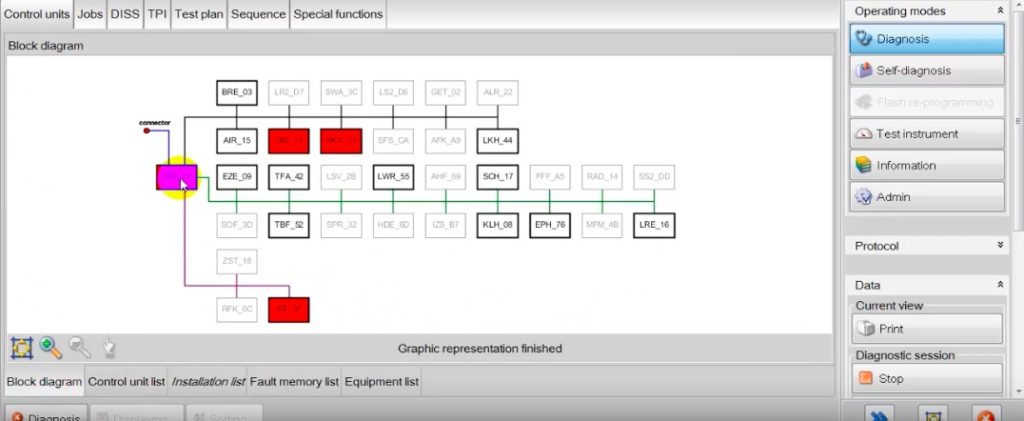

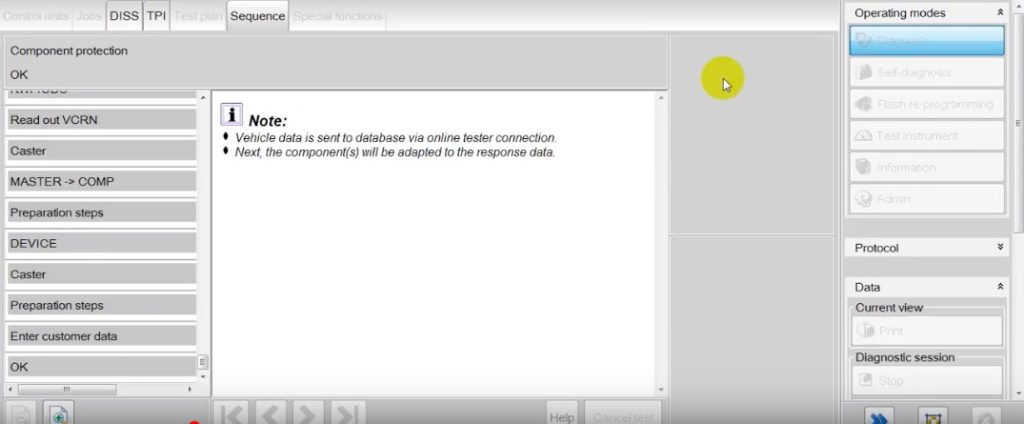

3. Access the diagnostic functions in ODIS and select the component protection test.

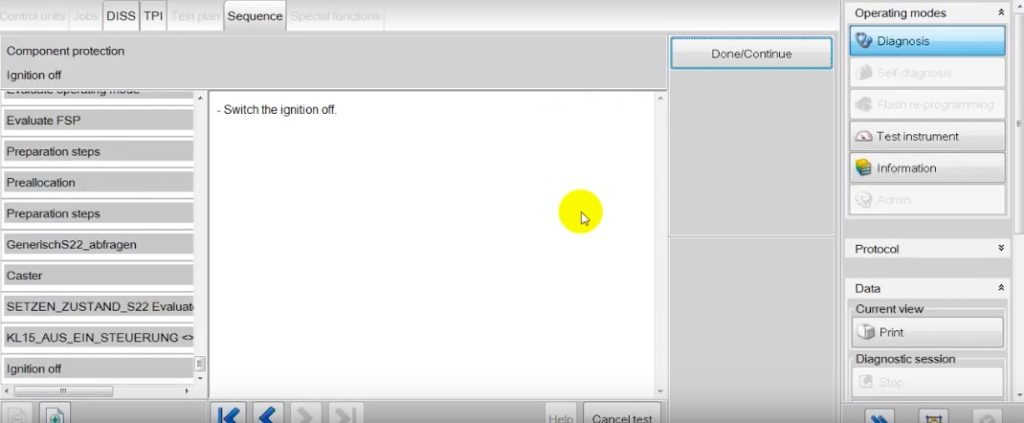

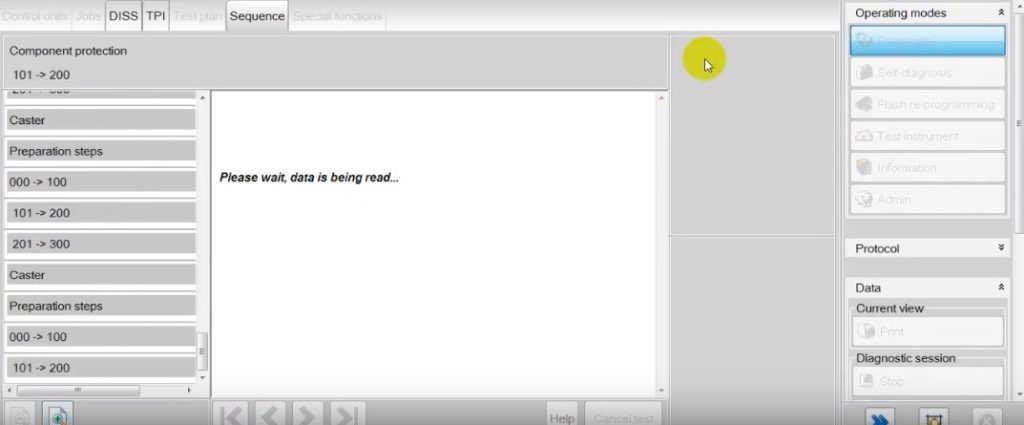

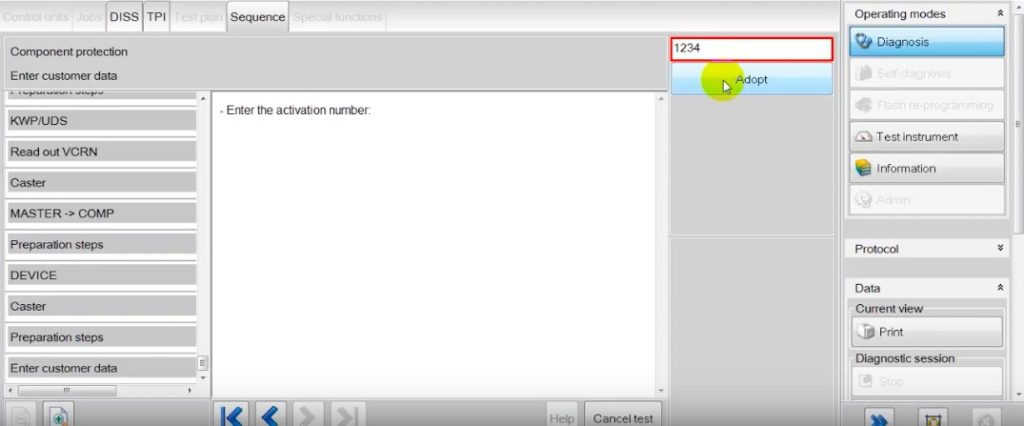

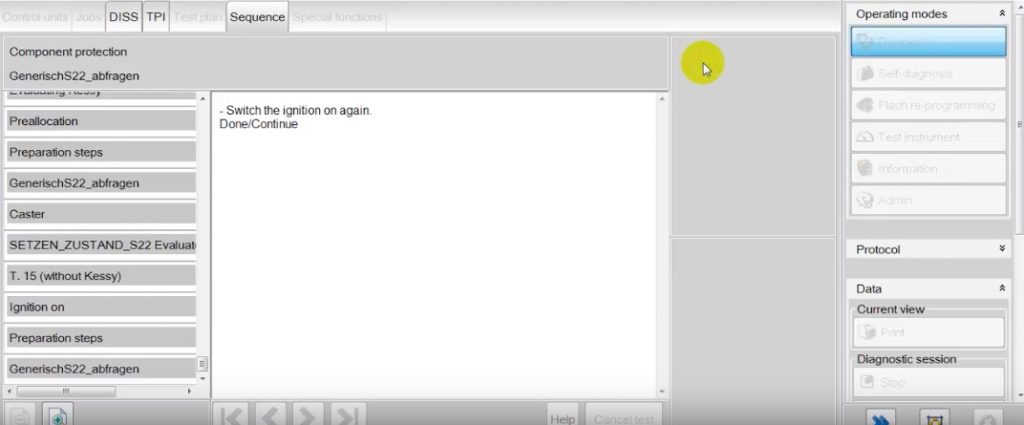

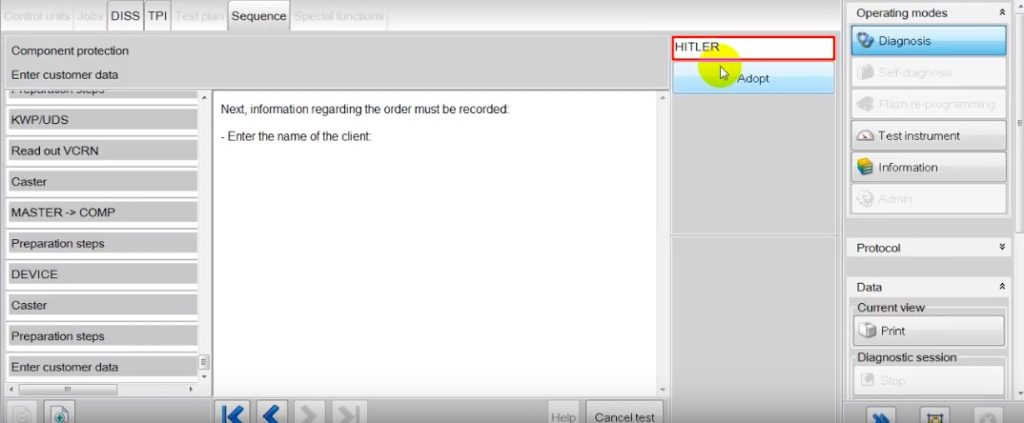

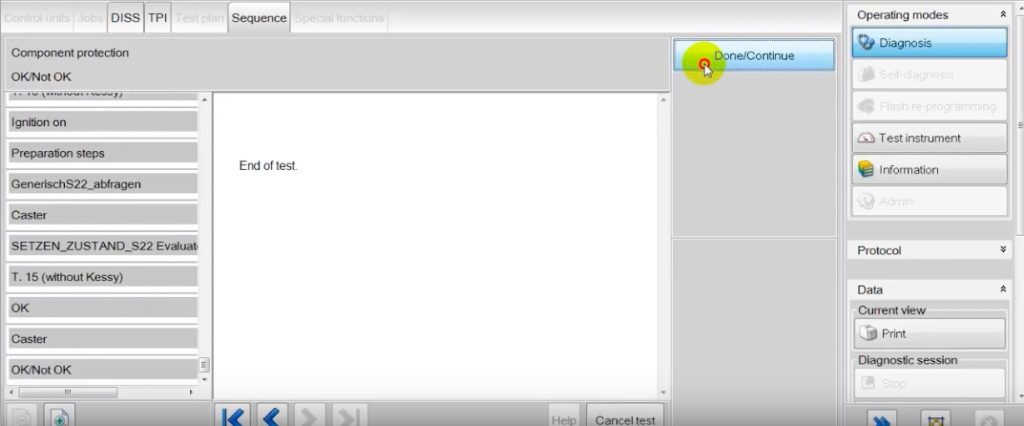

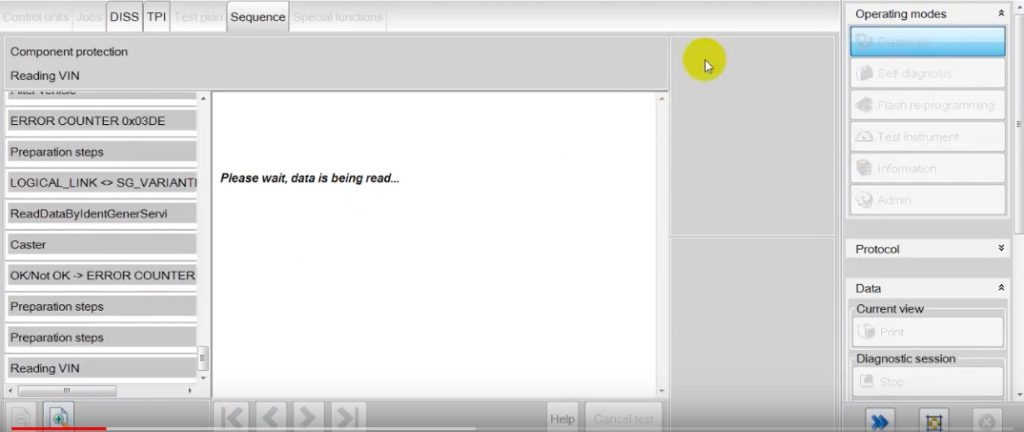

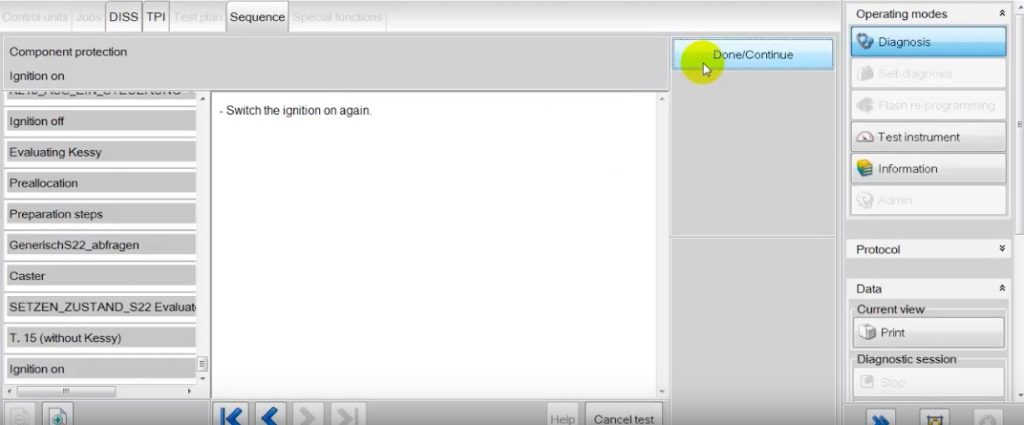

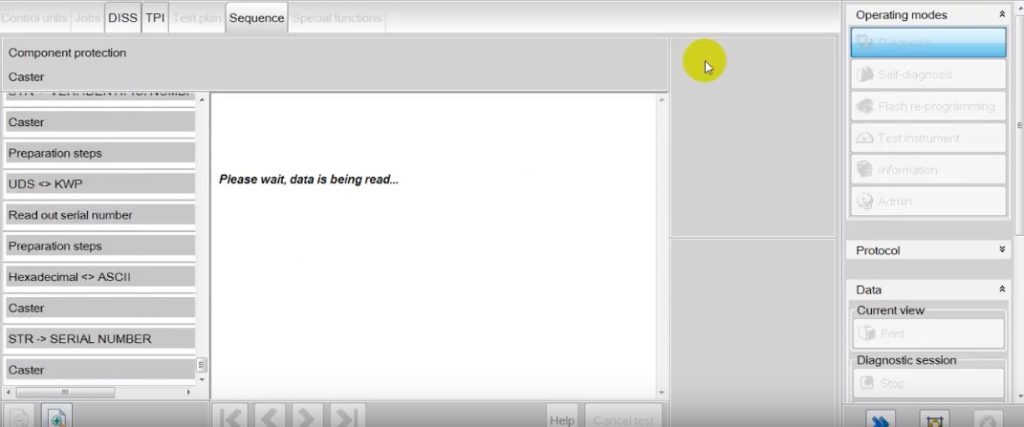

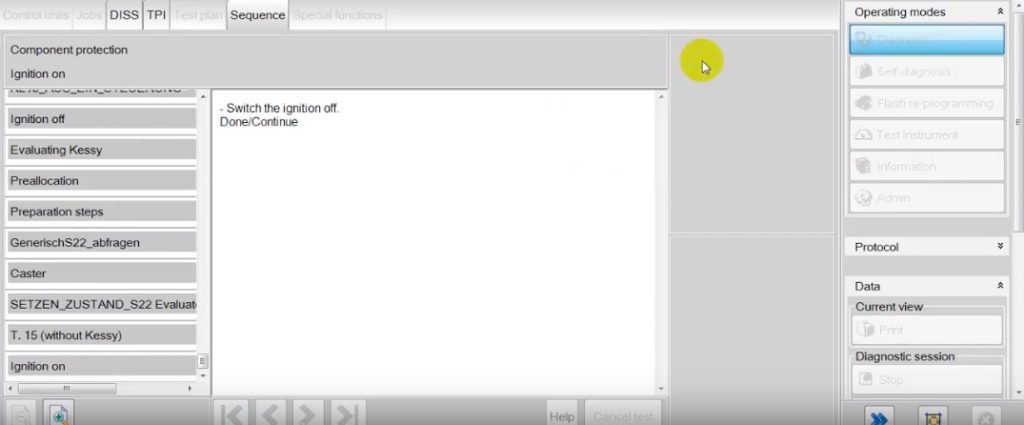

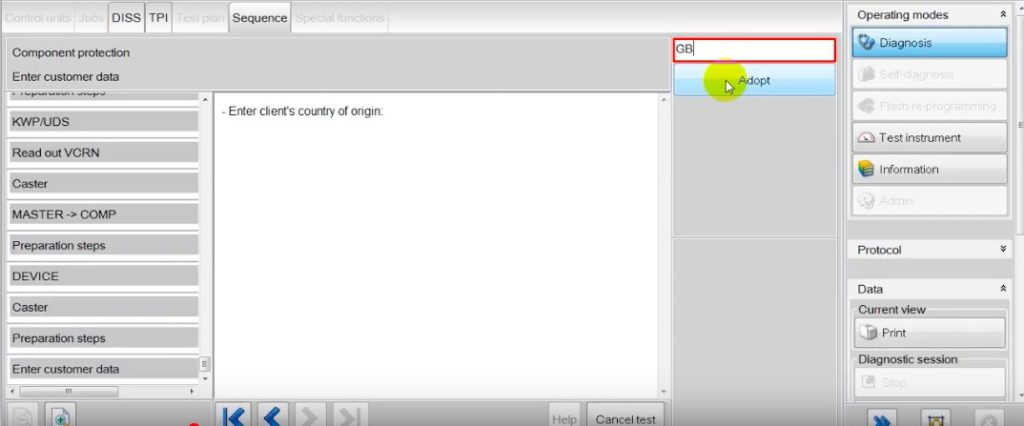

4. Follow the guided instructions provided by the software to perform the component protection test.

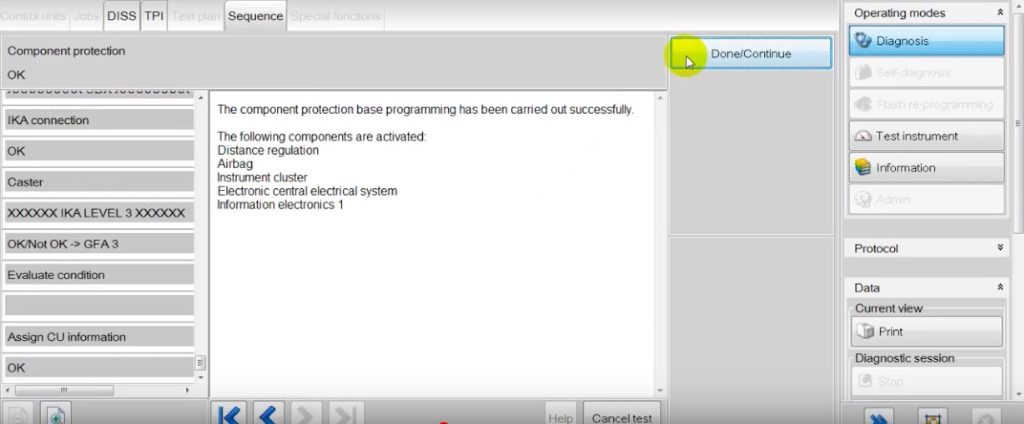

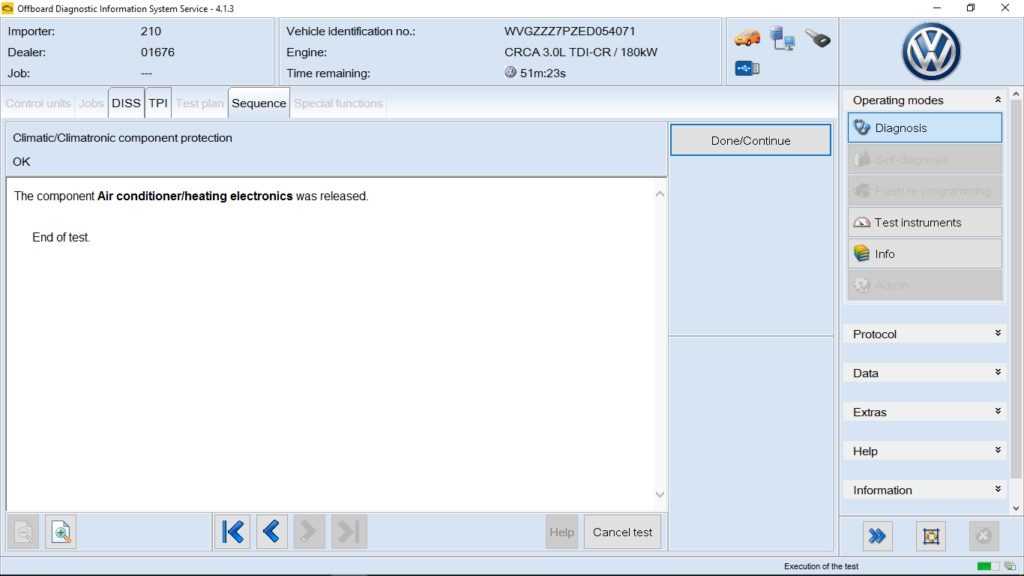

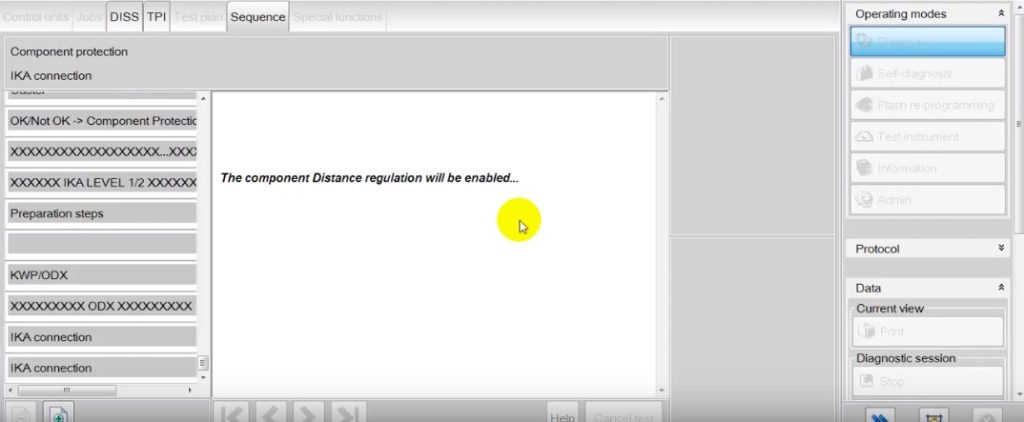

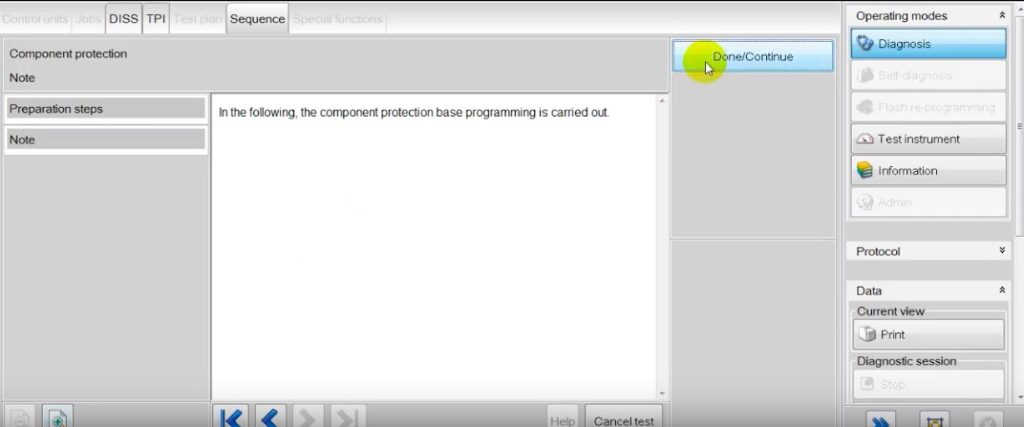

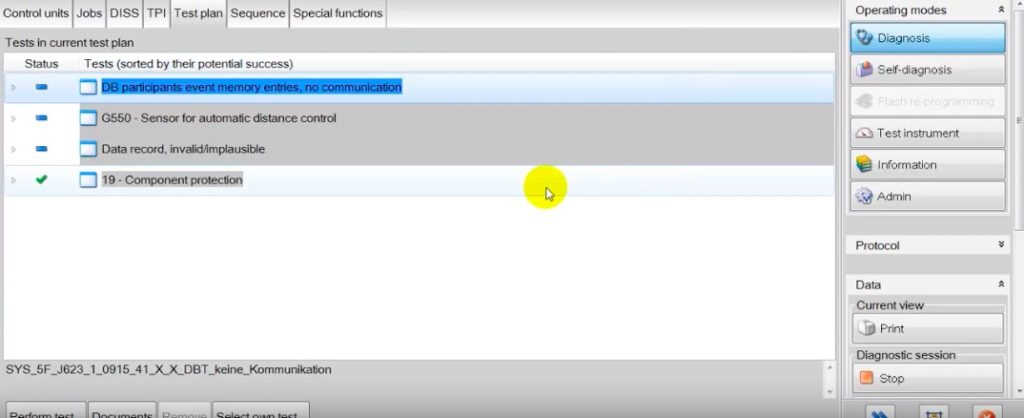

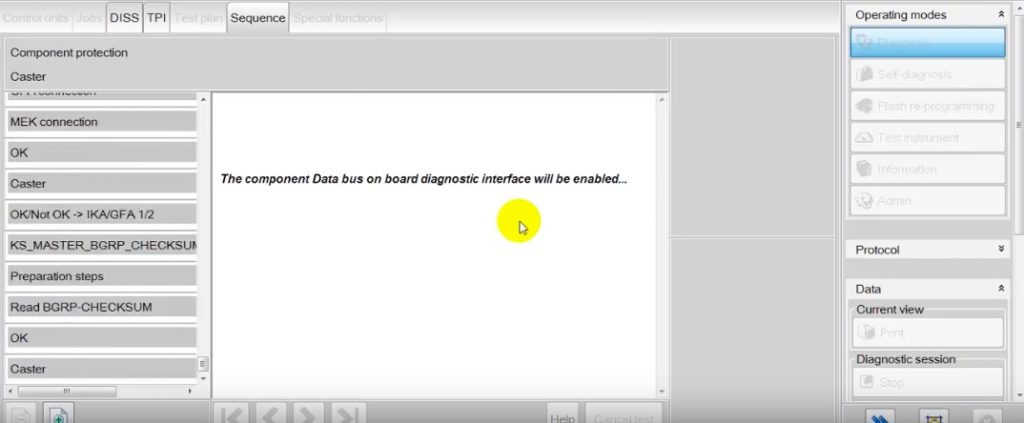

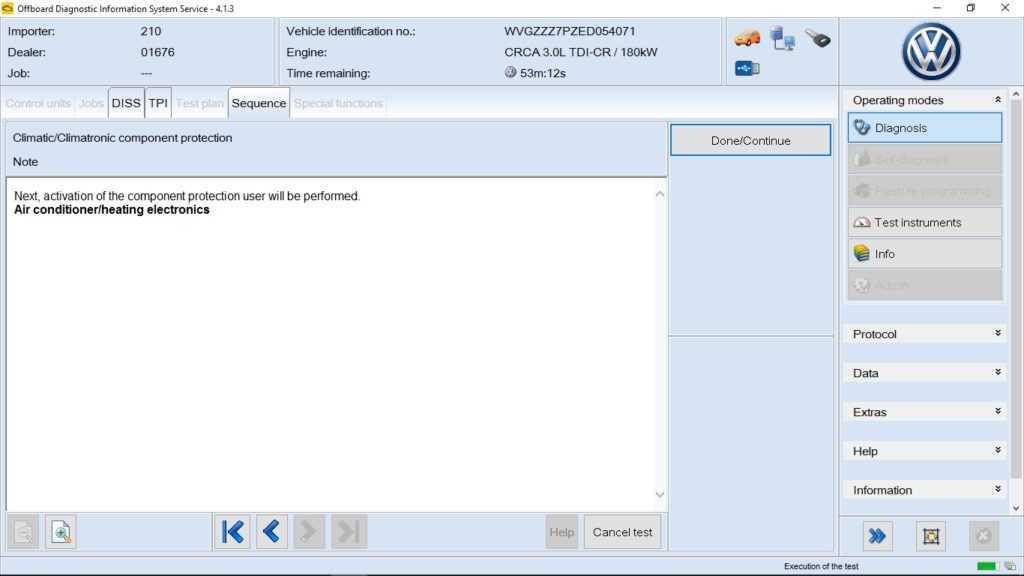

5. If successful, the component protection base programming will be carried out, activating various components such as distance regulation, airbag, instrument cluster, etc.

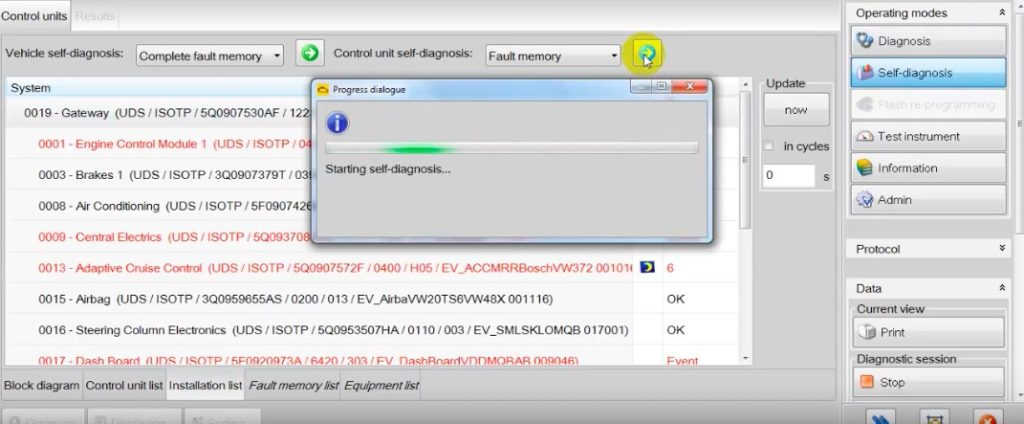

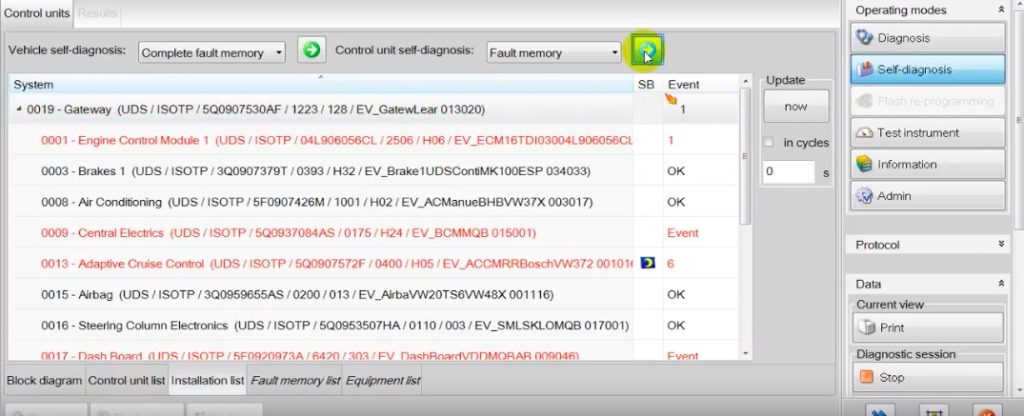

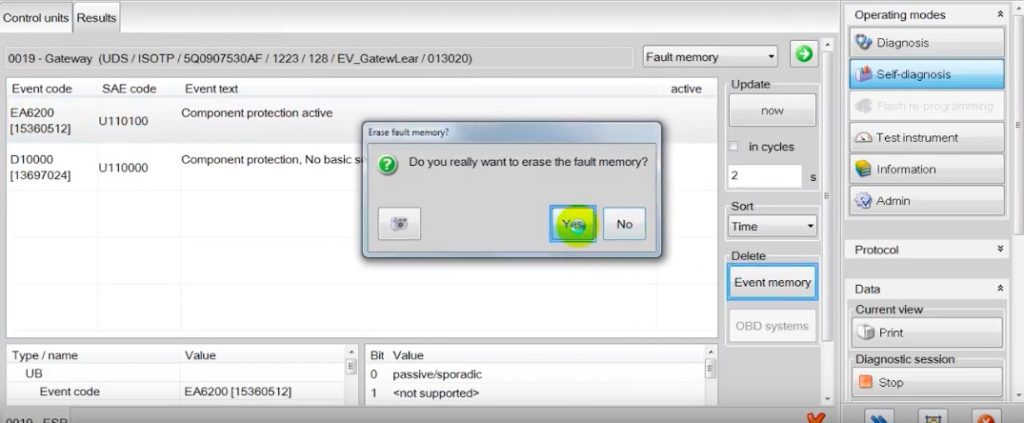

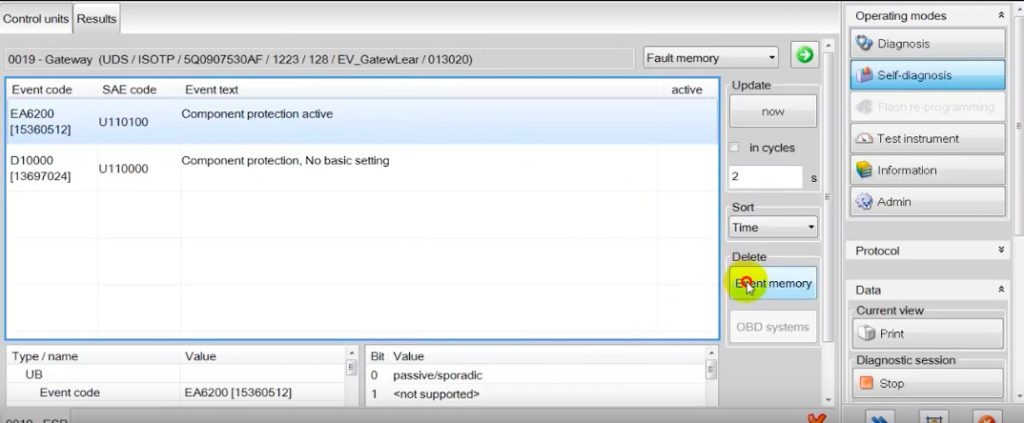

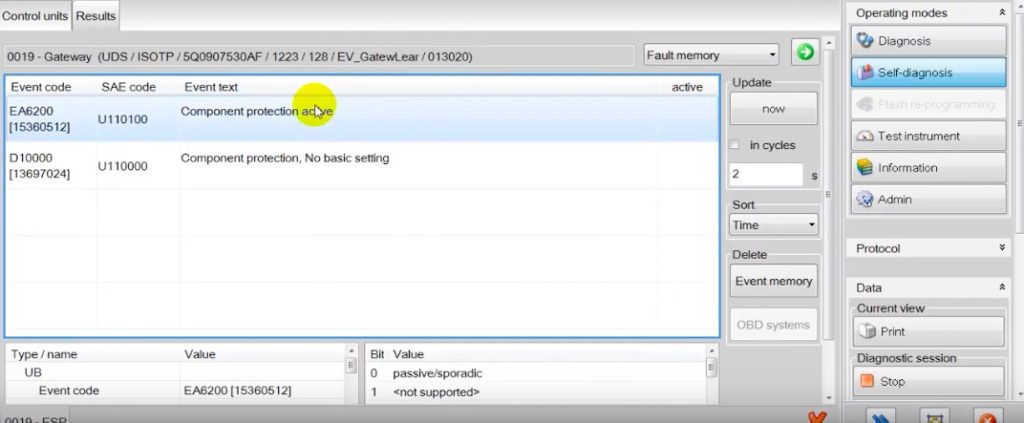

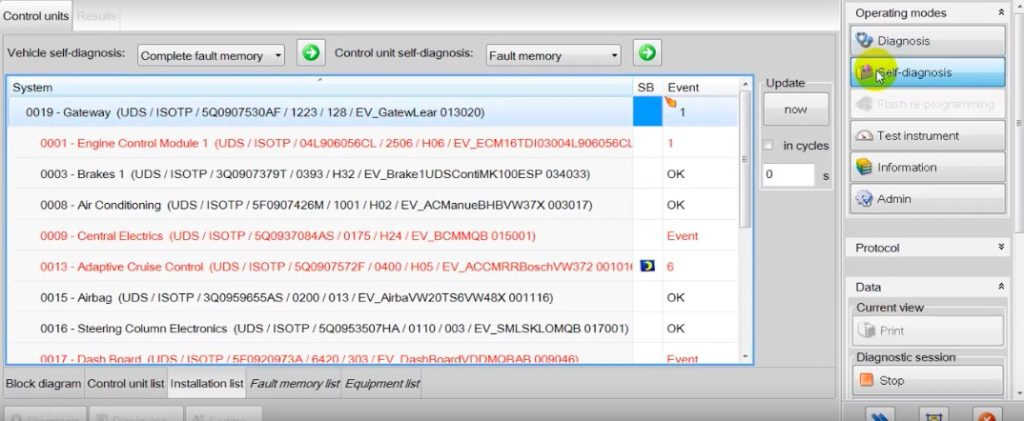

6. The software will guide you through further diagnostic functions, such as reading and clearing fault codes.

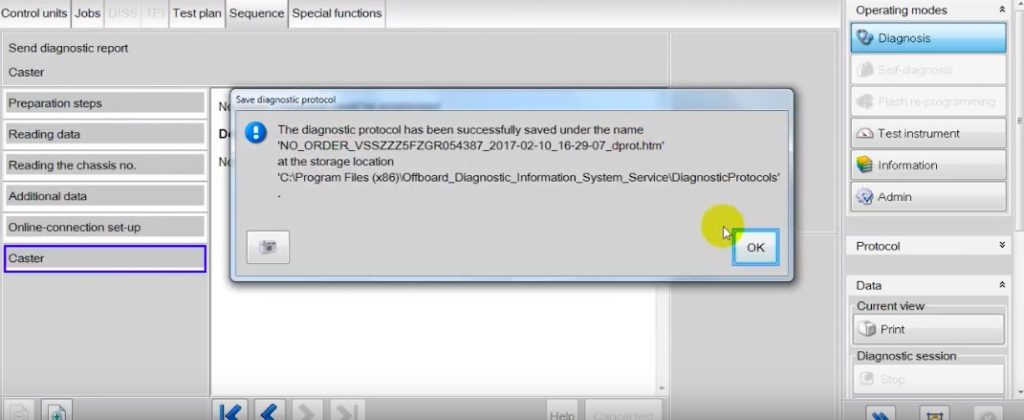

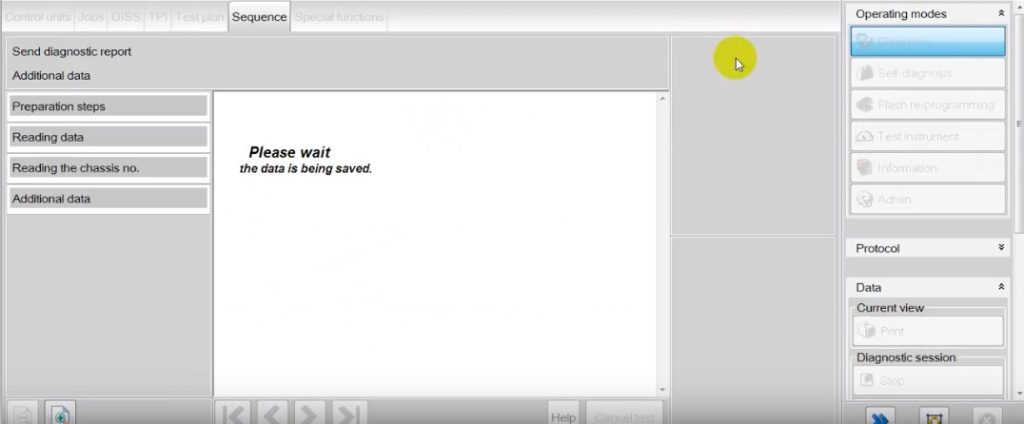

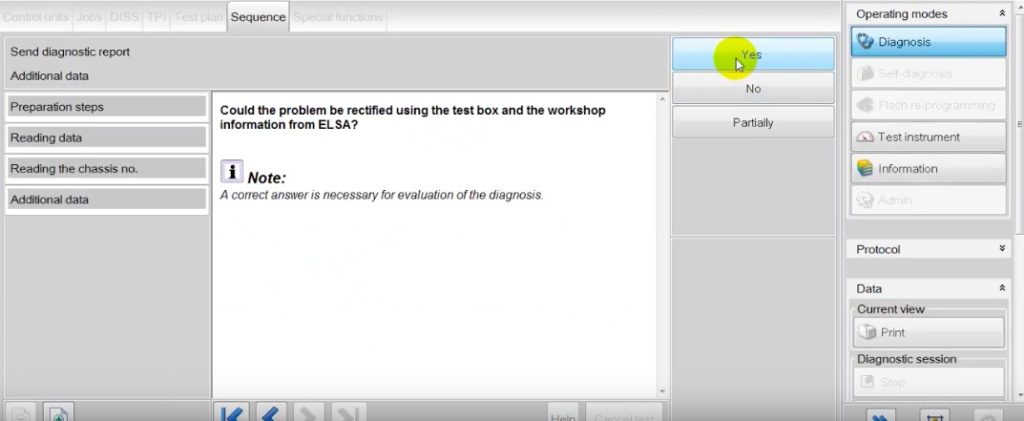

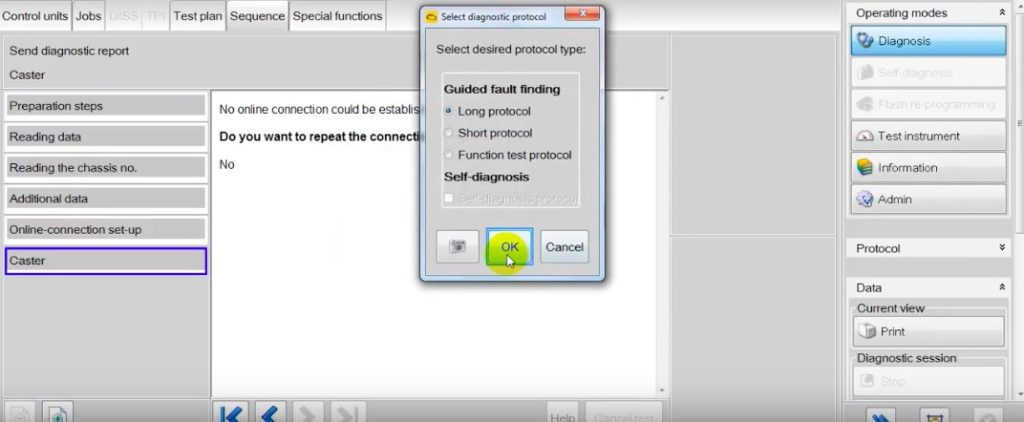

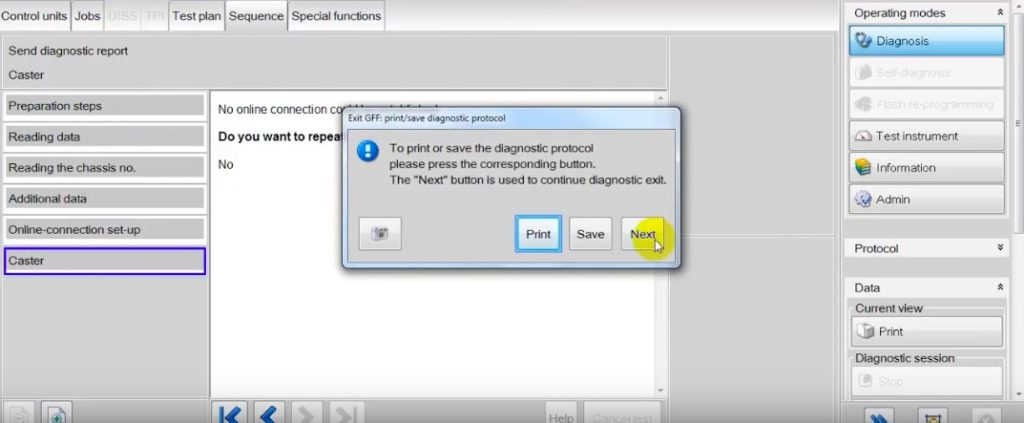

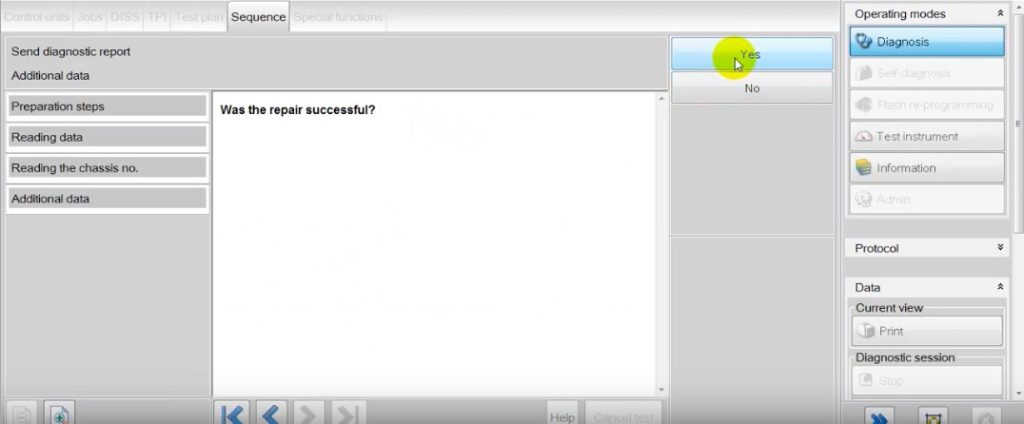

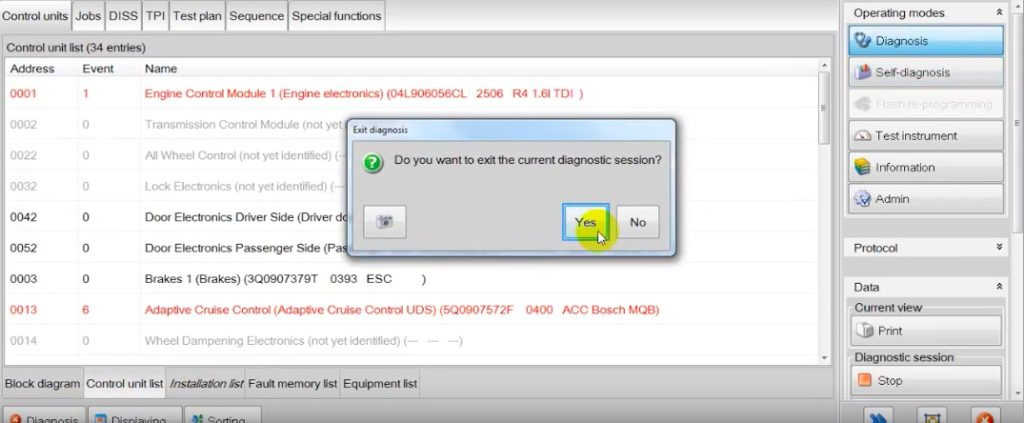

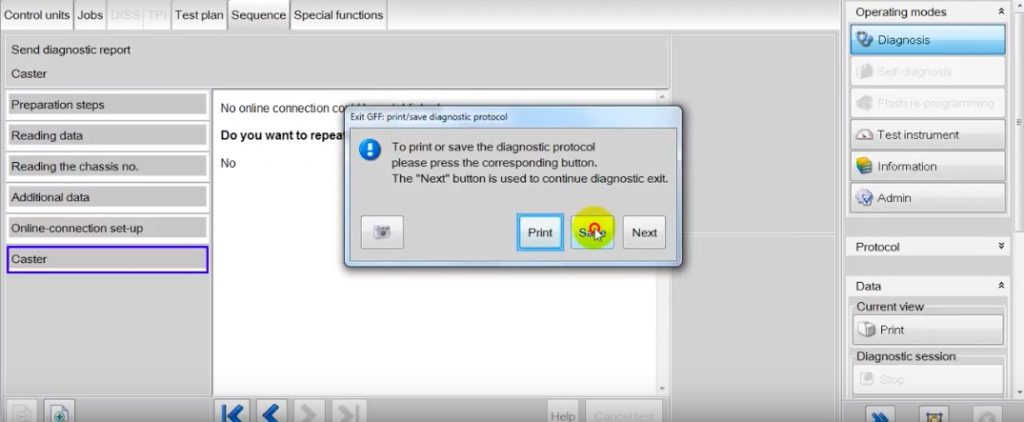

7. Once the test plan is complete, you can save or print the diagnostic data as required.
Can ODIS Remove Component Protection?
Component protection can only be removed by ODIS or suppressed, depending on the component. However, even if suppressed, a component protection error may still be displayed on the gateway. Complete removal of component protection from the vehicle is often a job for authorized dealers or specialists who have access to the necessary tools and databases.
VW/Audi Component Protection FAQ:
1. Question: I am having trouble removing component protection from a restyling dash on my Audi A4. What could be the issue?
Answer: If the cluster was made virgin using AVDI, ODIS may not be able to remove the component protection. It is recommended to use ODIS alone and avoid AVDI solutions for better results.
2. Question: How can I remove component protection from an MIB2 unit in my Passat B6?
Answer: Removing component protection from an MIB2 unit typically requires the assistance of a dealer. ODIS will connect to VW and FAZIT databases to check for theft-related data and remove component protection.
3. Question: I want to retrofit Adaptive Cruise on my 2014 S5 Cabrio and need to remove CP from various components. Can OBDEleven or VagCom help?
Answer: OBDEleven and VagCom cannot remove component protection. You may need the assistance of a specialist or dealer who has access to ODIS software and the necessary tools to remove component protection.
Conclusion:
Component protection plays a crucial role in preventing the unauthorized exchange of components in Volkswagen and Audi vehicles. ODIS software provides a reliable solution for enabling or disabling component protection, ensuring the security and functionality of your vehicle. However, it is important to note that complete removal of component protection may require the expertise of authorized dealers or specialists.
