Program Smart Fortwo 450 All Keys Lost by OBDSTAR X300 DP Plus
It is a 1999 Smart Fortwo BR450. The customer lost all keys. Autel MaxiIM IM608 had no joy with this model (451 was ok). The job was completed by OBDSTAR X300 DP Plus.
Main steps:
Step 1. Get bitting by Lishi
Step 2. Cut key by Xhorse dolphin
Step 3. Program remote by OBDSTAR
Smart Fortwo 450 1999-2003 AKL Procedure:

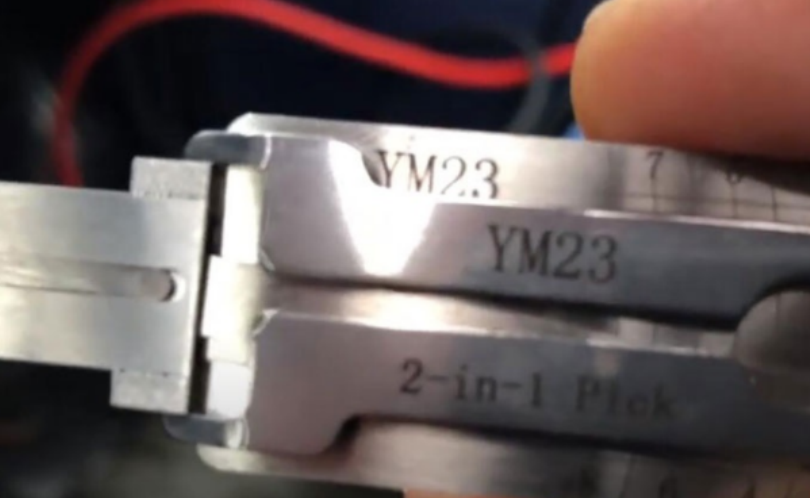

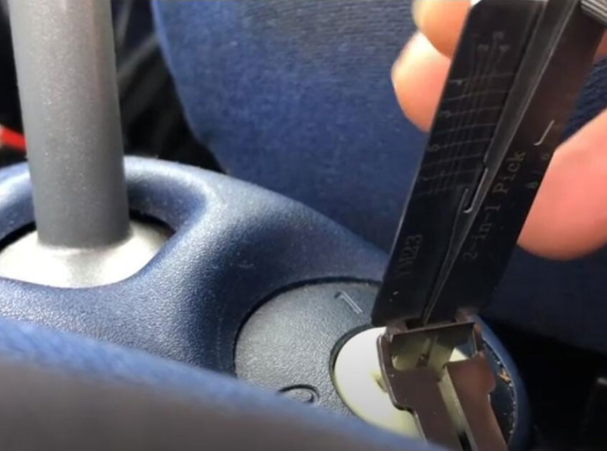

1. Get bitting by Lishi YM23 auto pick and decoder

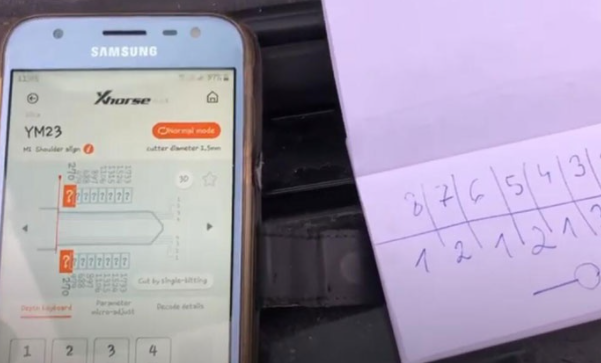

Write down the bitting
2. in Xhorse Dolphin XP005 app

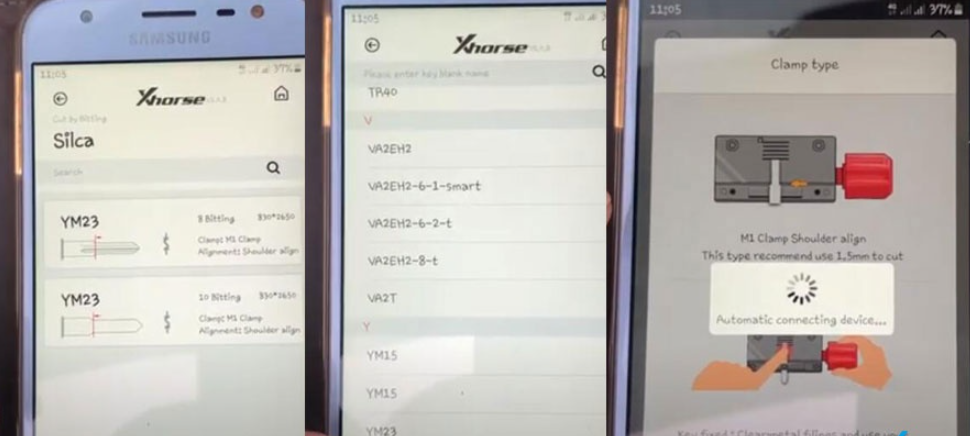

Select Cut by bitting-> YM23-> 8 bitting
Align M1 clamp

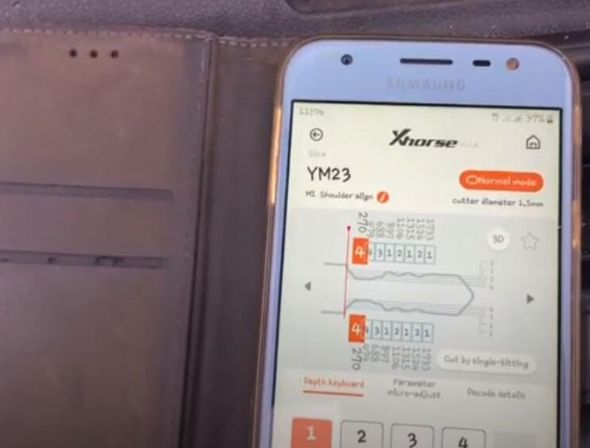

Manually enter bitting

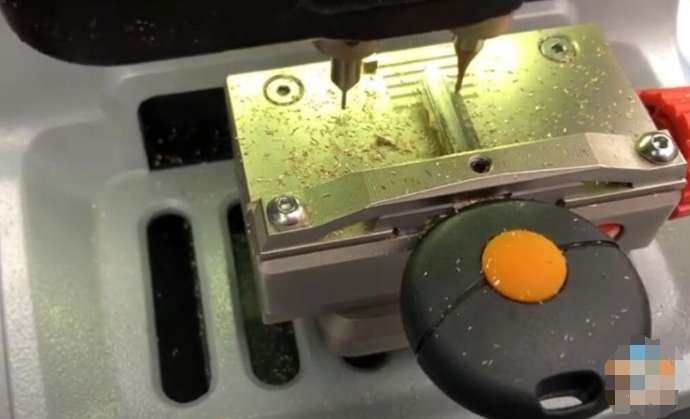

Cutting key

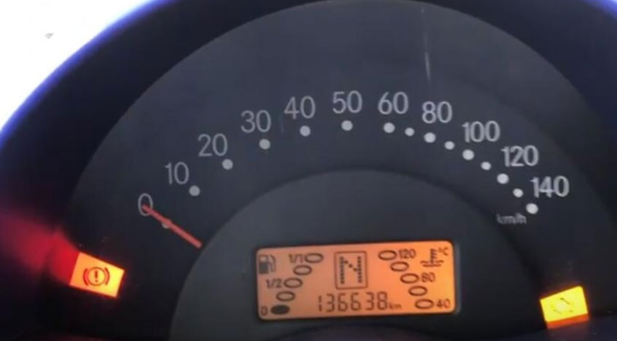

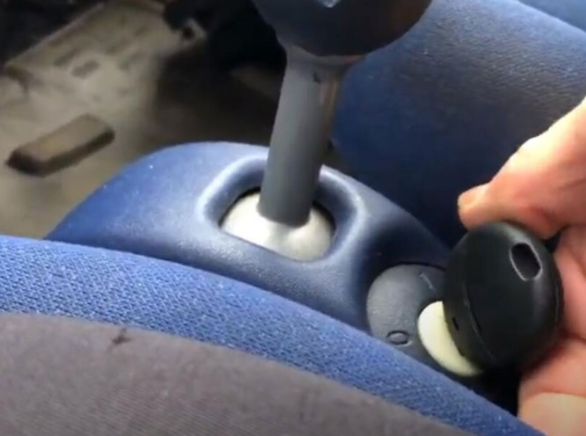

The key can turn on the ignition

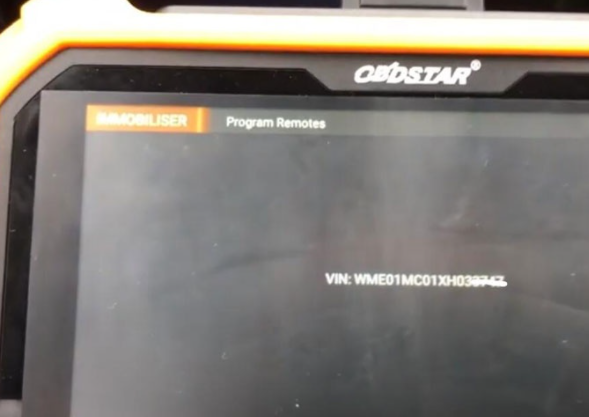

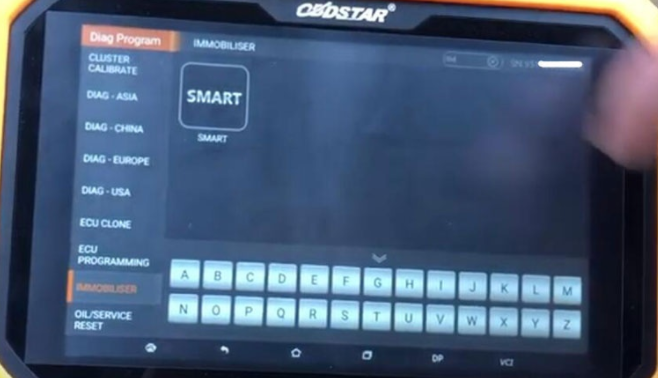

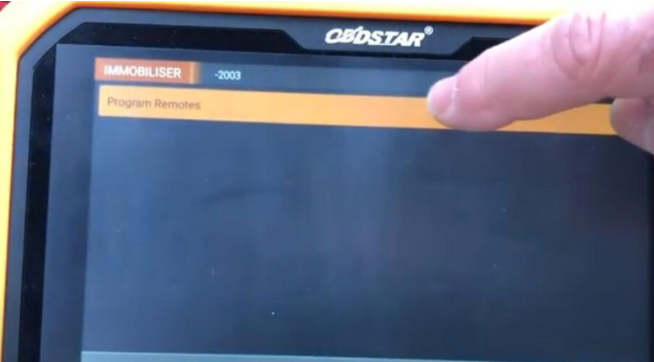

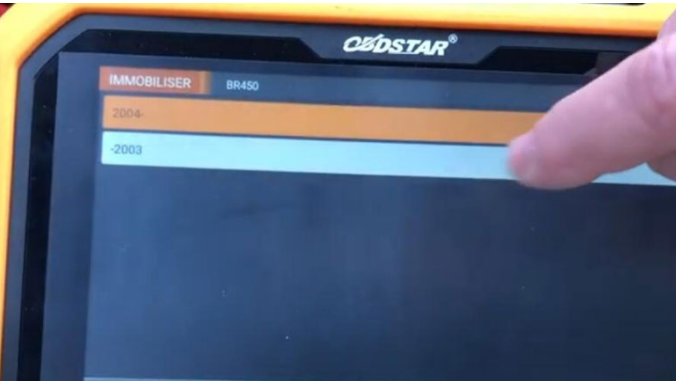

3.In X300 DP Plus, select Immobilizer->Smart->Smart V31.11->BR450->pre-2003->Program remote
The function requires connecting to the server, make sure the internet connection is stable.

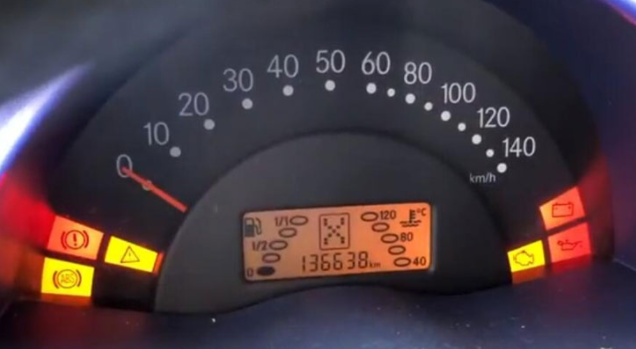

Turn on ignition switch

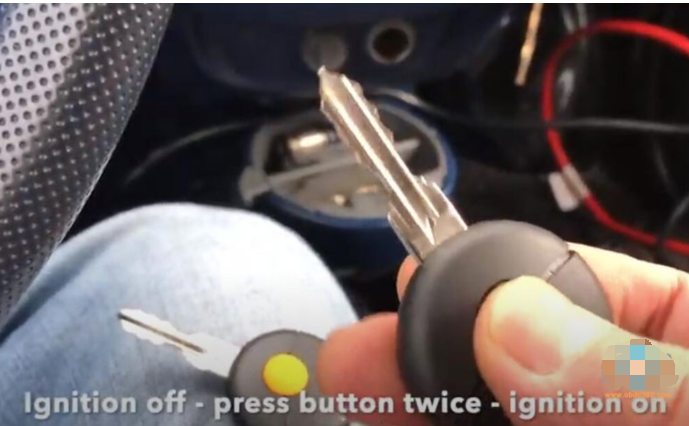

Turn off ignition, press the lock button twice
Turn on the ignition again

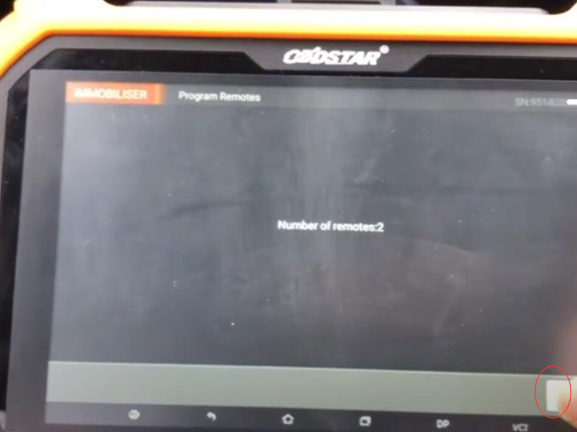

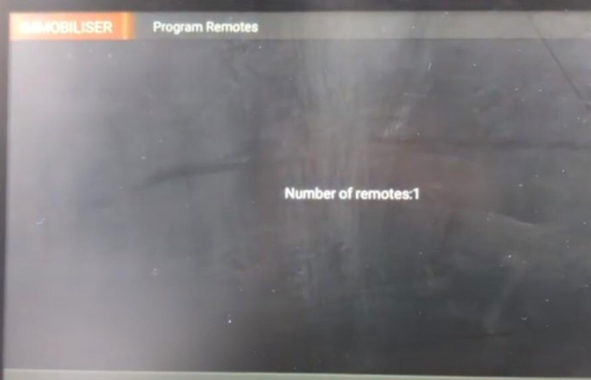

only 1 key was registered

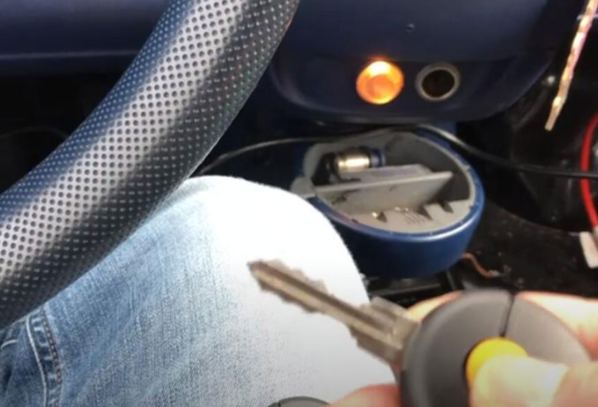

Insert 2nds key into the ignition
Repeat procedure above
2nd key was registered
Program success
Test remote control and test new keys.
Done.
