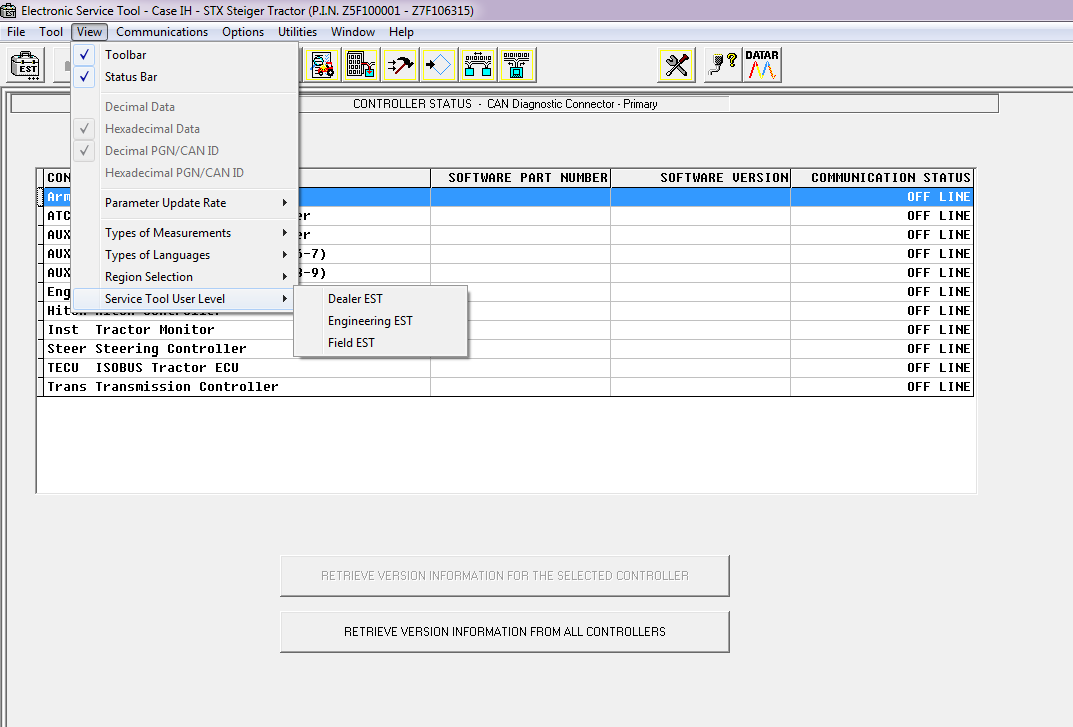

Electronic Service Tool 9.6 (EST) Engineering Level* (software only) – used by New Holland dealer technicians to connect with vehicles that have a Controller Area Network (CAN) BUS.
The brand new version of New Holland CNH EST works with OS Windows 10 64 bit, and Windows 11 64-bit PRO, except Home edition).
Important notice! Please make sure you have checked the minimum system requirements. If your laptop is unsuitable for CNH EST v9.6, we can install v9.4 instead. Which has lower hardware requirements.
*for advanced dataset registration and a lot of hidden options programming for vehicles, and raw message simulations.
Electronic Service Tool Software Brands coverage:
– Case IH Agriculture
– Case Construction
– New Holland Agriculture
– New Holland Construction
– STEYR
– Flexi Coil
– Miller
– Kobelco
Optionally, you can purchase eTimGo for CNH EST 03.2022 for all brands OFFLINE which is a completely offline repair and diagnostics information database. With PIN search support.
NOTE: EST 9.3.0.0 will timeout on July 31st, 2021. With this, all support for Windows 7 and 8.x will be closed.
The software EST v9.6 comes as:
CNH EST 9.6.0.0.0 installation file,
CNH EST 9.6.0.0.2 (EST9400Up1) update,
CNH EST 9.6.0.0.3 (EST9400Up2) update,
CNH EST 9.6.0.0.4 (EST9400Up3) update,
CNH EST 9.6.0.0.5 (EST9400Up4) update,
CNH EST 9.6.0.0.6 (EST9400Up5) update,
CNH EST 9.6.0.0.7 (EST9400Up6) update,
CNH EST 9.6.0.0.8 (EST9400Up7) update,
CNH EST 9.6.0.0.9 (EST9400Up8) update,
CNH EST 9.6.0.0.10 (EST9400Up9) update,
CNH EST 9.6.0.0.11 (EST9400Up10) update,
CNH EST 9.6.0.0.12 (EST9400Up11) update,
Controller Package v78 (08/2022),
EASY Software installation package,
New Legacy Diagnostics database for Troubleshooting,

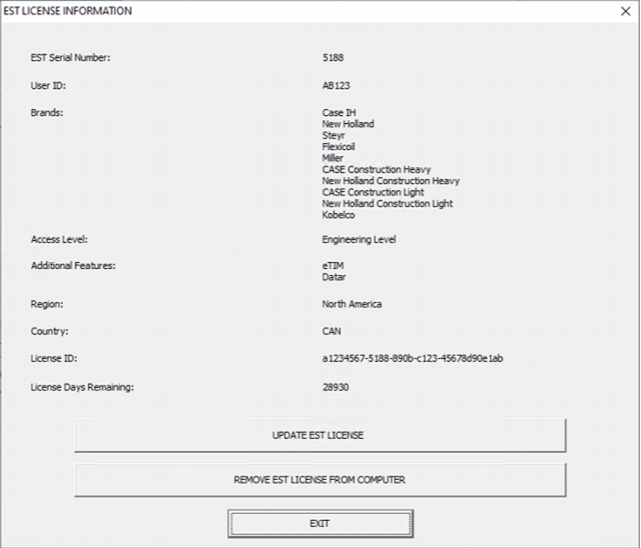

PC locked activation
Teamviewer remote assistance with setup & activation
What’s new with EST 9.6.0.0
EST 9.6.0.0 New Features
The release of the Electronic Service Tool (EST) 9.6.0.0 includes several improvements to the service tool software. These changes include:
– EST PC Operating System (OS) and hardware requirements
Minimum Specifications:
Processor:
Intel Core i5 6th Gen Processor or higher (Manufactured in 2015 or later)
RAM Memory:
8 GB or greater
Operating System:
Windows OS: Windows 10 64-bit Note: A 64-bit operating system is mandatory
Hard Drive:
250 GB or greater – Solid State Drive (SSD) is recommended for improved performance
Ports required for adapter connection:
One 9 pin Serial port (preferred) OR USB to RS-232 Converter – (FTDI Chipset) 380003514 – USB to RS232 adapter
– New diagnostic adapter support
The EST9600 base software introduces support for a new diagnostic adapter to interface with CNHi equipment.
EST9600 will support both the DPA5 and CoreXS and allows for easy conversion between these two diagnostic adapters.
To view the connector selection with EST9600, click Communications in the top ribbon.
In the dropdown menu, hover over the Communications Adapter Selection.
– Legacy Diagnostics download and installation
The new legacy troubleshooting database is released and will be available with the EST9600 software.
What’s new with EST 9.5.0.0
The release of the Electronic Service Tool (EST) 9.5.0.0 and new eTIM software includes several improvements to increase the ability of the user to service and diagnose equipment. These changes include:
– EST PC OS and hardware requirements
– EST Software Installation
– Equipment Auto-Detection Support
– EASy Software Management
– EASy Injector Cutout Test Improvements
The software EST v9.5 comes as:
CNH EST 9.5.0.0.0 installation file,
CNH EST 9.5.0.0.2 (EST9400Up1) update,
CNH EST 9.5.0.0.3 (EST9400Up2) update,
CNH EST 9.5.0.0.4 (EST9400Up3) update,
CNH EST 9.5.0.0.5 (EST9400Up4) update,
CNH EST 9.5.0.0.6 (EST9400Up5) update,
CNH EST 9.5.0.0.7 (EST9400Up6) update,
CNHSupportUpdate_27790_3_2_10,
EasyNETMainProgram_27787_10_18_1,
ECM_MD1CS069_DA_FPT_27696_0_45_7,
EDC16C39_P_CNH_1_3_SETUP_28684_1_10_1,
EDC17CV41_CAN_D_CNH_Setup_29247_0_16_1,
EDC17CV41_DA_CNH_28427_1_4_6,
EDC17CV41_VECTOR_DatiMemorizzatiMuda_IV_setup_23505_1_19_6,
MD1_ET_28410_0_3_1,
MD1CS069_DatiMemorizzati_setup_27994_1_2_4,
MD1CS069_DB_27950_0_2_1,
MD1CS069_DB_28493_0_4_7,
16.1.1.0
EST Legacy Diagnostics package,
Vehicle Controller Files v67 (03/2022 date of update)
PC locked activation
Teamviewer remote assistance with setup & activation
The software EST v9.4 comes as:
CNH EST 9.4.0.0.0 installation file,
CNH EST 9.4.0.0.2 (EST9400Up1) update,
CNH EST 9.4.0.0.3 (EST9400Up2) update,
CNH EST 9.4.0.0.4 (EST9400Up3) update,
CNH EST 9.4.0.0.5 (EST9400Up4) update,
Vehicle Controller Files v46,
Legacy Multilanguage Diagnostic Procedures installer,
Optionally, by request, with Additional assistant Programs,
PC Locked Activation tool with the engineering access level.
The software EST v9.3 comes as:
CNH EST 9.3.0.0.0 installation file,
CNH EST 9.3.0.0.2 – 9.3.0.0.7 (EST9300Up5) updates,
Legacy Multilanguage Diagnostic Procedures installer,
Optionally, by request, with Additional assistant Programs,
PC Locked Activation tool with the engineering access level.
IMPORTANT NOTICE. Service Manuals, Schemes available only online.
In case if your PC/Laptop doesn’t fit with the minimum hardware requirements, we can offer the CNH EST v9.0 (2019/01), which is still compatible with the 32-bit windows and 3/4 Gb of RAM. Please indicate the desired application version in the comments field. Or via the contact us form.

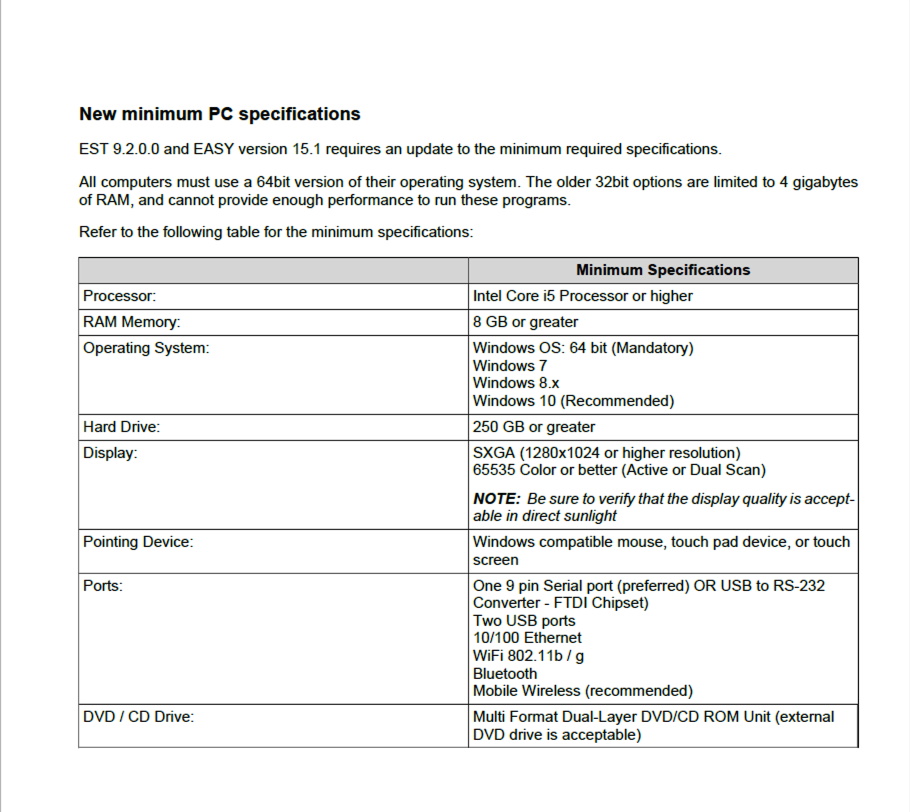

New minimum PC specifications
All computers must use a 64-bit version of their operating system. The older 32bit options are limited to 4 gigabytes of RAM, and cannot provide enough performance to run these programs.
Minimum Specifications
Processor: Intel Core i5 Processor or higher(manufactured in last 3 years);
RAM Memory: 8 GB or greater;
Operating System: Windows OS: 64-bit (Mandatory)
Windows 10 PRO (Recommended)
Hard Drive: 250 GB or greater;
Ports: One 9 pin Serial port (preferred) OR USB to RS-232
Converter – FTDI Chipset)
Two USB ports
10/100 Ethernet
WiFi 802.11b / g
Bluetooth
Mobile Wireless (recommended)
The following brands of the CNH group are covered:
New Holland (Agriculture and Construction)
New Holland FK (Fiat-Kobelco)
New Holland O&K (Orenstein & Koppel)
CASE (Agriculture and Construction)
STEYR
KOBELCO
Iveco (Astra) (articulated dump trucks only)
Flexi-Coil
Sumitomo (S.H.I.)
Link-Belt
The last version of CNH EST with technical documents is 7.6. If you need electrical schemes, please consider purchasing CNH EST 7.6 version on virtual PC with Windows XP Works with any Windows platform.
New Holland Electronic Service Tool allows you to:
• Check the status of parameters;
• Retrieve faults;
• Run diagnostic tests;
• Make ECU and parameter programming;
• Monitor active and logged diagnostics;
• View and change ECU configuration;
• View diagnostic procedures and schematics.
• Troubleshoot problems;
• Run scope diagnostics;
CNH EST can be downloaded, or we can send it as a set of DVDs
We recommend using our free remote assistance with the setup and activation process.
If you have advanced Computer Skills, we can provide you with all the information for installation and activation
