Launch X-431 TSGUN WAND TPMS Tool New Arrival

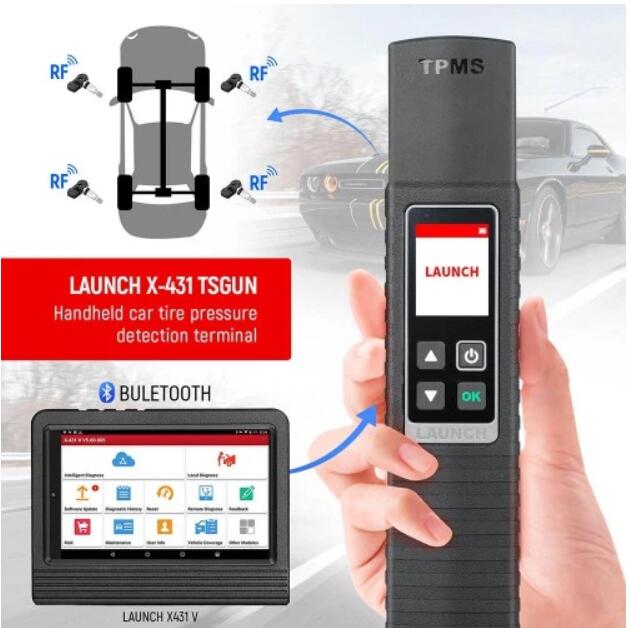

Launch X-431 TSGUN WAND handheld tire pressure detector is a new TPMS tool manufactured by Launch company, icludes all OBD2/EOBD Functionality , work with X-431 v/ v+/ pro3/ pad3/ pad v diagnostic tools to expand new functions and generate new revenues, comes with 1.77 inch color screen, supports not only diagnose tire pressure fault, including read DTC, clear DTC, etc. but also can activate and match all 315MHz or 433MHz sensors.

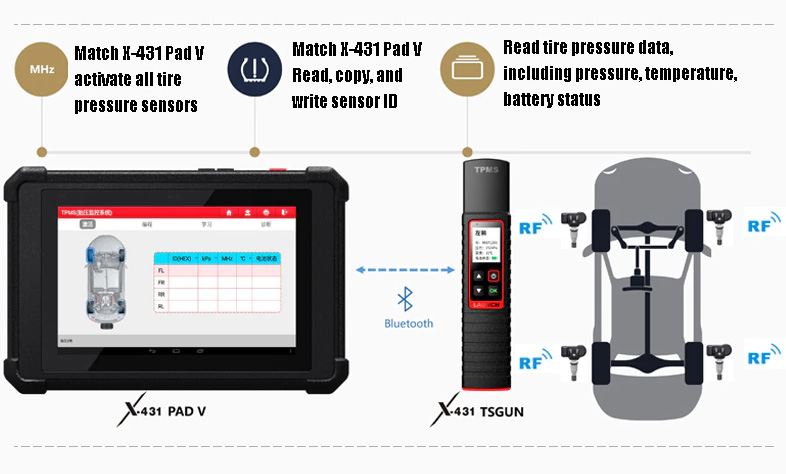

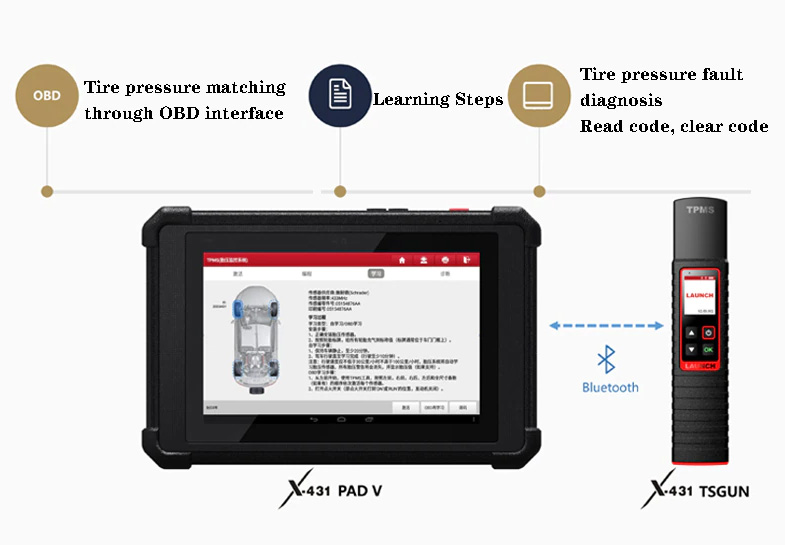

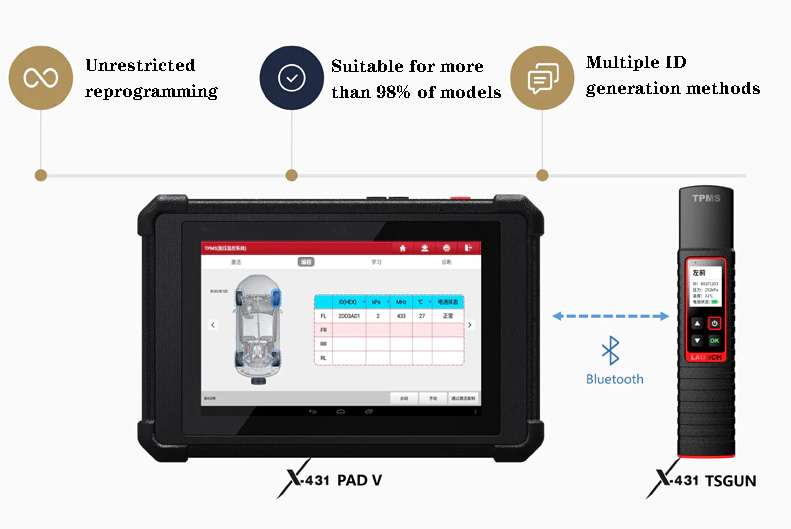

Launch X-431 TSGUN WAND TPMS Tool Highlight

1. 1.77 inch color screen
2. Instantly read tire pressure, tire temperature and battery status
3. Diagnose tire pressure fault, including read DTC, clear DTC, etc.
4. Activate and match all 315MHz or 433MHz sensors
5. Read, copy and write the sensor ID quickly
6. Reprogram LAUNCH sensors with unlimited times
7. Built-in tire pressure learning instruction makes operation more eas
8. Cover 98% global vehicles with tire pressure system

Launch-X-431-TSGUN-WAND-TPMS-Tool-New-Arrival-2

Launch X-431 TSGUN WAND Vehicle Coverage:

Acura, Alfa Romeo, ASTON MARTIN, Audi, Bao Jun, BENTLEY, BMW; BUGATTI; BUICK; CADILLAC; CHERY; CHEVROLET; CHRYSLER; CMC; DODGE; FERRARI; FIAT; FISKER; FORD; FOTON; FREIGHTLINER; GEELY; GENESIS; GMC; GREAT WALL; HONDA’S MOTOBIKE; HUMER; HYUNDAI; HUMMER; HYUNDAI; INFINITI; ISUZU; JAGUAR; JEEP; THAT; LAMBORGHINI; LAND ROVER; LINCOLN; LOTUS CARS; MASERATI; MAXUS; MAYBACH; MAZDA; MCLAREN; MERCEDES; MERCURY; MINI; MITSUBISHI; NISSAN; PLYMOUTH; PONTIAC; PORSCHE; RAM; RENAULT; ROLLS ROYCE; SAAB; SATURN; SCION; SGMW; SMART; SUBARU; SUZUKI; TESLA; TOYOTA; VOLKSWAGEN; VOLVO; VPG.

End.

Features:
1. 1.77 inch color screen
2. Instantly read tire pressure, tire temperature and battery status
3. Diagnose tire pressure fault, including read DTC, clear DTC, etc.
4. Activate and match all 315MHz or 433MHz sensors
5. Read, copy and write the sensor ID quickly
6. Reprogram LAUNCH sensors with unlimited times
7. Built-in tire pressure learning instruction makes operation more easy
8. Cover 98% global vehicles with tire pressure system
9. Work together with Launch X431 V, V+, Pro3, Pro5, PAD III and PAD V.

Specification:
Display:1.77 inch color screen
Resolution: 168*128 Pixel
Battery:3000 mAh
Input Voltage:DC 5V
Working Current:≤1A
Working Temperature:-10℃~50℃
Storage Temperature:-20℃~60℃
Size:252*54*30 mm

Function introduction:


Product details:

NOTE:

For X431V, there are the following criteria:

1.If your machine is X431 V3.0, or X431 V4.0, then TSGUN can be applied.

2.If your machine serial number starts with 98549, such as: 98549xxxxxxxxx, it can also be applied.

3.Probably the production year of the X431 machine is after 2018-October, which can also be applied. The most important thing is to use the above two as the judgment standard.

How to Bind TSGUN with Launch X431
For initial use, user needs to bine the X-431 TSGUN to the diagnostic tool.
1. Tap TPMS on the Job menu of the diagnostic tool.
2. Tap Bine X-431 TSGUN to enter.

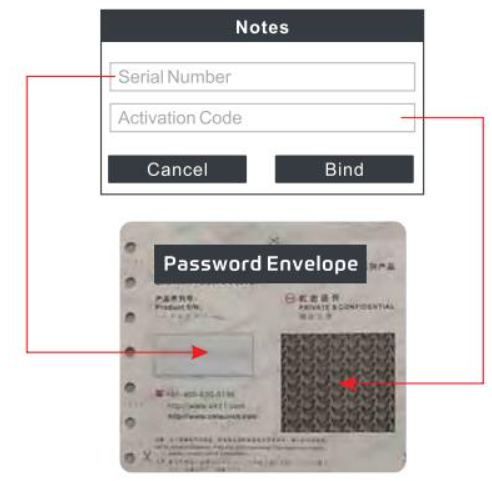

3. Tap Bind, the following screen will pop up.

The serial number is a 12-digit number starting with 90002-. You can find it on the back of the tool/from the password envelope.

Activation code is an 8-digit number stored in the password envelope included with the device.

4.Enter the required information. After inputting, tap Bind. It will be displayed in the Bound list automatically.

Package List:
1* X-431 TSGUN WAND
1* USB Cable
1* Box
