JCB Backhoe Loader 3X/4X/5X: B00B729 Seat Switch Signal Conflict Repair Guide

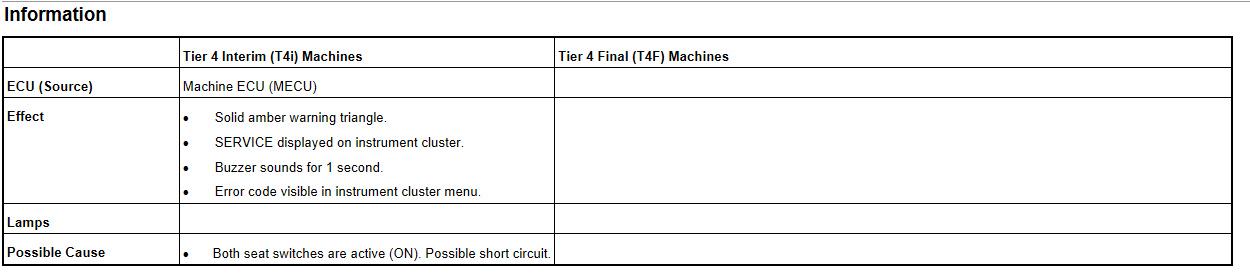

Diagnostic Trouble Code (DTC): B00B729

Description: Seat Switch Signal Conflict

Cause:

• This error occurs when there is a mismatch in the seat switch signal, often related to wiring or connection issues.

Solution Steps:

Important Safety Note:

• Shut off the engine and allow the unit to cool down before starting any maintenance work. Do not start the engine during maintenance.

Related Product:

•
• JCB Heavy Duty Truck Diagnostic Tool JCB Electronic Service Tool with JCB ServiceMaster 4 V1.73.3 or V24.05

Step-by-Step Repair:

1. Inspect the Connection Terminals:
   • Check for dirt and water contamination on the seat switch terminals, which may result from high-pressure washing.
   • Ensure connections are secure and properly sealed to avoid signal interference.
2. Examine the Wiring Harness:
   • Verify that the seat switch wiring harness is free from damage (cuts, abrasions, etc.).
   • Ensure the wiring is routed correctly and not pinched or exposed.
3. Check Seat Harness Installation:
   • Confirm that the seat wiring harness is installed properly and securely connected to the correct terminals.
4. Signal Check in ServiceMaster:
   • Turn on the ignition.
   • Use the Servicemaster BHL Machine Diagnostic Tool and navigate to tab 3.11 “Seat Position Status” to check the seat switch signal.
   • Verify that the seat switch input signals from J1-08 and J2-03 are consistent.
5. Resolve Signal Conflict:
   • If both inputs from J1-08 and J2-03 are detected simultaneously, it indicates a signal mismatch.
   • Inspect the wiring or seating mechanism to resolve the conflict.

By following these steps, you should be able to address the B00B729 Seat Switch Signal Conflict issue on your JCB Backhoe Loader and restore proper functionality.
