After the replacement of steering angle sensor, it is necessary to encode the steering angle sensor, then adjust it. This instruction show you guide on how to use X431 PRO reset steering angle for BMW X3_E83. If you want to know more cases about Buick, please refer to BMW trouble repair.
Operation Procedure:

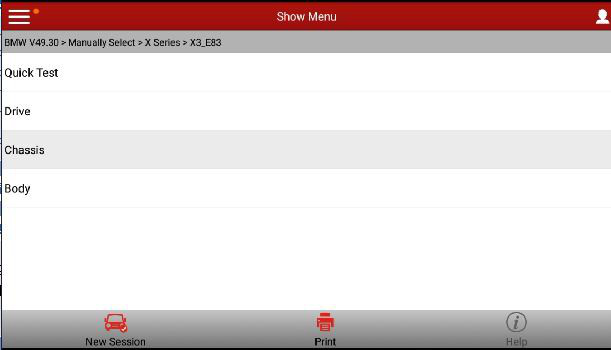

1.Select “Manually Select”-> X series -> X3_E83 -> Chassis Picture 1:

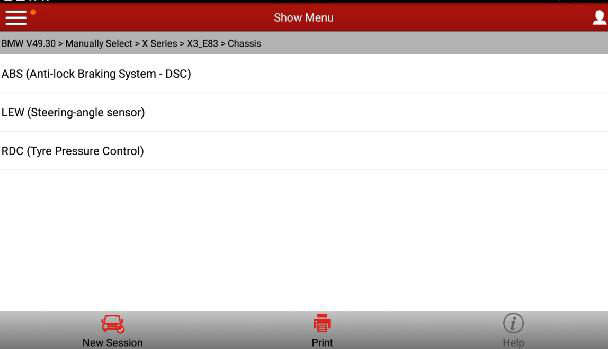

2.Enter ABS (Anti-lock Brake System – DSC) system.

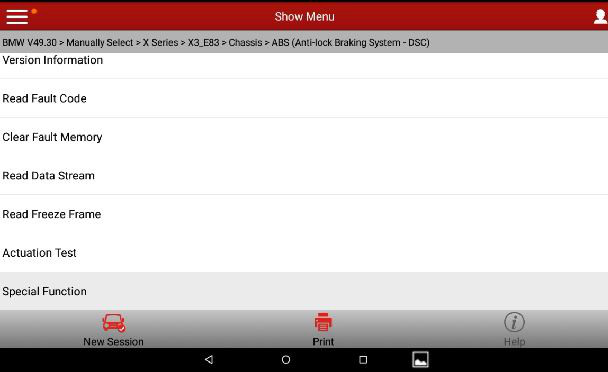

3.Select “Special Function”.

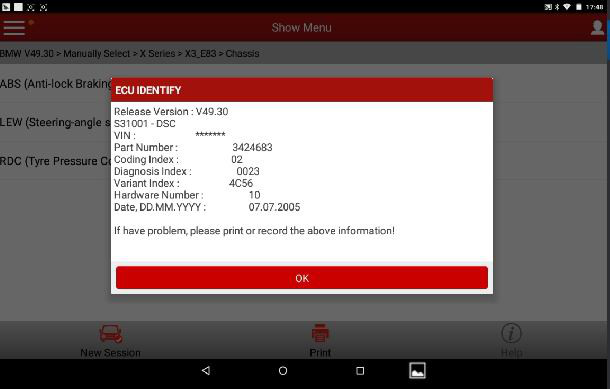

4、Please check the ECU IDENTIFY.

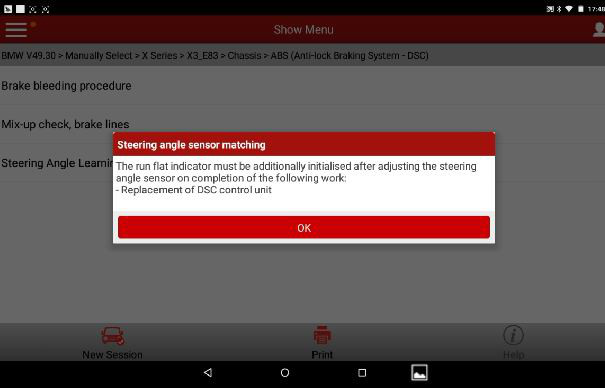

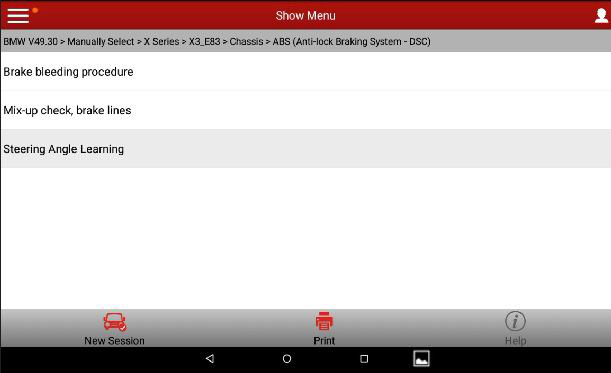

5、Select ” Steering Angle Learning “ prompted:

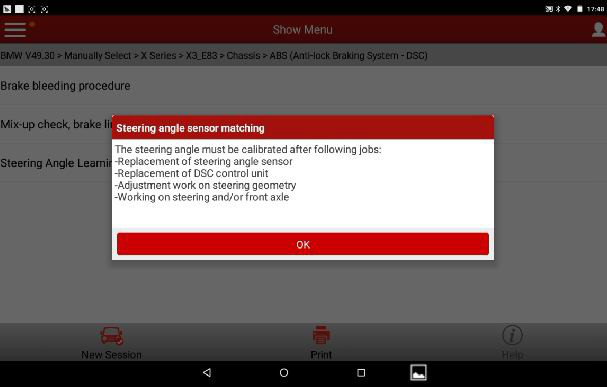

6、The Steering angle must be calibrated as reference

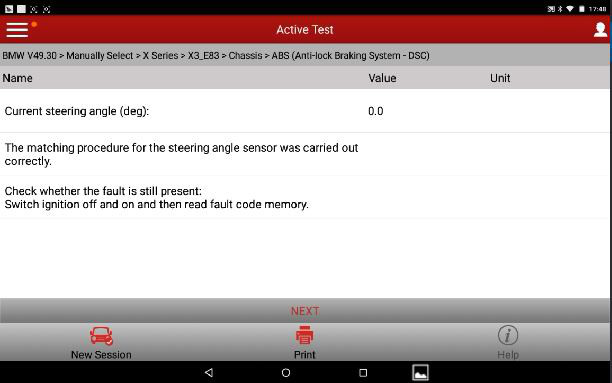

4.After successful calibration, it prompts below information.

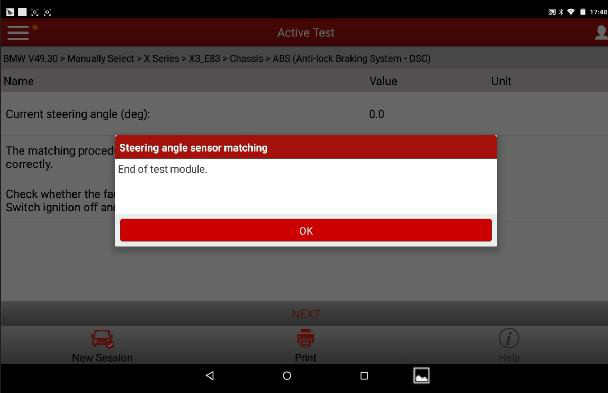

7、The end of test module.
