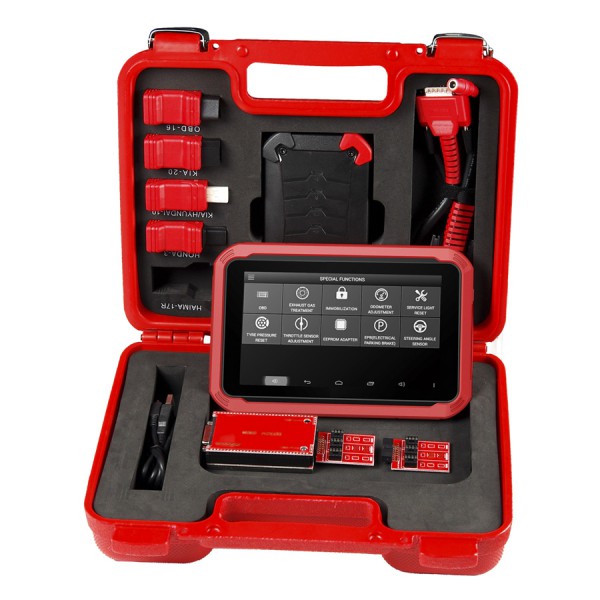

Here comes the first tablet key programmer in the word! It not only provides customers with professional key programming, but also the most needed special functions for workshop. XTOOL X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset , EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis. It provides super-fast solution and it can work as generic workshop level diagnostic equipment.
XTOOL X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset,timing belt service light reset etc.
Here’s OBD2TOOL share you how to use the X-100 PAD instructions step by step
1. X-100 PAD Activation
1.1. Please activate X-100 PAD before you use it to test vehicles.
1.2. Input activation code, product serial number (each device will
have a serial number and activation code), nickname (workshop’s
name or user’s nickname), login account (can be your email address
or cell phone number) and password, the system will then save it.
Activation is a one time process. The diagnostic application will start
after activation.
2. X-100 PAD Main Interface and Functional Buttons Descriptions
2.1. Main Interface
Tap on X-100 PAD application icon, the main interface and sub-menus
will be shown as below.
2.2. Sub-menus and Function Buttons
Diagnosis: Open the X-100 PAD diagnostic application. It can read
diagnostic information, view live data, perform actuation tests and
special functions etc.
Diagnosis Report: Users can view all the diagnostic reports and
diagnostic data generated in the diagnosis process.
Setting: Users can access the language setting and other system
related settings.
Xtool Cloud: Online Communication Platform for X-100 PAD users.
Update: after connected to the internet, you can download the latest
diagnostic software directly to the X-100 PAD.
Remote Diagnosis: Users get remote assistance from Xtool Technical
Assistance Center .

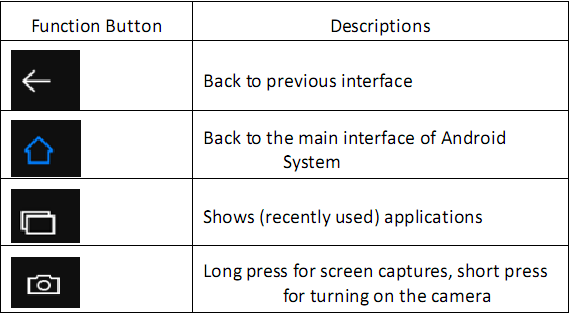

2.3. Toolbar Function Buttons

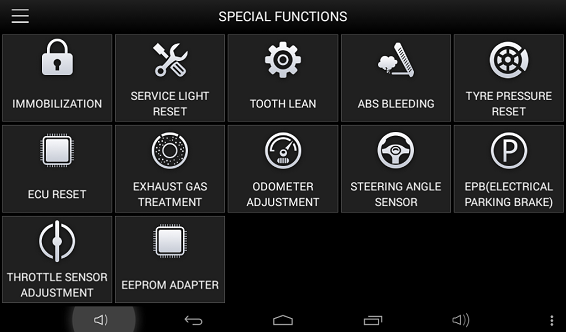

3. Special Functions
After the VCI box is connected to the vehicle and paired with X-100
PAD mainframe via wired or wireless connection, diagnosis can be
performed. The diagnostic interface is as shown below:

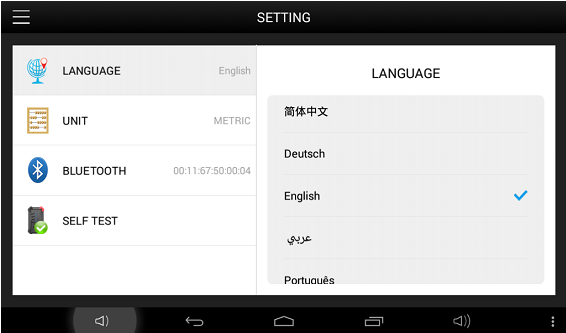

4. Settings
By selecting Setting users can set the language, unit and other system
related options:
4.1. Languages: select the language. Please tick the required option
from the multi-language options on the right.

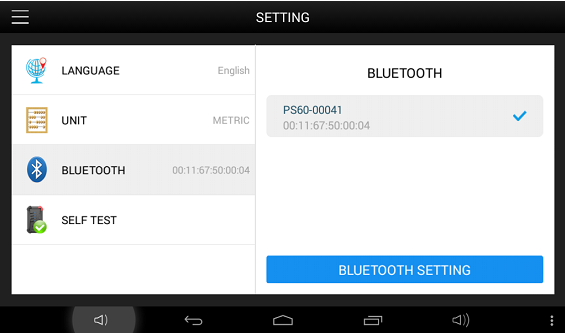

4.2. Bluetooth：

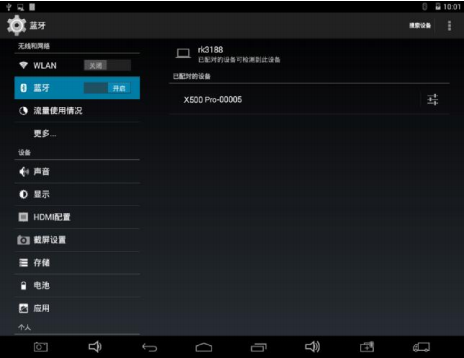

Enter homepage to find and pair the VCI serial number with the
mainframe. If it needs input the pairing password, you can input the
last five numbers of the serial number. (e.g: 00005).
Select the VCI serial number and X-100 PAD will pair with it
automatically when running X-100 PAD APP.

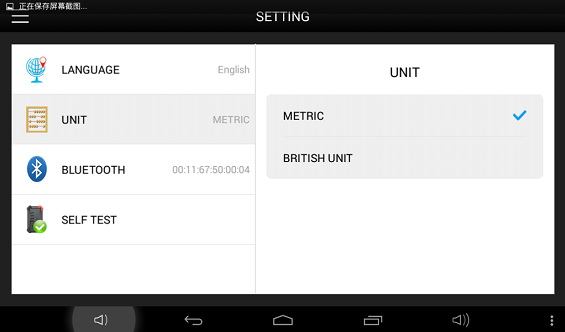

4.3. Units: Select unit of measurement. Users can select Metric or
British Unit.

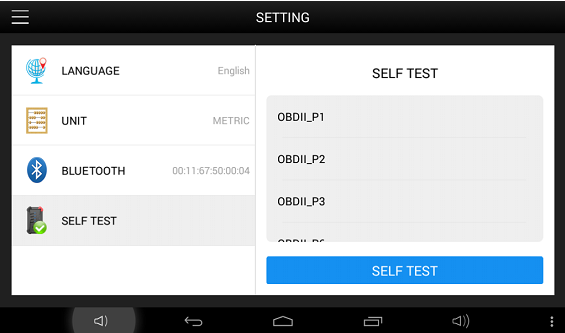

4.4. Device Self Test
Self-test the VCI interface. Please send X-100 PAD back to our factory
for repair if self test fails.
5. Diagnostic Report
Provides vehicle maintenance documents including Automotive
Technical Manuals, Maintenance Cases, Circuit Diagram, Common
Trouble Codes, etc.

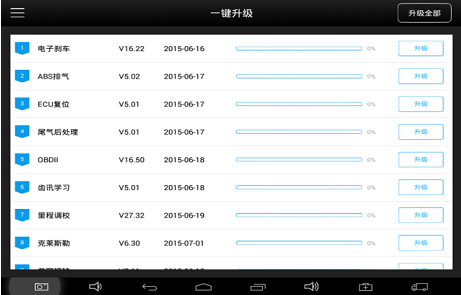

6. One Click Update
X-100 PAD updates directly via the Internet using WiFi or wired
connection. To access the update application open the X-100 PAD
application and click UPDATE , shown below:

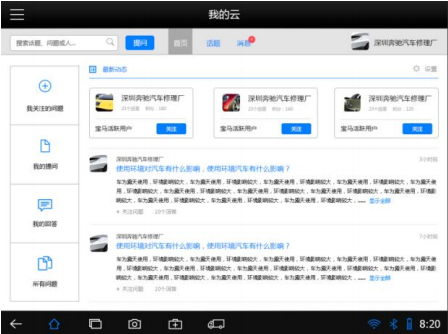

7. Xtool Cloud System(English Version is coming soon)
The Xtool cloud service platform allows X-100 PAD users to look up
maintenance information, share and access diagnosis test results and
fault finding solutions, communicate with other X-100 PAD users in
our forum, and also access various online databases of maintenance
and diagnostic skills and vehicle maintenance plans.
