How to use Lonsdor K518ISE program Key for Nissan Qashqai 2015

There are two options for Nissan Qashqai blade key. Here is the guide to add a spare key to Nissan Qashqai 2016 with Lonsdor K518ISE Key Programmer.

Connect K518 host with vehicle via OBD diagnostic socket

Turn ignition on

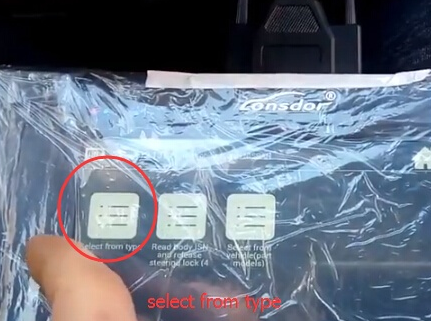

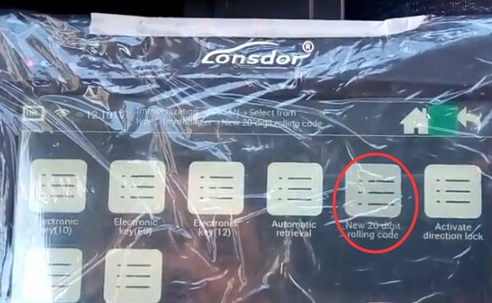

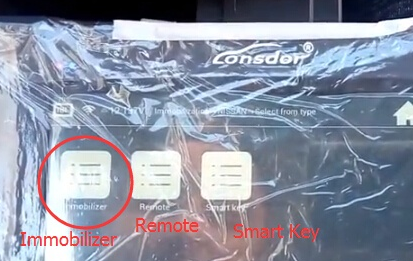

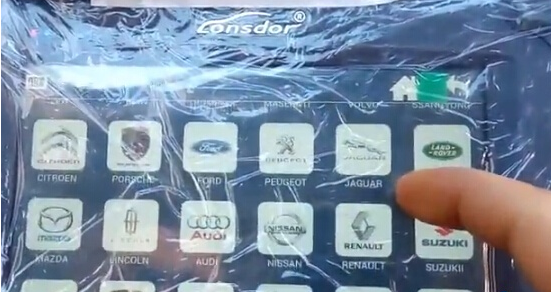

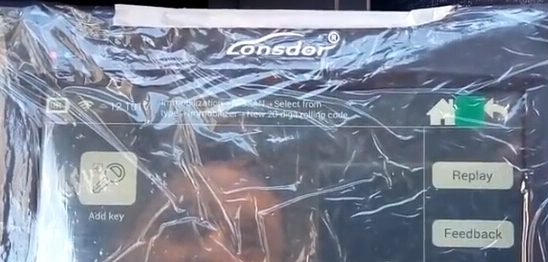

Select Immobilizer->Nissan->Select from type->Immobilizer->New 20-digit rolling code->Add key

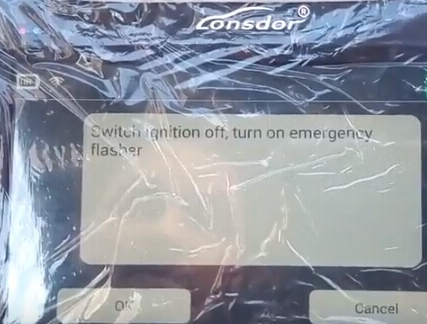

Turn ignition off and turn on emergency flasher

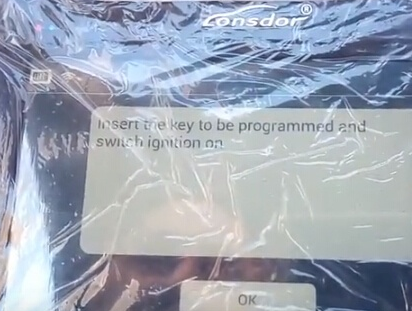

Insert the key to be programmed and turn ignition on

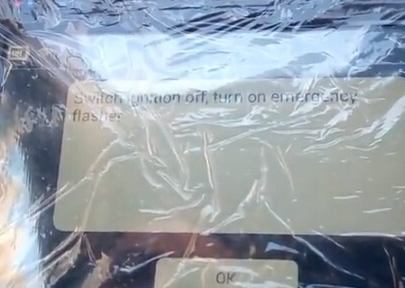

Turn ignition off and turn on emergency flasher

Open and close driver door for twice

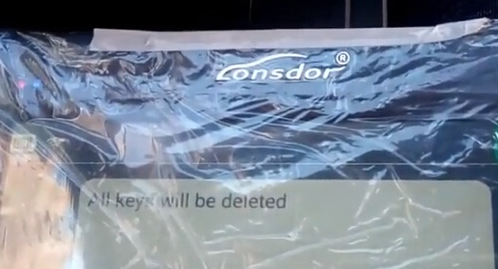

Lonsdor K518 asking all keys will be detected

Communication processing

Switch on with a working key

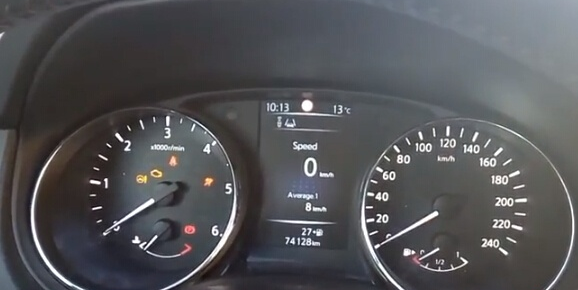

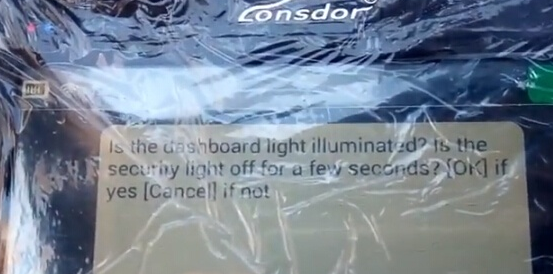

Check if the dash indicators turn on and the security light goes off within 1 few seconds. If yes, press OK to continue

Switch ignition off

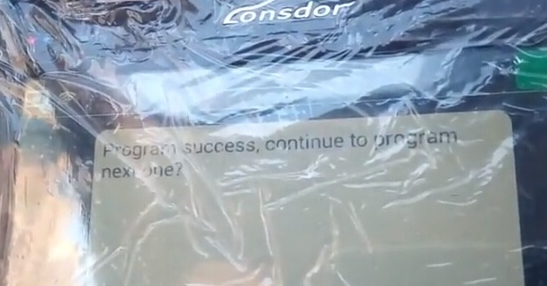

Program success, continue to program next key?

Switch ignition on with a key

Check if the dash indicators turn on and the security light goes off within 1 few seconds. If yes, press OK to continue

Turn ignition off

Program success, continue to program next key?

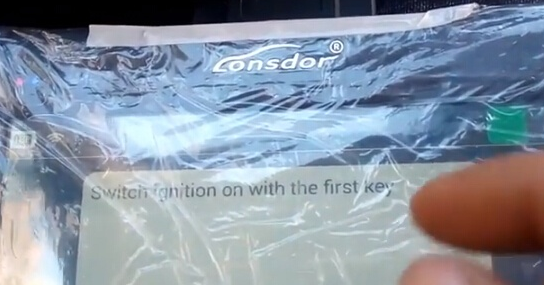

Turn ignition on with the first key

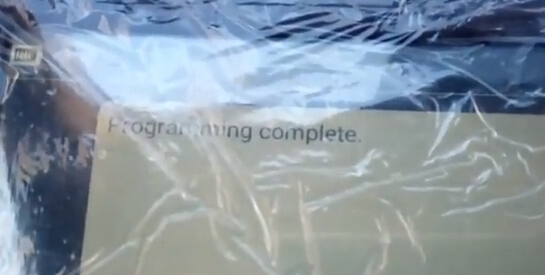

Program completed.
