This instruction show you guide on how to use KTAG programmer to read data from Detroit DD15 ACM2 ECU data.
Preparations:
KESS V2 KTAG K-Suite Software Download & Installation
Procedures:

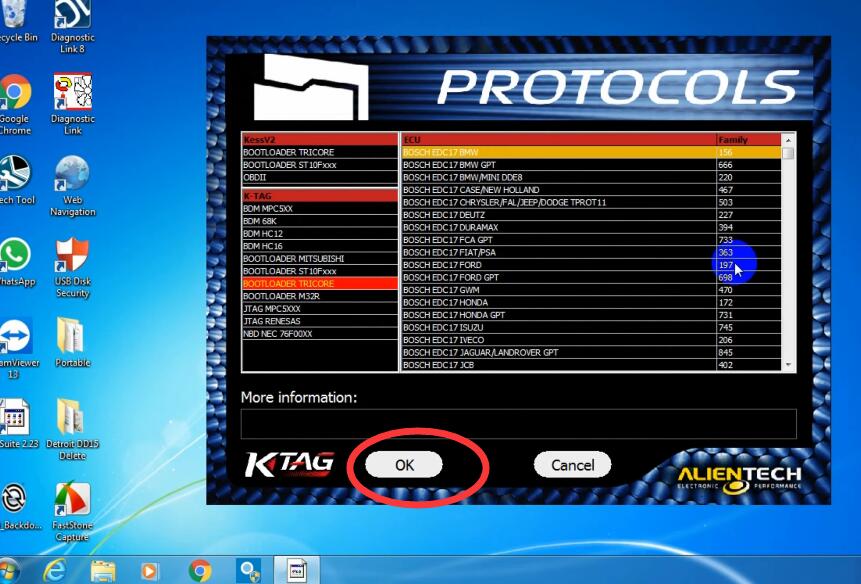

Run KTAG programmer software,then select “PROTOCOLS”
Select “BOOTLOADER TRICORE”

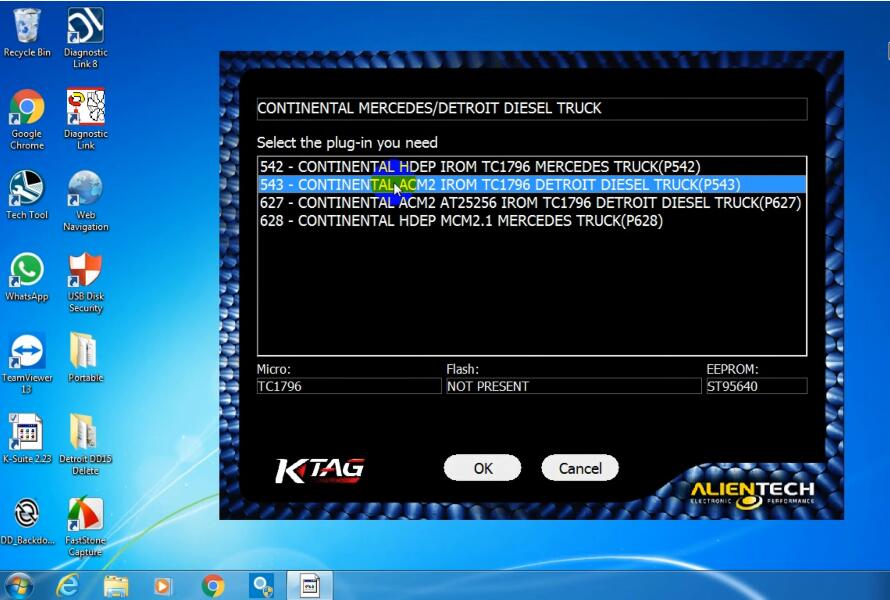

Select “CONTINENTAL MERCEDES/DETROIT DIESEL TRUCK”

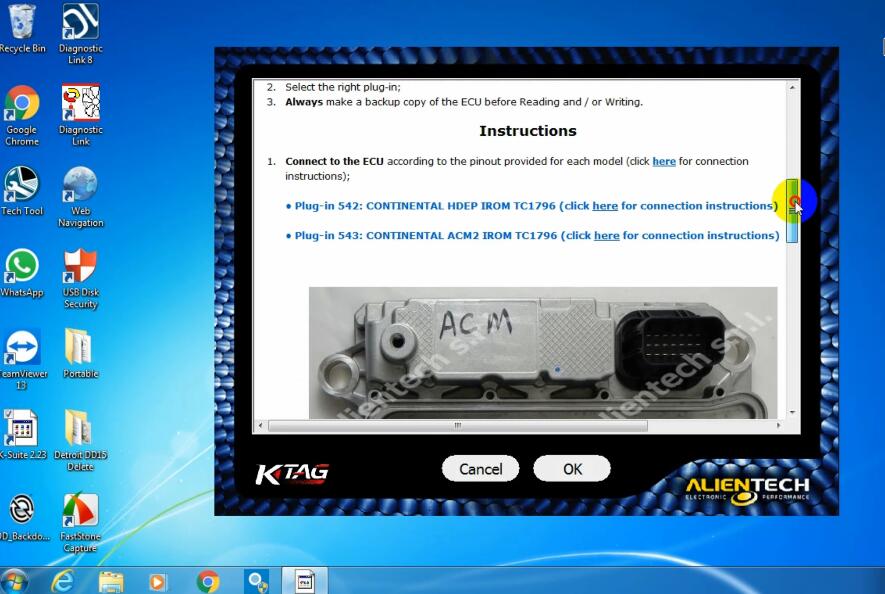

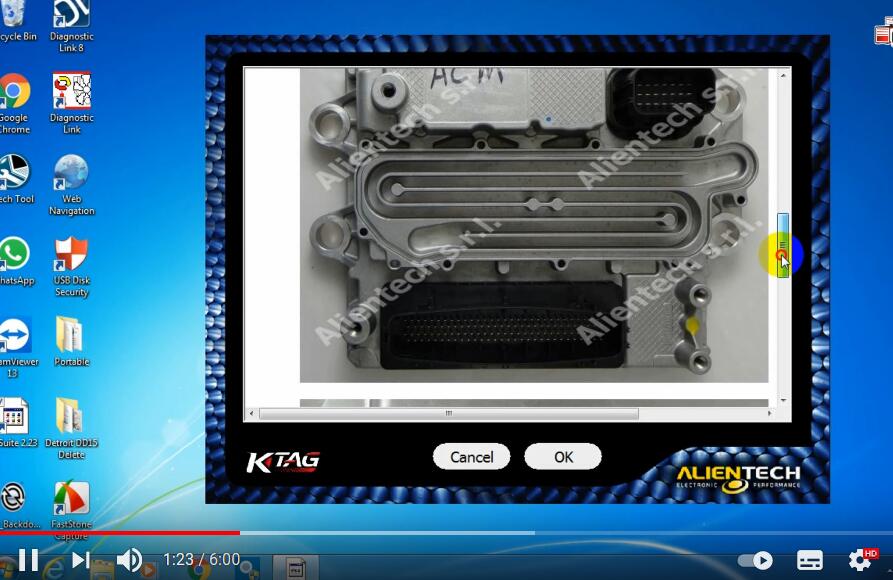

Scroll download to find the pinout for ECU connection

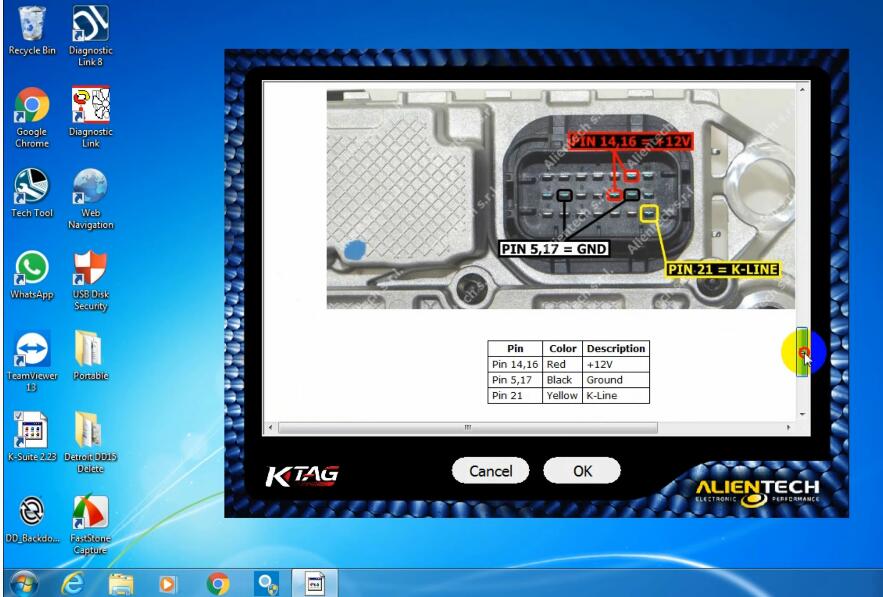

Follow the diagram to connect ECU from KTAG

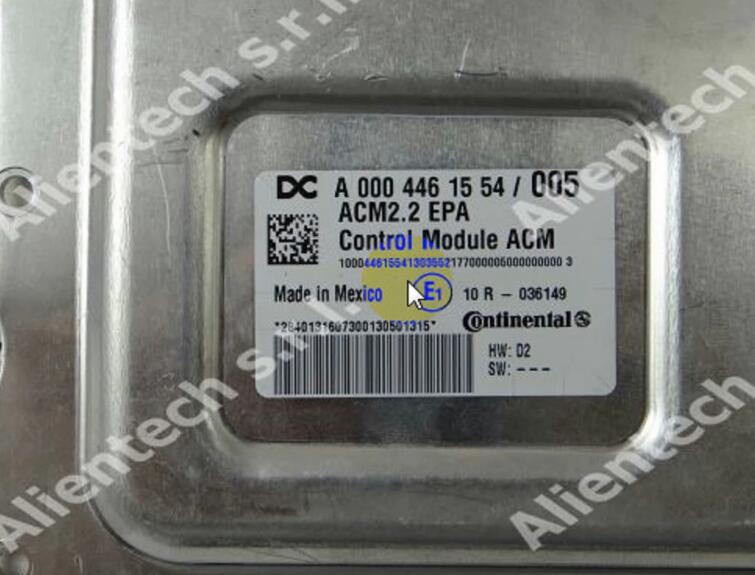

543 CONTINENTAL ACM2 IROM TC1796 DETROIT DIESEL TRUCK(P543)

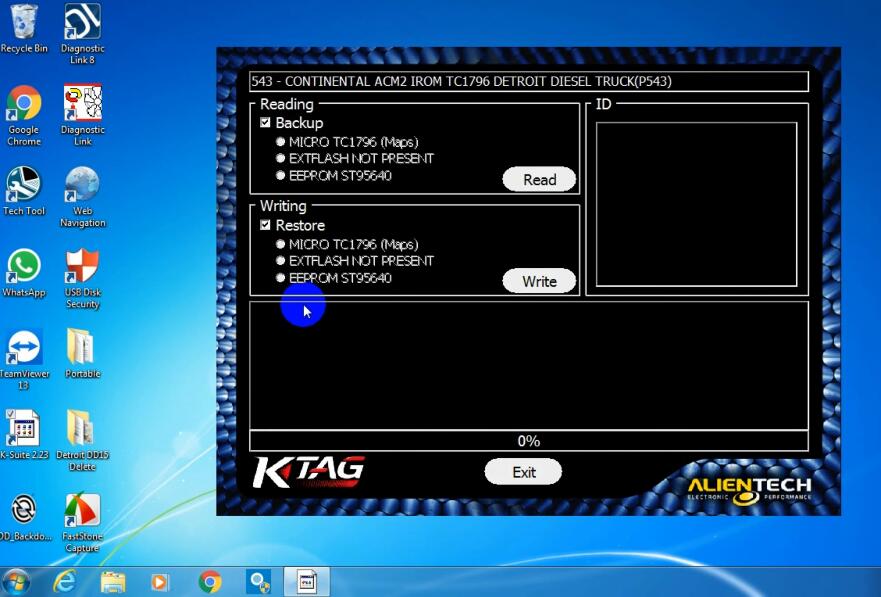

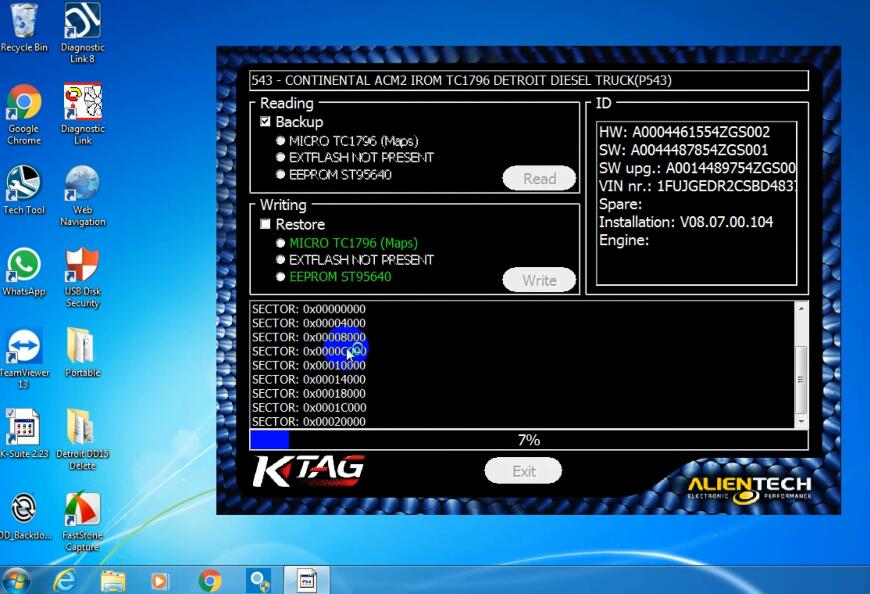

Select “Backup” and click “Read” button
Wait reading process

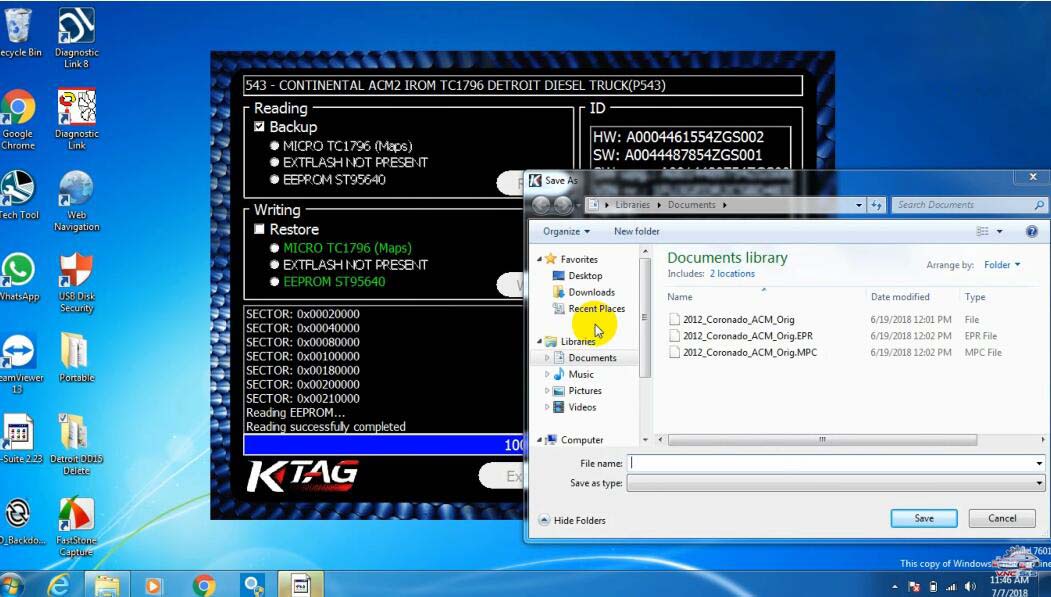

When it done,just save the ECU data on PC
Done!
