If you are looking to troubleshoot and test the braking system switches on your Bendix EC-60 and EC-80 ABS systems, JPRO Diagnostic software can be a valuable tool. This instruction show you guide on how to use JPRO Diagnostic software to do braking system switch test for Bendix EC-60 and EC-80.This test provides the ability to troubleshoot multiple switches that are part of the ABS system by toggling the selected switch and observing the effect on the vehicle.
Related Contents:
JPRO Noregon Commercial Fleet Diagnostics 2024 2023 2022 2021 Free Download
Noregon JPRO DLA+ 2.0 Adapter
1 Select the Braking System Switches Test and press Enter or the Start button.

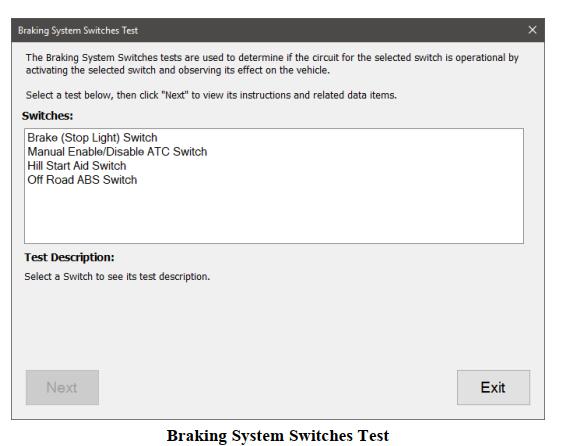

2. A test dialog box will appear on your screen, displaying the available options for the braking system switches test. It’s important to note that the specific switches available for selection may vary depending on the configuration of your ABS ECU.
NOTE: The specific switches available for selection is dependent on the configuration of the ABS ECU.JPRO DLA+ 2.0
3. Choose the switch you want to test from the available options. When you select a switch, specific test description information will be displayed to guide you. Click on the Next button to proceed with the selected switch test.
4 Follow the test instructions and observe the data values as actions are performed on the vehicle. Click the Graph tab at any time to view a graph of the monitored data values.
5. If you want to test multiple switches, you can select the Back button to return to the switches test selection and choose another switch to test.
6. Once you have completed all the desired switch tests, press the Exit button to return to the test selection dialog. This will allow you to explore other diagnostic options or exit the software.
Using JPRO Diagnostic software for the braking system switch test on Bendix EC-60 and EC-80 ABS systems can help you troubleshoot and identify any issues with the switches in a convenient and efficient manner.
