How to use Green SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer

1

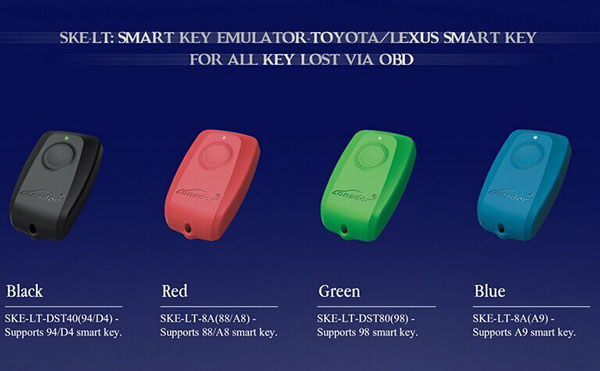

SKE-LT Smart Key Emulator work for Lonsdor K518SE Key Programmer,SKE-LT Smart Key Emulator with Lonsdor K518SE to Bind emulator key, backup on board computer immodata & to add a smart key etc.Lonsdor SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer 4 in 1 Set. Below obd2tool.com share how to use the Toyota Lexus 98 chip (SKE Green) & 94/D4 chip (SKE Black) smart key emulator work without connecting from the server.

How to use Green SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer?

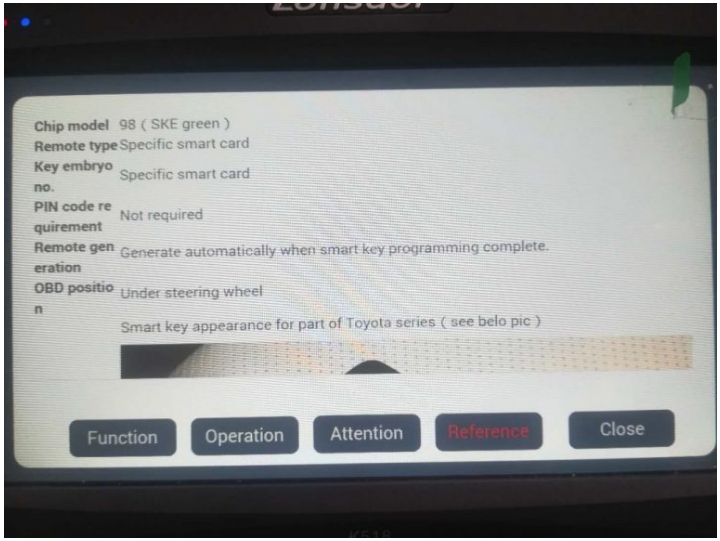

Chip model: 98 (SKE Green)

Remote type: Specific smart card

Key embryo No. Specific smart card

Pin code requirement: Not required

Remote generation: Generate automatically when smart key programming complete.

OBD position: Under steering wheel

Smart key appearance for part of Toyota series (see below picture)

2

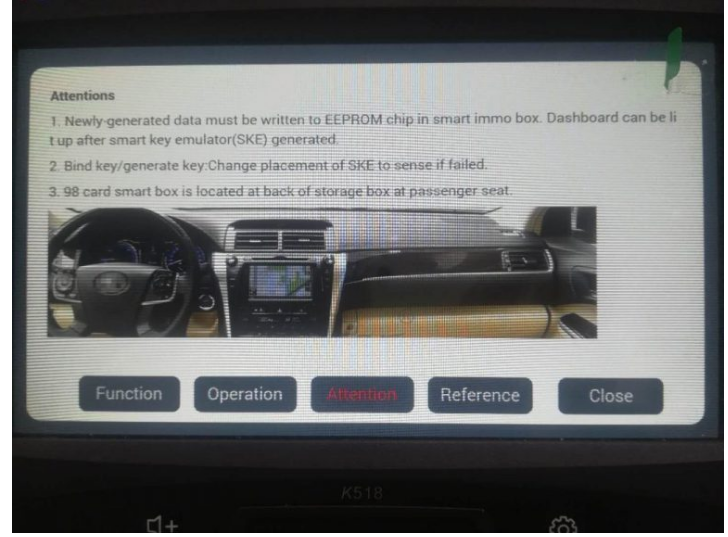

Attention:
1.Newly-generated data must be written to EEPROM chip in smart immo box. Dashboard can be lit up after smart key emulator (SKE) generated.
2.Bind key/generated key: Change placement of SKE to sense if failed.
3.98 card smart box is located at the back of storage box at the passenger seat.

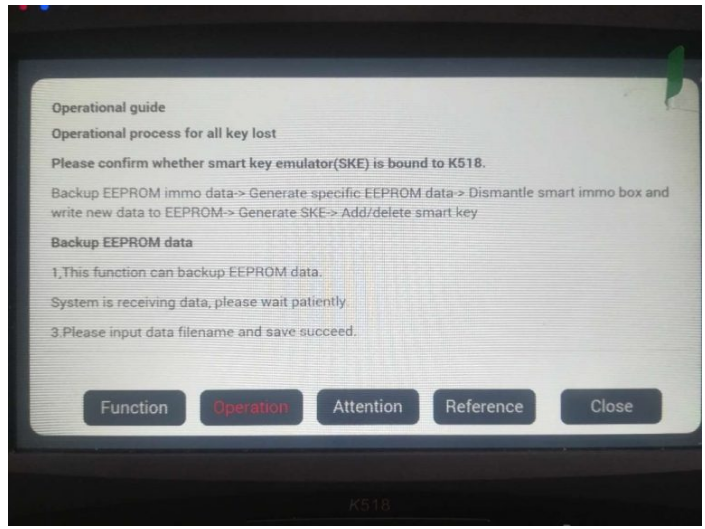

Operational guide:

Operational process for all key lost

Please confirm whether smart key emulator (SKE) is bound to K518.

Backup EEPROM immo data ->Generate specific EEPROM data -> Dismantle smart immo box and

write new data to EEPROM -> Generate SKE ->Add / delete smart key

Backup EEPROM immo data

1.This function can backup EEPROM data.

2.System is receiving data, please wait patiently.

3.Please input data filename and save succeed.

3

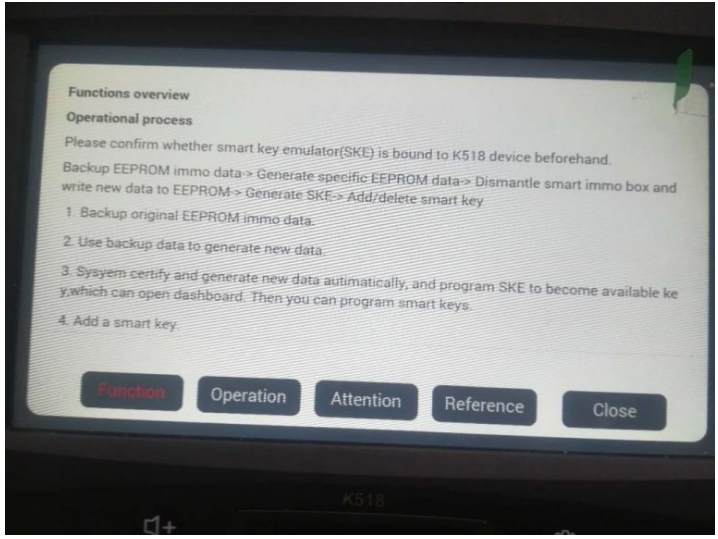

Function overview

Operational process

Please confirm whether smart key emulator (SKE) is bound to K518 device beforehand.

Backup EEPROM immo data ->Generate specific EEPROM data -> Dismantle smart immo box and

write new data to EEPROM -> Generate SKE ->Add / delete smart key

1.Backup the original EEPROM immo data.

2.Use the backup data to generate new data.

3.System certify and generate new data automatically, and program SKE to become available key,which can open dashboard. Then you can program smart keys.

4.Add a smart key.

4

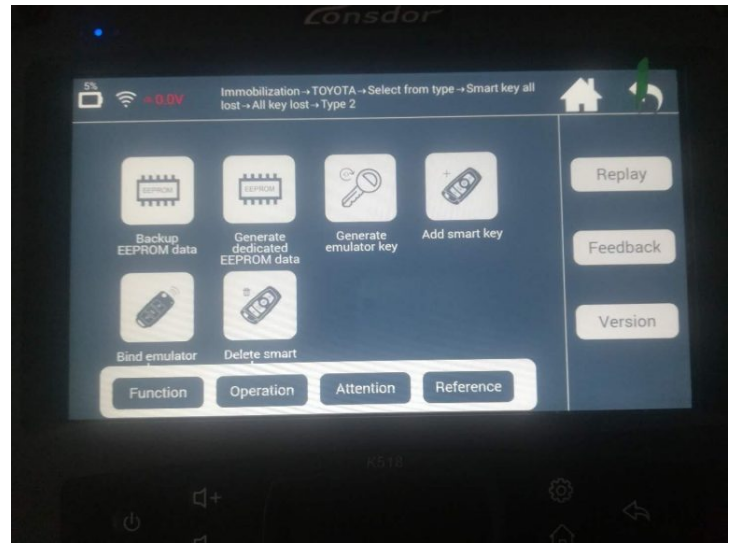

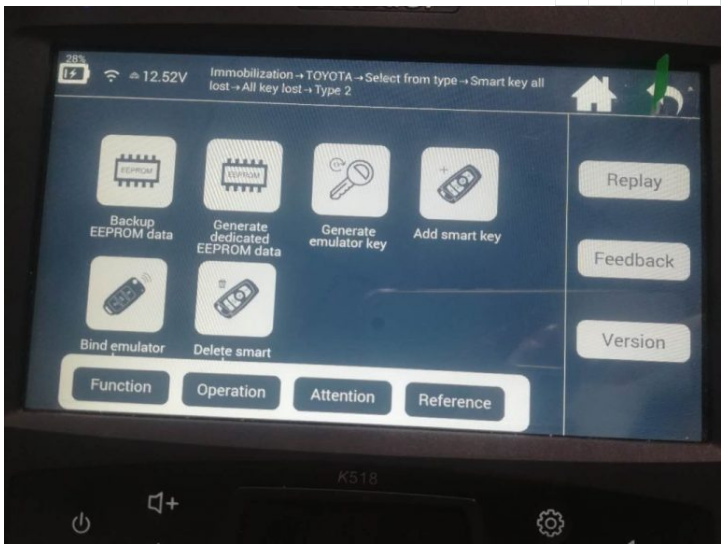

Tap Immobilization -Toyota -> Select from type -> Smart key all lost ->All key lost-> Type 2

5

6
