How to remove and install heater/air conditioning controls for JCB 416 wheel loader

Here is illustration on how to remove and install heater/air conditioning controls for JCB 416 wheel loader.

Related Contents:

Removal

1 Make the machine safe with the loader arms lowered.

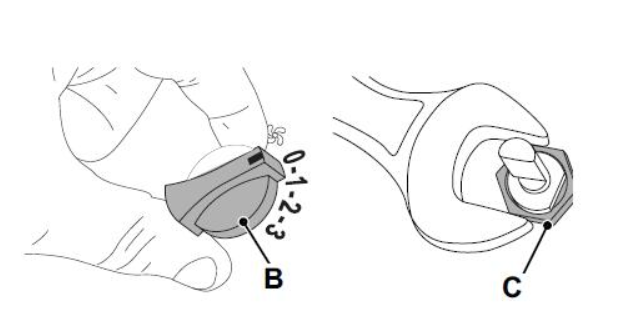

2 Pull the heater/air conditioning control knobs B and remove them.

3 Loosen their securing nuts C.

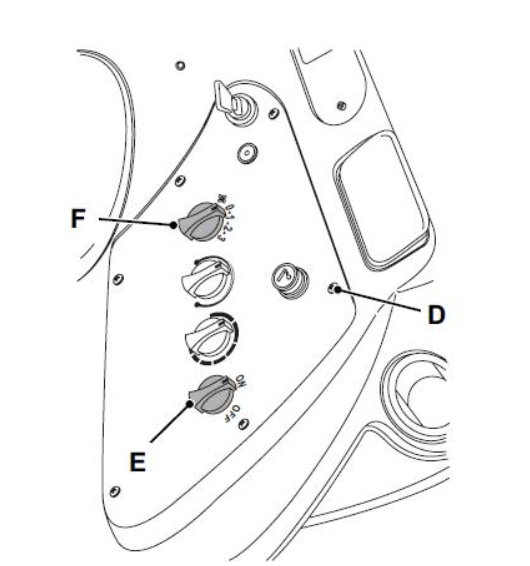

4 Remove the securing screws D (x6) from the heater control panel.

Note: The size and shape of the heater control panel can vary.

5 Carefully lift the heater control panel to get access to the connectors below it.

6 Disconnect the electrical connectors G from the bottom H of their controls E and F.

7 Loosen the securing nuts J, then remove the controls E and F from the heater control panel.

Installation

The installation procedure is the reverse of the removal procedure.
