How to Read and Write EEPROM Data for BOSCH EDC16 ST95640 chip by XTOOL X100 PAD3

Here is a instruction show procedures on how to read and write EEPROM data for BOSCH EDC16 ST95640 chip by XTOOL X100 PAD3.

Device Required:

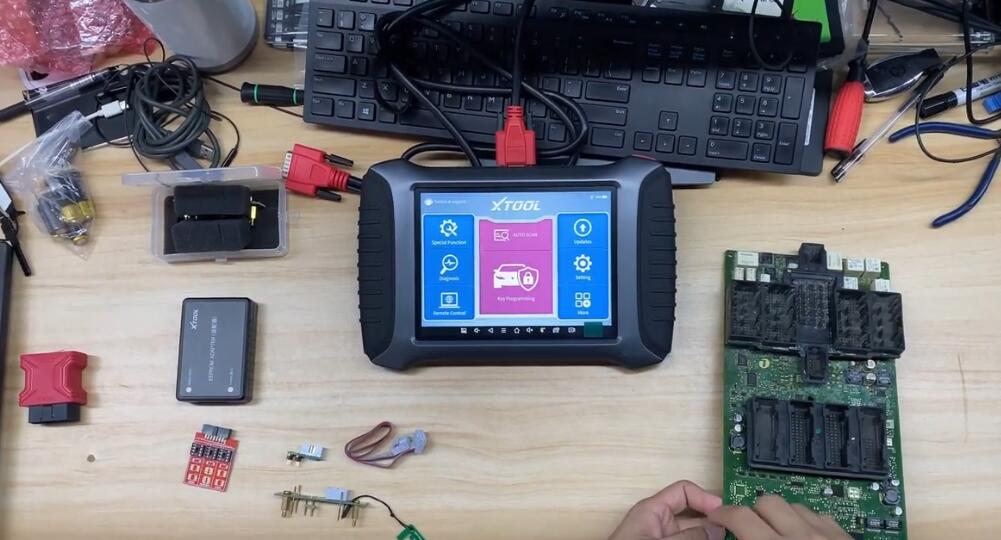

XTOOL X100 PAD3 with KC501 adapter

Procedures:

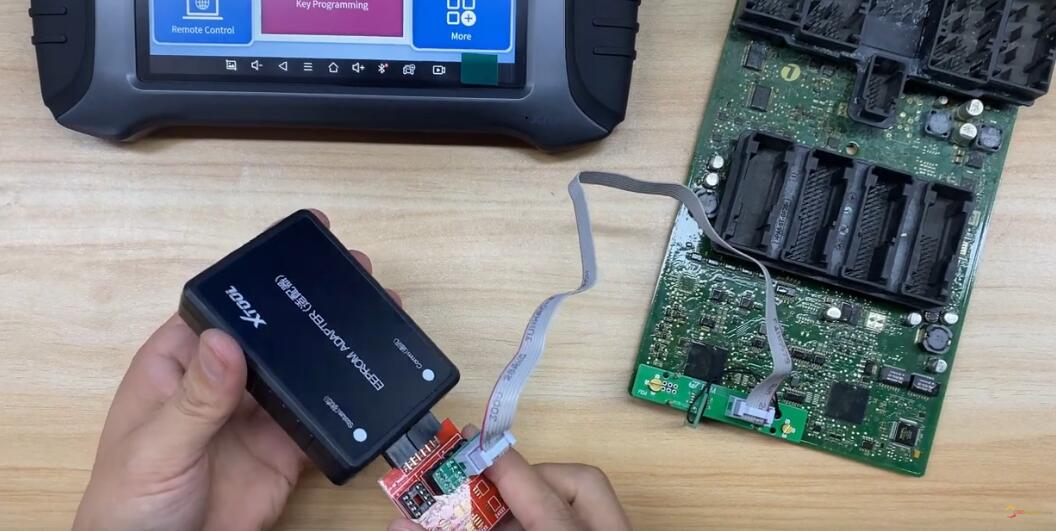

Build connect between IC clip cable to KC501 and KC501 to X100 PAD3

Power on X100 PAD3

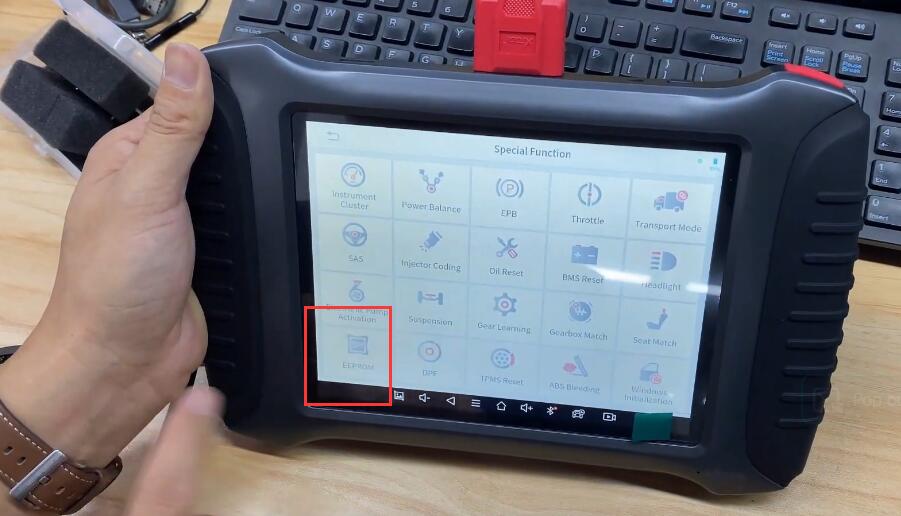

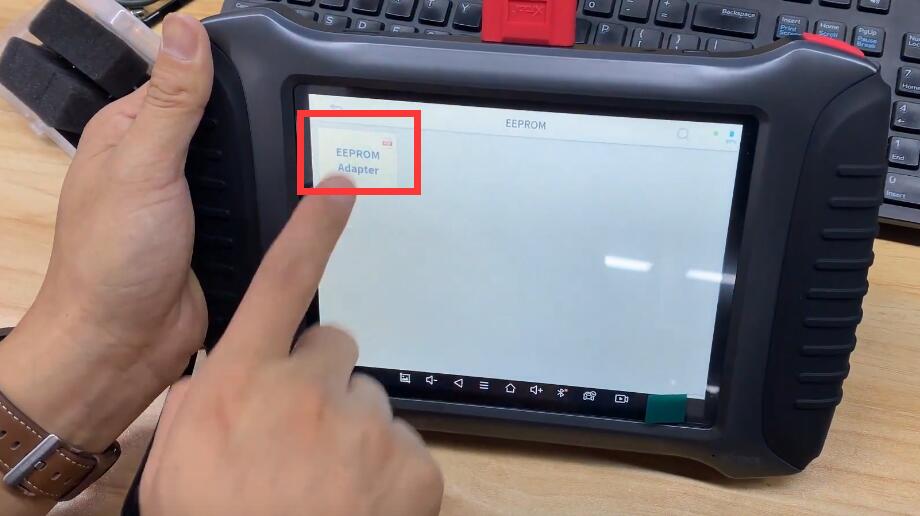

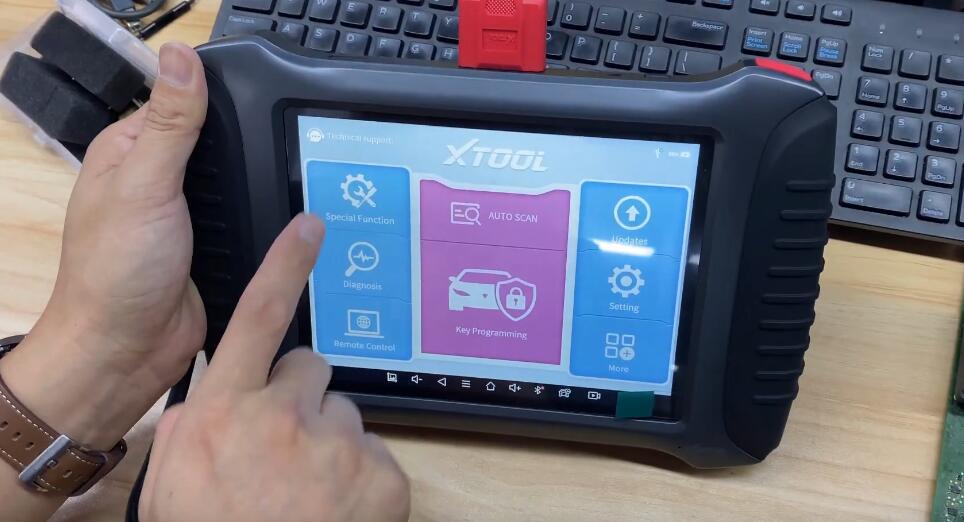

Then select “Special Function”–>”EEPROM”–>”EEPROM Adapter”

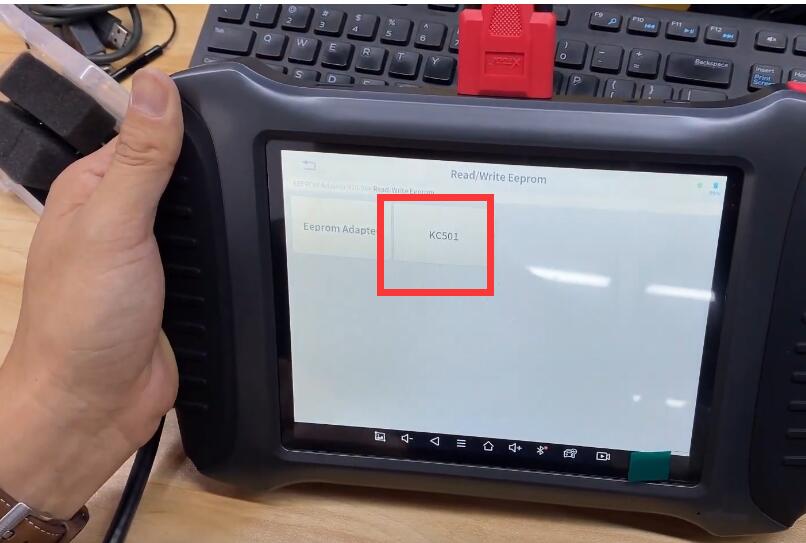

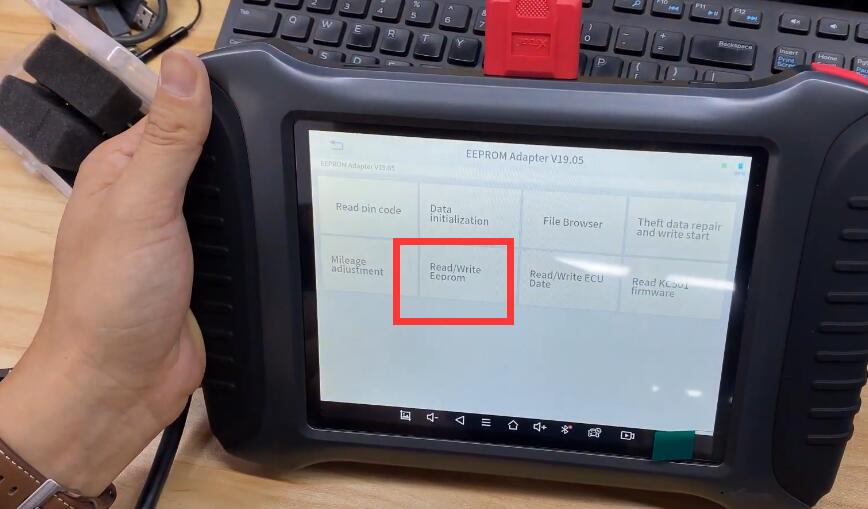

Select ”Read/Write EEPROM”–>“KC501”

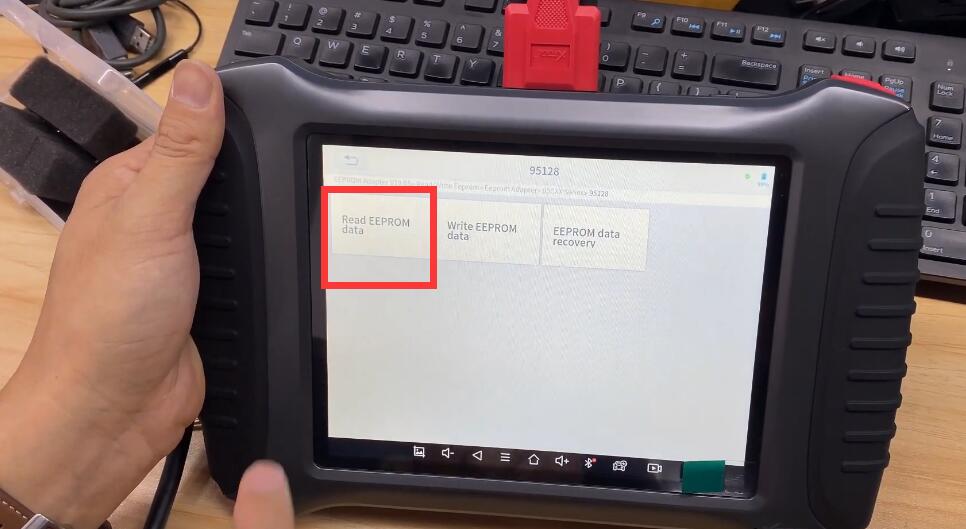

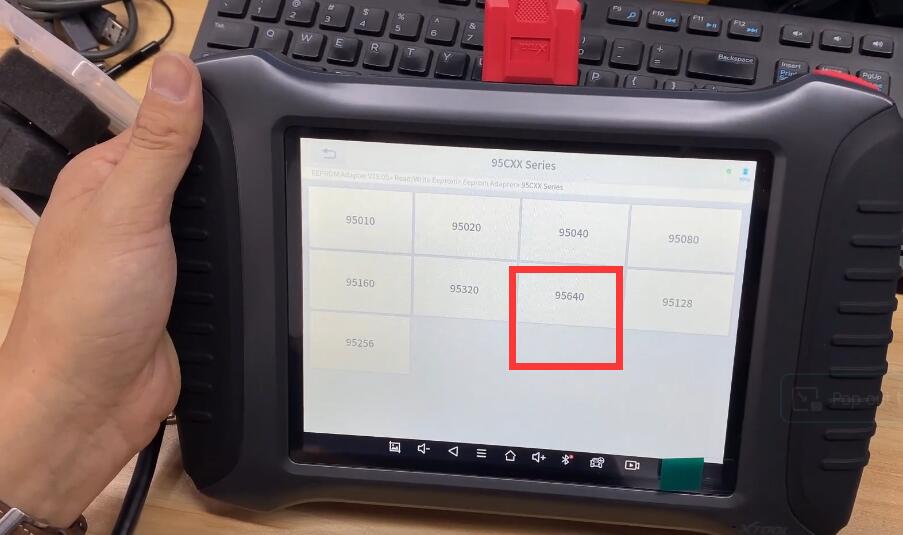

Select “ST”–>”ST95640”–>”SKx16”–>”Read data”

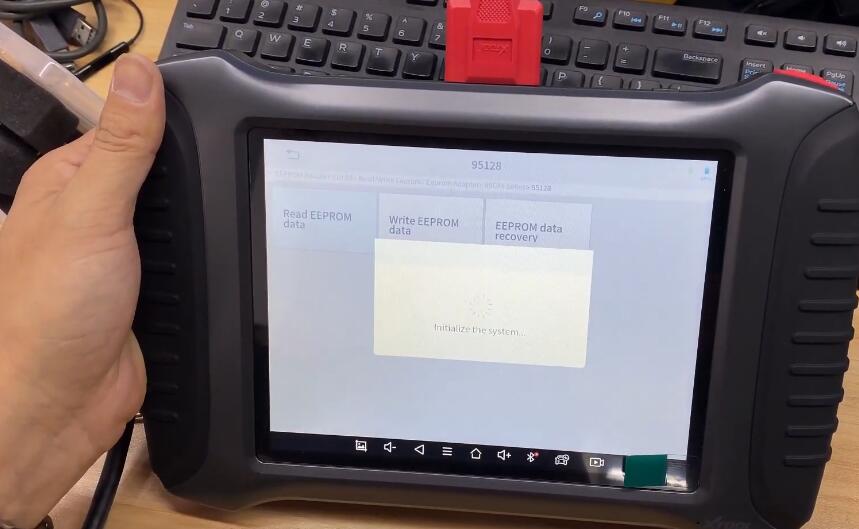

Reading data

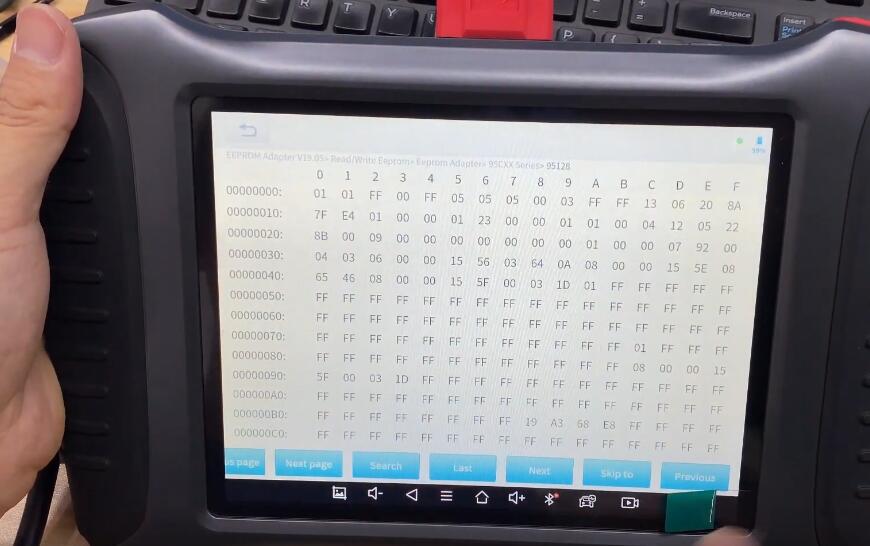

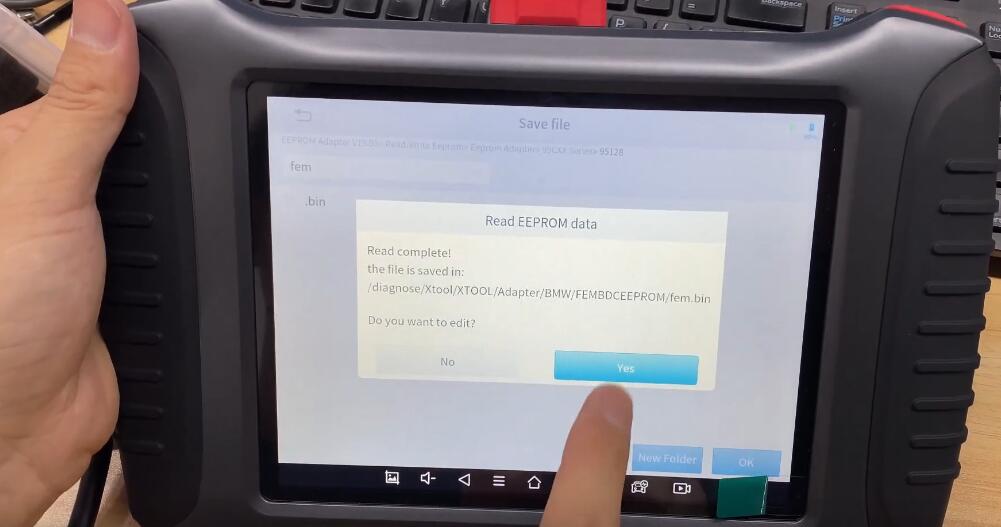

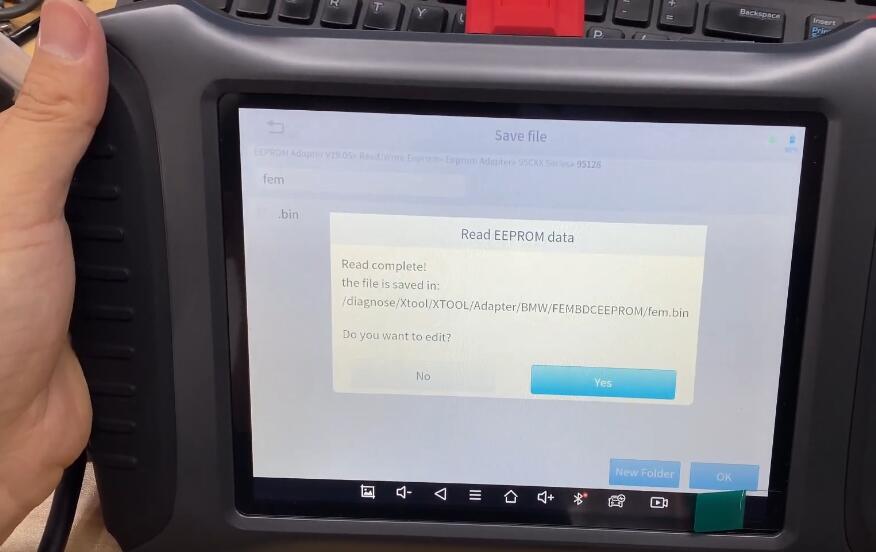

After finish,pls save it

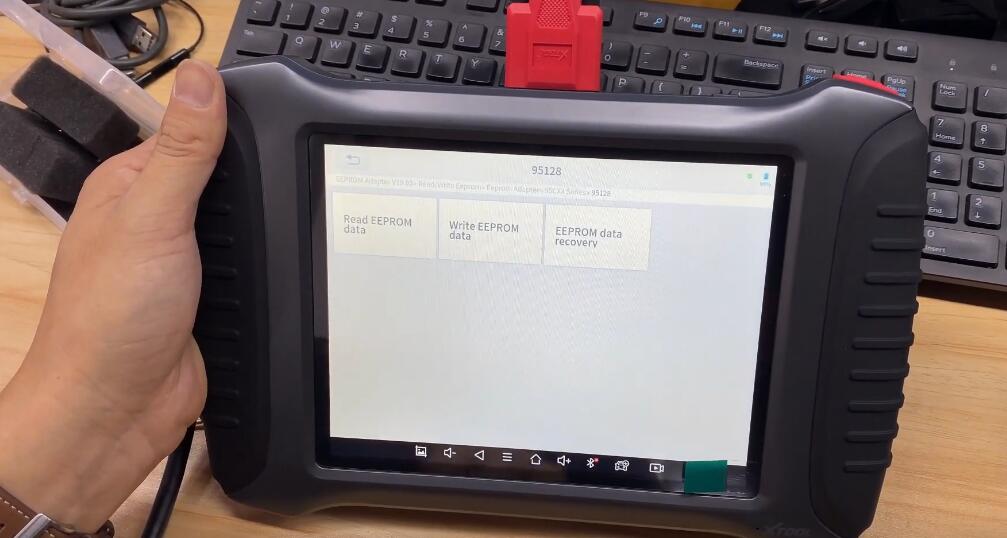

For writing data back,pls go to previous option to select “Write data”

Select which file you want to write,then click “OK”

Finish
