How to perform ECM calibration download by Cummins Insite?

This instruction show you the procedures on how to perform Cummins ECM calibration download by Cummins Inline 6 or Cummins Inline 7.



Procedures:

Connect to ECM

Open Calibration Selection and select ECM\PDD button

If Auto-Detect is enabled, INSITE will automatically detect the calibration code currently in the ECM.

If Auto-Detect is not enabled, locate desired calibration in Calibration Workspace or other location (such as INCAL DVD or network drive)Requires downloading calibration from ECM Code Search in INSITE or through Quickserve

Select calibration

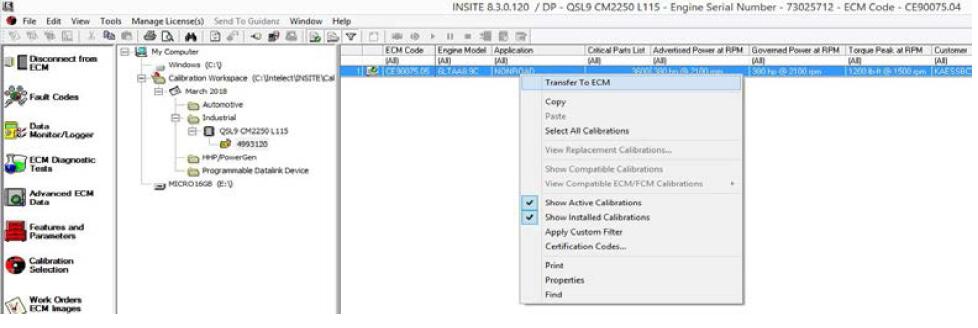

Right-click on calibration and select “Transfer to ECM”

Click the Next button on the Calibration Download Wizard window

Review the System ID and Dataplate informationDataplate information can be edited in this window

The Restore Original Values button will undo all edits made

The Save/Restore Adjustable Parameters box is checked by default. (Recommended)

Click the Next button

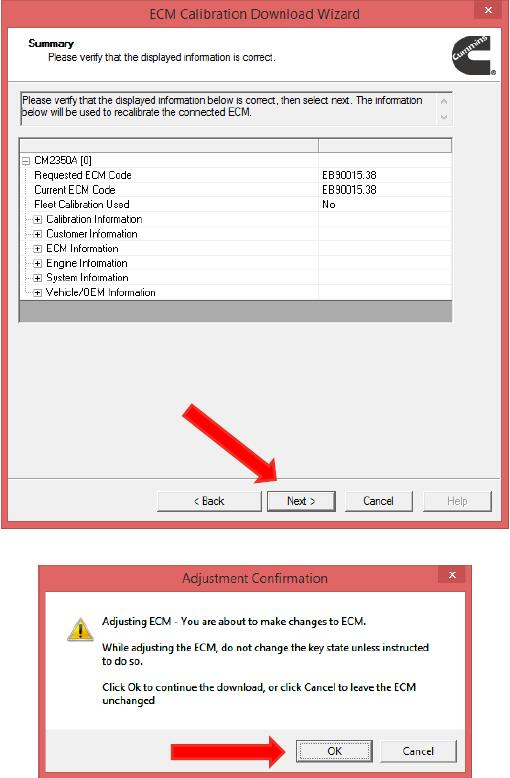

Verify the information in the Summary window

Click the Next button to continue

Review the Adjustment Confirmation windowAnytime, up to this point, you can cancel the download and go back

Click on the OK button to continue



Performing a Multi-Module Calibration Download

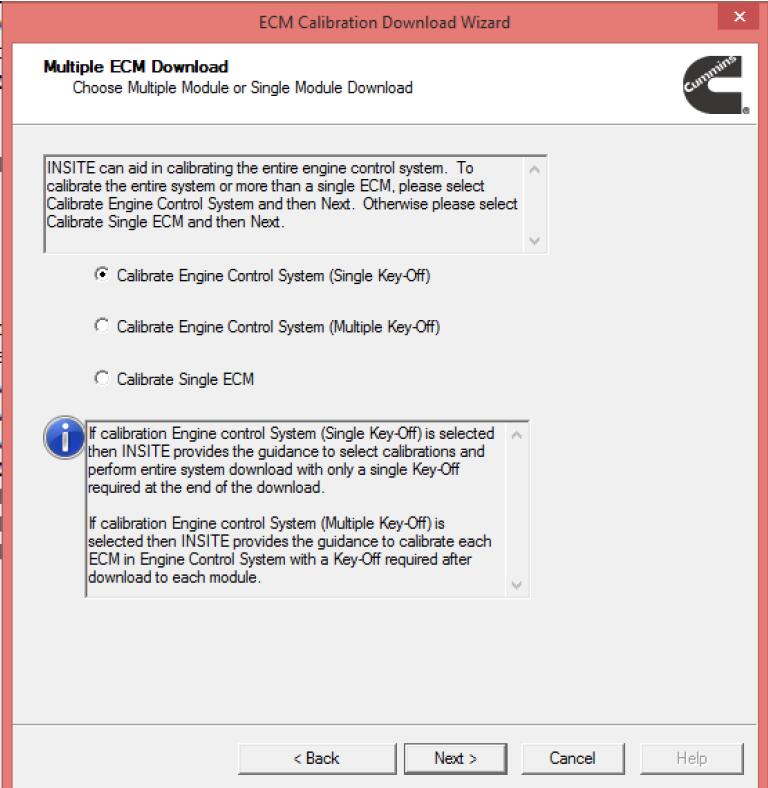

When connected to a primary and one or more secondary ECM(s), you will be prompted to select one of the following options:Calibrate Engine Control System (Single Key-Off)

Calibrate Engine Control System (Multiple Key-Off)

Calibrate Single ECM

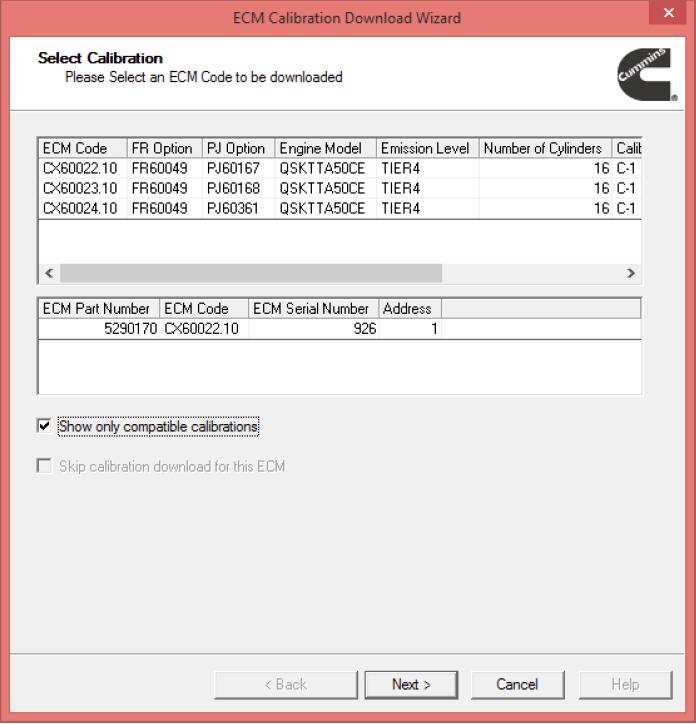

When using either the Calibrate Engine Control System (Single Key-Off) or the Calibrate Engine Control System (Multiple Key-Off) options, INSITE will display compatible secondary calibrations to select during the Select Calibration process.

Calibration Transfer progress windows

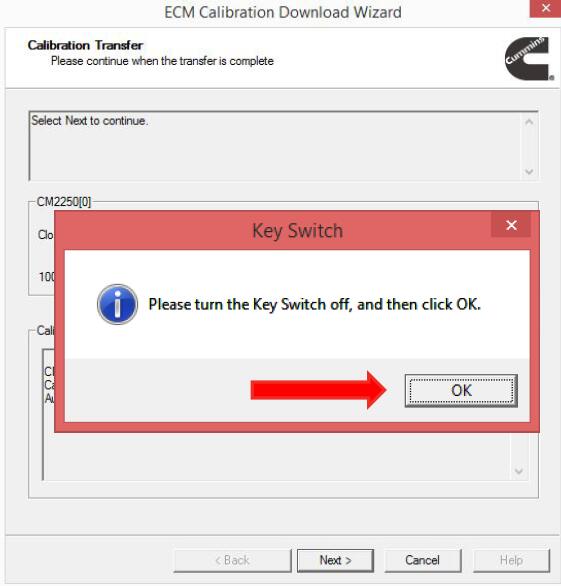

Turn off the key switch and click on the OK button to continue

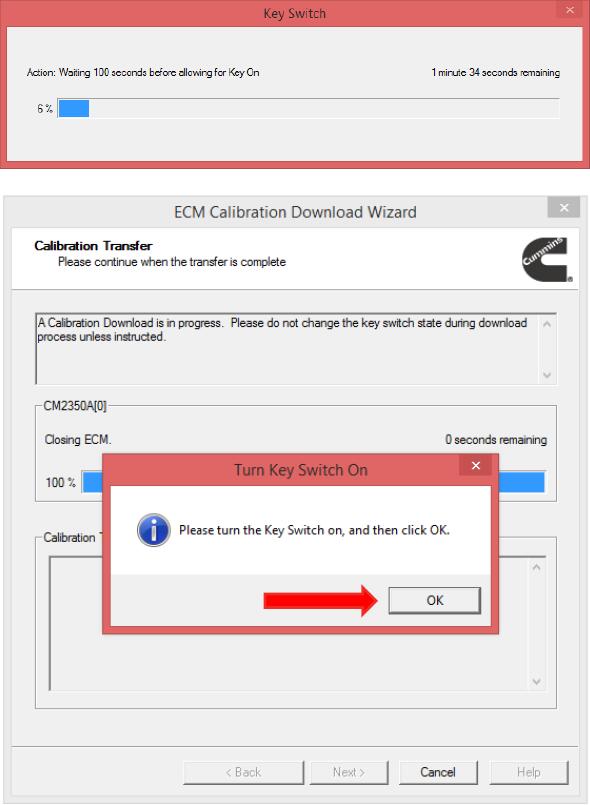

Calibration Transfer Key Switch progress message

Turn on the key switch and click on the OK button to continue

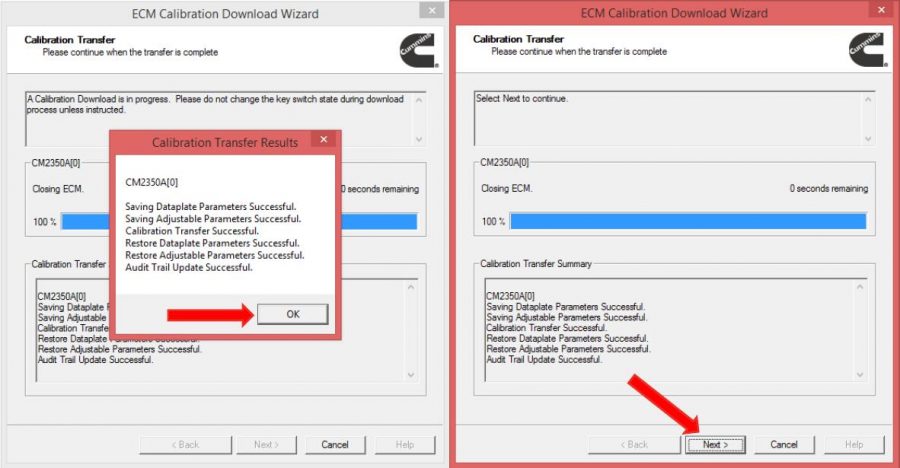

Calibration Transfer Results window

Click the OK button to continue

Calibration Transfer Complete window

Click on the Next button to continue

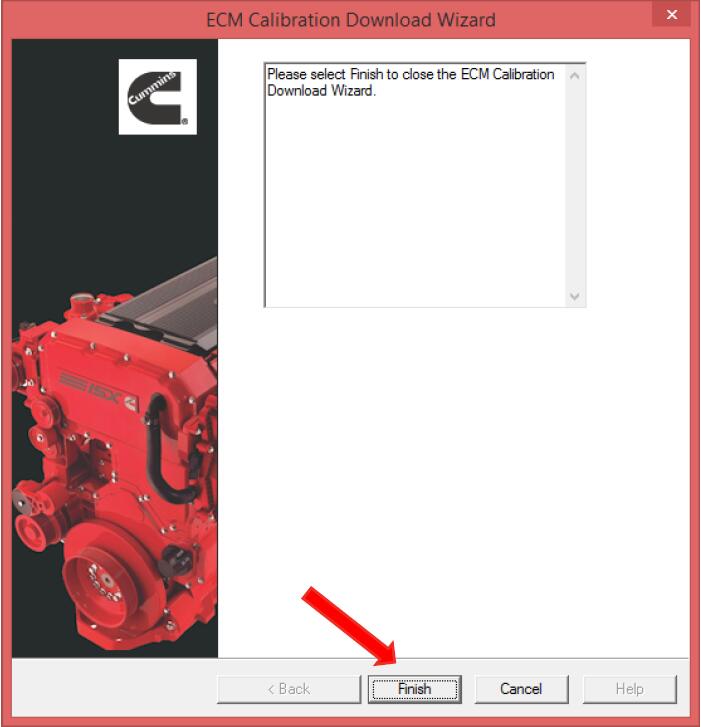

Click on the Finish button to close the ECM Calibration Download Wizard



Performing A PDD Calibration Download

Connect to ECM

Open Calibration Selection and select ECM\PDD button

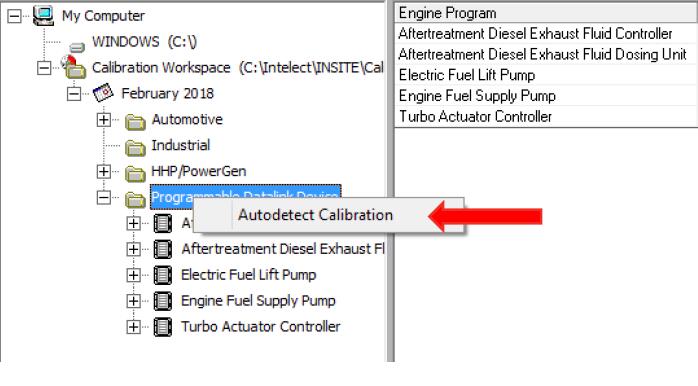

Right click on Programmable Datalink Device (PDD) and select Autodetect Calibration

Or locate desired calibration In Calibration WorkspaceRequires downloading calibration from ECM Code Search in INSITE or through Quickserve

INCAL DVD

Network Drive

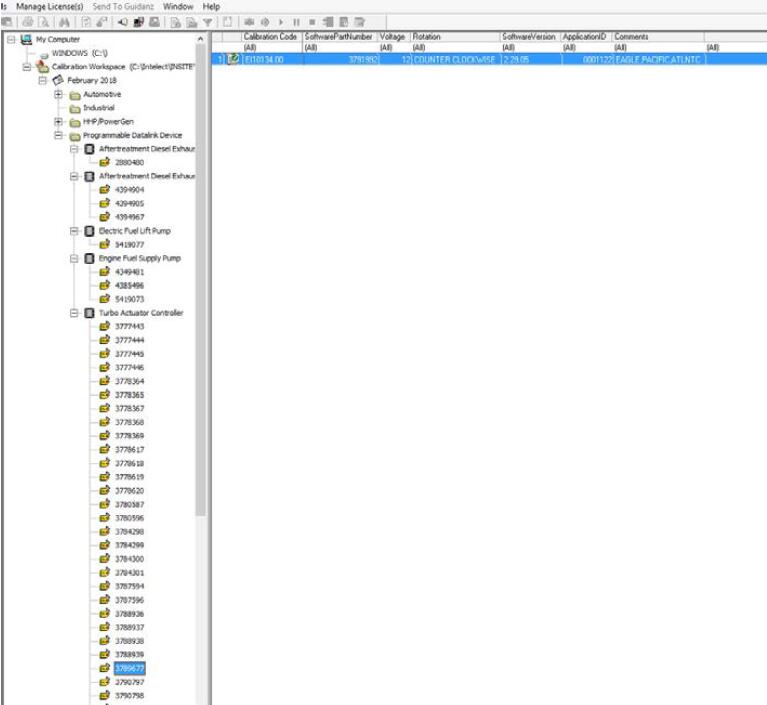

Autodetect will find and select the appropriate calibration code for the connected PDD

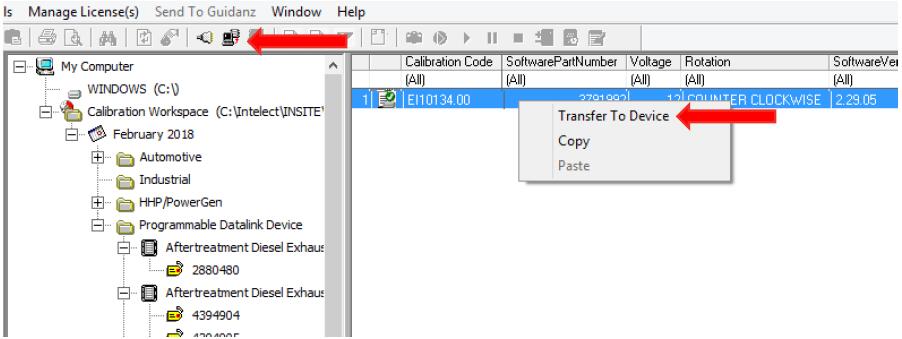

Right click the desired calibration code and select “Transfer To Device” or select the “Transfer to ECM” button from the toolbar

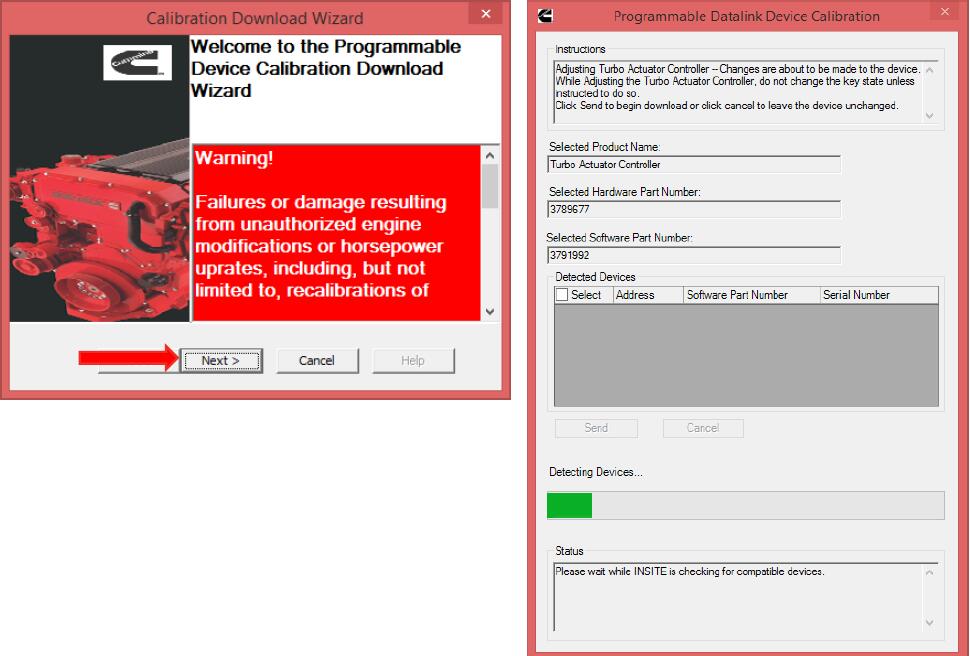

On the Calibration Download Wizard click on the Next button

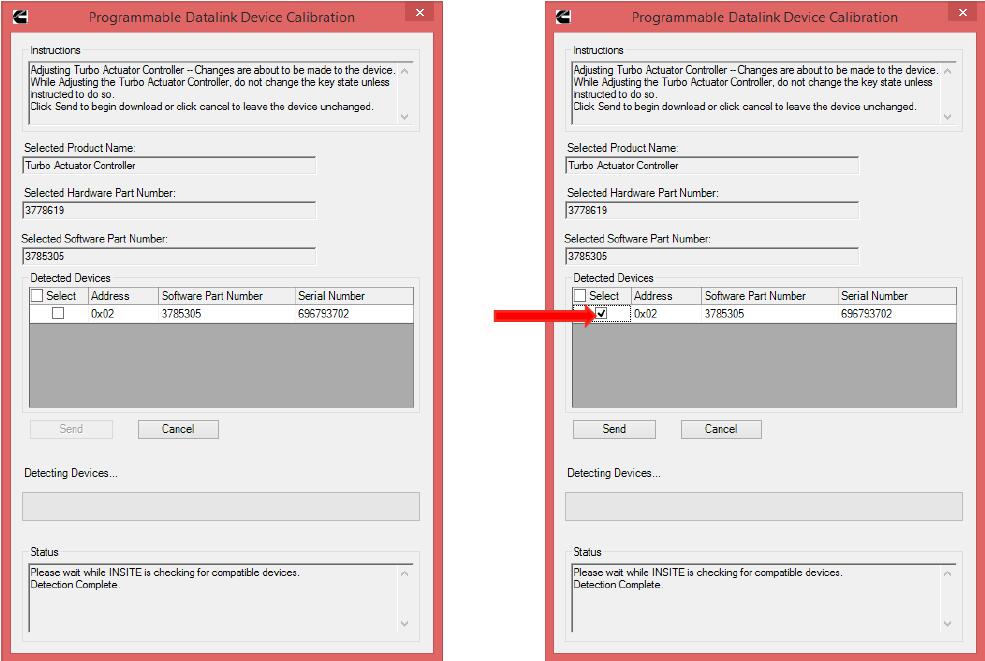

On the PDD Calibration window select the device to be calibrated by checking the box

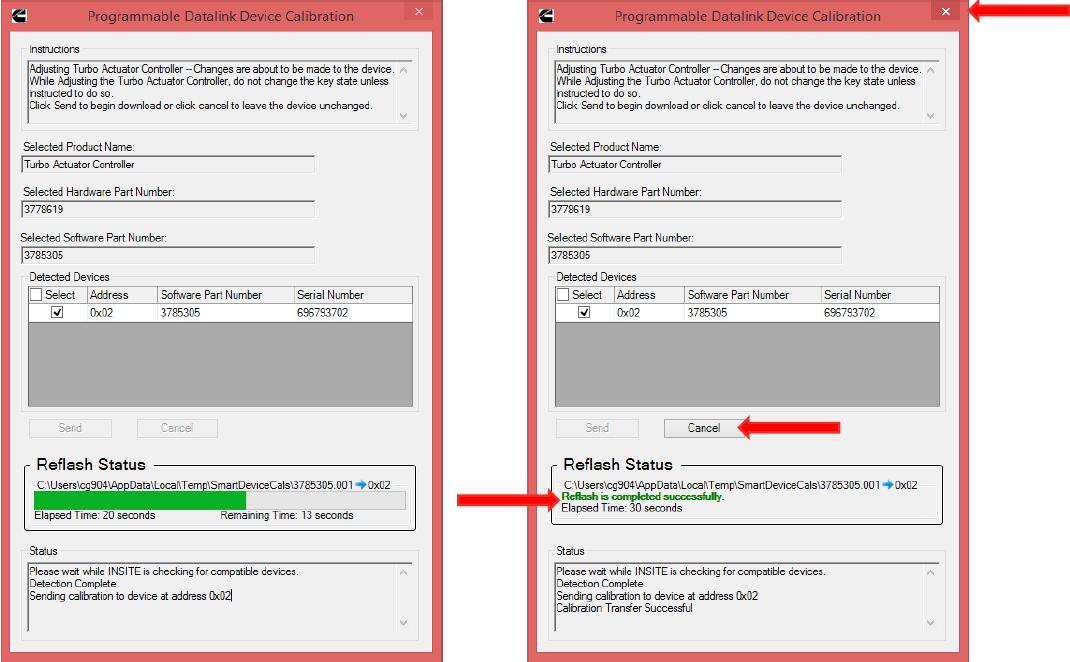

On the PDD Calibration window, when the “Reflash is completed successfully” message appears, click on the Cancel button or Red X button to close the window and continue

The ECM will reconnect automatically
