Ford EDGE 2007-2014 Keyfob RKE Programming
1. Prepare Vehicle for Programming
ENTER the vehicle and CLOSE the Driver’s Door.
2. Confirm First Programmed Key – Step 1
INSERT the first previously programmed transponder key into the ignition.
3. Confirm First Programmed Key – Step 2
TURN the ignition from Position 1 (LOCK/OFF) to Position 3 (RUN). KEEP the ignition in Position 3 (RUN) for at least 3 seconds, but no more than 10 seconds.
4. Confirm First Programmed Key – Step 3
TURN the ignition to Position 1 (LOCK/OFF) and REMOVE the first key from the ignition.
5. Confirm Second Programmed Key – Step 1
Within 10 seconds of turning the ignition to Position 1 (LOCK/OFF), INSERT the second previously programmed key into the ignition.
6. Confirm Second Programmed Key – Step 2
TURN the ignition from Position 1 (LOCK/OFF) to Position 3 (RUN). KEEP the ignition in Position 3 (RUN) for at least 3 seconds, but no more than 10 seconds.
7. Confirm Second Programmed Key – Step 3
TURN the ignition to Position 1 (LOCK/OFF) and REMOVE the second key from the ignition.
8. Program New Remote Head Key – Step 1
Within 20 seconds of turning the ignition to Position 1 (LOCK/OFF) and removing the second key, INSERT the NEW un-programmed key into the ignition.
9. Program New Remote Head Key – Step 2
TURN the ignition from Position 1 (LOCK/OFF) to Position 3 (RUN). KEEP the ignition in Position 3 (RUN) for at least 6 seconds.
10. Exit Programming Mode
REMOVE the NEW key from the ignition.
If the key was successfully programmed, the theft indicator light will illuminate for 3 seconds and then go out to indicate successful programming of the key.
If the key was NOT successfully programmed, the theft indicator light will FLASH on and off. Wait 20 seconds and repeat the process from Step 1.
11. Test Remotes
TEST all remotes. Programming is complete.
Important:
* Verify the following prior to following these instructions:
Your vehicle is equipped with keyless entry, and
You have a key fob remote that is compatible with your vehicle.
* Remote Head Key Programming
You must have 2 working transponder chip remote head keys in order to program a new remote head key without the assistance of a professional.
The key to be programmed must be cut prior to beginning this programming procedure.
* To program any additional new keys, wait 20 seconds and REPEAT this procedure.
Note: If your vehicle cannot enter programming mode, then you cannot program any remote. This indicates either no keyless entry installed on the vehicle or a defective keyless entry receiver module.

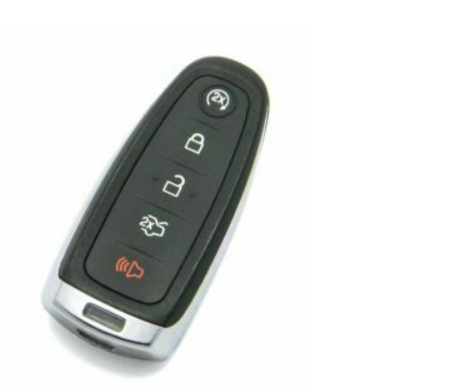

Ford Edge PEPS SMART KEY FOB REMOTE Programming
1. Enter Programming Mode – Step 1
Have two programmed PEPS smart keys inside the vehicle prior to beginning this procedure.
PLACE the NEW un-programmed smart key in the pocket inside the center console utility compartment.
2. Enter Programming Mode – Step 2
PRESS the driver or passenger power door UNLOCK button 3 times.
3. Enter Programming Mode – Step 3
PRESS and RELEASE the brake pedal 1 time.
4. Enter Programming Mode – Step 4
PRESS the driver or passenger power door LOCK button 3 times.
5. Enter Programming Mode – Step 5
PRESS and RELEASE the brake pedal 1 time. The INDICATOR on the START/STOP button should begin to rapidly flash, indicating Programming Mode has been entered.
6. Program New PEPS Smart Key Remote
Within 1 minute, PRESS the START/STOP button on the vehicle. A message will be displayed on the message center indicating that the NEW smart key was programmed successfully.
7. Exit Programming Mode
REMOVE the smart key from the utility compartment pocket and PRESS the UNLOCK or LOCK button on the NEW programmed smart key to EXIT programming mode.
8. Test Remotes
TEST all remotes. Programming is complete.
Important:
* Verify the following prior to following these instructions:
Your vehicle is equipped with keyless entry, and
You have a key fob remote that is compatible with your vehicle.
* You must have 2 working PEPS smart keys in order to program a new key without the assistance of a professional.
Ford EDGE 2015-2020 Keyfob RKE Programming
Ford Edge PROXIMITY SMART KEY FOB REMOTE Programming
1. Confirm First Programmed Smart Key – Step 1
PLACE the first programmed smart key in the backup slot in the center console.
The key ring MUST be at the top with the buttons facing towards the FRONT of the vehicle.
2. Confirm First Programmed Smart Key – Step 2
PRESS the START/STOP button on the vehicle.
3. Confirm First Programmed Smart Key – Step 3
WAIT 5 seconds and PRESS the START/STOP button on the vehicle AGAIN.
4. Confirm First Programmed Smart Key – Step 4
REMOVE the first programmed key from the center console.
5. Confirm Second Programmed Smart Key – Step 1
Within 10 seconds, PLACE the second programmed smart key in the backup slot in the center console.
6. Confirm Second Programmed Smart Key – Step 2
PRESS the START/STOP button on the vehicle.
7. Confirm Second Programmed Smart Key – Step 3
WAIT 5 seconds and PRESS the START/STOP button on the vehicle AGAIN.
8. Confirm Second Programmed Smart Key – Step 4
REMOVE the second programmed key from the center console.
9. Program New Smart Key – Step 1
WAIT 5 seconds and PLACE the NEW un-programmed smart key in the backup slot in the center console.
10. Program New Smart Key – Step 2
PRESS the START/STOP button on the vehicle.
11. Program New Smart Key – Step 3
WAIT 5 seconds and PRESS the START/STOP button on the vehicle AGAIN.
12. Test Remotes
TEST all remotes. Programming is complete.
Important:
* Verify the following prior to following these instructions:
Your vehicle is equipped with keyless entry, and
You have a key fob remote that is compatible with your vehicle.
* You MUST have 2 working smart keys (keys that start your vehicle) in order to perform this programming procedure without the assistance of a professional.
* A MAXIMUM of 4 smart keys can be programmed to your vehicle. If you’ve had 4 programmed in the past, seek the assistance of a professional programmer.
* Ensure that the vehicle is OFF prior to beginning this procedure. CLOSE all doors prior to beginning this procedure.
* You MUST perform ALL steps within 30 seconds of starting the programming procedure.
* You MUST wait 60 seconds before repeating the procedure after an unsuccessful attempt.
Note: If your vehicle cannot enter programming mode, then you cannot program any remote. This indicates either no keyless entry installed on the vehicle or a defective keyless entry receiver module.
Learn how to program your Ford Edge’s RKE Keyless Entry remote in any model year between 2007 and 2020 with this comprehensive tutorial. To successfully program your Ford Edge’s RKE keyfob, please refer to the guidelines provided above.
