Easydiag / Icarscan 24V to 12V adapter = HD Module for trucks? The Easydiag / Icarscan 12V to 24V HD adapter has been a while since it was released, it is advertised it would do HD modules’ job. There are two most frequently asked questions:
1.) It works both K-line and CAN Bus?
2.) Does it have the database for heavy duty trucks?
Answer and Suggestion:
1).The 12V to 24V heavy duty adapter has no component for kline. Only usable for diagnosis via CAN.
It only converts 24-12V, no protocols, so only CAN will work.
On trucks with CAN line is not so bad.
On trucks with K-line (old) none working.
Using Easydiag / Icarscan with USA 12v trucks obd2 no problem and don’t need a voltage converter, but when i try to use an obd2 to 9 pin adapter to read the older trucks (K-line) it will not connect.
2).It does not have a database for heavy duty.
Only buy original launch x431 24v truck adapters with separate software.

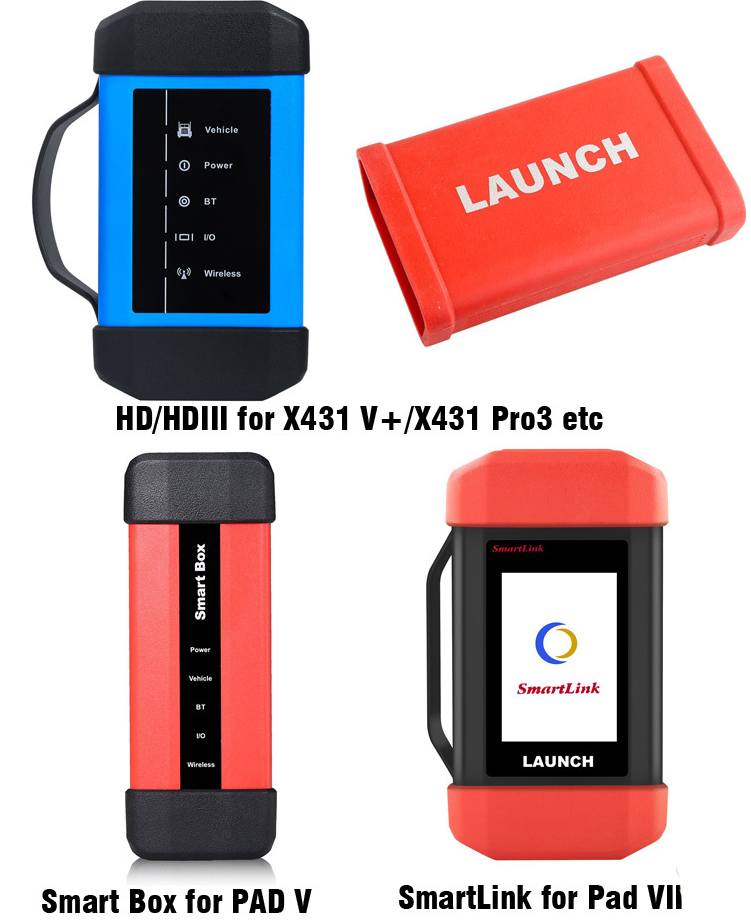

You can use HD or HD III for X431 V+, Pro3 or Smart Box for Pad V, SmartLink for PAD VII (PAD V, PAD VII need to purchase truck software in “Mall”)
Launch X431 HD Module Functions
1.Identification of control units
2.Adaptation of control units
3.Reset service intervals
4.Reading vehicle data streams
5.Display of current system parameters
6.Check actuators
7.Reading and erasing vehicle fault codes
8.Powerful special functions:
9.Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
10.Communicates with ABS & Transmissions from Bendix, Wabco and Allison
11.Tech to Tech remote communication function
Supported heavy duty vehicle list:
Europe:
MERCEDES BENZ
MAN
VOLVO
SCANIA
IVECO
DAF
RENAULT
US:
Freightliner
INTERNATIONAL
Kenworth
PETERBILT
STERLING
WESTERN STAR
MACK
DETROIT
CUMMINS
Asia:
HINO
FUSO
ISUZU
UD
HYUNDAI
So if you need to diagnose CAN BUS truck, the easydiag converter is worth a try. Trucks are very expensive, original Launch HD adapter is definitely the best solution.
