CGDI BMW AT-200 ECU Programmer has updated to Version 1.7.0 on March 20th, 2020. It not only optimized software interface with wiring diagram display, font size, menu display and added search function, help button, but also added new engine types. In this article, you will get a detailed introduction of V1.7.0 AT200.
Part 1: BMW AT200 V1.7.0 Update & Free Download
Part 2: BMW AT200 V1.7.0 Installation Guide & Tips
Part 3: BMW AT200 V1.7.0 Basic Operation Introduction
Part 4: BMW AT200 V1.7.0 Car List
In detail…
Part 1: BMW AT200 V1.7.0 Update & Free Download
1.BMW AT200 V1.7.0 Update Info:
1). Software interface optimization and upgrading:
-Wiring diagram display
-Font size
-Menu display (classified display, consolidated display)
-Added search function
-Added help button
2). Added the engine types:
-Added TC1766: Can-Am, KTM, Piaggio;
-Added TC1767: Lincoln;
-Added TC1797: Artec, Fendt, New Holland;
-Repair some Bosch engine write abnormal problems
-Optimized car diagram:
BOSCH EDC17C10, BOSCH EDC17C41, BOSCH EDC17CP45, BOSCH EDC17CP48 ver2, BOSCH EDC17CP48, BOSCH MED17.9.3
– Added Traditional Chinese language
2.BMW AT200 V1.7.0 free download link:
https://mega.nz/#!S9sTAQ7C!lsmw-ExXwftL8bR2ZdKSuLVXyHLY0O0rTPTCSJNxwRM
No password! No risk! Tested 100%!
Part 2: BMW AT200 V1.7.0 Installation Guide & Tips
It’s very easy to install AT200 software.
Just select the language you want, and then follow the software prompts to finish whole installation process.
Note: After installation, please connect BMW AT200 ECU programmer to your computer and ECU module via OBD cable and USB cable. And the USB driver will install automatically. Otherwise it will prompt you to check the device connection. Then you can run AT200 software.
Part 3: BMW AT200 V1.7.0 Basic Operation Introduction

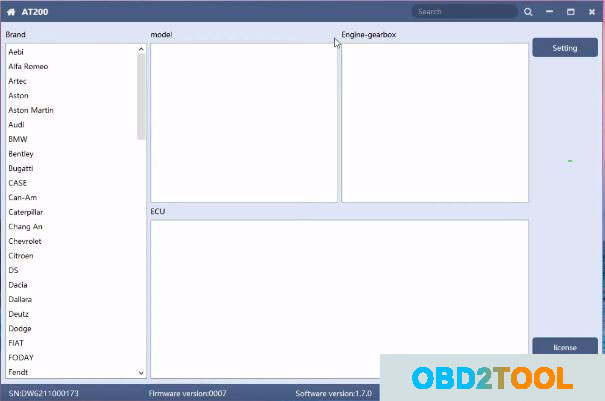

1.AT200 V1.7.0 software main interface:
-Contains Car brand, model, Engine- gearbox and ECU
-At the bottom of the page, you can see SN (Product serial number), current firmware/software version and device activation time remaining.
-Function: Search, Setting, license and help
Tips: Remaining time can be activated automatically after expiration or contact the manufacture

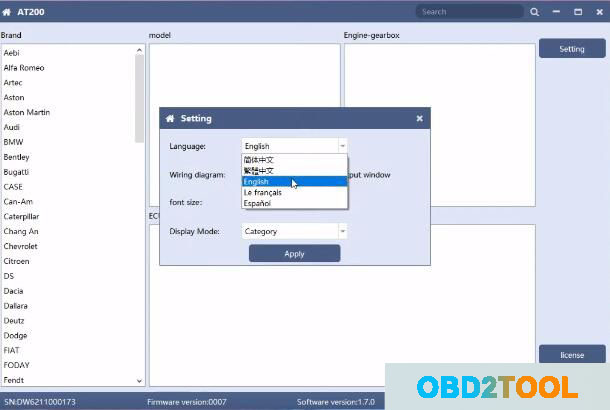

2.Setting:
There are four operation options: Language, wiring diagram, font size and display mode.
–Language: English, French, Spanish, Simplified Chinese and traditional Chinese
–Wiring diagram: Whether to tick this option depends on your operating habits
–Font size: It can be adjusted between 8 and 20.
-Display Mode: Category and Merge. The purpose of this option is to adjust the software architecture.

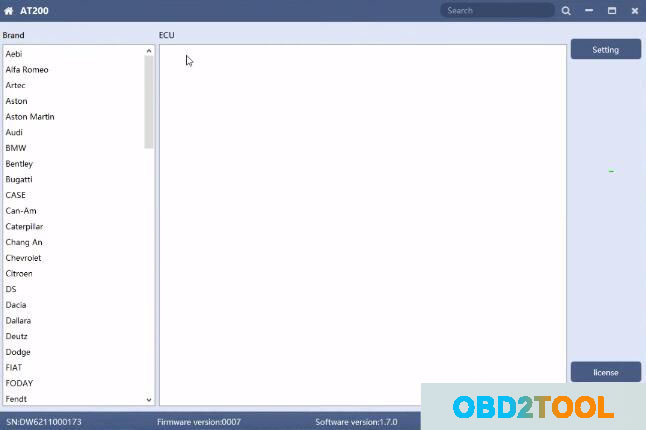

This is Merge mode which is different from Category mode above:
3.License:
Some functions need to be activated to use. Click “License” to check the all authorization of software functions. Mainly see “Function name”
Note: If “Function name” indicated “YES”, it is already opened, and “No” indicates that it is not opened. You can click “Update Authorization” to see if the function is enabled.

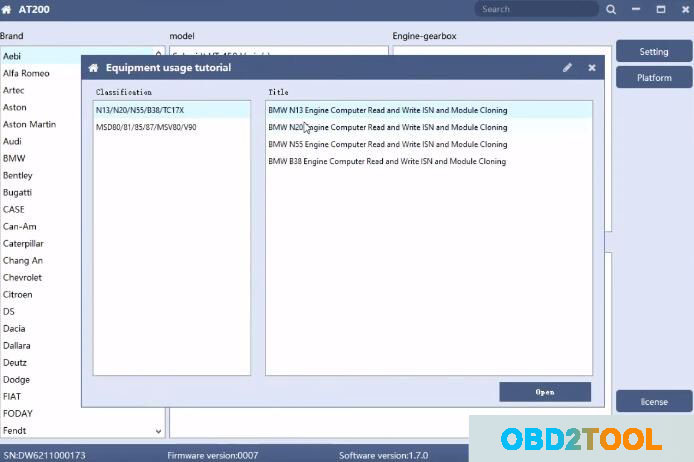

4.Help
This new function contains the instruction manual and operation video.
Note: If you are not familiar with the product, you can click the corresponding tutorial title to watch.

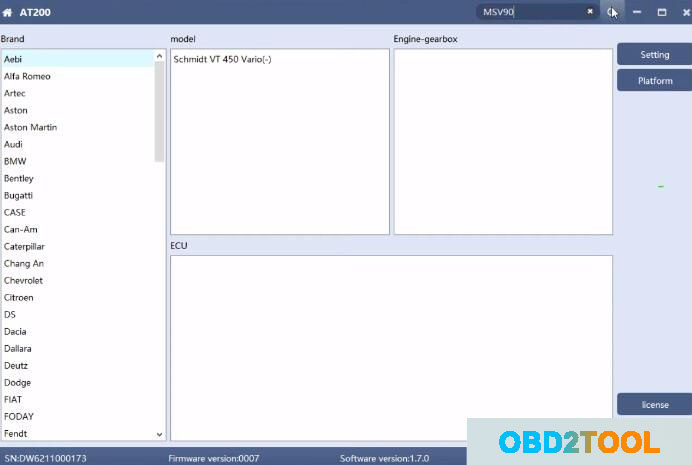

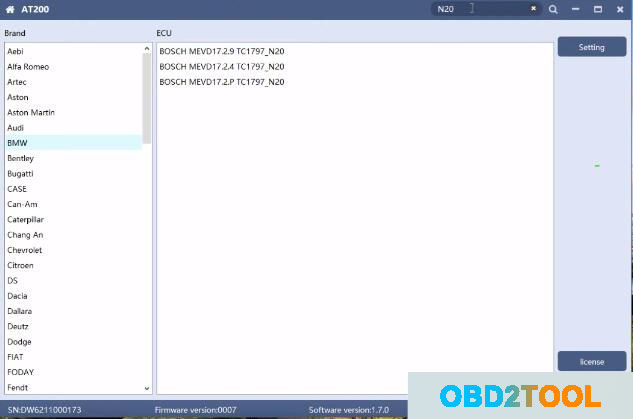

5.Search
Select car brand and enter the ECU module you need in the searching box
6.Platform
1).Category mode:

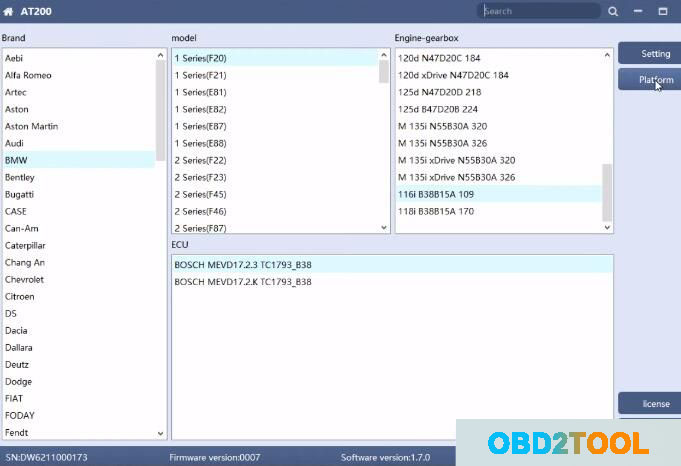

Select brand, model, Engine-gearbox and ECU, then click “Platform”

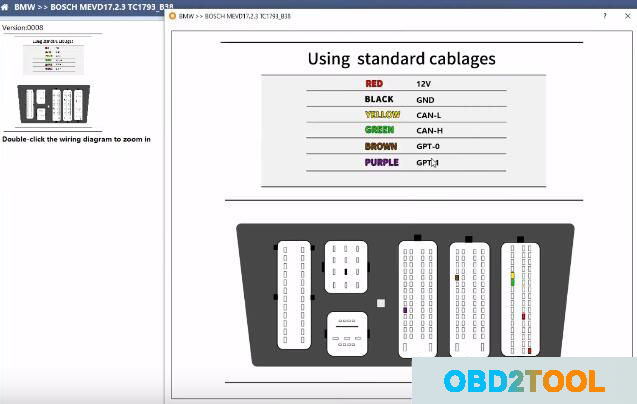

Follow the prompt to double-click the wiring diagram to zoom in
There are 9 operation options on the right:
Wiring diagram, Identification, Modify VIN, Read ISN, Write ISN, Read DFlash, Write DFlash, Read PFlash and Write PFlash
2). Merge mode:

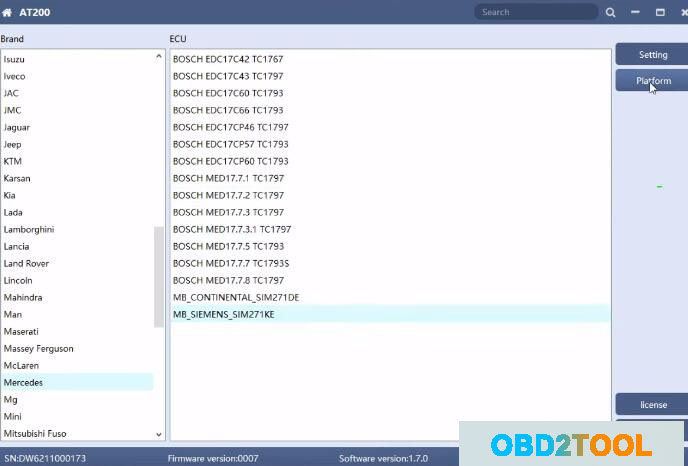

Select car brand and ECU, and then click “Platform”

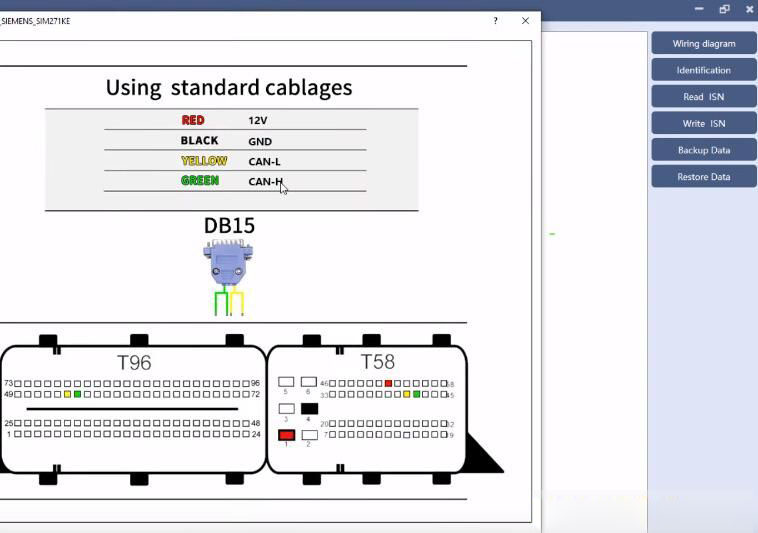

It’s same as Category mode, also can double click the wiring diagram to see the larger picture
But in the mode, there are only 6 operation options incl. Wiring diagram, Identification, Read ISN, Write ISN, Backup data and Restore Data.
Then you can operate according to your needs.
Please kindly notice:
It needs to connect network when reading ISN, writing data, backup data, restore data…
In the operation process, it is forbidden to disconnect the device power or disconnect the device connection, otherwise ECU may be damaged; f the software is accidentally shut down or the computer is accidentally shut down or freezes in the process, please do not disconnect the power supply of the device or the connection of the device. The device can recover the data independently after 15 minutes.
Part 4: BMW AT200 V1.7.0 Car List
AT200 BMW only supports BMW MSV90/80/MSD87/85/81/80 (E series, F series) and Mercedes- Benz SIM271 ECU clone and read & write ISN. And supports part of BMW F series N13/N20/N55/B38/TC17X read & write ISN, VIN modification, read & write data. Many other ECU types also supported.
As the car list is too long, here only share one partial list of models covered by the AT200 ECU programmer.
BMW [1 Series (F20)]
125i N20B20A 218(BOSCH MEVD17.2.9 TC1797_N20)
114i N13B16A 102(BOSCH MEVD17.2.5 TC1797_N13)
116i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 170(BOSCH MEVD17.2.5 TC1797_N13)
120i N13B16A 177(BOSCH MEVD17.2.5 TC1797_N13)
114d B37D15A 95(BOSCH EDC17C50 TC1797)
116d B37D15A 116(BOSCH EDC17C50 TC1797)
116d Efficient Dynamics B37D15A 116(BOSCH EDC17C50 TC1797)
118d B47D20A 150(BOSCH EDC17C50 TC1797)
118d xDrive B47D20A 150(BOSCH EDC17C50 TC1797)
120d B47D20A 190(BOSCH EDC17C50 TC1797)
120d xDrive B47D20A 190(BOSCH EDC17C50 TC1797)
114d N47D16A 95(BOSCH EDC17C50 TC1797)
116d Efficient Dynamics N47D16A 116(BOSCH EDC17C50 TC1797)
116d N47D20C 116(BOSCH EDC17C50 TC1797)
118d N47D20C 143(BOSCH EDC17C50 TC1797)
118d xDrive N47D20C 143(BOSCH EDC17C50 TC1797)
120d N47D20C 184(BOSCH EDC17C50 TC1797)
120d xDrive N47D20C 184(BOSCH EDC17C50 TC1797)
125d N47D20D 218(BOSCH EDC17CP45 TC1797)
125d B47D20B 224(BOSCH EDC17CP49 TC1797)
114i N13B16A 102(BOSCH MEVD17.2.5 TC1797_N13)
116i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 170(BOSCH MEVD17.2.5 TC1797_N13)
120i N13B16A 177(BOSCH MEVD17.2.5 TC1797_N13)
125i N20B20A 218(BOSCH MEVD17.2.9 TC1797_N20)
M 135i N55B30A 320(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i N55B30A 326(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i xDrive N55B30A 320(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i xDrive N55B30A 326(BOSCH MEVD17.2.G TC1797_N55/S55)
116i B38B15A 109(BOSCH MEVD17.2.3 TC1793_B38,BOSCH MEVD17.2.K TC1793_B38)
118i B38B15A 170(BOSCH MEVD17.2.3 TC1793_B38,BOSCH MEVD17.2.K TC1793_B38)
[1 Series (F21)]
114d B37D15A 95(BOSCH EDC17C50 TC1797)
116d B37D15A 116(BOSCH EDC17C50 TC1797)
116d Efficient Dynamics B37D15A 116(BOSCH EDC17C50 TC1797)
118d B47D20A 150(BOSCH EDC17C50 TC1797)
118d xDrive B47D20A 150(BOSCH EDC17C50 TC1797)
120d B47D20A 190(BOSCH EDC17C50 TC1797)
120d xDrive B47D20A 190(BOSCH EDC17C50 TC1797)
114d N47D16A 95(BOSCH EDC17C50 TC1797)
116d Efficient Dynamics N47D16A 116(BOSCH EDC17C50 TC1797)
116d N47D20C 116(BOSCH EDC17C50 TC1797)
118d N47D20C 143(BOSCH EDC17C50 TC1797)
118d xDrive N47D20C 143(BOSCH EDC17C50 TC1797)
120d N47D20C 184(BOSCH EDC17C50 TC1797)
120d xDrive N47D20C 184(BOSCH EDC17C50 TC1797)
125d N47D20D 218(BOSCH EDC17CP45 TC1797)
125d B47D20B 224(BOSCH EDC17CP49 TC1797)
114i N13B16A 102(BOSCH MEVD17.2.5 TC1797_N13)
116i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 136(BOSCH MEVD17.2.5 TC1797_N13)
118i N13B16A 170(BOSCH MEVD17.2.5 TC1797_N13)
120i N13B16A 177(BOSCH MEVD17.2.5 TC1797_N13)
125i N20B20A 218(BOSCH MEVD17.2.9 TC1797_N20)
M 135i N55B30A 320(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i N55B30A 326(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i xDrive N55B30A 320(BOSCH MEVD17.2.G TC1797_N55/S55)
M 135i xDrive N55B30A 326(BOSCH MEVD17.2.G TC1797_N55/S55)
116i B38B15A 109(BOSCH MEVD17.2.3 TC1793_B38, BOSCH MEVD17.2.K TC1793_B38)
118i B38B15A 170(BOSCH MEVD17.2.3 TC1793_B38, BOSCH MEVD17.2.K TC1793_B38)
[1 Series (E81)]
130i N52B30A 258-MSV90 (CONTINENTAL MSV90 TC1796)
130i N52B30A 265-MSV90 (CONTINENTAL MSV90 TC1796)
130i N52B30B 265-MSV90 (CONTINENTAL MSV90 TC1796)
116i N43B16A 122-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
116i N43B20A 122-MSD80 MSD81 (CONTINENTAL/SIEMENS MSD80 TC1796, CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20A 143-MSD80 MSD81 (CONTINENTAL/SIEMENS MSD80 TC1796, CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20M1 143-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 163-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 170-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
120i N43B2001 170-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
130i N52B30 258-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
130i N52B30 265-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
130i N52B30B 265-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
116d 2000 N47D20 115(BOSCH EDC17C06 TC1766)
118d N47D20U0 143(BOSCH EDC17C06 TC1766)
120d N47D20O0 177(BOSCH EDC17CP02 TC1766)
123d N47D20T0 204(BOSCH EDC17CP02 TC1766)
[1 Series (E82)]
125i N52B30A 217-MSV90 (CONTINENTAL MSV90 TC1796)
125i N52B30B 217-MSV90 (CONTINENTAL MSV90 TC1796)
135i N55B30 306(BOSCH MEVD17.2 TC1797_N55)
116d 2000 N47D20 116(BOSCH EDC17C41 TC1797)
118d N47D20 143(BOSCH EDC17C41 TC1797)
120d N47D20 184(BOSCH EDC17C41 TC1797)
116i N43B16A 122-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
116i N43B20A 122-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20A 143-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 163-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 170-MSD80 MSD81 (CONTINENTAL/SIEMENS MSD80 TC1796, CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B2001 170-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
125i N52B30A 218-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
128i N51B30A 234-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
128i N52B30A 234-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
135i N54B30 306-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
M1 N54B30A 340-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
118d N47D20U0 143 (BOSCH EDC17C06 TC1766)
120d N47D20O0 177 (BOSCH EDC17CP02 TC1766)
123d N47D20T0 204 (BOSCH EDC17CP02 TC1766)
128i N51B30A 234-MSV80 (CONTINENTAL MSV80 TC1796)
[1 Series (E87)]
130i N52B30A 258-MSV90 (CONTINENTAL MSV90 TC1796)
130i N52B30B 258-MSV90 (CONTINENTAL MSV90 TC1796)
116i N43B16A 122-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
116i N43B20A 122-MSD80 MSD81 (CONTINENTAL/SIEMENS MSD80 TC1796, CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20A 136-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20A 143-MSD80 MSD81 (CONTINENTAL/SIEMENS MSD80 TC1796, CONTINENTAL/SIEMENS MSD81 TC1796)
118i N43B20M1 143-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 163-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 170-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
120i N43B2001 170-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
130i N52B30 258-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
130i N52B30 265-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
130i N52B30B 265-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
M1 N54B30 340-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
116d 2000 N47D20 115(BOSCH EDC17C06 TC1766)
118d N47D20U0 143(BOSCH EDC17C06 TC1766)
120d N47D20O0 177(BOSCH EDC17CP02 TC1766)
123d N47D20T0 204(BOSCH EDC17CP02 TC1766)
[1 Series (E88)]
125i N52B30A 217-MSV90 (CONTINENTAL MSV90 TC1796)
125i N52B30B 217-MSV90 (CONTINENTAL MSV90 TC1796)
116d 2000 N47D20 116(BOSCH EDC17C41 TC1797)
118d N47D20 143(BOSCH EDC17C41 TC1797)
120d N47D20 184(BOSCH EDC17C41 TC1797)
135i N55B30 306(BOSCH MEVD17.2 TC1797_N55)
118i N43B20A 143-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
120i N43B20A 163-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
120i N43B20A 170-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
120i N43B2001 170-MSD81 (CONTINENTAL/SIEMENS MSD81 TC1796)
128i N51B30A 234-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
128i N52B30A 234-MSD80 (CONTINENTAL/SIEMENS MSD80 TC1796)
Learn more car models, you can click here to download:
Aebi 、Alfa Romeo 、Artec 、Aston Martin、 Aston、 Audi、 Bentley、 BMW、 Bugatti、 Can-Am、 CASE、 Caterpillar、 Chang An、 Chevrolet、 Citroen、 Dacia、 Dallara、 Deutz、 Dodge、 DS、 Fendt、 Ferrari、 FIAT、 FODAY、 Force、 Ford、 Freightliner、 Geely、 Genesis Motors、 GMC 、Great Wall、 Honda 、Hyundai、 Indian、 Infiniti、 Internation、 Isuzu、 Iveco、 JAC、 Jaguar、 Jeep 、JMC 、Karsan、 Kia、 KTM、 Lada、 Lamborghini、 Lancia、 Land Rover、 Lincoln、 Mahindra、 Man、 Maserati、 Massey Ferguson、 McLaren、 Mercedes、 Mg、 Mini、 Mitsubishi Fuso、 New Holland、 Nissan、 Opel、 Peugeot 、Piaggio、 Polaris、 Porsche、 Renault、 Saab、 Sea Doo、 Seat、 Skoda、 Steyr、 Subaru 、Suzuki 、Toyota 、UAZ 、Valtra、 Vauxhall、 Volkswagen(VW)、 Volvo
