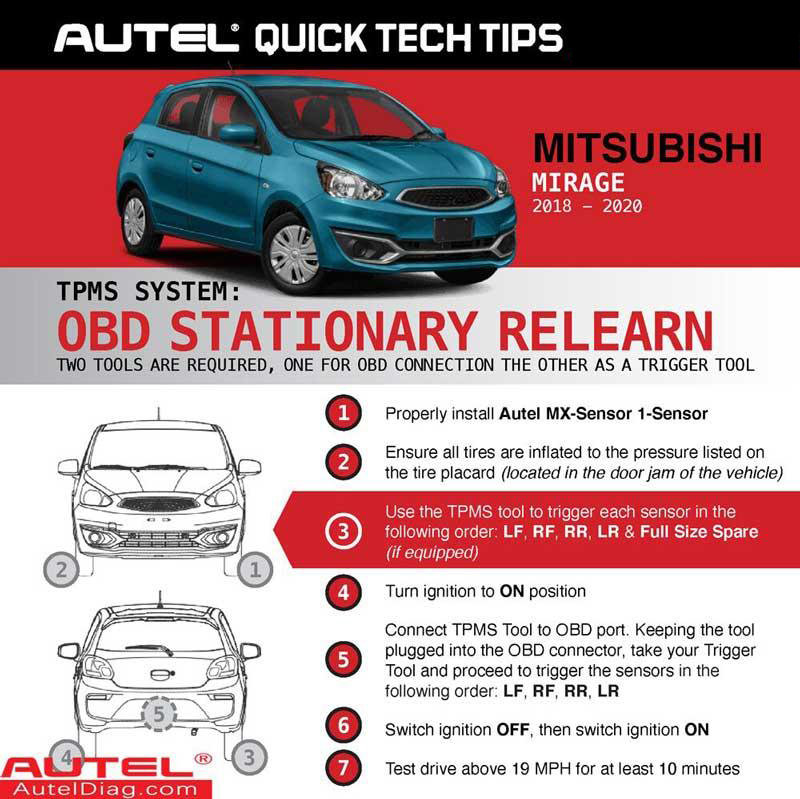

Autel TS508 Do TPMS Relearn for Mitsubishi Mirage 2018-2020

TPMS tool Autel MaxiTPMS TS508 can perform an OBD stationary relearn for Mitsubishi Mirage 2018-2020 successfully.

2 tools are required, 1 is for OBD connection, the other as a trigger tool.

Operation Steps

1. Properly install Autel MX-Sensor 1 Sensor;
2. Ensure all tires are inflated to the pressure listed on the tire placard(located in the door jam of the vehicle);
3. Use the Autel TS508 tool to trigger each sensor in the following order: LF, RF, RR, LR & full size spare(if equipped);
4. Turn ignition to ON position;
5. Connect Autel TS508 tool to OBD port. Keeping the tool plugged into the OBD connector, take your trigger tool and proceed to trigger the sensors in the following order: LF, RF, RR, LR;
6. Switch ignition OFF, then switch ignition ON;
7. Test drive above 19 MPH for at least 10 minutes.

Done!

This is how to use Autel TS508 to do TPMS relearn for Mirage 2018-2020.
