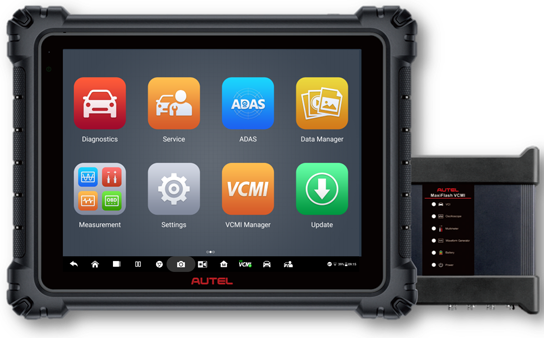

AUTEL MAXISYS ULTRA DIAGNOSTIC & MEASUREMENT SYSTEM With Advanced VCMI

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet designed to maximize technician intelligence. It features a 13-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory, all powering the new split-screen multi-application navigation to provide diagnostic guidance and test components to confirm repairs. Combined with the dynamic topology module mapping, enhanced Auto SCAN features and Intelligent Diagnostics options, the Ultra offers the technicians step-by-step repair guidance. The new MaxiFlash VCMI functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. The convenient docking station featured ensures you always have the power to scan.

Description
1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
3. Automatic system and software updates with real-time push message notifications via internet
4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Features

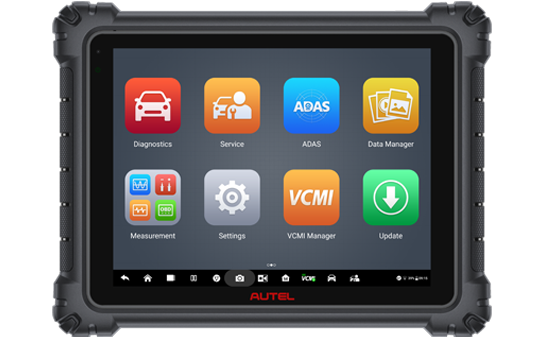

· Large 12.9’’ Touchscreen (2732 x 2048)
· Android 7.0
· 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
· Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
· Oscilloscope Preset Guided & Component Tests / Waveform Library
· New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
· Split Screen Multi-Application Function / Dual Wi-Fi Connection

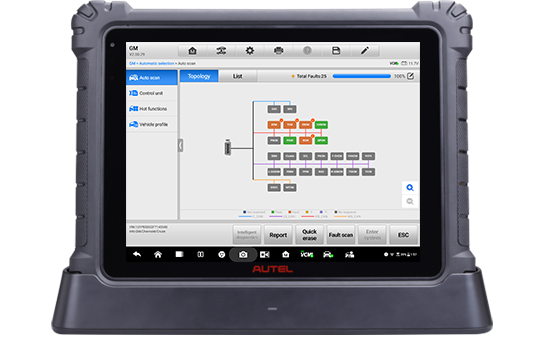

· Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
· Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
· Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
· Code-Related Technical Service Bulletins (on select vehicles)
· License Plate Reader
· ScanVIN: Barcode or Text Recognition with Camera
· Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

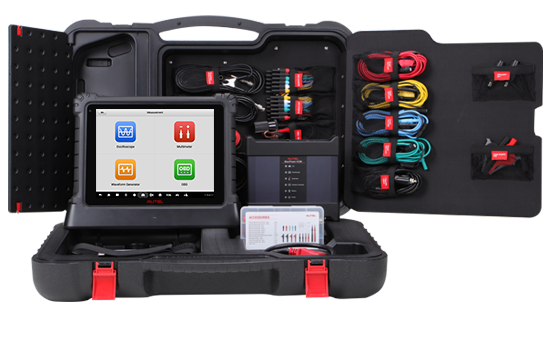

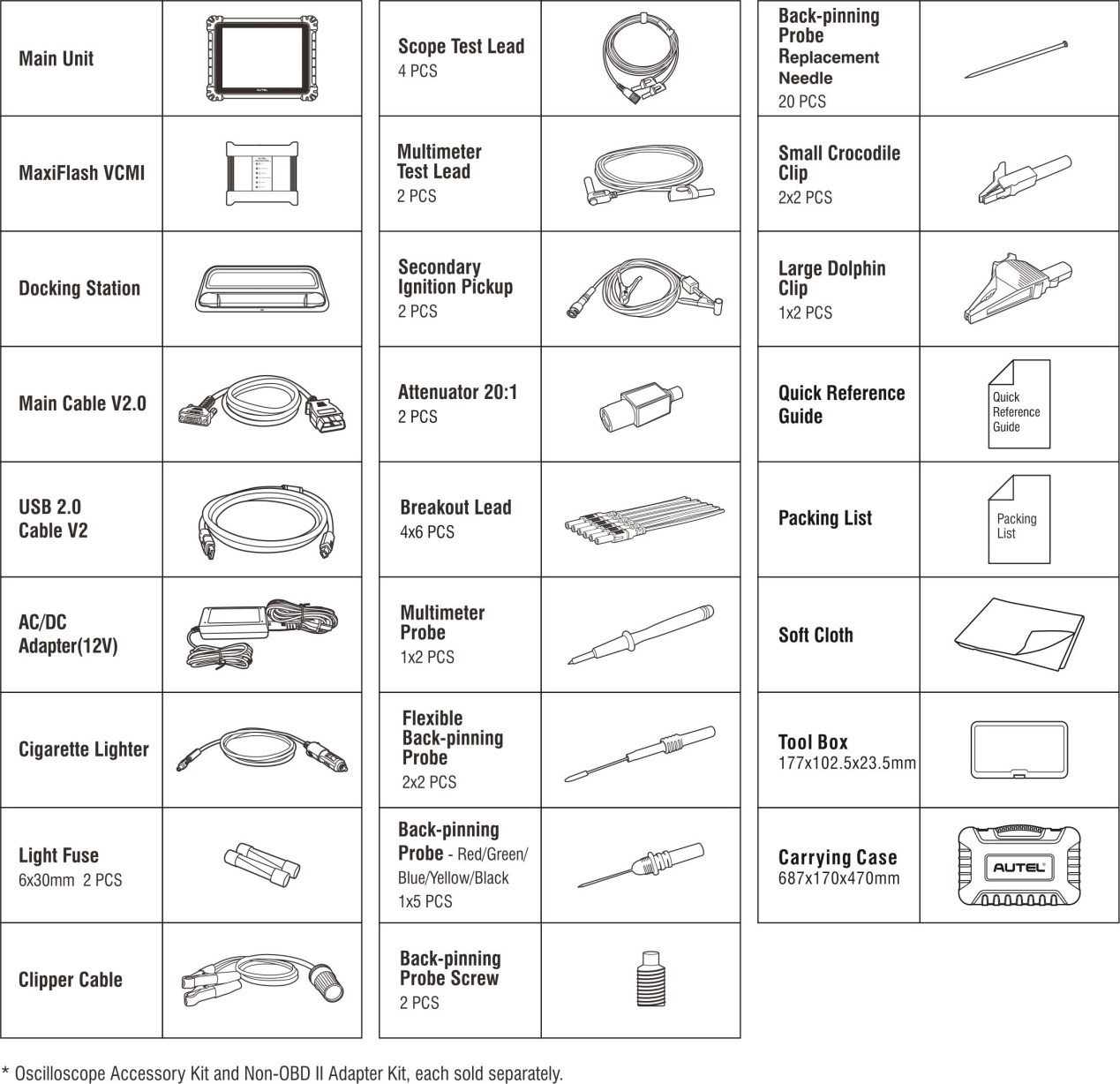

· Includes Docking Station, Cables, Scope Connectors, Carrying Case
· Enhanced Diagnostic Reports: PreSCAN & PostSCAN
· 18000mAh – 8hrs Continuous Use
· 16MP Rear Camera & 5MP Front Camera
· 1-year Warranty & Software Subscription

Specifications

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 256GB On-board Memory
Display	12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touch screen
Connectivity	WiFix2 (802.11 a/b/g/n/ac 2×2 MIMO) BT v.2.1 + EDR GPS USB 2.0 (Two USB HOST Type A, one USB mini device) HDMI 2.0 SD Card (Support up to 256GB)
Camera	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temperature	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	366.5 mm (14.43″) x 280.9 mm (11.06″) x 34 mm (1.34″)
Weight	2.18kg (4.81 lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
