In this article, we will provide you with a step-by-step guide on how to retrofit the rear LED light with Xentry-DAS (Driver Assistance System) in your Benz 204 model. Retrofitting your vehicle not only enhances its appearance but also improves safety and functionality. Follow these instructions carefully to ensure a successful installation.
Related Contents:
Benz DTS Monaco Software Free Download
Procedures:
1 Start DAS and do a quick test

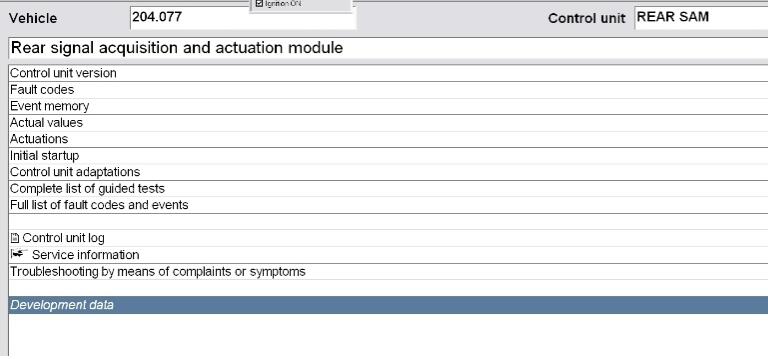

2 Open rear sam and go to development data

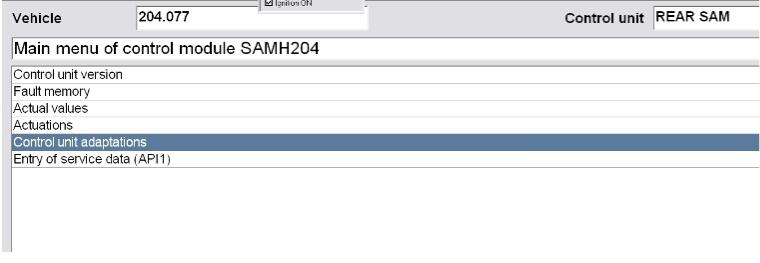

3 Select control unit adaption

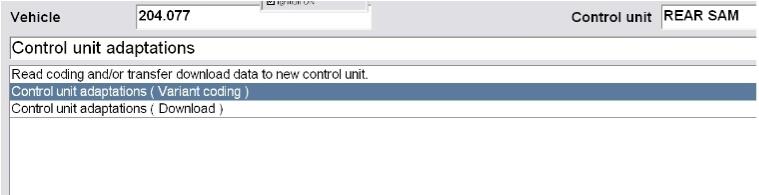

4 Go to the Control unit adaptions (Variant Coding)

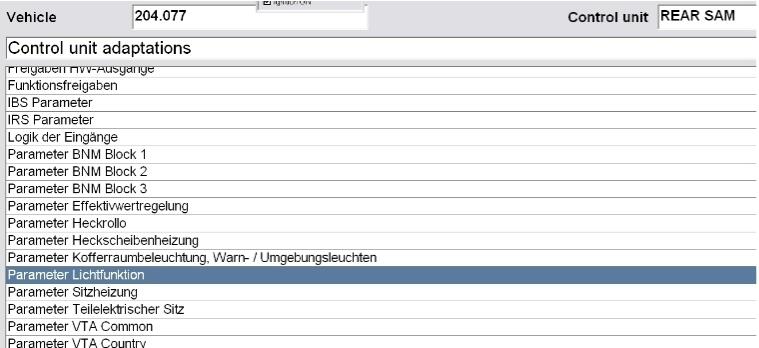

5 Go to the Parameter Lichtfunction

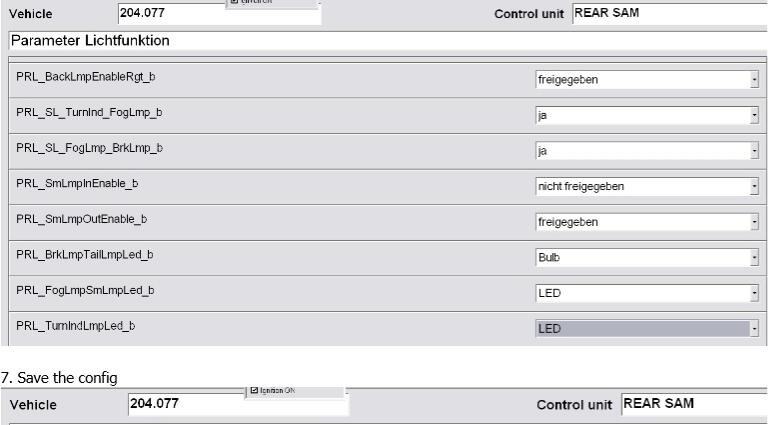

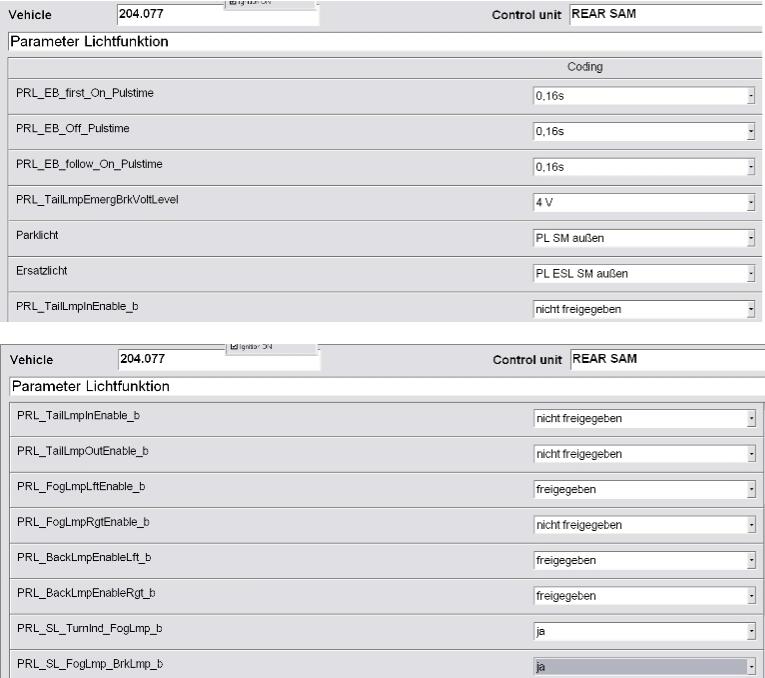

6 Change the coding according to the below screenshots:
7 Save the config

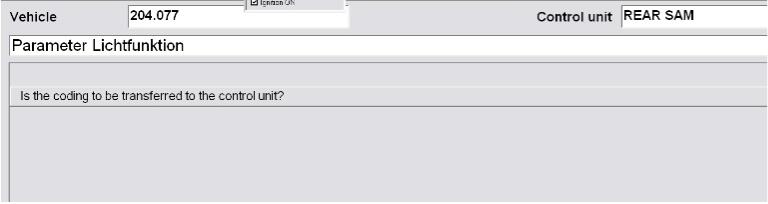

8 Select “YES”

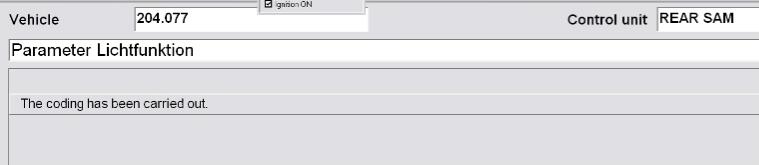

Now shut down DAS, shut down the car and lock it, now start the car again and everything should be working correctly.
