Background: Partial manufacturers don’t support free pincode key programming currently, for the convenience of locksmiths, OBDSTAR developed checking pincode function.
Remarks: Using OBDSTAR Key Master DP Plus & Key Master 5 one-click free pincode key programming.
Detail Steps:

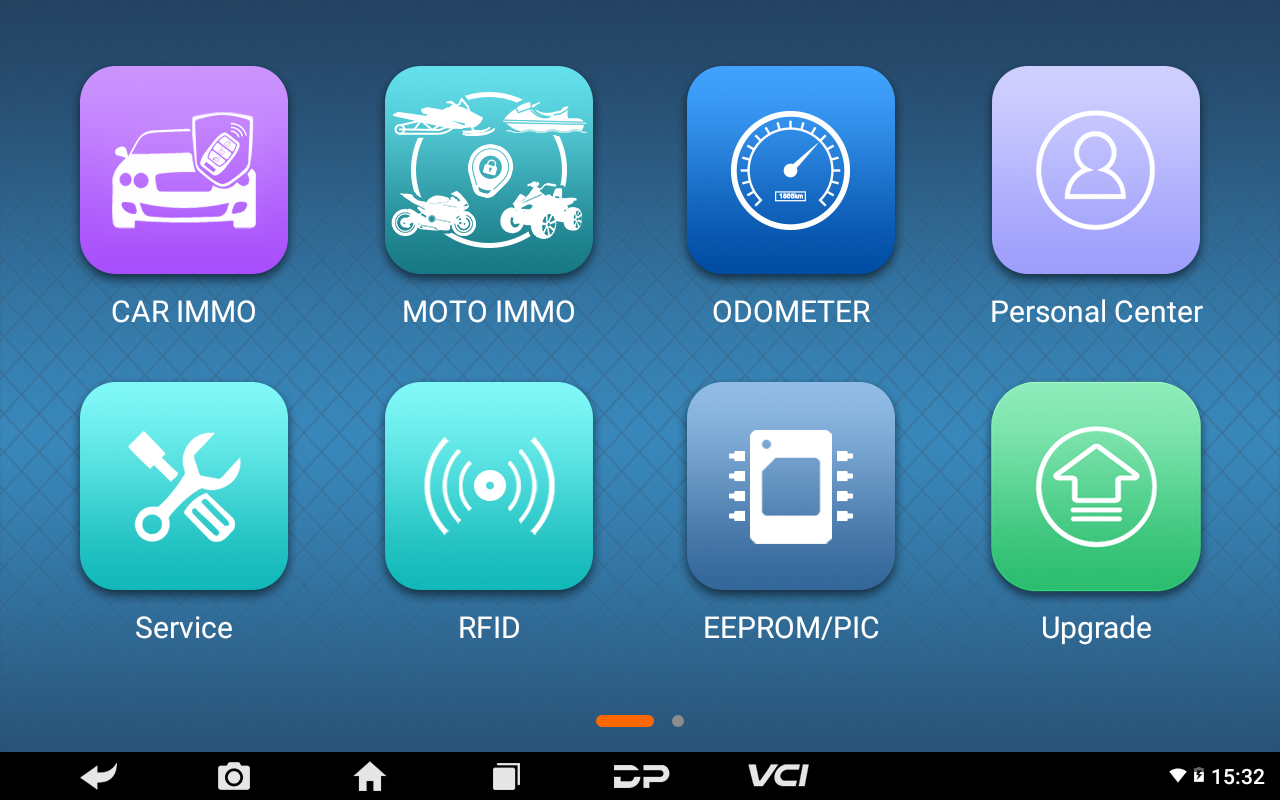

①Connect Key Master DP Plus to a car, enter into【CAR IMMO】;

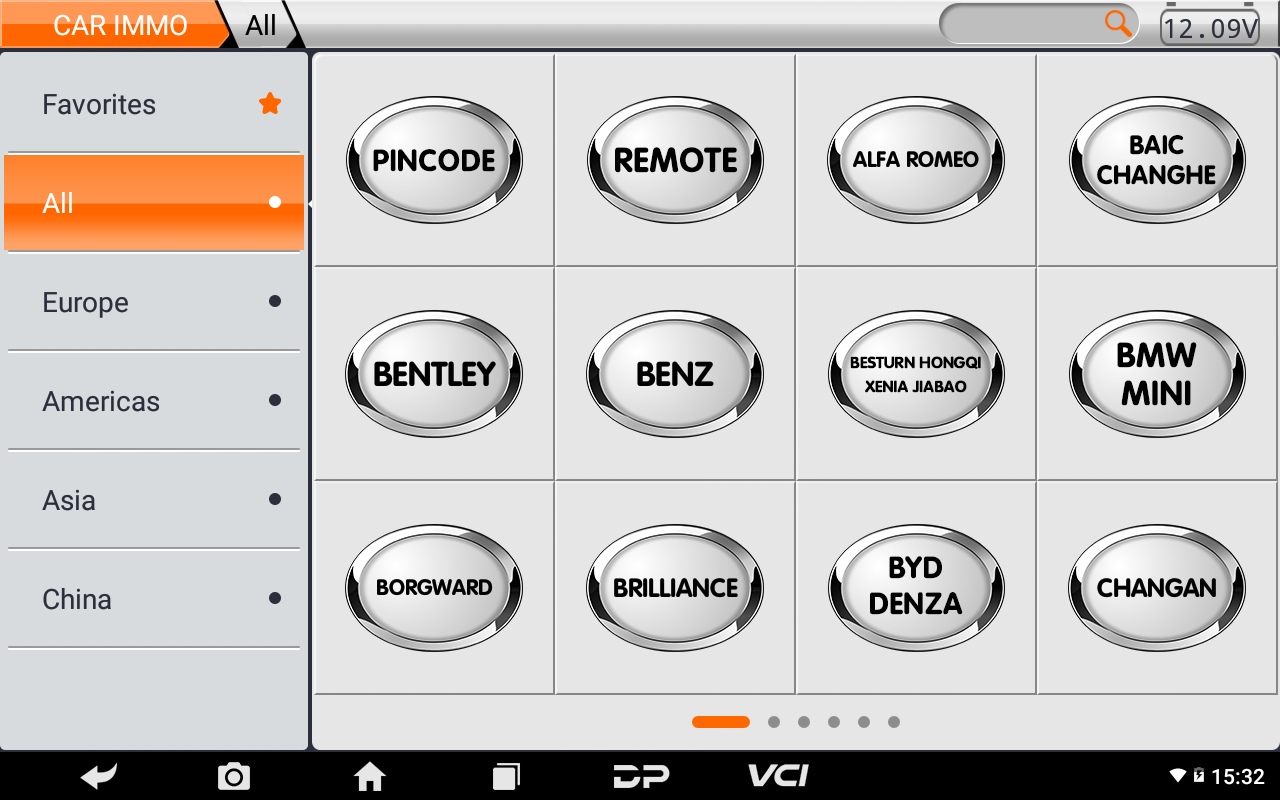

②Click【PINCODE】;

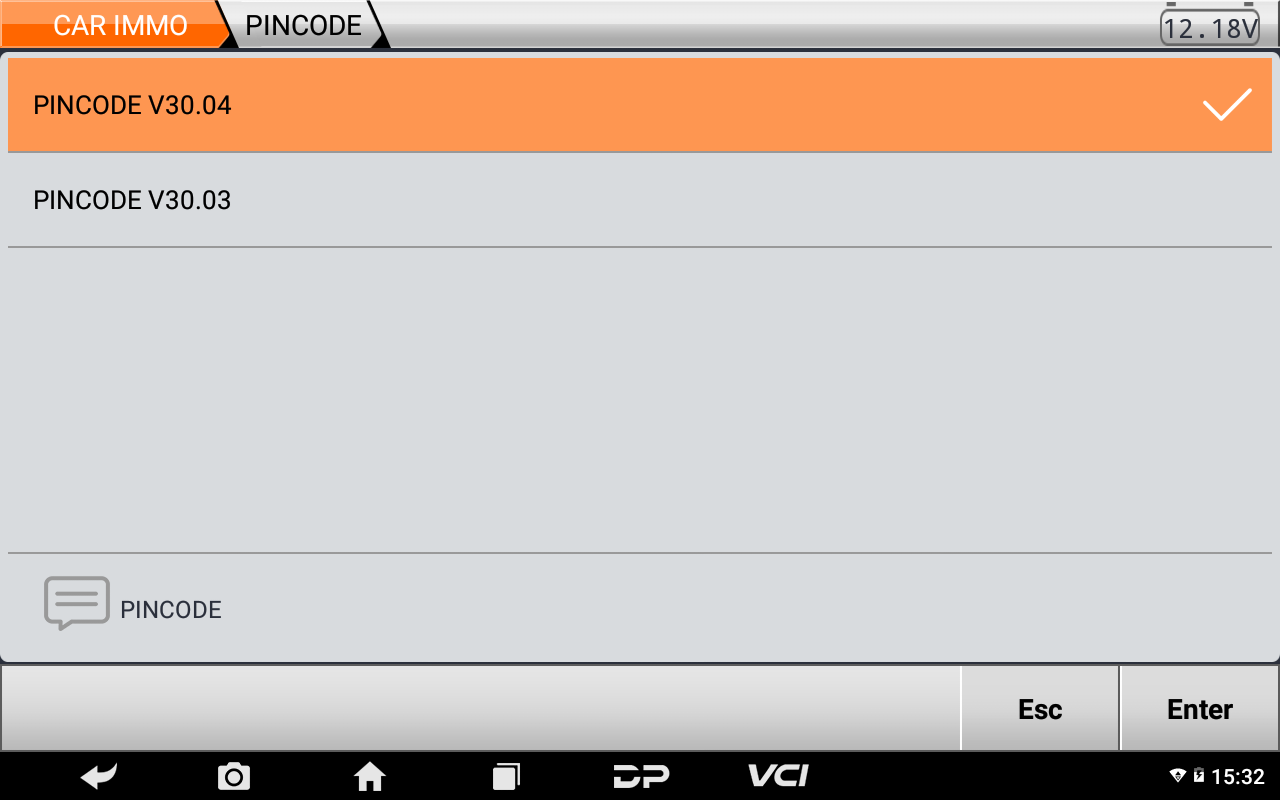

③Click the newest PINCODE edition;

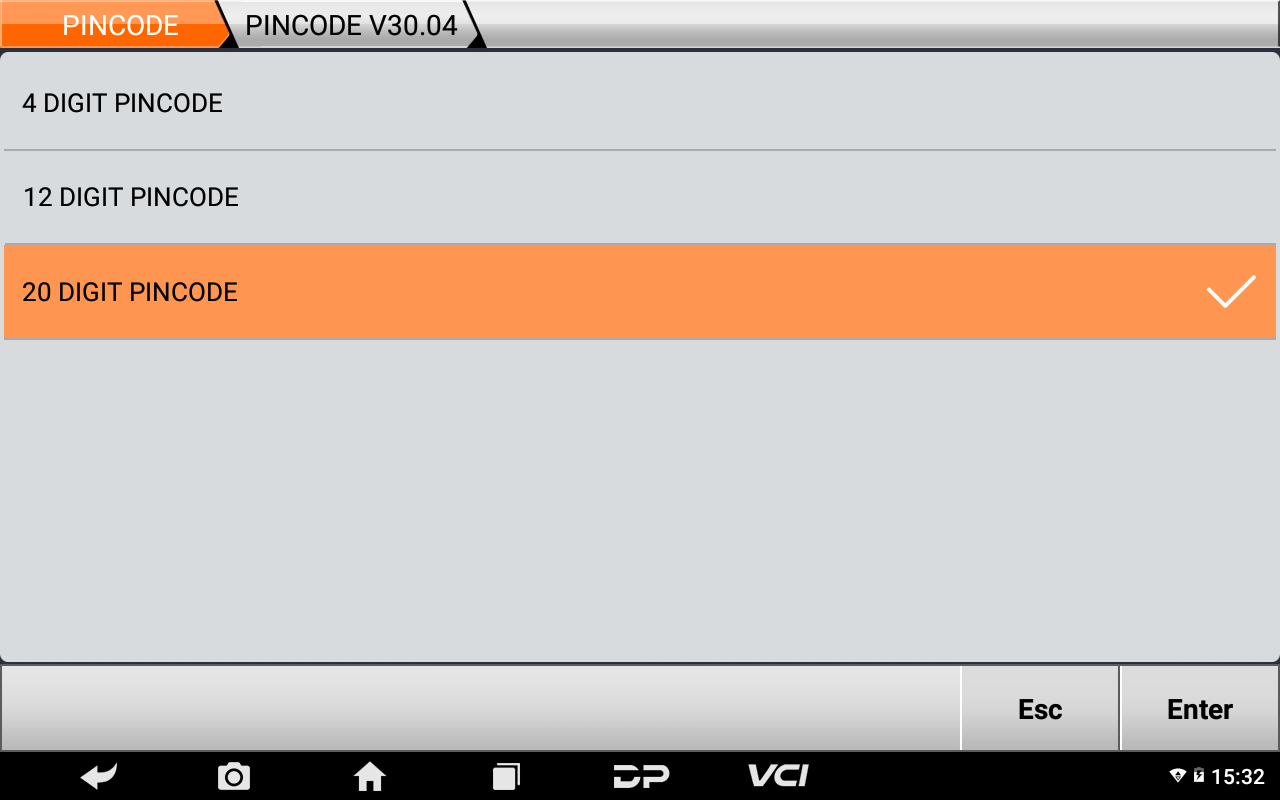

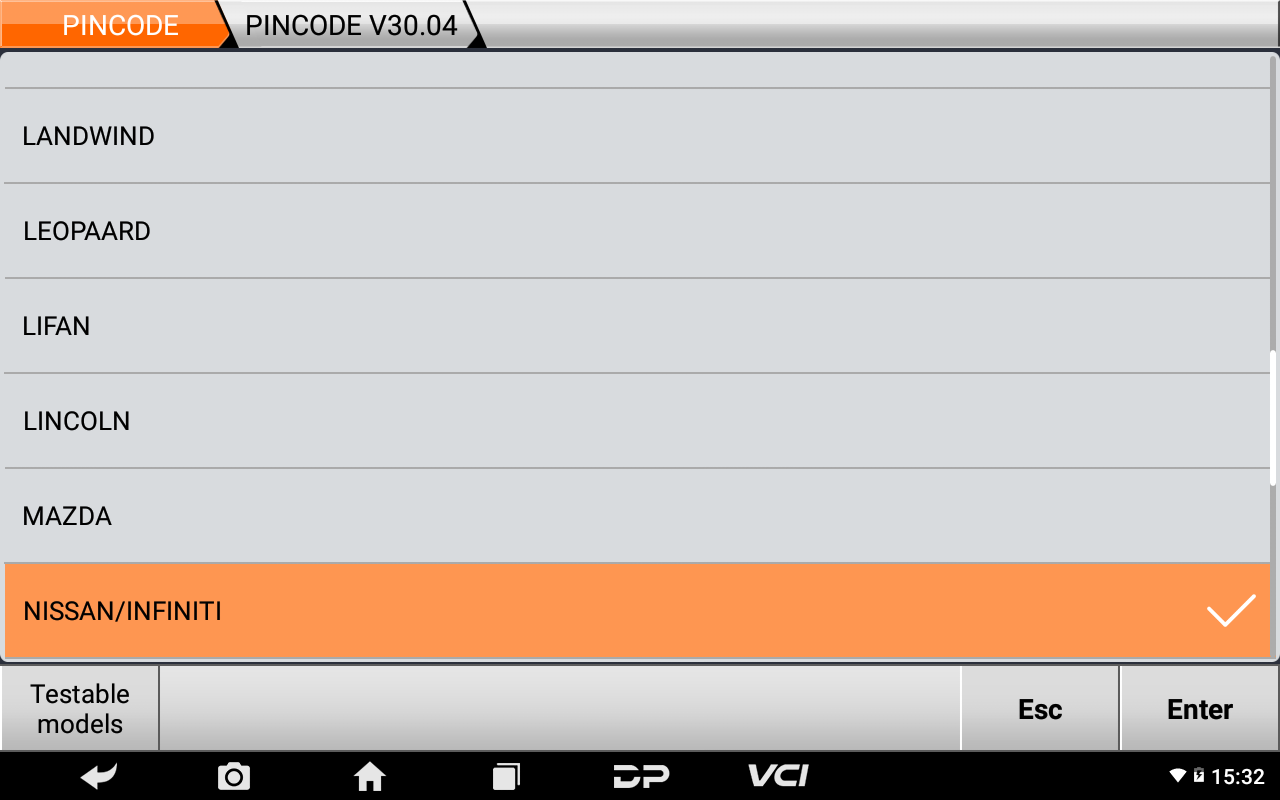

④Click【NISSAN/INFINITI】, 【20 DIGIT PINCODE】, 【KICKS】;

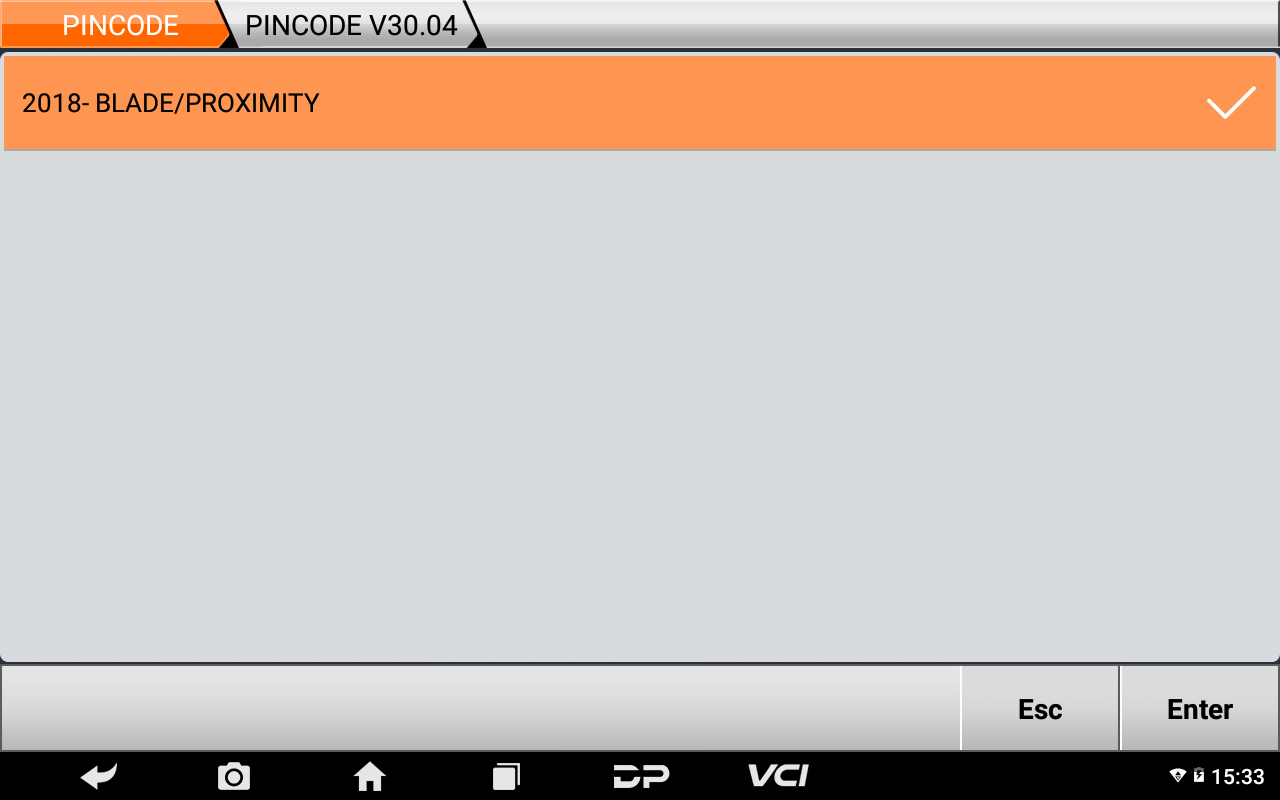

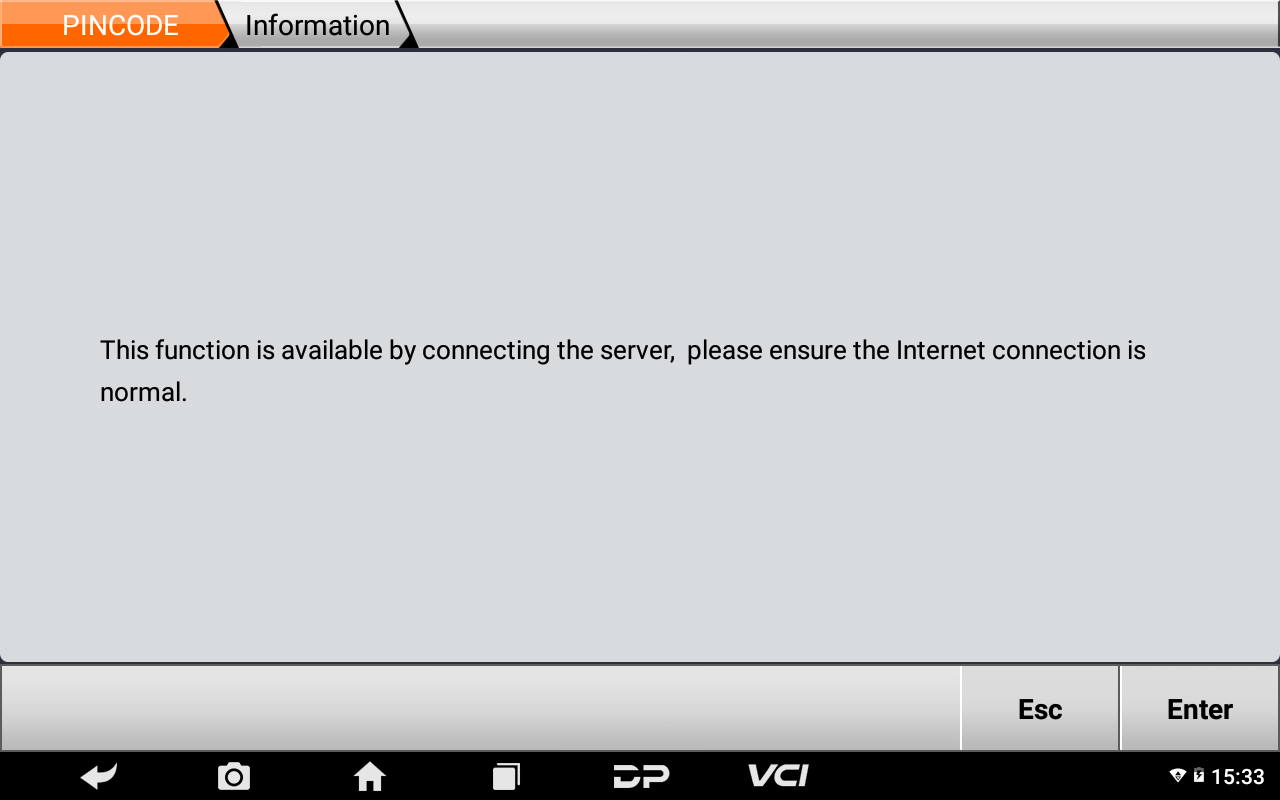

⑤Click【Enter】;

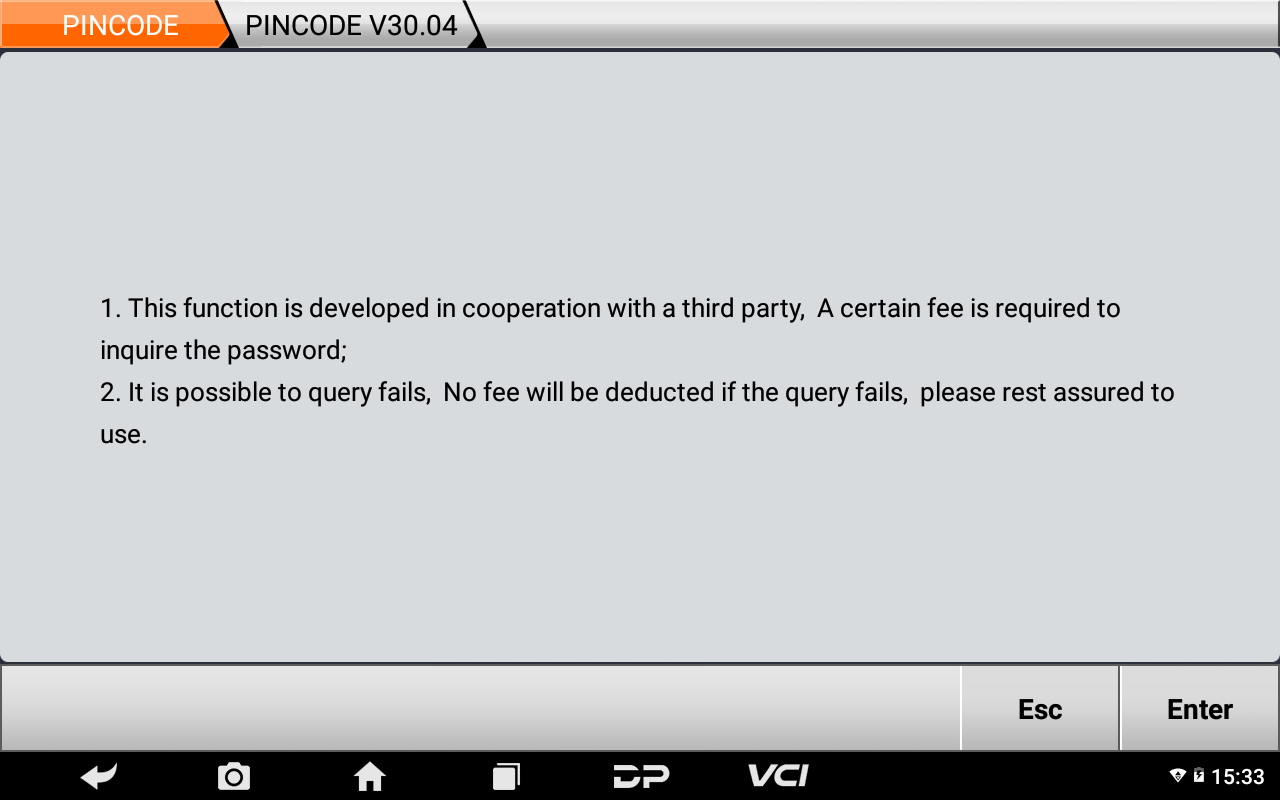

⑥Read note, click【Enter】;

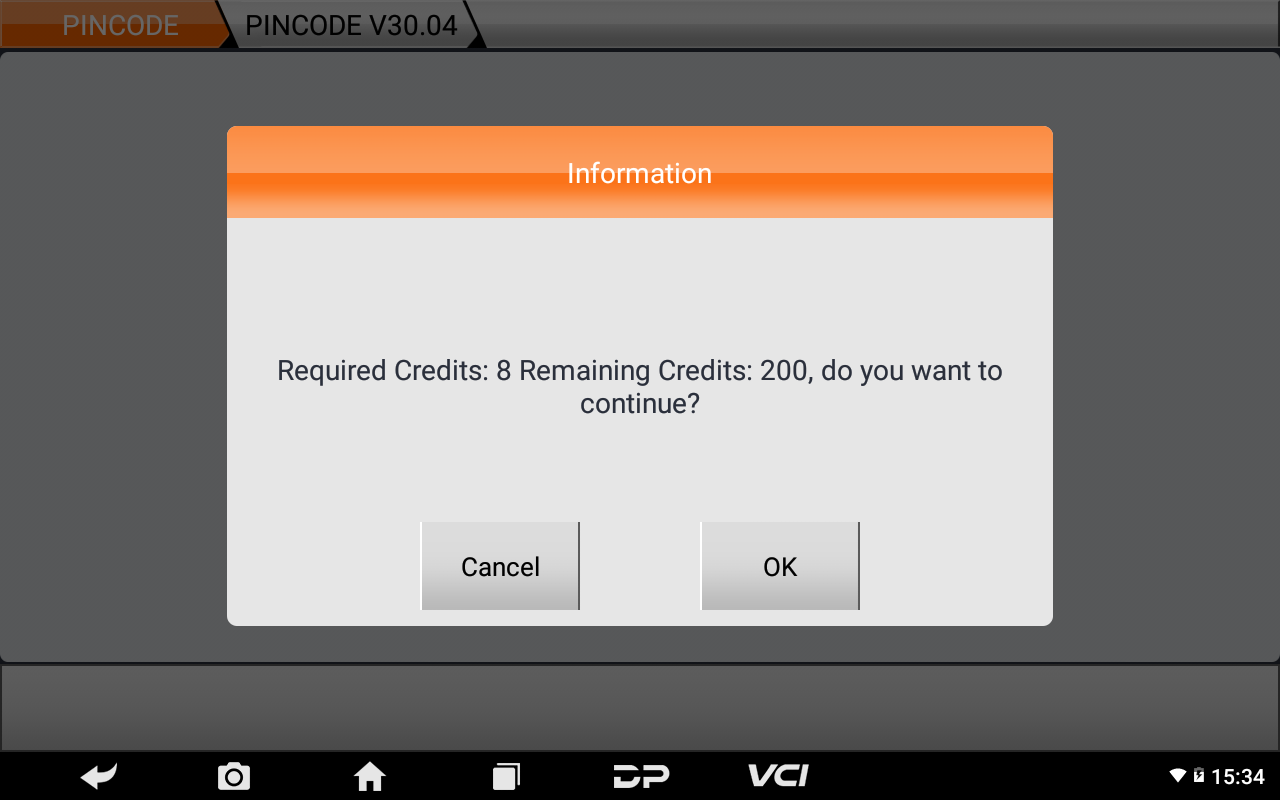

⑦Checking pincode requires 8 credits each time, click【OK】;

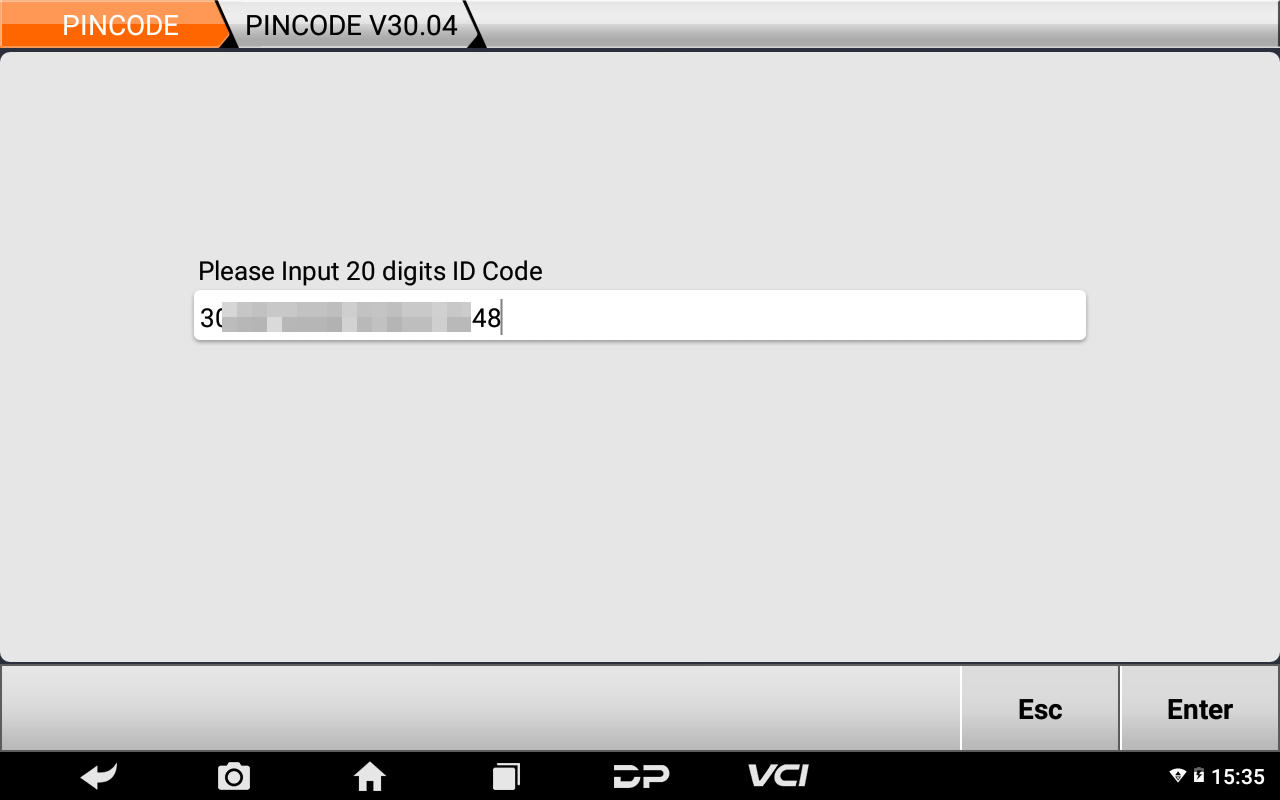

⑧Input 20 digits ID code reading out by the device from other manufacturer, click【Enter】;
Remarks:20 digits ID code(actual 22 digits, but only input the first 20 digits).

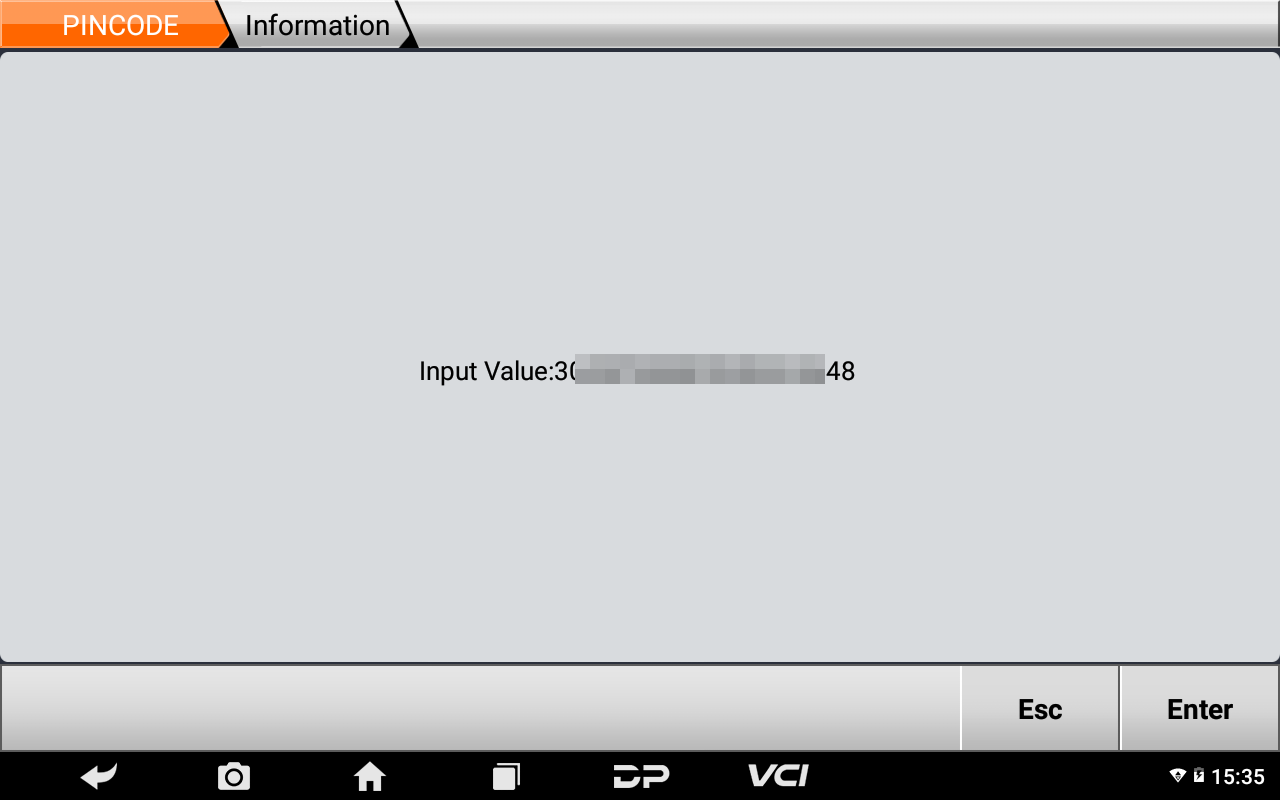

⑨Confirm 20 digits ID code, click【Enter】;

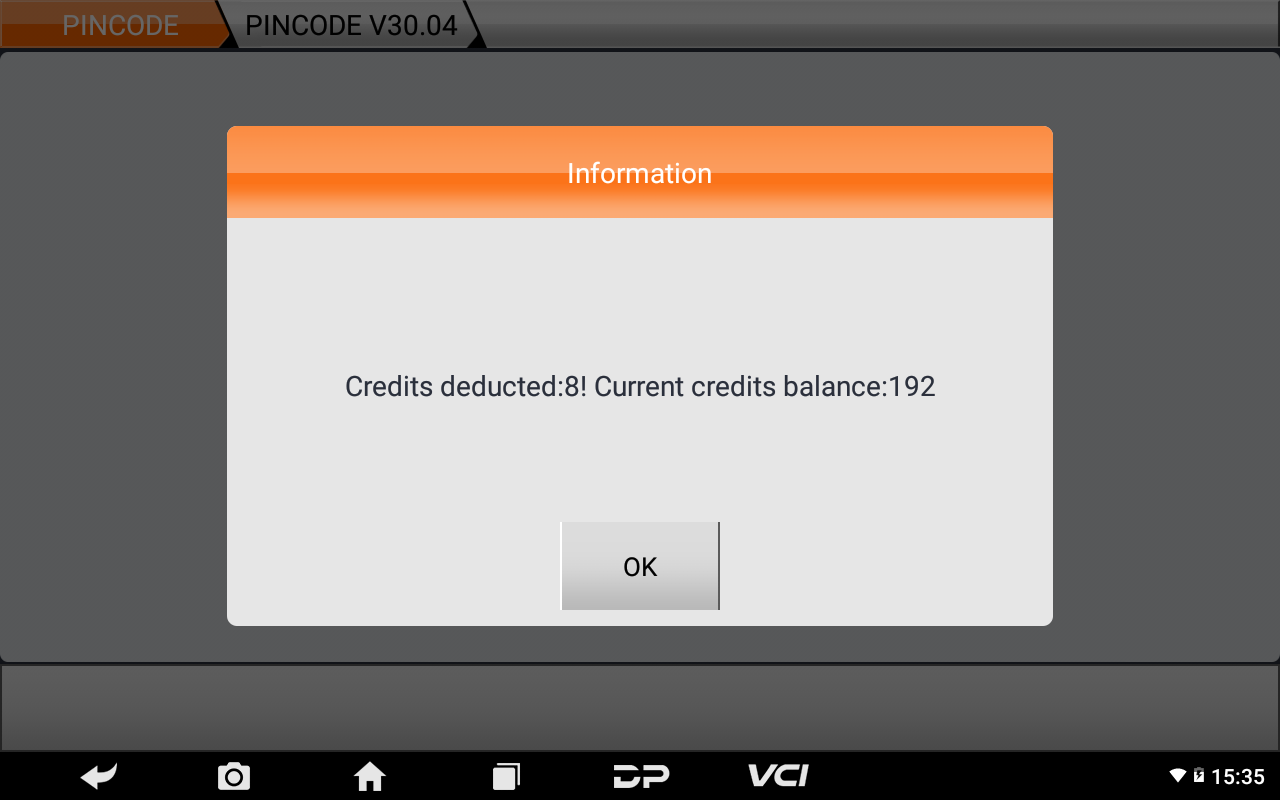

⑩Check successfully, 8 credits deducted, click【OK】;

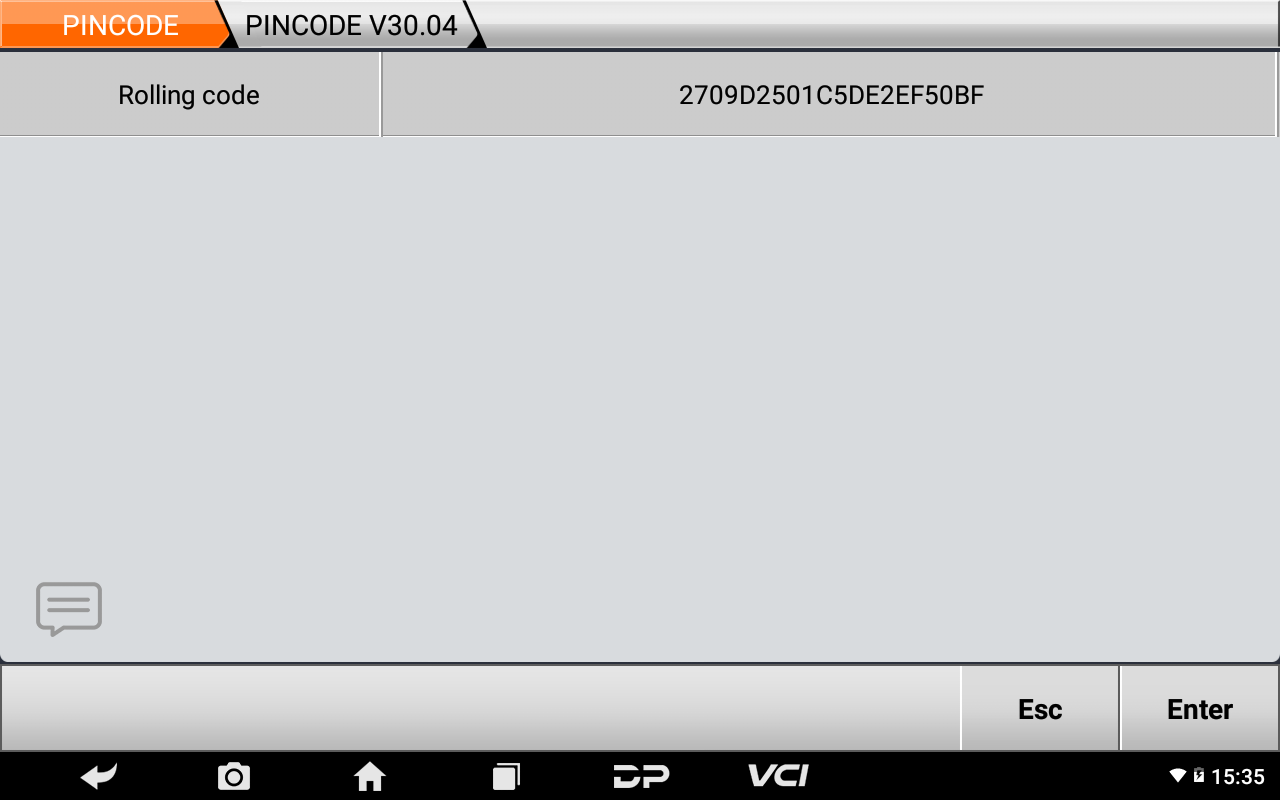

⑪Rolling code has been calculated out successfully.
Remarks: Input rolling code calculated into the device of other manufacturer.
Summary
Pls strictly follow your device tips in your operation process.
