2014 Porsche Cayenne Base Default Coding List by Launch X431 V+

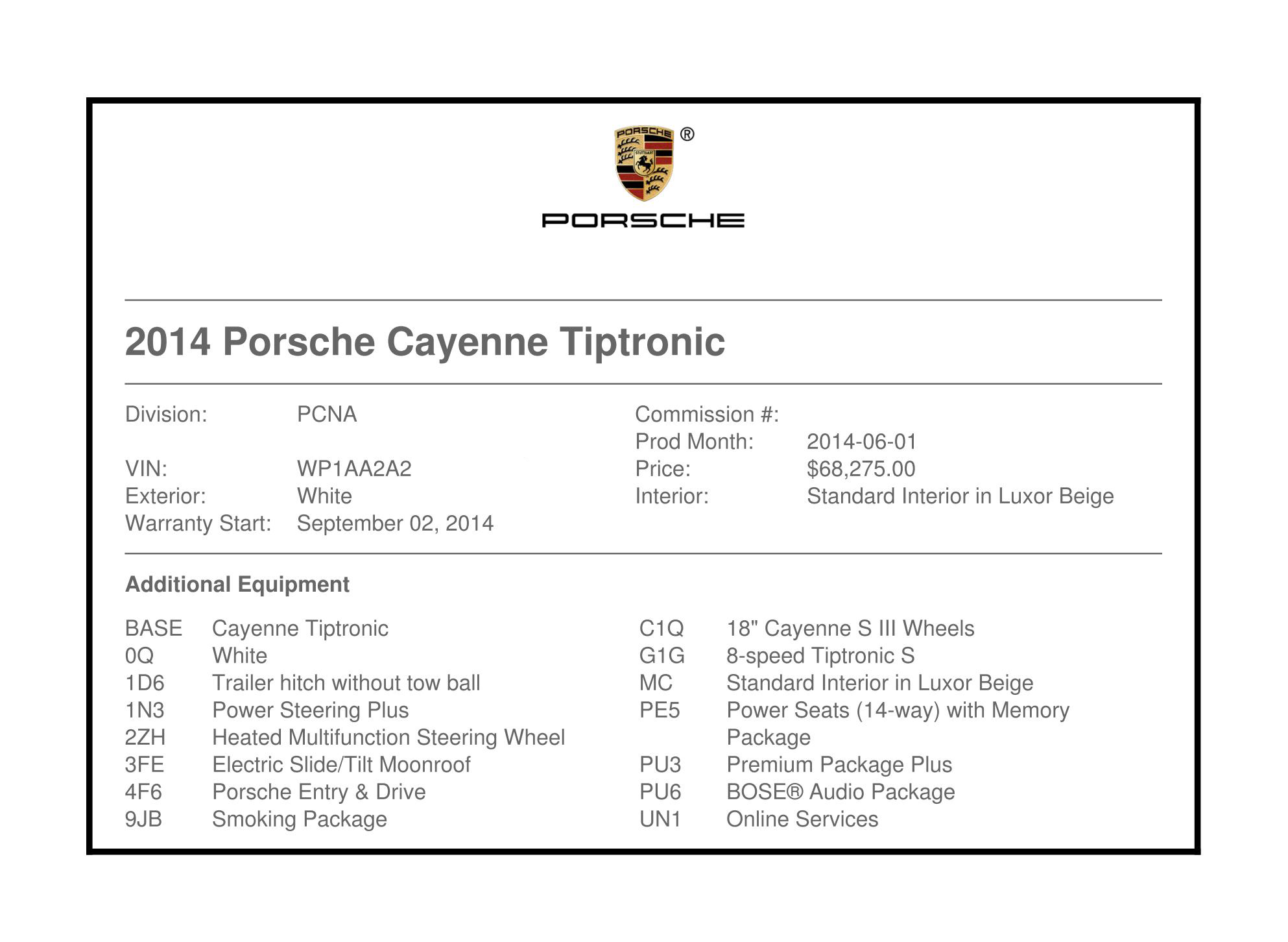

After my parking brake coding fiasco yesterday, I thought I go through all the modules and take down all the default coding. See below for the default coding on a 2014 base model with the following equipment. Maybe others can chime in and provide additional coding info.

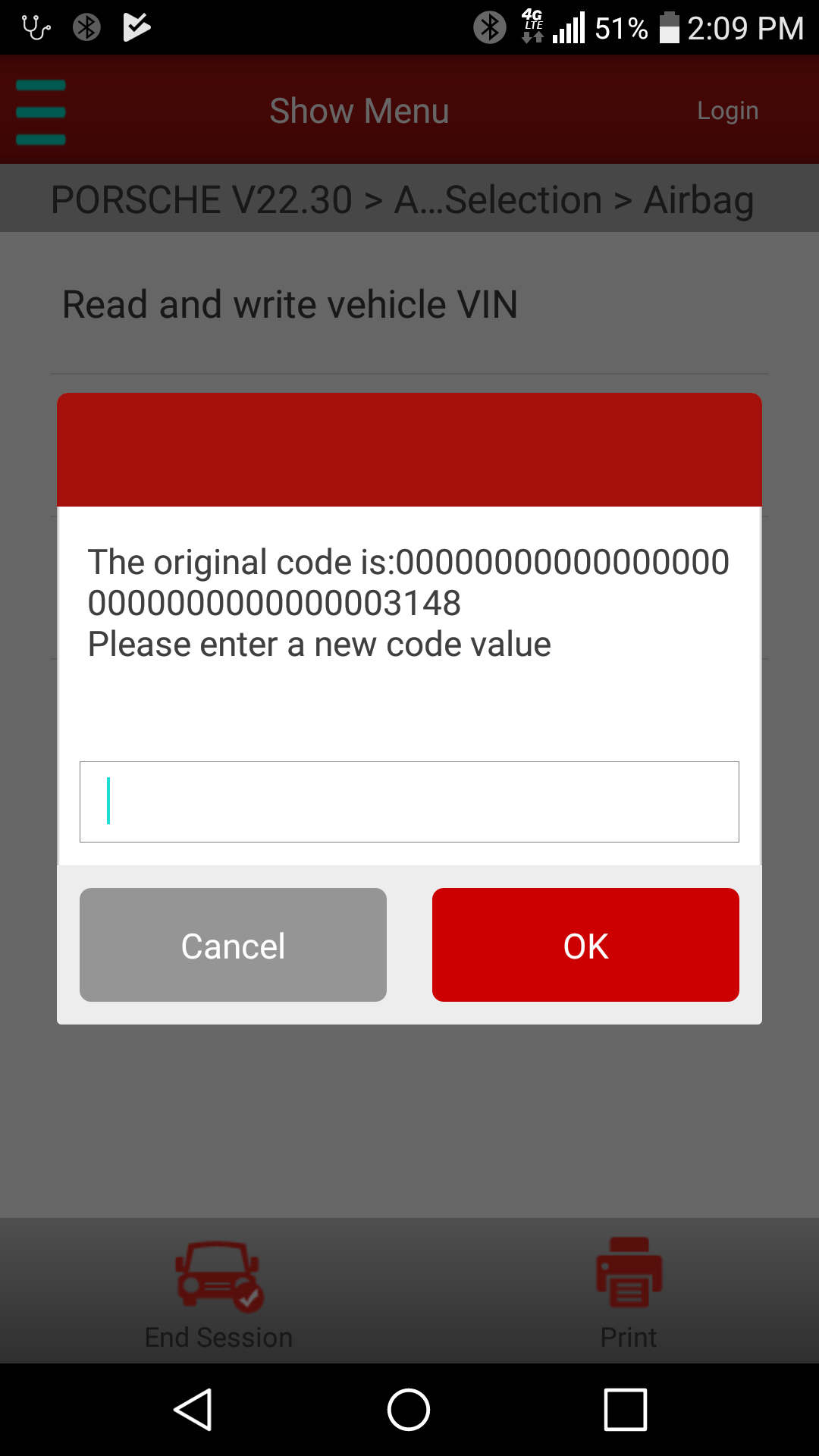

Airbag > 000000000000000000000000000000003148
Gateway > 0011
(DME) Digital Engine Electronics > 006A0012433601000000
Transmission Control > 00B568
Instrument Cluster > 5E038DD2DF112B
Steering Wheel Electronic > 916E03
Additional Instrument:Watch > 0100000000004B0096000000
Air Conditioning > 0580E80100000000
Park Assist> 000022

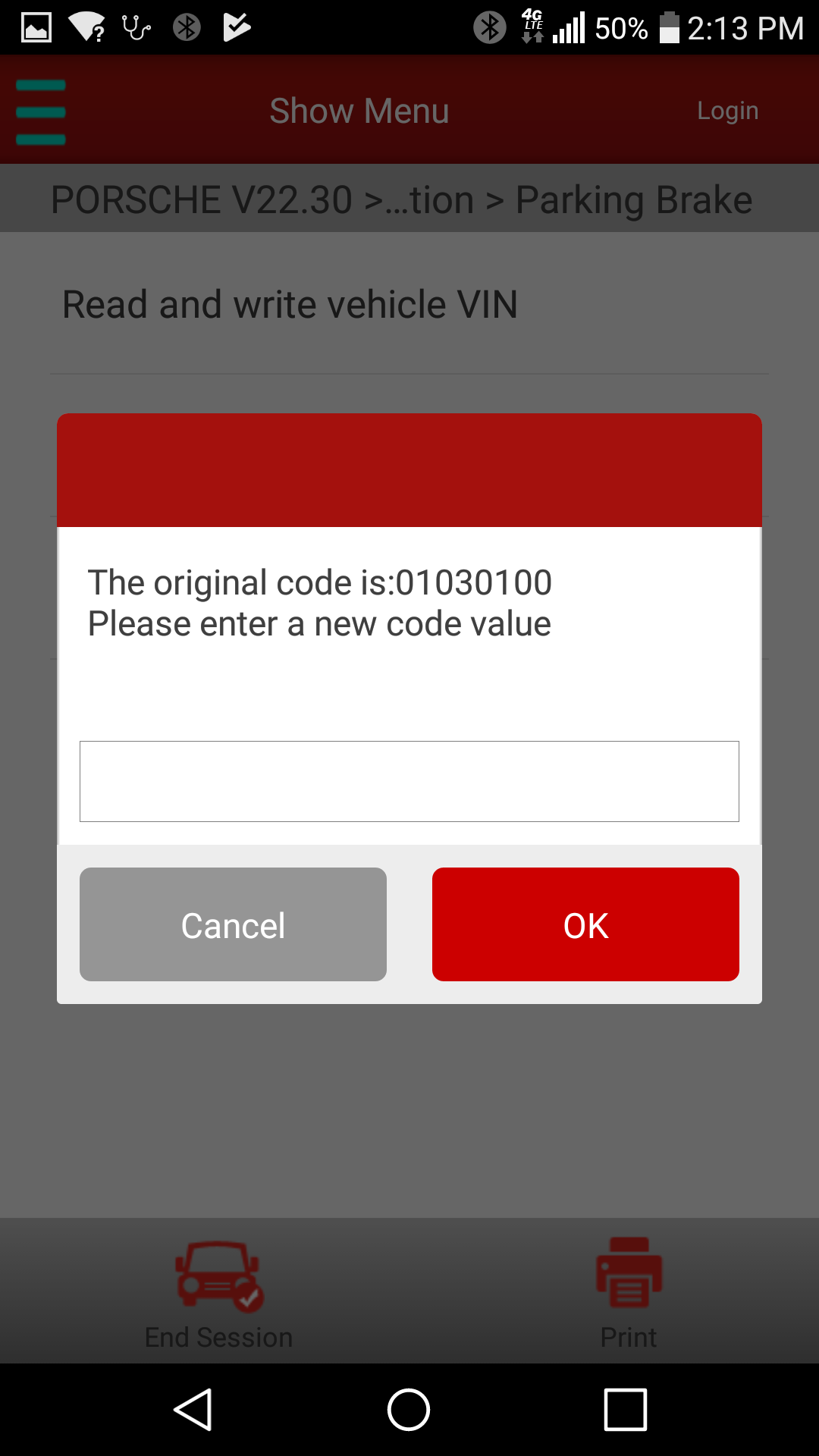

Parking Brake > 01030100
Tire Pressure Monitoring(TPM) > 01041F00

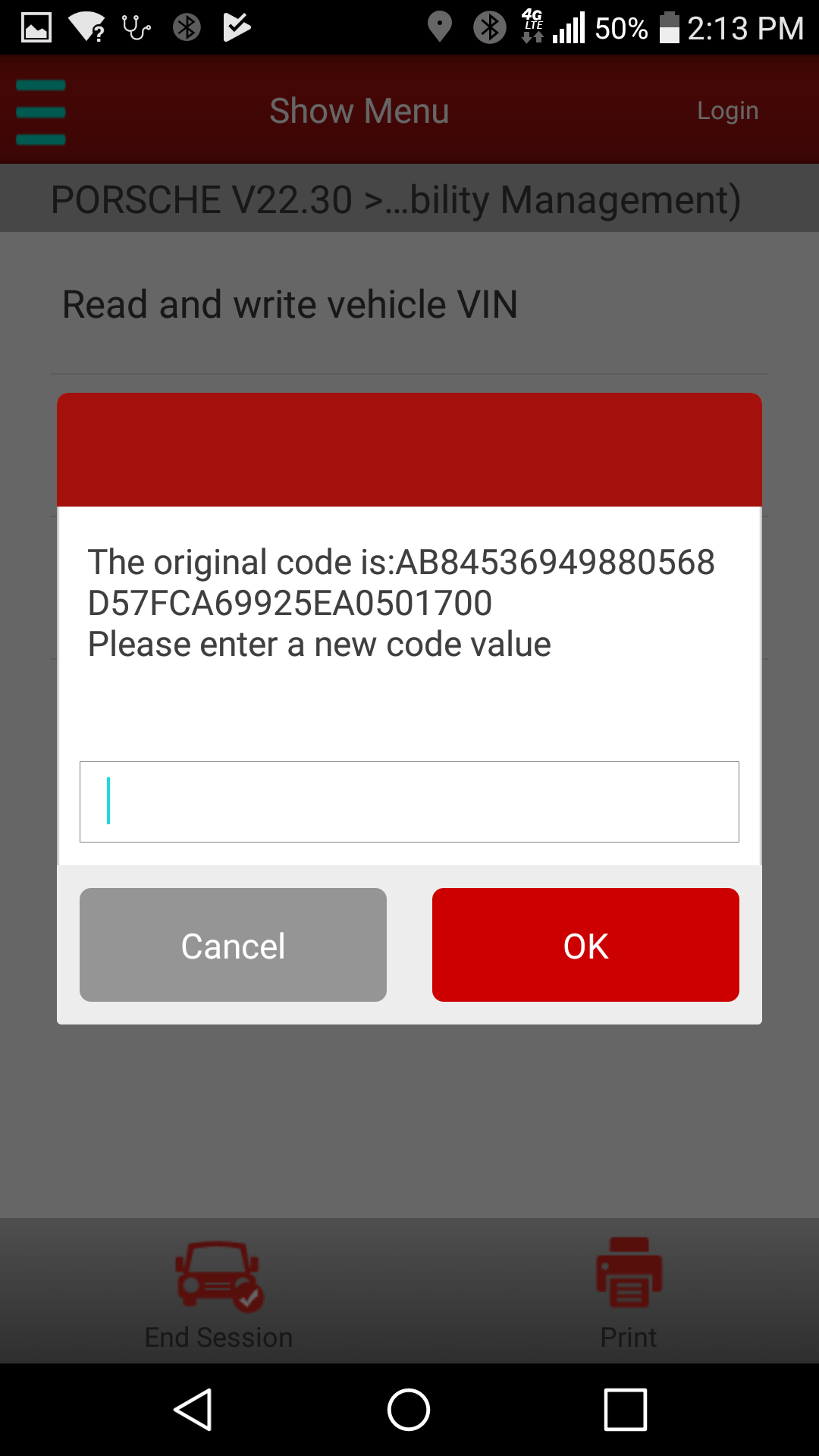

(PSM)Porsche Stability Management > AB84536949880568D57FCA69925EA0501700

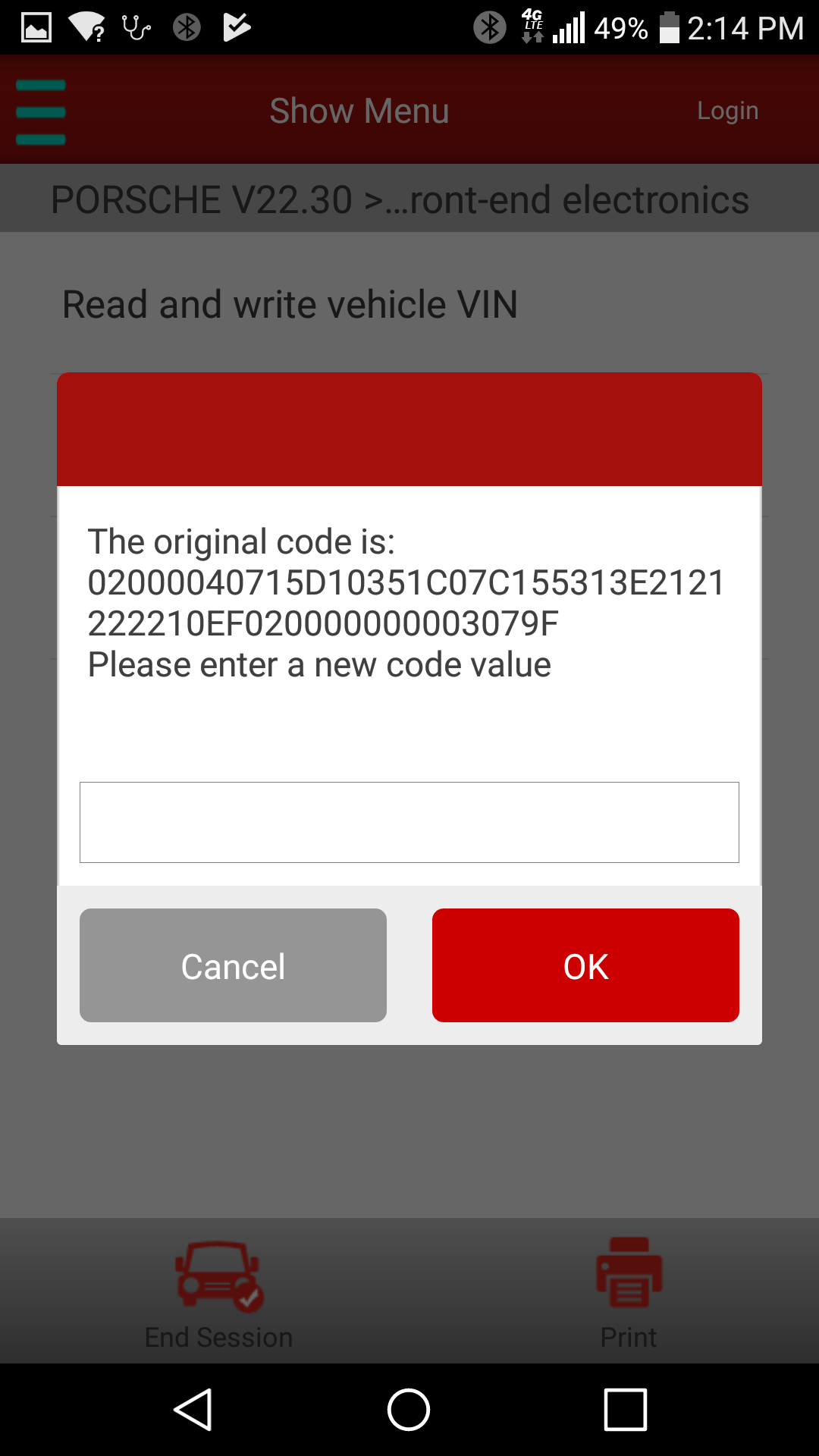

Front-End Electronics > 02000040715D10351C07C155313E2121222210EF020000000003079F

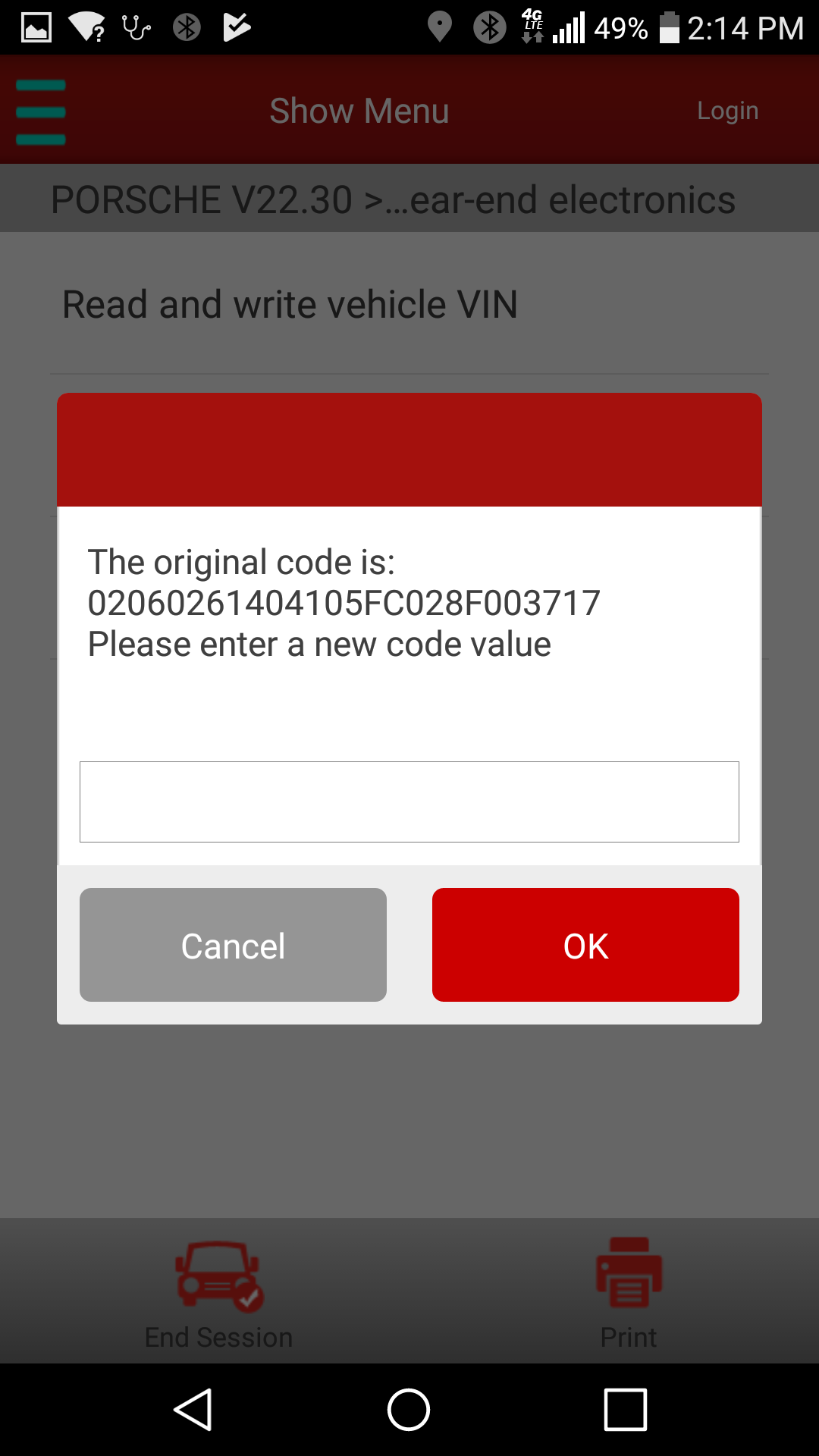

Rear-End Electronics > 02060261404105FC028F003717
Left Headlight > 2EA41A
Right Headlight > 2EA41A

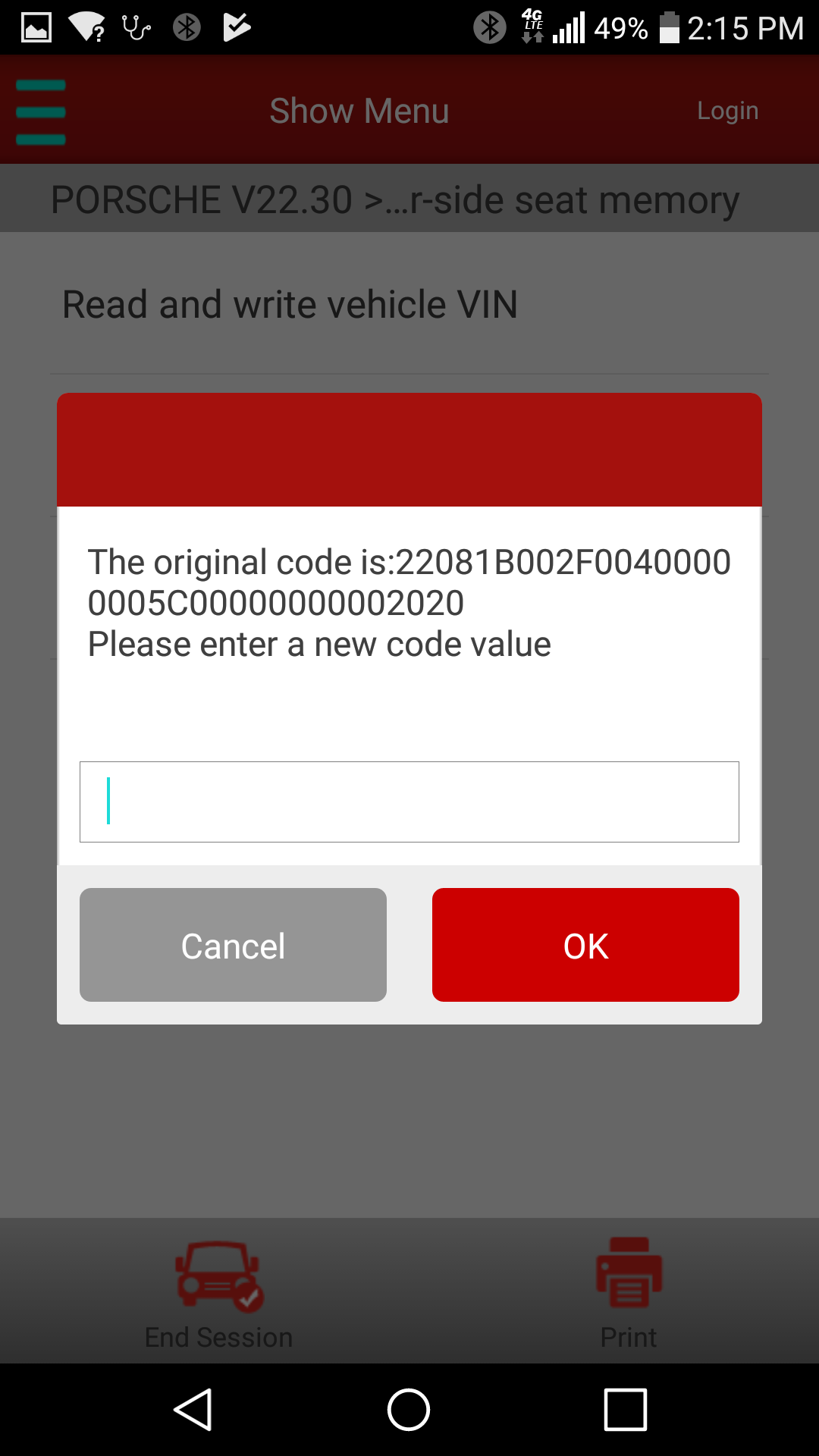

Driver-Side Seat Memory > 22081B002F00400000005C00000000002020
Passenger-Side Seat Memory > 22001A002F00400000005400000000002020
Driver’s Door > 012F53207EA0436203050000
Passenger’s Door > 012F53207EA0436203050000
Rear Left Door > 010E512021A0236013000000
Right Rear Door > 010E512021A0236013000000
All-Wheel Drive > 01
Rear Lid > 0123018123
