2012 Fiat Phillips throttle self-learning operation method （for launch X431 V， Launch X431 V+ pro3 ，X431 mini pro）
【X431 Actual Measurement】2012 Fiat Phillips throttle self-learning operation method
Measured models: 2012, 1.4T, VIN=LWVAA1568CA0*****
Steps:
1. Select Fiat V34.00 or later.
2. Choose manual selection.
3. Select new models (eg Freemont, 500L, Viaggio, etc.).
4. Select 500.
5. Select 2012.
6. Select system selection.
7. Select PCM (Power Control Unit).
8. Click on the “Throttle body self-learning” menu option, as shown in Figure 2.

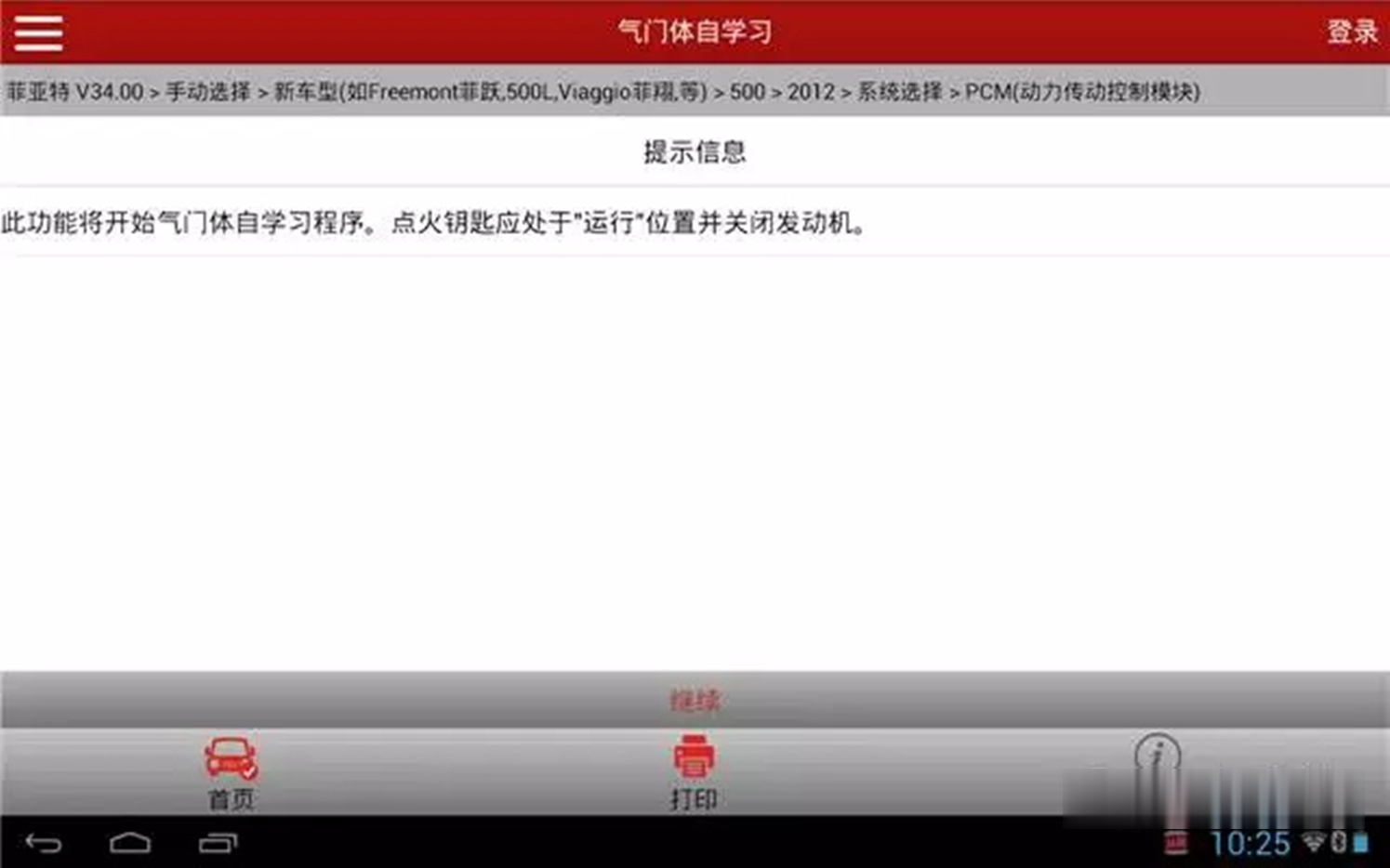

9. At the beginning of the function execution, some precautions will be prompted. The key should be in the running position and turn off the engine, as shown in Figure 3.
10. When the engine is running, prompt message in Figure 4, click the “Continue” button to re-judgment the state of the engine, only to turn off the engine can be performed down.

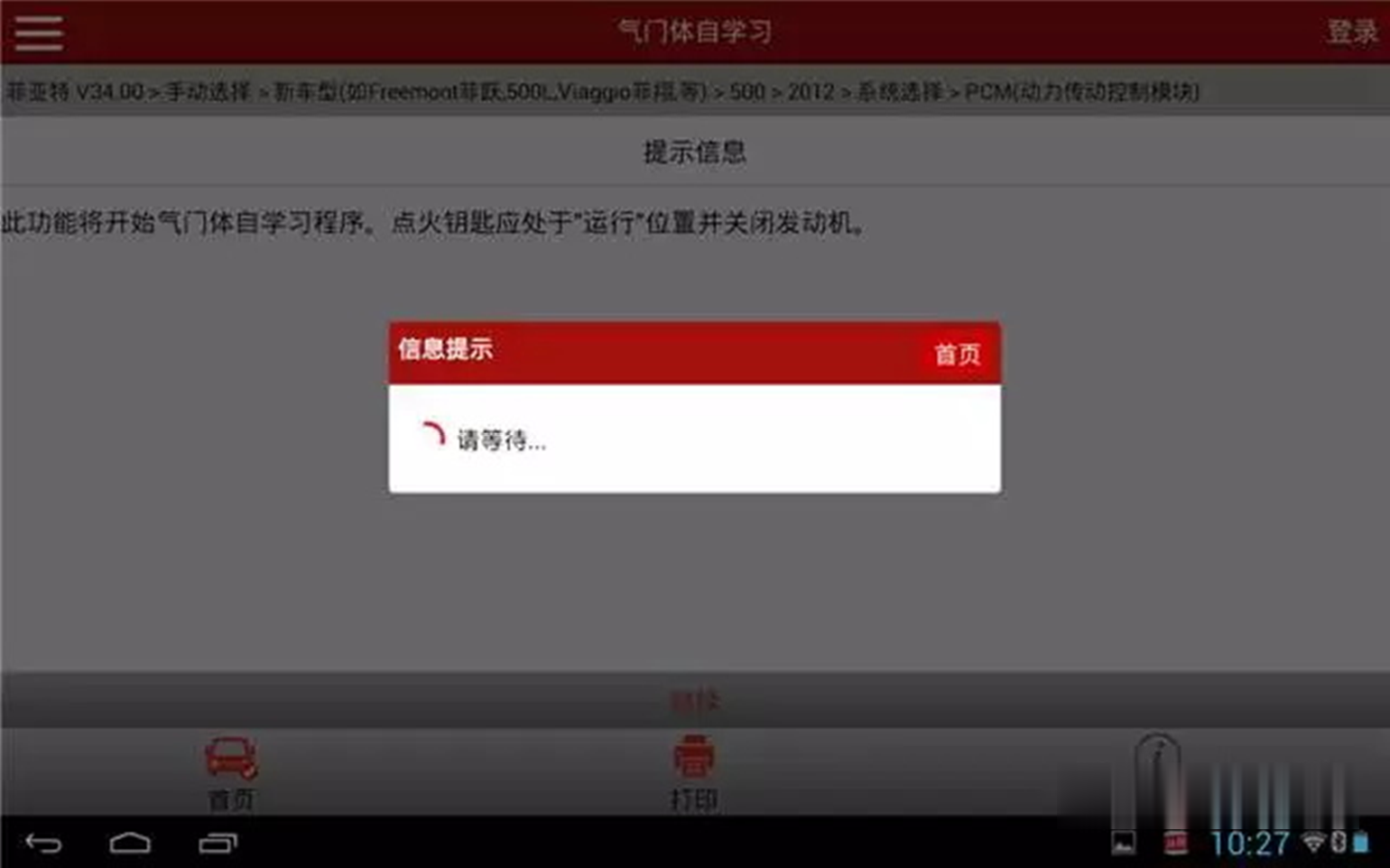

11. When the conditions are met, the following interface will appear, this time to wait 10 seconds, as shown in Figure 5.

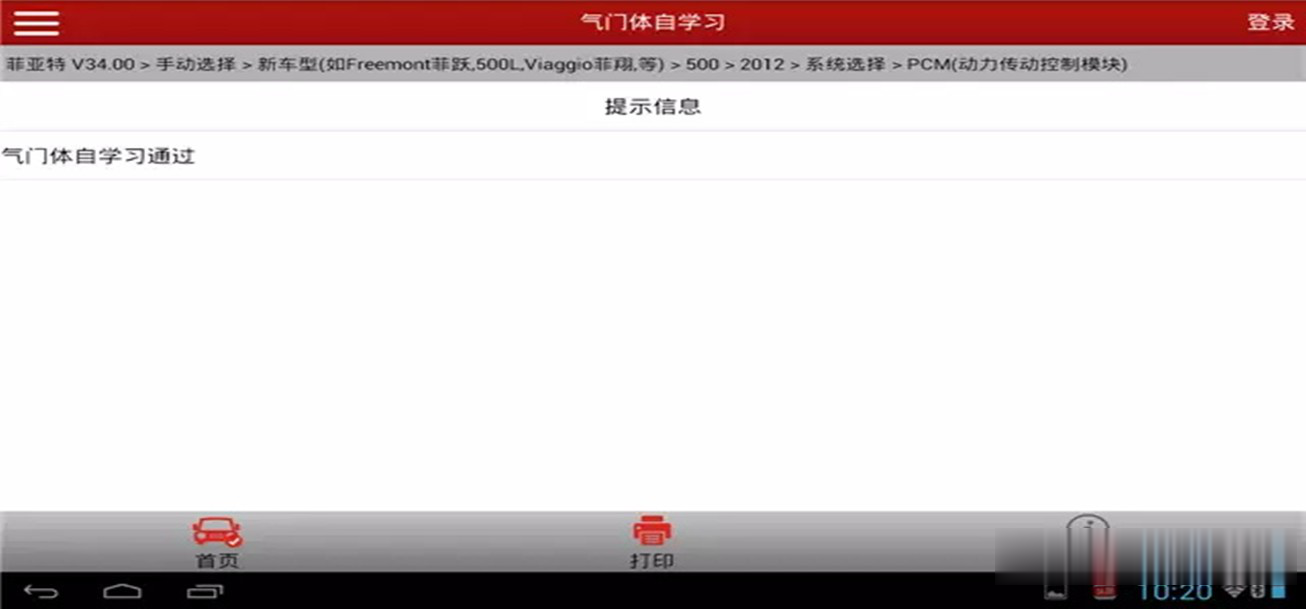

12. The function succeeds and the interface of Figure 6 appears. The function is ended.
